CYP CDPS-41SQ Manuel utilisateur

CDPS-41SQ

4 x 1 HDMI Seamless Quad PIP Scaler

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.0 December 2012

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 17/10/13 Preliminary Release

VR1 07/03/14 Add Support Chart

VR2 20/06/14 Update RS-232 & OSD, Add

WebGUI

VR3 18/07/14 Add RS-232 Command

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

6. Operation Controls and Functions....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel.........................................3

6.3 Remote Control................................4

6.4 RS-232 Protocols ...............................5

6.5 OSD MENU.........................................6

6.6 RS-232 & Telnet Commands..........14

6.7 Telnet Control .................................21

6.8 WebGUI Control .............................22

7. Specications ...................................... 27

8. Connection and Installation............... 29

1. INTRODUCTION

The 4 x 1 HDMI Seamless Quad PIP Scaler is a high performance, high

speed zooming/shrinking system that can be easily congure and

control for quad or picture-in-picture video processing. Allowing 4

different input sources to be freely selected and arranged on one

single display with supporting output resolution up to 1080p and audio

up to 8CH 192kHz for both input and output. Screen setting hot keys

with IR and RS-232 & Telnet allows instant control and switching on the

output display.

2. APPLICATIONS

• Broadcasting room and control

• Surveillance room and control

• Public advertisement and control

• Digital Presentation

3. PACKAGE CONTENTS

• 1 x 4 by 1 HDMI Seamless Quad PIP Scaler

• 1 x Remote Control (CR-124)

• 1 x 12V/3A DC Power Adaptor

• Operational Manual

4. SYSTEM REQUIREMENTS

Input source equipments such as DVD/Blu-ray players and PC/NB

devices and output HD TV/monitor.

5. FEATURES

• Seamless switching between channels and windows

• Zoom and Shrink 4CH input image and or to overlay them

• Supports PIP, POP and multi-windows display

• Supports OSD, RS-232, Telnet, Remote and on-panel controls

• Fade-In-Out, Chromakey, Mirror and Rotation (90˚ left & right and

180˚ up & down) functions

• 8 Screen setting hot keys and extra 4 customized favorite screen

setting

• Support individual channel size and position adjustment

6. OPERATION CONTROLS AND FUNCTIONS

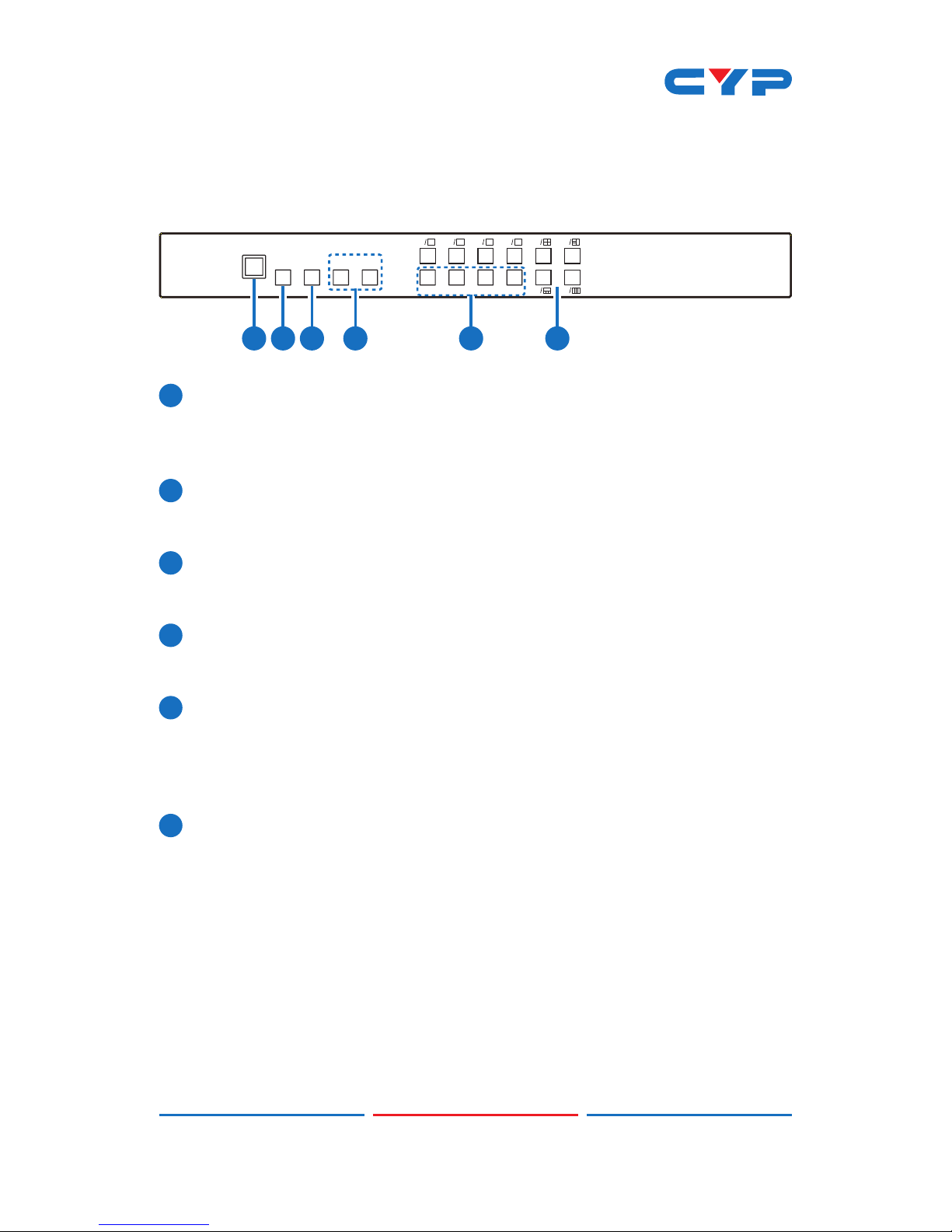

6.1 Front Panel

POWERMENU

CHANNEL

INPUT 234

WINDOW 234

234

1234

B C D E

G H

1 2 3 4 5 6

1IR Window

Accept IR signal from the device’s remote control included in the

package.

2POWER

Press this button to power ON the device or set it to standby mode.

3MENU

Press this button to bring up the OSD menu on screen.

4-/+ Buttons

Press these buttons to scroll down/up the OSD selections.

5CHANNEL INPUT 1~4

Press these buttons to rotate HDMI 1~4 input source on each

channel to be display on screen. All channels can select the same

input or each channel a different input.

6WINDOW A~H

Press these hot keys to select the screen setting where A~D are

display a full screen of each channel and E~H are a different

combination of a full screen setting with all 4 channels.

Windows A~D's channel input selection is corresponding to

channel input no. 1~4. That is, to change window A's input channel

must press channel input 1's button. Channel input 2~4's button

will not activate under window A's selection. Windows E~H's size

are adjustable through the OSD menu setting and only window

G is PIP(Picture in Picture) where E,F & H are POP (Picture out Of

picture) settings.

Under window E~H when the size setting is overlapping one

another, channel display sequence is CH4 > CH3 > CH2 >CH1.

That is, CH4 will cover CH3 and CH3 will cover CH2 and so on.

Under some dislay the borderline may have interference, adjusting

display's motion setting may resolve the interference issue.

6.2 Rear Panel

4321

HDMI IN

HDMI OUT

RS232 DC 12V

USB

SERVICE

ONLY

1 2 43 5 6

CONTROL

1HDMI IN

Connect with source equipments such as DVD/Blu-ray players and

or PC/NB devices.

2HDMI OUT

Connect with HD TV/monitor for output image display at 1080p.

3CONTROL

Connect to an active network for Telnet control.

4USB SERVICE ONLY

This slot is reserved for factory use only.

5RS-232

Connect from PC/NB with D-Sub 15pin cable for RS-232 command

sending.

6DC 12V

Plug the 12V DC power supply into the unit and connect the

adaptor to an AC outlet.

6.3 Remote Control

1Power

Press this button to switch on the device

or press it again to set it to standby

mode.

2Info

Press this button to show the device’s

rmware version.

3Input CH 1~4

Press these buttons to rotate HDMI 1~4

input source on each channel to be

display on screen

4WA~WH

Press these hot keys to select the screen

setting where WA~WD are display a full

screen of each channel and WE~WH

are a different combination of a full

screen setting with all 4 channels.

5Mute

Press this button to mute the audio from HDMI output port.

6▲▼►◄ & OK Buttons

Press this buttons to scroll through the OSD selection and press OK

to enter and conrm the setting.

7Menu

Press this button to enter into the OSD menu.

8Exit

Press this button to exit the OSD menu or the OSD settings.

9FAV. 1~4

Press these buttons to bring up the customized screen settings.

10 Fade-In-Out*

Press this button to switch on or off the Fade-in-out function.

WA WE CH 1

WB WF CH 2

WC WG CH 3

WD WH CH 4

Input

Mute

Exit

Audio 1Fade In-Out FAV. 1

Audio 2Chromakey FAV. 2

Audio 3MirrorFAV. 3

Audio 4RotationFAV. 4

Info Power

CR-124

11 Chromakey*

Press this button to enter into Chroma function where CH 1 is the

background and CH 2 is the top image.

12 Mirror*

Press this button to display the screen in mirror image.

13 Rotation*

Press this button to rotate the image 90˚ left and right or 180˚

upside down.

14 Audio 1~4

Press these buttons to select audio from HDMI input source 1~4.

* Functions only work under Window A to D. The system will force to

switch to Window A when operate under Window E~H.

6.4 RS-232 Protocols

CDPS-41SQ

Remote Control

PIN Assignment PIN Assignment

1 NC 1 NC

2Tx 2Rx

3Rx 3Tx

4 NC 4 NC

5 GND 5 GND

6 NC 6 NC

7 NC 7 NC

8 NC 8 NC

9NC 9NC

Baud Rate: 115200bps

Data Bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1
