CLUX-42SA
HDMI V1.3 4 by 2 Switcher
with Audio
Operation Manual
CLUX-42SA
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 November 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20091116 Preliminary Release
Table of Contents
1
1
1
1
2
3
4
4
4
5
5
5
6
7
8
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions......................................................
7.1 Front Panel ..................................................................................
7.2 Rear Panel .…………………………....………..…….......…...….…
8. Remote Control .....................…......…….....………..........…..…....…...
9. RS-232 Protocols...................................................................................
9.1 Pin Assignment.............................................................................
9.2 Commands..................................................................................
10. Connection and Installation …….…...……...............……...............
11. Acronyms ….......................................................................................
1. Introduction
HDMI products have been increasing in popularity over the past few years
and it is now common for people to have more than one HDMI device in
a single place. Our HDMI V1.3 Switcher with audio provides an excellent
solution when trying to connect all the devices and sources, and with the
included remote control you have the ability to place it anywhere you want
to. This device supports an independent R/L input, allowing users to select
their desired audio output (either from R/L or HDMI input) with an HDMI input
connection. Furthermore, this HDMI V1.3 Switcher supports HDMI 1.3, HDCP 1.1
and DVI 1.0, and can also transfer Deep Color video and bit stream digital
audio. The CLUX-42SA HDMI V1.3 Switcher with Audio, organizing made easy.
2. Applications
Simultaneously display Multiple sources on two LCD TV’s
Showroom display
Educational presentation
3. Package Contents
HDMI V1.3 4 by 2 Switcher
Operation Manual
5V DC Power Supply Adaptor
Remote Control (CR-76)
4. System Requirements
Input devices and output displays with HDMI cables.
5. Features
HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/
color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio) digital audio
The HDMI input signal is compensated, clock/phase adjusted, and jitter
free, so it becomes a brand new standard HDMI signal
Has input source LED indicators for each
Compatible with all HDMI sources and displays
Supports a wide range of PC and HDTV resolutions from VGA to UXGA
and 480i to 1080p
Supports RS-232 control
Supports IR remote control and IR extender
Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate)
Supports LPCM7.1 channels output from each independent HDMI ports
HDMI Cable testing showed that with 1080p/8bit resolution the input
source can be 15 meters away, and with 1080p/ 12bit resolution the
input source can be 10meters away.
HDMI Cable testing showed that with 1080p/8bit resolution the output
source can be 10 meters away, and with 1080p/ 12bit resolution the
input source can be 15meters away.
Simultaneously mix your R/L audio source with HDMI output display with
four pairs of R/L audio inputs
6. Specications
Frequency Bandwidth 2.25Gbps (single link)
Input Port 4 x HDMI female ports, 4 x R/L ports
Output Port 2 x HDMI female ports
Power Supply 5V DC/5A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ± 10kV (air-gap discharge)
± 6kV (contact discharge)
Dimensions (mm) 241(W) x 115(D) x 48(H)
Weight(g) 860
Chassis Material Metal
Silkscreen Color Black
Power Consumption 9W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
7. Operation Controls and Functions
The following sections describe the hardware components of the unit.

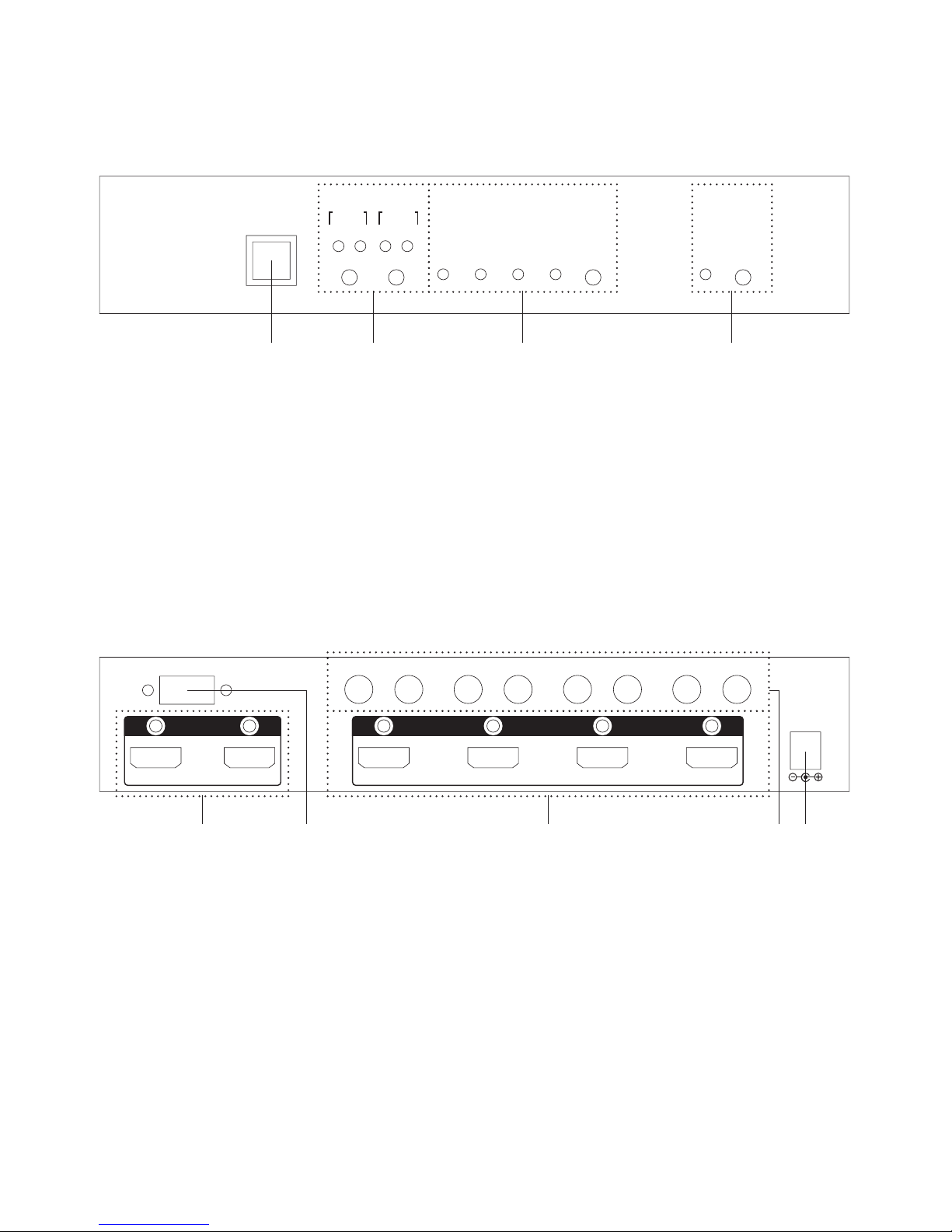

7.1 Front Panel
① Remote Control Sensor
② Audio Select: Allows user to select the desired audio output (either from
R/L or HDMI input) with an HDMI input connection.
③ HDMI input Select/Indicator: Press the “Input” button sequentially to switch
to your desired input (HDMI 1 to HDMI 4), the LED will turn on to indicate
which input source is selected.
④ POWER Switch/Indicator: Press the “ POWER” button to turn the power on
or off. The power LED will turn red when the power is turned on, and the
LED will not switch on when the power is turned off.
7.2 Rear Panel
① HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI
display. When more than one output is connected, the HDMI outputs play
an identical video signal.
② RS-232: 9-pin D-Sub connector for connecting to your PC or other control
console for remote control.
③ HDMI inputs 1 to 4: Connect each of the input ports to the HDMI or DVI
output of your source devices such as DVD/Blu Ray players or set-top-
boxes.
④ Audio R/L inputs 1 to 4: Connect each of the input R/L input ports to the
R/L output of your source device such as DVD/Blu Ray players or set-top-
boxes.
⑤ Power: Plug the 5V DC power supply into this unit and connect the
adaptor to an AC outlet.
1
INT
OUT1 OUT2
4x2 HDMI Switch With Audio
EXT INT EXT
2 3 4 INPUT POWER
AUDIO SELECT
④③②①
RS-232 AUDIO IN 4 AUDIO IN 3 AUDIO IN 2 AUDIO IN 1
HDMI OUT
2 1 4 3 2 1
DC 5V
R L R L R L R L
HDMI IN
① ③ ⑤② ④
8. Remote Control
① Power: Press the button to turn the unit on or off.
② Direct input selector: Press 1, 2, 3 or 4 to select the
desired input source.
9. RS-232 Protocols
9.1 Pin Assignment
The connection between Switcher and remote controller with RS-232 modem
cable.
Baud Rate: 9600 bps
Data bit: 8 Bits
Parity: None
Stop Bit: 1 bit
AUDIO SELECT
INT/EXT INT/EXT
POWER
HDMI INPUT
CR-76
①
②
Switcher Remote Controller
PIN Definition PIN Definition
1 NC 1 NC
2 TxD 2 Rx
3 RxD 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
9.2 Commands
Power 00 Power off
Power 01 Power on
Port 01 HDMI IN 1
Port 02 HDMI IN 2
Port 03 HDMI IN 3
Port 04 HDMI IN 4
AUDSEL 00 HDMI OUT1 audio out by EXT
AUDSEL 01 HDMI OUT 1 audio out by INT
AUDSEL 10 HDMI OUT 2 audio out by EXT
AUDSEL 11 HDMI OUT 2 audio out by INT
