CYP CLUX-31GAME Manuel utilisateur

CLUX-31GAME

3×1 HDMI Switcher

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

V1 04/12/09 Preliminary Release

VS1 22/04/13 Updated format/diagrams

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Top Panel ...........................................3

6.2 Front Panel.........................................3

6.3 Side Panels.........................................4

6.4 Rear Panel .........................................4

7. Connection Diagrams........................... 5

8. Specications ........................................ 7

9. Acronyms ............................................... 7

1. INTRODUCTION

This 3×1 HDMI Switcher allows the user to input three HDMI sources and

easily switch between these sources to provide a single HDMI output

to a display or AV receiver. The CEC and EDID bypass function allows

HDMI devices to turn both the source and display on or off with a

simple touch. The Switcher is also DVI compatible when using a DVI to

HDMI adaptor cable (available separately), allowing the integration

of DVI devices such as PCs with HDMI devices such as Blu-players or

game consoles.

2. APPLICATIONS

• Share a single TV/Monitor HDMI input between up to 3 source devices

• Add additional HDMI inputs to an AV receiver

• HDMI installation input extending

• Showroom display switching

3. PACKAGE CONTENTS

• 3×1 HDMI Switcher

• Operation Manual

• 5 V/1 A DC Power adaptor (optional)

• USB A to Mini-B Cable (optional)

4. SYSTEM REQUIREMENTS

Source equipment such as games consoles, Blu-ray players (or a PC/

Laptop with DVI with a DVI to HDMI adaptor cable) and a monitor or

TV with HDMI connection cable.

5. FEATURES

• HDMI, HDCP 1.1 and DVI 1.0 compliant

• Supports 30/36-bit color depth display

• Supports High Denition audio – Dolby Digital TrueHD and DTS-HD

Master Audio

• Includes an Automatic Signal Enhancement feature that can

improve signal quality over long distances.

• Supports push-button switching and auto-switching of HDMI sources

• LED indicators for input selection

• Ideal for integrating your game consoles into your home

entertainment system

• Supports CEC and EDID bypass functions

• Optional USB Power for simpled installation

• Supports high resolution input:

- PC: VGA, SVGA, XGA, SXGA, UXGA (1600×1200) and 1920×1200(RB)

- HDTV: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p

• Easy to install and operate

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Top Panel

INPUT

CLUX-31GAME

3 x 1 HDMI v1.3 SWITCHER

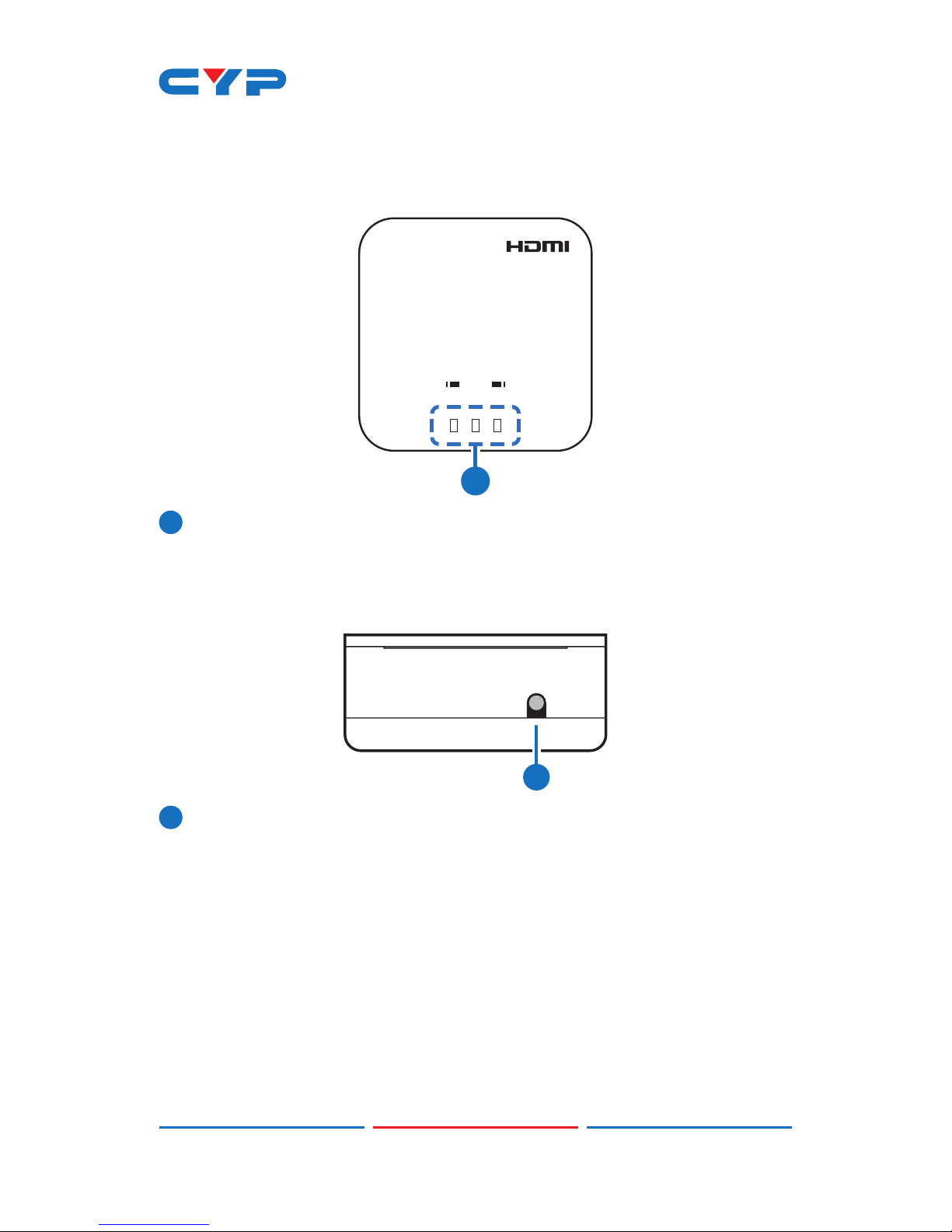

1INPUT LED Indicators: These LEDs will light to indicate the currently

selected input.

6.2 Front Panel

INPUT

1INPUT Switch: Press this button repeatedly to cycle through the

input sources, the LED on the top panel will illuminate to indicate

the active input.

Push-Button-Switching and Auto-Switching

This unit features an auto-switching feature that will switch to a

new source when it is plugged in or to a source that is already

connected when it is powered on. Pressing the Input Switch will

over ride this function and switch to next source.

Last Memory

When powered off, the unit will retain in memory the last selected

input and will switch to that input when next powered on.

6.3 Side Panels

INPUT

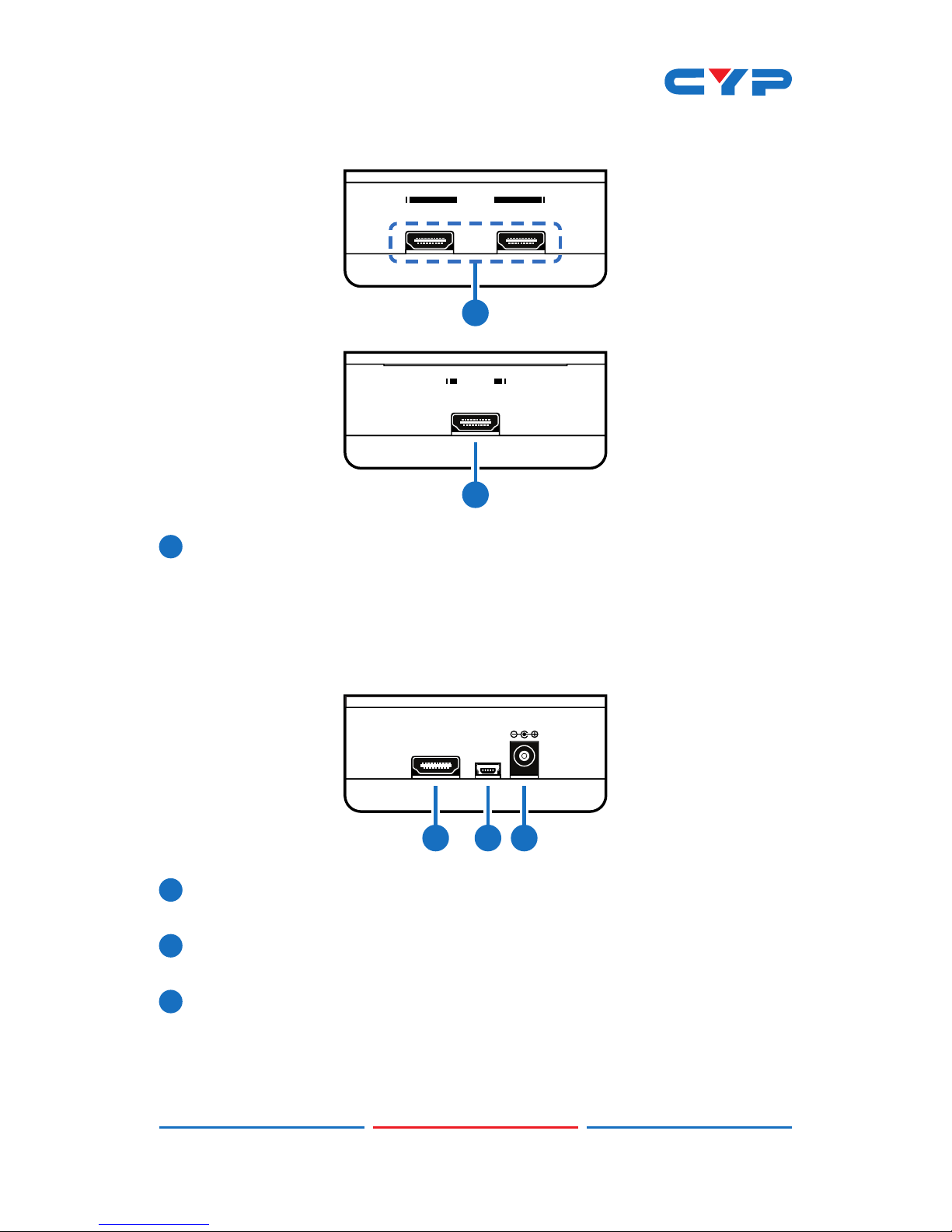

1HDMI INPUT 1/2/3: Connect to HDMI source devices such as a

games console with HDMI cables or a DVI source device such as a

PC (with DVI to HDMI cables, available separately).

6.4 Rear Panel

USB 5V

DC 5V

OUTPUT

1 2 3

1HDMI OUTPUT: Connect to a HDMI equipped TV/monitor or AV

receiver for display of the selected HDMI source signal..

2USB 5V: Connect the USB power port to any powered USB port with

a USB A to Mini-B cable (supplied separately).

3DC 5V: Connect the 5 V DC power supply (supplied separately) to

the unit and plug the adaptor into an AC outlet.

Note: Use only a single power supply at a time. Do not attempt to

connect both at the same time.

7. CONNECTION DIAGRAMS

Example 1: USB power from a spare USB connection on an HDTV

INPUT

CLUX-31GAME

3 x 1 HDMI v1.3 SWITCHER

DVD or Blu-ray PlayerSet-top Box

HDMI Input HDMI Input HDMI Input

HDMI Output

HDTV

USB Power

(Optional)

Game Console
