Operation Manual

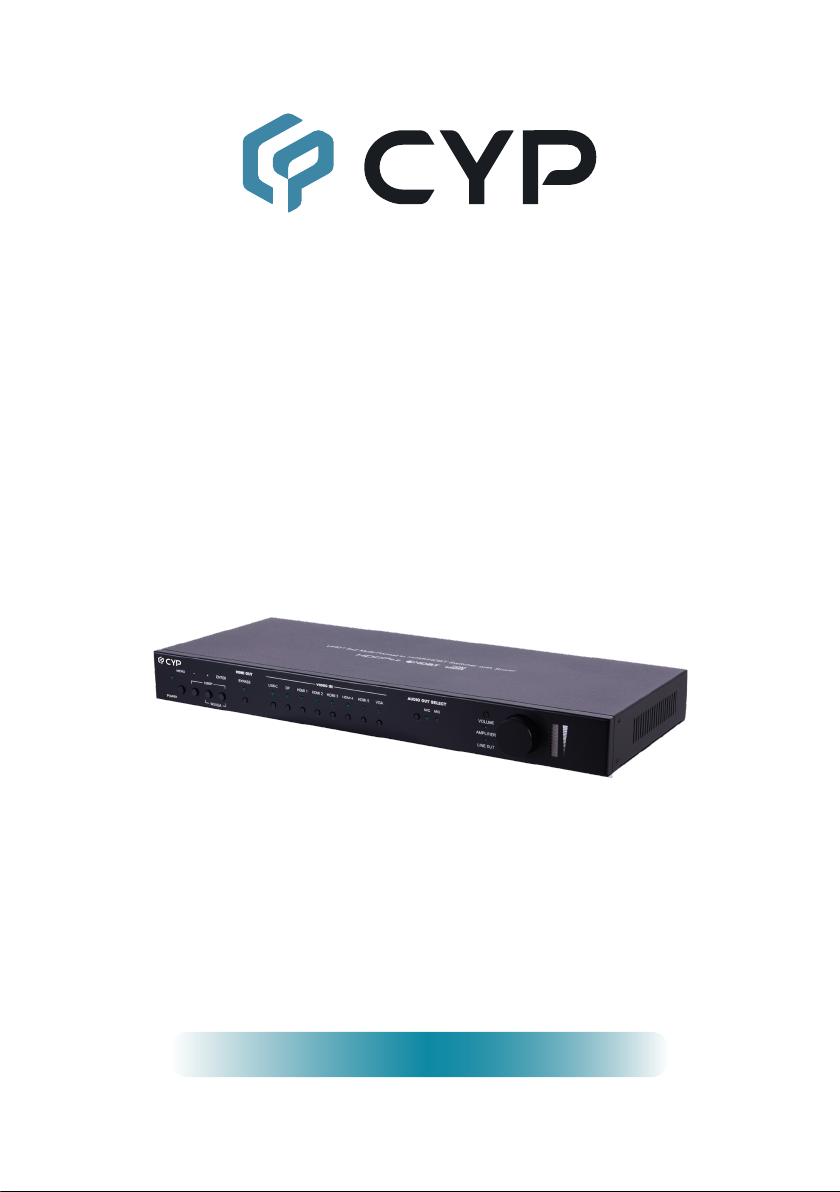

UHD+8x2 Multi-Format to HDMI/HDBaseT Switcher

with Scaler

CSC-6030CVE

DISCLAIMERS

The information in this manual has been carefully checked and is believed

to be accurate. Cypress Technology assumes no responsibility for any

infringements of patents or other rights of third parties which may result from

its use.

Cypress Technology assumes no responsibility for any inaccuracies that

may be contained in this document. Cypress also makes no commitment to

update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer ﬁ le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express written

permission and consent from Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document are trademarks of

the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply. Please keep the

following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of ﬁ re,

electrical shock and injury to persons.

• To prevent ﬁ re or shock hazard, do not expose the unit to rain, moisture

or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings

or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it

is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to

be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings

in the unit housing that provide ventilation and allow for suﬃ cient space

for air to circulate around the unit.

• Please completely disconnect the power when the unit is not in use to

avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2020/03/18 Preliminary release

RDV2 2020/08/12 Added Audio Delay and Trigger conﬁ guration

RDV3 2020/10/13 Updated branding

VS1 2020/12/03 Added front panel lock

CONTENTS

1. Introduction...................................................... 1

2. Applications ..................................................... 1

3. Package Contents ........................................... 2

4. System Requirements..................................... 2

5. Features............................................................ 3

6. Operation Controls and Functions ................ 4

6.1 Front Panel.................................................. 4

6.2 Rear Panel................................................... 5

6.3 IR Cable Pinouts.......................................... 8

6.4 RS-232 Pinout and Defaults........................ 8

6.5 OSD Menu................................................... 9

6.6 WebGUI Control ........................................ 24

6.6.1 Video Tab ......................................... 26

6.6.2 HDCP Tab ........................................ 28

6.6.3 Picture Tab ....................................... 29

6.6.4 Audio Tab.......................................... 31

6.6.5 OSD Tab........................................... 33

6.6.6 EDID Tab .......................................... 34

6.6.7 System Tab....................................... 36

6.7 Telnet Control ............................................ 38

6.8 Serial and Telnet Commands .................... 38

7. Connection Diagram ..................................... 59

8. Speciﬁ cations ................................................ 60

8.1 Technical Speciﬁ cations ............................ 60

8.2 Video Speciﬁ cations .................................. 62

8.2.1 Bypass Output.................................. 62

8.2.2 Scaled Output................................... 64

8.3 Audio Speciﬁ cations .................................. 66

8.3.1 Digital Audio ..................................... 66

8.3.2 Analog Audio .................................... 67

8.4 Cable Speciﬁ cations.................................. 68

8.5 HDBaseT Features.................................... 69

9. Acronyms ....................................................... 70

1. INTRODUCTION

This 8 by 2 multi-format scaling switcher provides HDMI, USB-C, DisplayPort,

and VGA inputs which can be freely selected for output at a scaled resolution

of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The

HDMI, DisplayPort, and USB-C inputs and HDMI output support resolutions

up to 4K@60 (4:4:4, 8-bit) while the VGA input supports resolutions up to

WUXGA. The HDBaseT output supports automatic color subsampling of

4K50/60(4:4:4) sources to 4K50/60(4:2:0) and provides a great solution to

extend your audio and video up to 100 meters over a single run of Cat.6A

cable as well as providing PoH power to a compatible HDBaseT receiver.

This unit also includes multiple analog stereo audio inputs and a microphone

input along with an ampliﬁ ed analog stereo output to provide a range of audio

routing and mixing ﬂ exibility. The built-in audio mixer function allows the

user to mix audio from any LPCM 2.0 source with the microphone input for

presentation or lecture usage. The ability to switch back and forth between

mixed and non-mixed audio greatly simpliﬁ es the presentation experience.

A trigger input interface is also provided to allow the easy addition of a

remote control keypad, or other trigger-supporting products, which can be

installed within a podium or within a table in a conference room or classroom.

This interface can allow the user to activate functions with the simple press

of a button. Standard control is available via front panel buttons with an On-

Screen Display (OSD), WebGUI, Telnet, Triggers, and RS-232 making it

exceptionally versatile.

2. APPLICATIONS

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• 1× UHD+ 8x2 Multi-Format to HDMI/HDBaseT Switcher with Scaler

• 1× 24V/6.25A DC Power Adapter

• 1× Rackmount Ears (Set of 2)

• 1× Shockproof Feet (Set of 4)

• 1× Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI/DisplayPort/USB-C source equipment such as media players, video

game consoles or set-top boxes.

• VGA source equipment such as a PC, or laptop.

• HDMI receiving equipment such as an HDTV, monitor, or audio ampliﬁ er.

• Analog audio receiving equipment such as audio ampliﬁ ers or powered

speakers.

• A compatible HDBaseT receiver with PoH(PD) support is recommended.

• The use of Premium High Speed HDMI cables, and industry standard

Cat.6, Cat.6A or Cat.7, is highly recommended.

5. FEATURES

• HDMI 2.0 and DVI 1.0 compliant

• HDCP 1.x and 2.2 compliant

• 8 video inputs (1×USB-C, 1×DisplayPort, 5×HDMI, 1×VGA)

• 2 mirrored video outputs (1×HDMI, 1×HDBaseT)

• Supports switching and scaling of all AV inputs for display over the

mirrored HDMI and HDBaseT outputs

• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video

input (HDMI, USB-C, DP) and output (HDMI)

• VGA input supports resolutions up to 1080p60/WUXGA (RB)

• HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or

4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-

bit) sources will be automatically color space converted to ﬁ t within the

available bandwidth

• Supports Deep Color input and output up to 12-bit (Bypass only)

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI

Bypass only)

• HDBaseT output extends video, audio, and data over a single Cat.5e/6/7

cable and can reach distances up to 100m/328ft at 4K when using

Cat.6A/7

• Supports pass-through of many audio formats including LPCM (up to 8

channels), Bitstream and HD Bitstream

• Audio mixer function allows the mixing of audio from any LPCM 2.0 audio

source with the microphone input

• Trigger Control Keypad support for easy, single-button, function activation

(Optional)

• Supports standard PoH (PSE) from the HDBaseT output to a connected

HDBaseT (PD) receiver (compatible receivers only)

• USB Type-C port provides up to 60W of power to connected devices

• Comprehensive EDID and HDCP management

• Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI,

and triggers

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

USB-C DP HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 VGA MIC MIX

AUDIO OUT SELECT

POWER HDMI OUT

AMPLIFIER

LINE OUT

VOLUME

MENU ENTER

WUXGA

1080P

BYPASS

VIDEO IN

1 2 3 4 5 6 7 8 9 10

1POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

2MENU Button: Press to enter the OSD menu, or to back out from menu

items.

3MINUS (-) Button: Press to move down or adjust selections within OSD

menus.

4PLUS (+) Button: Press to move up or adjust selections within OSD

menus.

Note: Pressing the “+” button when not in a menu will toggle the video

freeze feature.

5ENTER Button: Press to conﬁ rm a selection within the OSD or to go

deeper into a menu item. Pressing and holding this button when not in a

menu will lock or unlock the front panel buttons.

Note: Pressing “ENTER” and “+” together will reset the output resolution

to WUXGA (1920×1200@60Hz). Pressing “ENTER” and “-” together will

reset the output resolution to 1080p@60Hz.

6HDMI OUT BYPASS Button & LED: Press this button to enable or

disable the HDMI video Bypass function. When bypass is enabled, the

LED will illuminate.

7VIDEO IN Buttons & LEDs: Press any of these buttons to switch

immediately to the corresponding input. An LED will illuminate to indicate

which source is currently selected.

8AUDIO OUT SELECT Button & LEDs: Press this button to select the

microphone mix mode of the unit. The LED will illuminate to indicate the

current mix mode. When both LEDs are oﬀ , the mixer is disabled.

Note: Activating Mixer On mode, or MIC Only mode will automatically

disable HDMI Out Bypass mode.

9VOL. Button & LEDs: Press this button to select which audio output’s

volume is controlled by the volume knob. When both LEDs are oﬀ , the

knob controls the HDMI audio output (LPCM 2.0 only).

USB-C DP HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 VGA MIC MIX

AUDIO OUT SELECTHDMI OUT

AMPLIFIER

LINE OUT

VOLUME

MENU ENTER

WUXGA

1080P

BYPASS

VIDEO IN

POWER

1 2 3 4 5 6 7 8 9 10

10 VOL. Rotary Knob & LEDs: Rotating the knob increases or decreases

the currently selected audio output’s volume level. The LED bar will

change according to the current level. Pressing in on the knob toggles

the audio mute function.

6.2 Rear Panel

123456 IR IN IR OUT

L+

L+ L- R+ R-

L- GR+R-

HDMI OUTCAT5e/6/7 OUT

SERVICE

LAN DC 24V

AUDIO OUT RS-232

TX1

TX2

RX1

RX2

24V

OFF

48V

TRIGGER IN

RELAY

ANALOG AUDIO

DP HDMI 1 HDMI 2HDMI 3HDMI 4HDMI 5

INPUT

USB-C

MIC IN

VGA

109 11 12 13 14 15 16 17

1 2 3 4 5 6 7 8

1MIC IN Port & 48V/OFF/5V Switch:Connect to a standard microphone

using a 6.35mm plug. Set the switch based on the phantom power

requirements of the connected microphone.

Note: If no phantom power is required, this switch should remain in the

“Oﬀ ” position to avoid potential damage to connected equipment.

2ANALOG AUDIO INPUT 1~6 Ports: Connect to the analog stereo output

of a device such as an audio player or PC.

Note: By default, Analog Audio 1 is paired with the VGA input.

3AUDIO OUT 5-pin Terminal Block: Connect to powered speakers or an

ampliﬁ er for analog stereo audio output.

4AUDIO OUT L/R 2-pin Terminal Blocks: Connect to unpowered 4Ω

speakers for analog stereo audio output. Up to 20W of power is provided

to each speaker.

5TRIGGER IN 10-pin Terminal Block: Connect to the Trigger Control

Keypad (Optional) or any device with trigger switch functionality such as

window security alarms, motion detectors, door switches, etc. Each of

the 8 triggers will activate an assigned unit function when triggered.

Note: A minimum of 5V DC is required to activate a trigger.

6RELAY 1~2 2-pin Terminal Blocks: Connect to devices that can be

powered and controlled via a DC 0~24V/5A relay connection such as a

curtain, projection screen, or lights.

7IR IN Port: Connect to an IR Extender to receive local IR control signals

and extend them to devices connected to the other end of the HDBaseT

connection. Ensure that the remote being used is within direct line-of-

sight of the IR Extender.

Table des matières

Autres manuels CYP Changer

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
