RG-PF2920 Series Switches

Hardware Installation and Reference Guide

Document version: V1.1

Date: 2023-05-24

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademark and are owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

Ruijie Networks website: https://www.ruijienetworks.com/

Technical support website: https://ruijienetworks.com/support

Case portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical support mailbox: [email protected]

Live chat: https://www.ruijienetworks.com/rita

Conventions

1. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

2. Note

The manual offers configuration information (including model, port type and command line interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

RG-PF2920 Hardware Installation and Reference Guide Product Description

1 Product Description

The RG-PF2920 series switches are simplified optical Ethernet (SOE) switches released by Ruijie Networks for

all-optical network scenarios. They adopt a new hardware architecture to reduce noise, save energy, and can

be flexibly installed. They are equipped with built-in power modules, metal housings, and network ports, ensuring

reliability and stability. They are suitable for indoor scenarios. With Ruijie's modular OS, they are fit for the SOE

solution, and implement lifecycle management, security control, plug and play, and intelligent O&M through

software-defined networking (SDN).

Table 1-1 Technical Specifications of RG-PF2920 Series Switches

Model

10M/100M/1000M

Base-T Ethernet

Electrical Port

2.5G/1G

BASE-T

Electrical Port

SFP+

Optical

Port

Console

Port

PoE

Input

PoE

Output

Dimensions

(W x D x H)

Cooling

RG-PF2920-

8GT2MG2XS

Two

PoE

inputs

Not

support

224 mm x 307.4

mm x 78.8 mm

(8.82 in. x 12.10

in. x 3.10 in.)

Natural heat

dissipation

for fanless

design

RG-PF2920-

16GT2XS

N/A

Two

PoE

inputs

Not

support

224 mm x 307.4

mm x 78.8 mm

(8.82 in. x 12.10

in. x 3.10 in.)

Natural heat

dissipation

for fanless

design

Note

SFP+ ports are downward compatible with 1000Base-X ports.

2.5GBASE-T ports are downward compatible with 1GBase-T ports.

1000Base-T ports are downward compatible with 100Base-T and 10Base-T ports.

Caution

The RG-PF2920-8GT2MG2XS and RG-PF2920-16GT2XS use natural heat dissipation. The device dissipates

heat primarily through the housing. When the device is operating normally, the temperature of the housing may

become high. Avoid prolonged contact.

RG-PF2920 Hardware Installation and Reference Guide Product Description

1.1 RG-PF2920-8GT2MG2XS

1.1.2 Technical Specifications

Table 1-2 Technical Specifications

Model

RG-PF2920-8GT2MG2XS

CPU

Built-in CPU, single-core processor, and clock speed of 1 GHz

BootROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 512 MB

Supported Optical

Module

See Appendix B.

The supported optical module types may update without prior notification. Please

contact Ruijie Networks for any updates.

SFP+ Port

10GBase-R and 1000Base-X supported

Power Module

Two PoE inputs (802.3at): PoE-IN1 and PoE-IN2

Rated voltage range: 44 V to 57 V

Rated current: 0.5 A

Maximum Ground

Leakage Current

3.5 mA

EEE

Supported

PoE Output

Not supported

Maximum Power

Consumption

20 W

Operating

Temperature

Installation against a wall, in a rack, or on acable tray: 0ºC to 55ºC (32°F to 131°F)

at the altitude between 0 m to 1,800 m (0 ft. to 5905.51 ft.)

At the altitude between 1,800 m (5905.51 ft.) and 5,000 m (16404.2 ft.), every

time the altitude increases by 220 m (721.79 ft.), the maximum temperature

decreases by 1°C (1.8°F).

Storage

Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Fan Module

Natural heat dissipation for fanless design

Intelligent

Temperature alarm and overheat protection

RG-PF2920 Hardware Installation and Reference Guide Product Description

Temperature

Control

EMC Standard

GB/T 9254.1

Safety Standard

GB 4943.1

Dimensions (W x D x

224 mm x 307.4 mm x 78.8 mm (8.82 in. x 12.10 in. x 3.10 in.) (including the cable

management bracket and mounting brackets)

Weight

2.75 kg (6.06 lbs) (including the package)

Warning

The RG-PF2920-8GT2MG2XS is a class-A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

1.1.3 Product Appearance

The RG-PF2920-8GT2MG2XS provides 8 x 10/100/1000M Base-T Ethernet electrical ports, 2 x 1G/2.5G Base-

T Ethernet electrical ports, 2 xSFP/SFP+ ports, 1 x console port on the front panel, and theAC power input port

on the side panel.

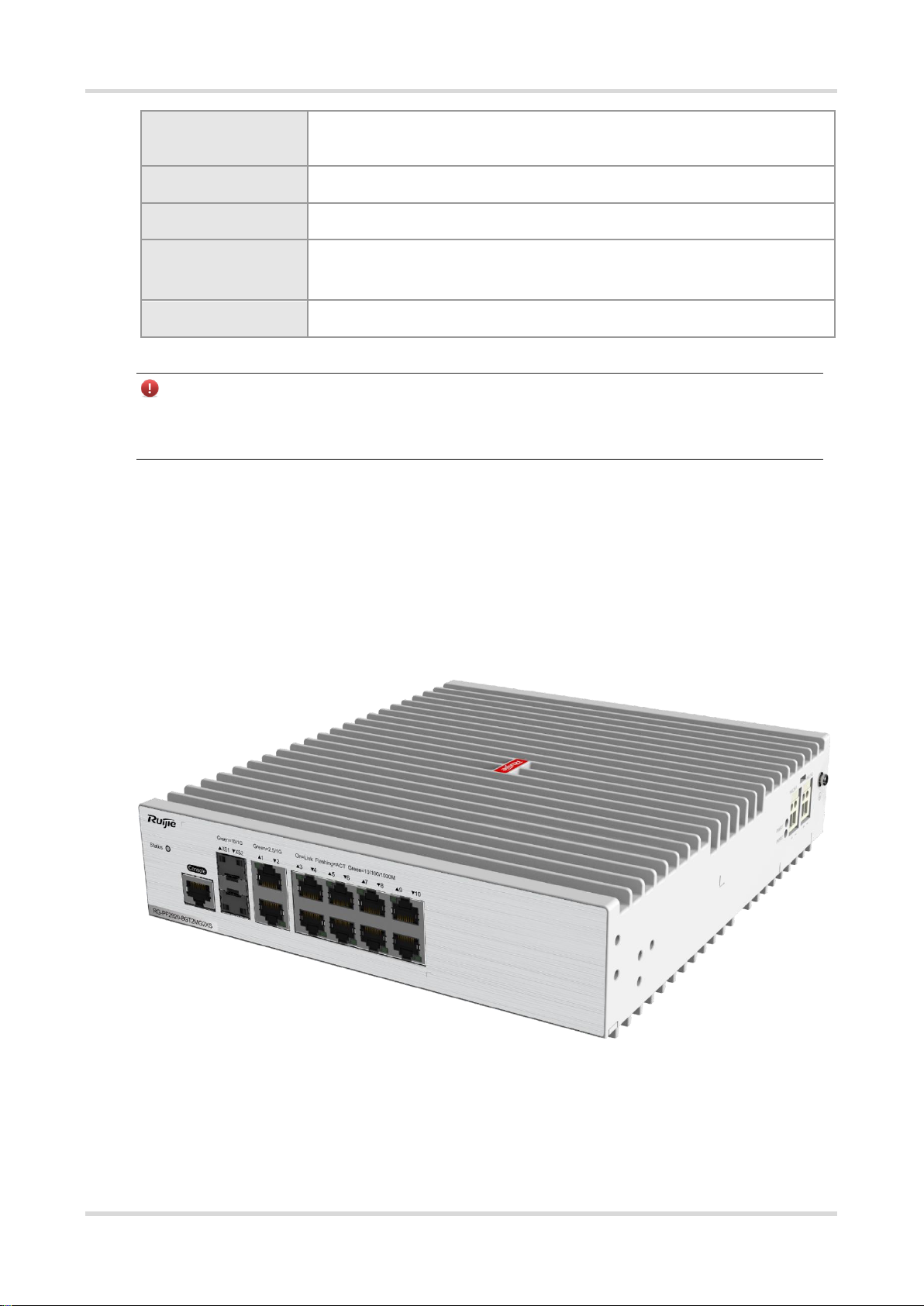

Figure 1-2 Appearance of the RG-PF2920-8GT2MG2XS

RG-PF2920 Hardware Installation and Reference Guide Product Description

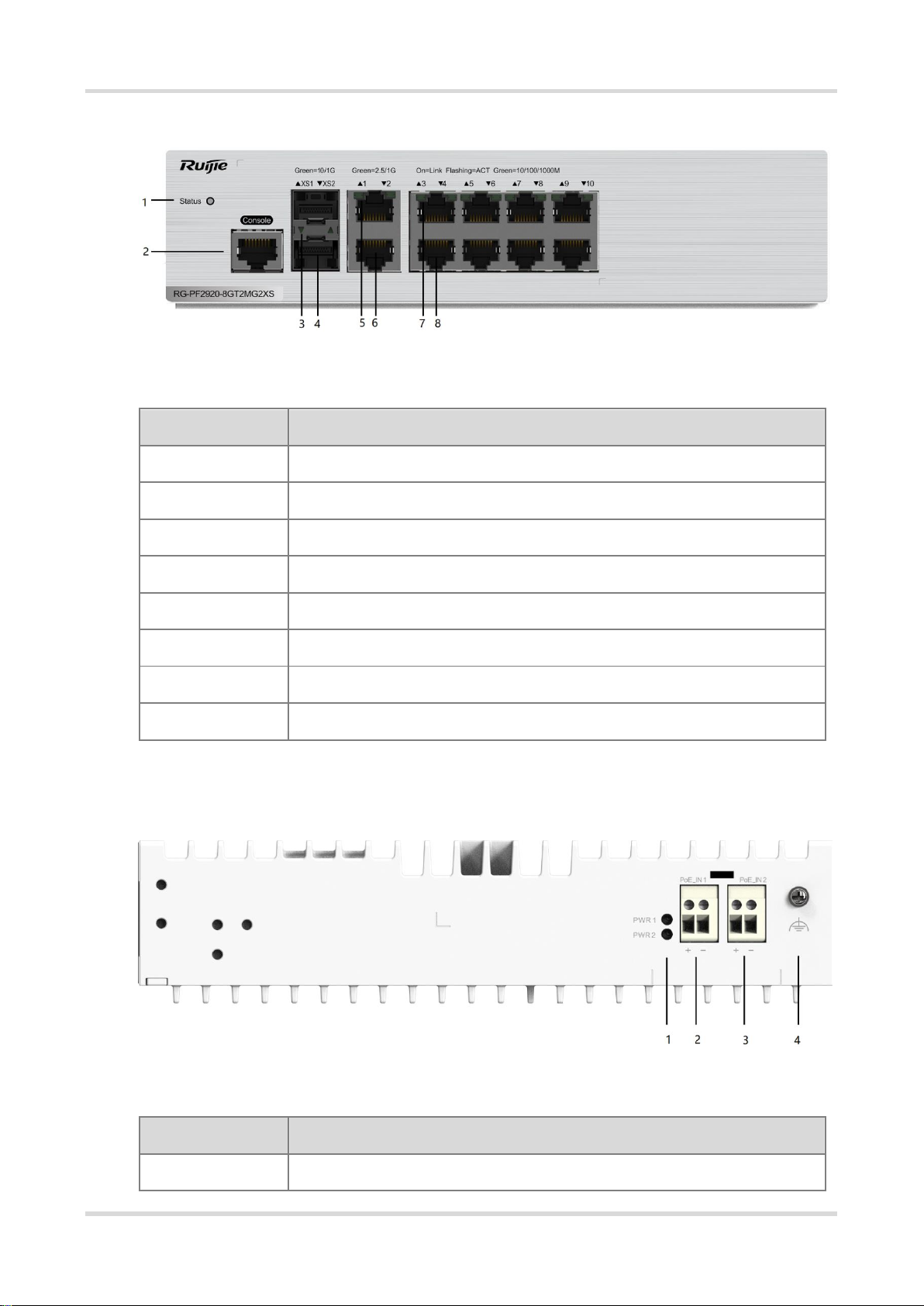

1. Front Panel

Table 1-3 Description of the Front Panel

No.

Description

Status LED

Console port

Optical port status LED

SPF+ port

LED of the 1G/2.5GBase-T Ethernet port with auto-negotiation

1G/2.5GBase-T Ethernet port with auto-negotiation

LED of the 10/100/1000Base-T Ethernet port with auto-negotiation

10/100/1000Base-T Ethernet port with auto-negotiation

2. Rear Panel

Table 1-4 Description of the Rear Panel

No.

Description

Power status LED

RG-PF2920 Hardware Installation and Reference Guide Product Description

PoE-IN1: power input port 1

PoE-IN2: power input port 2

Grounding stud

3. Power Module

The RG-PF2920-8GT2MG2XS supports two PoE (802.3at) DC power inputs with the following power ratings:

Rated voltage: 44 V to 57 V

Rated current: 0.5 A

4. Heat Dissipation

The RG-PF2920-8GT2MG2XS adopts natural heat dissipation to ensure that it works properly in a specified

environment. Dust the device every three months to avoid blocking ventilation openings on the housing.

5. LEDs

Table 1-5 LEDs

LED

Panel

Identification

Status

Description

Status LED

Status

Off

The switch is not powered on.

Blinking green

The switch is being initialized. If the LED

blinks continuously, a fault occurs.

Solid green

The switch works properly.

Solid yellow

A switch temperature alarm is generated.

Check the operating environment of the

switch.

Solid red

The temperature exceeds the threshold,

causing the system to restart.

Ethernet electrical port

LED

1–2

Off

The port is not connected.

Solid green

The port is connected at the rate of 1 Gbps

or 2.5 Gbps.

Blinking green

The port is sending or receiving data at the

rate of 1 Gbps or 2.5 Gbps.

3–10

Off

The port is not connected.

RG-PF2920 Hardware Installation and Reference Guide Product Description

Solid green

The port works at the rate of 10/100/1000

Mbps.

Blinking green

The port is sending or receiving data at the

rate of 10/100/1000 Mbps.

SFP+ port LED

XS1-XS2

Off

The port is not connected.

Solid green

The port is connected at the rate of 10

Gbps.

Blinking green

The port is sending or receiving data at the

rate of 10 Gbps.

Solid red

An error occurs when the optical module

sends signals.

Solid yellow

An error occurs when the optical module

receives signals.

1.2 RG-PF2920-16GT2XS

1.2.1 Technical Specifications

Table 1-6 Technical Specifications

Model

RG-PF2920-16GT2XS

CPU

Built-in CPU, single-core processor, and clock speed of 1 GHz

BootROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 512 MB

Supported Optical

Module

See Appendix B.

The supported optical module types may update without prior notification. Please

contact Ruijie Networks for any updates.

SFP+ Port

10GBase-R and 1000Base-X supported

Power Module

Two PoE inputs (802.3at): PoE-IN1 and PoE-IN2

Rated voltage: 44 V to 57 V

Rated current: 0.5 A

Maximum Ground

Leakage Current

3.5 mA

EEE

Supported

RG-PF2920 Hardware Installation and Reference Guide Product Description

PoE Output

Not supported

Maximum Power

Consumption

20 W

Operating

Temperature

Installation against a wall, in a rack, or on acable tray: 0ºC to 55ºC (32°F to 131°F)

at the altitude between 0 m to 1,800 m (0 ft. to 5905.51 ft.)

At the altitude between 1,800 m (5905.51 ft.) and 5,000 m (16404.2 ft.), every

time the altitude increases by 220 m (721.79 ft.), the maximum temperature

decreases by 1°C (1.8°F).

Storage Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Fan Module

Natural heat dissipation for fanless design

Intelligent

Temperature Control

Temperature alarm and overheat protection

EMC Standard

GB/T 9254.1

Safety Standard

GB 4943.1

Dimensions (W x D x

224 mm x 307.4 mm x 78.8 mm (8.82 in. x 12.10 in. x 3.10 in.) (including the cable

management bracket and mounting brackets)

Weight

2.75 kg (6.06 lbs) (including the package)

Warning

The RG-PF2920-16GT2XS is a class-A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

1.2.2 Product Appearance

The RG-PF2920-16GT2XS provides 16 x 10/100/1000M Base-T Ethernet electrical ports, 2 x SFP+ ports, 1 x

console port on the front panel, and the DC power input port on the side panel.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-CS83-24GT4XS-PD Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2924GT/8SFP-XS-P Manuel utilisateur

Ruijie

Ruijie RG-ES126S-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-XH Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS Series Manuel utilisateur

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES Series Manuel utilisateur

Ruijie

Ruijie RG-CS85 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2928G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5100-24GT4SFP-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6910-3C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1930J Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS6002 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-MF2920U Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1960-10GT2SFP-P-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-48CQ8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5000-E Series Comment utiliser

Ruijie

Ruijie RG-S2600G-I Series Mode d’emploi

Ruijie

Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5300-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
