Pepperl+Fuchs VLX-F231-B6 Manuel utilisateur

VLX-F231-B6

VLX PROFIBUS DP

Interface Module

FA TORY AUTOMATION

MANUAL

With regard to the supply of products, the current issue of the following document is ap-

plicable: The General Terms of Delivery for Products and Services of the lectrical Indus-

try, published by the Central Association of the lectrical Industry (Zentralverband

lektrotechnik und lektroindustrie (ZV I) e.V.) in its most recent version as well as the

supplementary clause: " xpanded reservation of proprietorship"

VLX-F231-B6

1 Introduction................................................................................. 4

1.1 ontent of this Document ................................................................... 4

1.2 Target Group, Personnel...................................................................... 4

1.3 Symbols Used ...................................................................................... 4

2 Product Description ................................................................... 6

2.1 Use and Application ............................................................................ 6

2.2 Dimensions........................................................................................... 6

2.3 Design of the Device............................................................................ 7

3 Installation................................................................................. 10

3.1 Mounting ............................................................................................. 10

3.2 Electrical onnection ........................................................................ 11

3.3 Dismounting ....................................................................................... 13

4 ommissioning......................................................................... 15

4.1 Introduction ........................................................................................ 15

4.2 onnecting the Sensor...................................................................... 15

4.3 onnecting the Interface Module to the Network........................... 16

4.4 Integrating the Interface Module into the Network......................... 17

4.5 Data Format for Modules................................................................... 24

2019-07

VLX-F231-B6

Introduction

1 Introduction

1.1 Content of this Document

This document contains information required to use the product in the relevant phases of the

product life cycle. This may include information on the following:

■

Product identification

■

Delivery, transport, and storage

■

Mounting and installation

■

Commissioning and operation

■

Maintenance and repair

■

Troubleshooting

■

Dismounting

■

Disposal

The documentation comprises the following parts:

■

This document

■

Datasheet

In addition, the documentation may comprise the following parts, if applicable:

■

U-type examination certificate

■

U declaration of conformity

■

Attestation of conformity

■

Certificates

■

Control drawings

■

Instruction manual

■

Other documents

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance, and

dismounting lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation,

commissioning, operation, maintenance, and dismounting of the product. The personnel must

have read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

Note!

For full information on the product, refer to the further documentation on the Internet at

www.pepperl-fuchs.com.

VLX-F231-B6

Introduction

2019-07

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions. It is mandatory

that you observe these warning messages for your personal safety and in order to avoid

property damage.

Depending on the risk level, the warning messages are displayed in descending order as

follows:

Informative Symbols

Action

This symbol indicates a paragraph with instructions. You are prompted to perform an action or

a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants, or result in

their complete failure.

Note!

This symbol brings important information to your attention.

2019-07

VLX-F231-B6

Product Description

2 Product Description

2.1 Use and Application

The VLX-F231-B6 interface module serves as an interface between SmartRunner (from now

on referred to as the sensor) and the PROFIBUS DP input card of the control panel. Data is

transferred between the sensor or sensors and the VLX-F231-B6 interface module via the RS-

485 interface and from the VLX-F231-B6 interface module to the control panel via the

PROFIBUS DP protocol.

You can connect up to four sensors. If you connect several sensors, they must have different

addresses. The VLX-F231-B6 interface module constantly queries the position values of the

sensors and always has the current sensor data.

2.2 Dimensions

The interface module housing has the following dimensions.

Figure 2.1 Dimensions

The VLX-F231-B6 interface module has the following configuration:

Baud rate: Max. 230 MBaud

115

100 23

VLX-F231-B6

Product Description

2019-07

2.3 Design of the Device

Device omponents

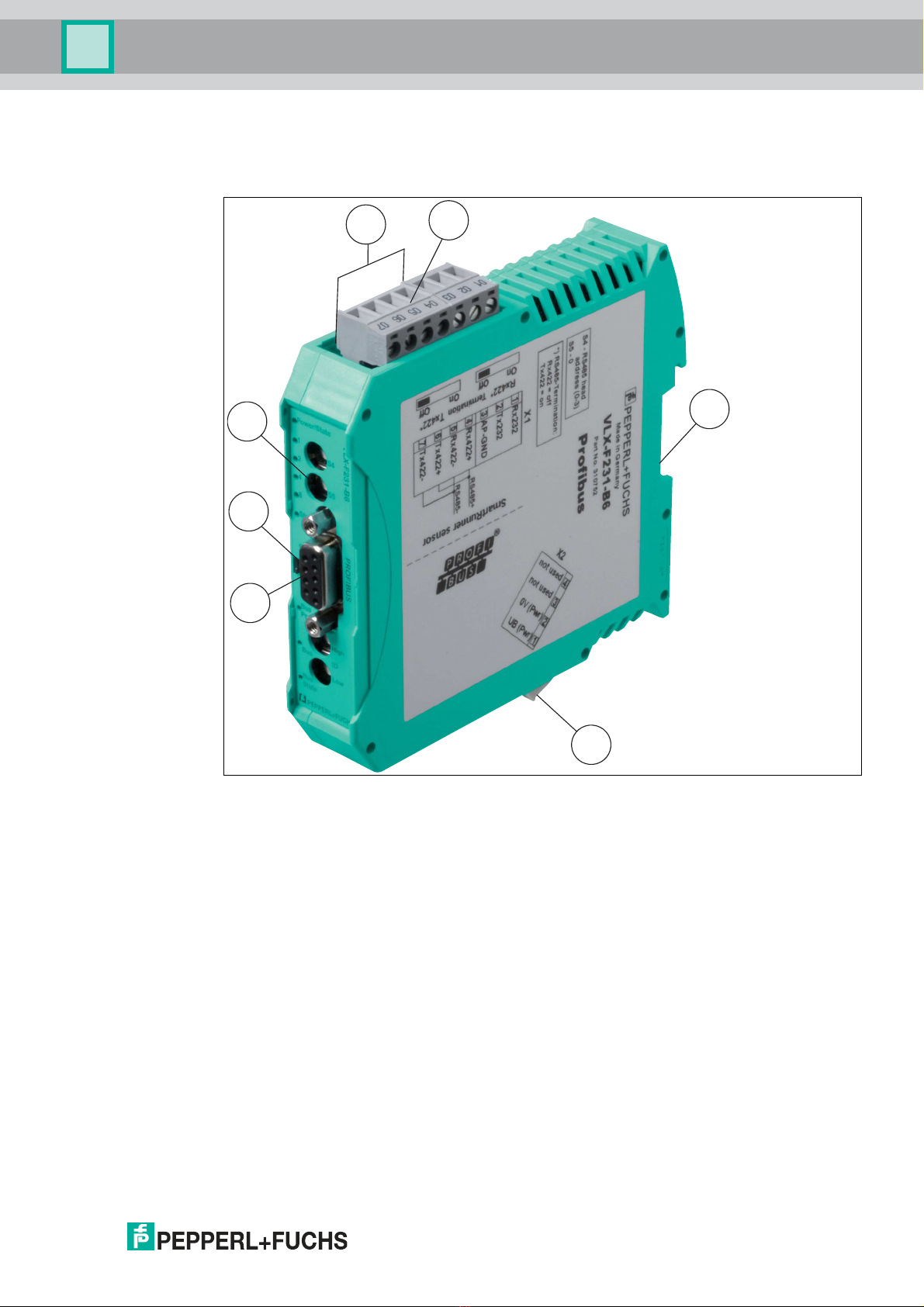

Figure 2.2 Interface module overview

1RS-485 terminator sliding switch (behind the terminal block)

2X1: RS-485 interface

3Mounting bracket

4X2: Connection for power supply

5PROFIBUS communication interface

6Slide switch for PROFIBUS DP terminator

7Front panel with rotary coding switches and indicator lights

2019-07

VLX-F231-B6

Product Description

Front Panel

Figure 2.3 Front panel overview

Sensor (VLX-F231-B6)

Power

The "Power" L D is green: The VLX-F231-B6 interface module is correctly connected to the

power supply.

State

The "State" L D is green: Data is being exchanged with the sensor(s). The four " rror

No/Select ID" L Ds are used to display the number of the currently polled sensor.

The "State" L D lights up red: The interface module has detected an error or a warning. The

interface module uses the " rrorNo/Select ID" L Ds to display the binary coded error number

or warning number, and sends the number to the PROFIBUS master via the external diagnostic

byte.

rror No/Select ID Sensor address

8 4 2 1

00010

00101

01002

10003

Table 2.1 Display via the four " rrorNo/Select ID" L Ds when the "State" L D lights up green

rror (No. 1...5): Switch the interface module off and back on. If the error occurs

again, the module must be replaced.

Warning (No. 6...15): The warning provides information. The interface module displays

the warning for one minute and then resets automatically.

PROFIBUS

Termination

Power/State

Bus

Power

State

Bus

State

Low

High

Bus

VLX-F231-B6

Product Description

2019-07

Rotary switches S4 and S5

Rotary switches S4 and S5 have no function. nsure that the two switches are at position 0 to

enable the data exchange mode.

PROFIBUS

Bus Power

The "BusPower" L D lights up green: The L D is connected directly to the electrically isolated

supply voltage for the PROFIBUS side.

Bus

The "Bus" L D lights up red: The interface module cannot exchange any data on the

PROFIBUS.

Bus State

ID High and ID Low rotary switches

You can set the PROFIBUS address with the two ID High and ID Low rotary switches. The digits

selected using the two rotary switches together form the PROFIBUS address in hexadecimal

format.

xample: To set address 19 (=13h), set the ID High rotary switch to position "1," and the ID Low

rotary switch to position "3."

L D rrorNo/Select ID rror number rror description

L D8 L D4 L D2 L D1

0 0 0 0 0 Reserved

0 0 0 1 1 Hardware error

0 0 1 0 2 PROM error

0 0 1 1 3 Internal memory error

0 1 0 0 4 Fieldbus hardware error or incorrect

fieldbus ID

0 1 0 1 5 Script error

0 1 1 0 6 Reserved

0 1 1 1 7 Sensor communication, RS send

buffer overflow

1 0 0 0 8 Sensor communication, RS receive

buffer overflow

1 0 0 1 9 Sensor communication, RS timeout

1 0 1 0 10 General fieldbus error

1 0 1 1 11 Parity error or frame check error

1 1 0 0 12 Reserved

1 1 0 1 13 Fieldbus configuration error

1 1 1 0 14 Fieldbus data buffer overflow

1 1 1 1 15 Reserved

Table 2.2 Significance of the error codes (display via the four " rror No/Select ID" L Ds when the

"State" L D lights up red and thus indicates an error or a warning)

“BusState" L D PROFIBUS DP interface state

Lights up green Data exchange on the PROFIBUS

Flashes red/green Interface module is waiting for PROFIBUS parameter data

Lights up red rror on the PROFIBUS

Flashes green Interface module is waiting for configuration data

2019-07

VLX-F231-B6

Installation

3 Installation

3.1 Mounting

Mounting the Modules

The module is fastened to a DIN mounting rail with a width of 35 mm using a snap-on fixing

method.

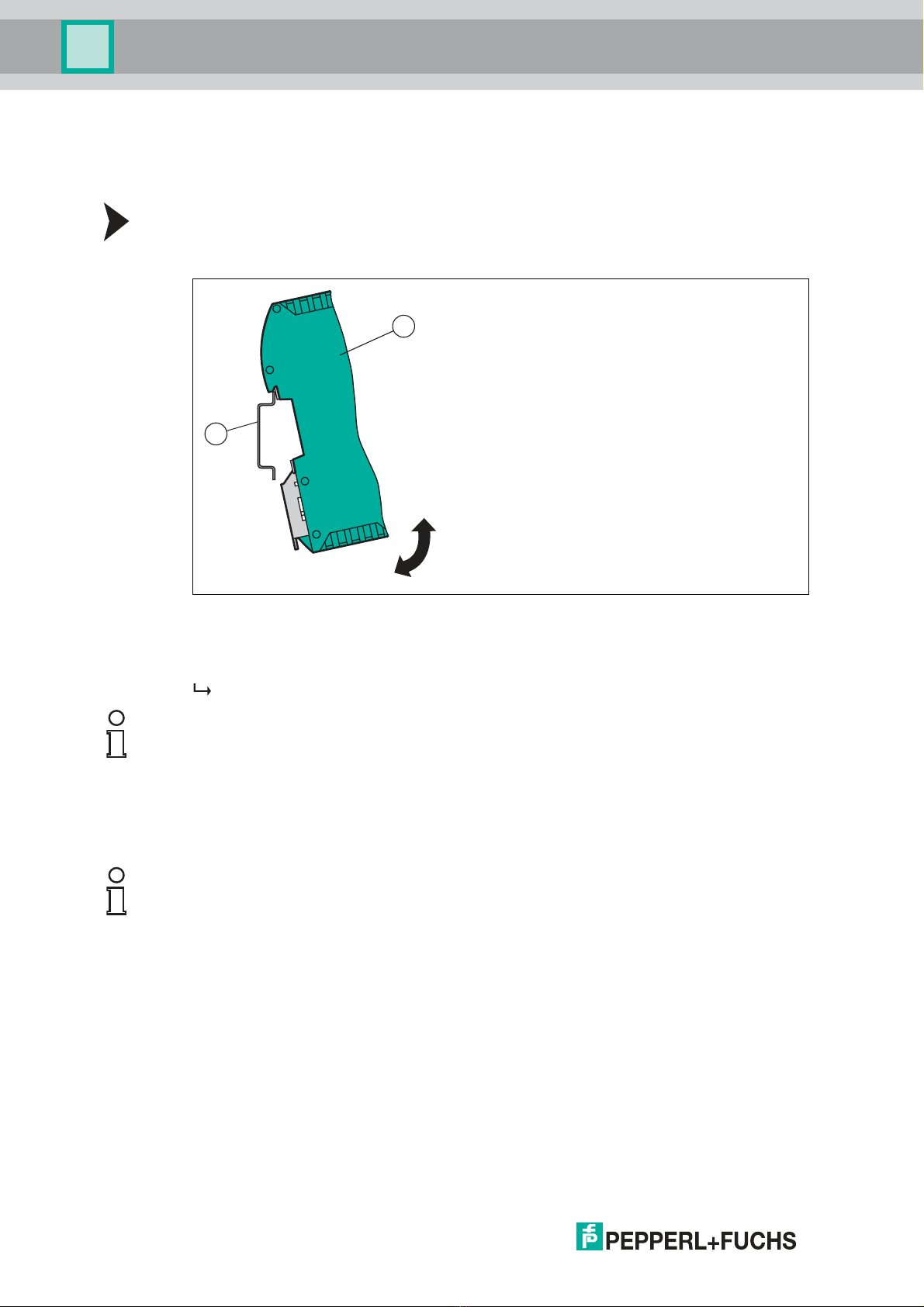

Figure 3.1 Mounting

1. Hook the module (1) onto the DIN mounting rail (2) from above and press it down until it

snaps into place.

The module is mounted.

2. You must connect the DIN mounting rail to the switch cabinet's equipotential busbar. The

connection wire must have a cross section of at least 10 mm

Note!

Heat Dissipation

You may place other modules to the left and right of the module.

Above and below the modules, there must be at least 5 cm of free space for heat dissipation.

Note!

Vertical Installation

You can also install the DIN mounting rail vertically, so that the modules can be rotated by 90°

for mounting.
