KHADAS BT Magic Manuel utilisateur

Quicksta | 入门指南

Inteace Diagram

RGB LED Indicator

RGB LED Indicator Illustrate

Status Motion

Bluetooth

Disconnected

Blue

(Flashing)

Bluetooth

Connected

Blue

(Breathing)

SBC Yellow

(Breathing)

AAC Green

(Breathing)

aptX / aptX LL Turquoise

(Breathing)

aptX HD Purple

(Breathing)

LDAC White

(Breathing)

USB-C

Erase

Paring Record

White

(Triple Flash)

Color

Setup Guide

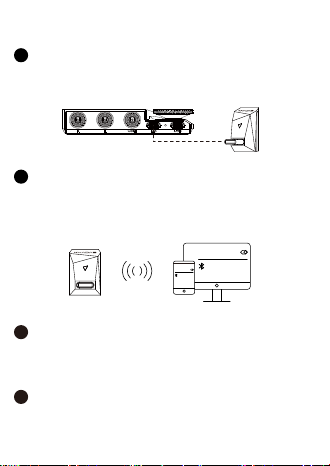

Power On

Plug BT Magic into the USB-C (I2S) po, then turn on the

Tone2/Tone2 Pro. BT Magic will automatically turn on.

Bluetooth Pairing

(1) Set Tone2/Tone2 Pro’s input mode to ‘I2S’.

(2) Look for ‘BT Magic’ in your smaphone or tablet’s

Bluetooth pairing list. Tap on it to pair.

Music Playback3

After pairing with your device, the RGB indicator will show a

blue breathing light. BT Magic is now ready for music playback.

Power O

When Tone2/Tone2 Pro is turned o, BT Magic will turn o too.

In this case, the RGB indicator light will turn o.

Wireless

BT Magic

Wireless

BT Magic

RGB LED Indicator

USB-C

部件说明

RGB 指示灯说明

状态

显示状态

蓝牙未连接蓝灯快闪

蓝牙连接成功蓝灯呼吸

SBC 黄灯呼吸

AAC 绿灯呼吸

aptX

or aptX LL 青灯呼吸

aptX HD 紫灯呼吸

LDAC 白灯呼吸

清除蓝牙配对记录白灯闪烁3下

颜色

(1) Tone2/Tone2 Pro输入源模式需要选择“I2S”。

(2) BT Magic连接Tone2/Tone2 Pro并开机后，在音乐播放设

备的蓝牙列表中搜索BT Magic进行配对连接。

Wireless

BT Magic

Wireless

BT Magic

连接步骤

开机

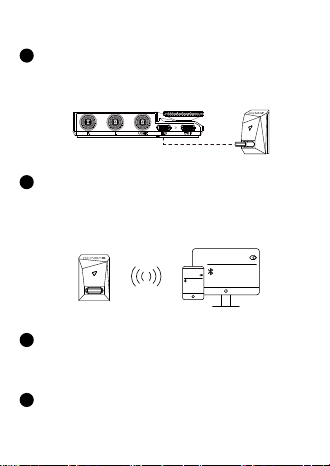

将BT Magic插入到Tone2/Tone2 Pro的USB-C (I2S) 接口，

再将Tone2/Tone2 Pro开机后，BT Magic会自动开机。

连接蓝牙

播放音乐3

蓝牙连接好后，即可播放音乐，此时BT Magic的RGB LED会有

对应指示。

关机4

当Tone2/Tone2 Pro关机时，BT Magic也同步会关机，关机后

BT Magic指示灯会关闭。

Bluetooth Chip：Qualcomm QCC5125

Bluetooth Standard：Bluetooth 5.1

Sample Rate：Up to 24bit 96KHz

LED：RGB LED

Connectivity：USB-C

Bluetooth Formats：SBC/AAC/aptX/aptX-LL/aptX-HD/LDAC

Compatibility：Khadas Tone2/Khadas Tone2 Pro

蓝牙芯片：高通 QCC5125

蓝牙标准：蓝牙5.1

采样率：高达24bit 96KHz

LED：RGB LED指示灯

连接性： USB-C

蓝牙编码格式：SBC/AAC/aptX/aptX-LL/aptX-HD/LDAC

兼容性：兼容适配Khadas Tone2/Khadas Tone2 Pro

Specications | 规格参数

FAQ | 常见疑问

How to erase Bluetooth pairing histo?

With BT Magic plugged-in and Tone2/Tone2 Pro powered o (USB

cable with 5V power still plugged-in), long-press the volume knob

for 5 seconds to Clear Bluetooth Paring Record. BT Magic’s RGB

indicator will ash white 3 times during this process.

如何清除BT Magic的蓝牙配对记录?

当Tone2 & Tone2 Pro关机且处于供电状态下插入BT Magic，长按旋钮

5秒清除蓝牙配对记录，清除记录时BT Magic会闪烁3下白灯。

What’s In The Box

| 包装清单

BT Magic * 1pcs

Instruction Manual * 1pcs

说明书 * 1pcs

保修卡 * 1pcs

Warranty Card * 1pcs

www.khadas.com

生产商：哈哒科技（深圳）有限公司

电话：+86 755 2307 6626 邮箱: suppo@khadas.com

地址：深圳市宝安区西乡街道海城路5号前城商业中心2709

Manufacturer: Khadas Technology Co., Ltd.

Tel: +86 755 2307 6626 E-mail: suppo@khadas.com

Address: Room 2709, Floor 27, Qiancheng Center, Haicheng Road,

Xixiang Street, Bao'an District, Shenzhen
