WCS-E G410

Contents

2020-03

1 Introduction................................................................................................................ 4

1.1 Content of this Document............................................................................. 4

1.2 Target Group, Personnel ............................................................................... 4

1.3 Symbols Used ................................................................................................ 4

2 Product description................................................................................................... 6

2.1 Use and Application ...................................................................................... 6

2.2 Dimensions..................................................................................................... 6

2.3 Design of the Device...................................................................................... 7

3 Installation................................................................................................................ 11

3.1 Mounting....................................................................................................... 11

3.2 Electrical Connection .................................................................................. 12

3.3 Dismounting................................................................................................. 14

4 Commissioning........................................................................................................ 15

4.1 Introduction.................................................................................................. 15

4.2 Connecting the WCS Read ead................................................................ 15

4.3 Connection to the Network ......................................................................... 17

4.4 Setting the IP Address and Subnet Screen............................................... 18

4.5 Network Settings ......................................................................................... 19

4.6 Data Format for Modules ............................................................................ 21

5 Communication with WCS read heads .................................................................. 23

5.1 Data Protocols ............................................................................................. 23

5.2 Option-E—Extended, Type WCS3B-LS2*E*, RS-485................................. 26

6 Appendix .................................................................................................................. 29

6.1 Software Tool for RSLogix 5000, V15, and V17 ......................................... 29

6.2 Cable Routing in the RS-485 Bus ............................................................... 29

6.3 Data Cable .................................................................................................... 32

2020-03

WCS-E G410

ntroduction

1 Introduction

1.1 Content of this Document

This document contains information required to use the product in the relevant phases of the

product life cycle. This may include information on the following:

•Product identification

•Delivery, transport, and storage

•Mounting and installation

•Commissioning and operation

•Maintenance and repair

•Troubleshooting

•Dismounting

•Disposal

The documentation comprises the following parts:

•This document

•Datasheet

n addition, the documentation may comprise the following parts, if applicable:

•EU-type examination certificate

•EU declaration of conformity

•Attestation of conformity

•Certificates

•Control drawings

•nstruction manual

•Other documents

1.2 Target Group, Personnel

Responsibility for planning, assembly, commissioning, operation, maintenance, and dismount-

ing lies with the plant operator.

Only appropriately trained and qualified personnel may carry out mounting, installation, com-

missioning, operation, maintenance, and dismounting of the product. The personnel must have

read and understood the instruction manual and the further documentation.

Prior to using the product make yourself familiar with it. Read the document carefully.

Note

For full information on the product, refer to the further documentation on the nternet at

www.pepperl-fuchs.com.

WCS-E G410

ntroduction

2020-03

1.3 Symbols Used

This document contains symbols for the identification of warning messages and of informative

messages.

Warning Messages

You will find warning messages, whenever dangers may arise from your actions. t is mandatory

that you observe these warning messages for your personal safety and in order to avoid prop-

erty damage.

Depending on the risk level, the warning messages are displayed in descending order as fol-

lows:

Informative Symbols

Action

This symbol indicates a paragraph with instructions. You are prompted to perform an action or

a sequence of actions.

Danger!

This symbol indicates an imminent danger.

Non-observance will result in personal injury or death.

Warning!

This symbol indicates a possible fault or danger.

Non-observance may cause personal injury or serious property damage.

Caution!

This symbol indicates a possible fault.

Non-observance could interrupt the device and any connected systems and plants, or result in

their complete failure.

Note

This symbol brings important information to your attention.

2020-03

WCS-E G410

Product Description

2 Product Description

2.1 Use and Application

The WCS-EIG410 interface module acts as an interface between the WCS read head and the

EtherNet/ P controller. Data is transferred between the WCS read head and the interface mod-

ule via an RS-485 interface. The data from the interface module to the controller is transferred

via the EtherNet/ P protocol.

You can connect a maximum of four LS221 (and/or LS121) WCS read heads to one WCS-

E G410 interface module. f you connect several WCS read heads, they must have different

addresses. The number of connected WCS read heads is configured in the hardware project

planning.

The interface module supports the operation of read heads with the Extended option (WCS3B-

LS*E*), with distances of up to 629 meters.

2.2 Dimensions

The interface module housing has the following dimensions.

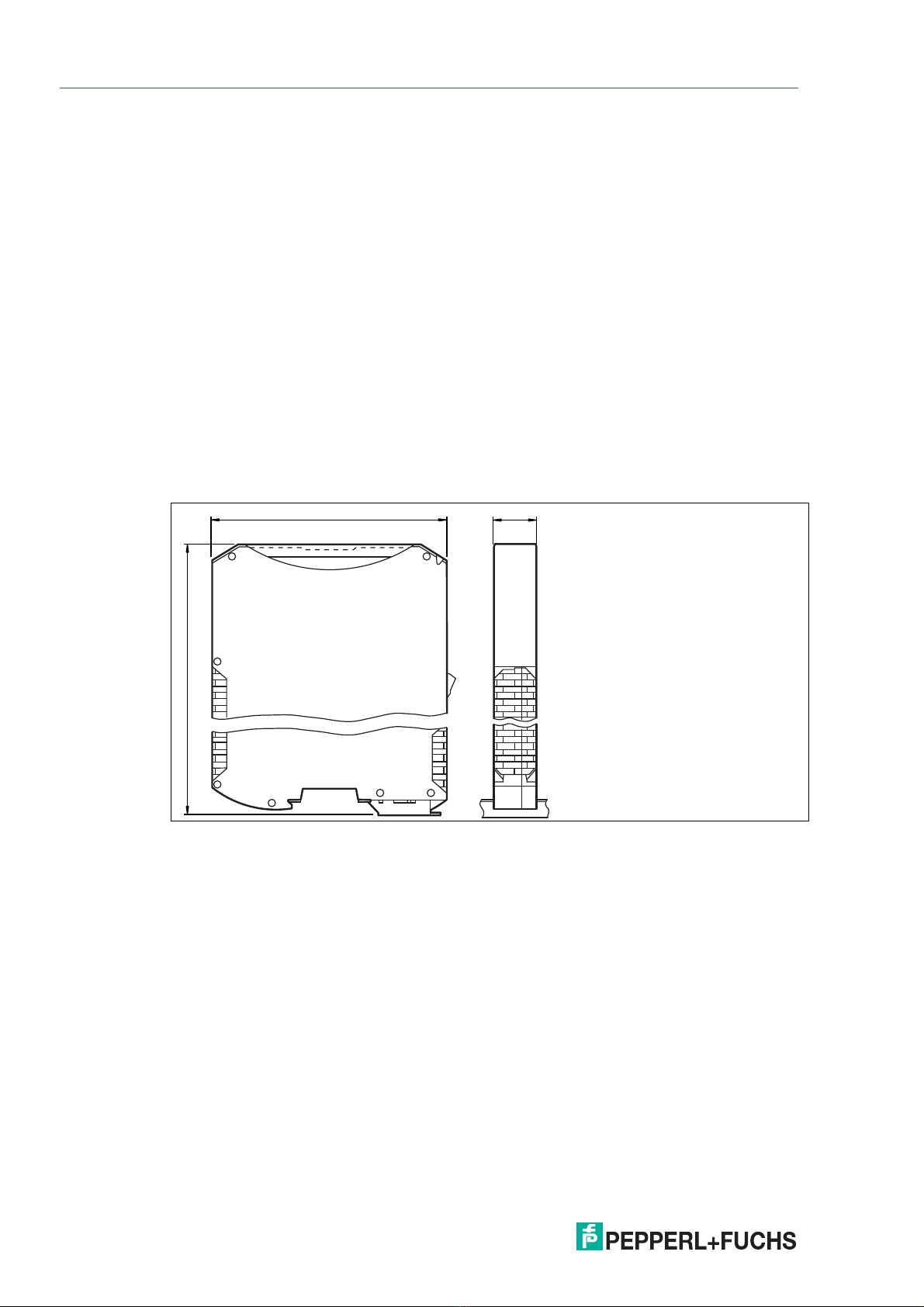

Figure 2.1 Dimensions

115

100 23

WCS-E G410

Product Description

2020-03

2.3 Design of the Device

Device Components

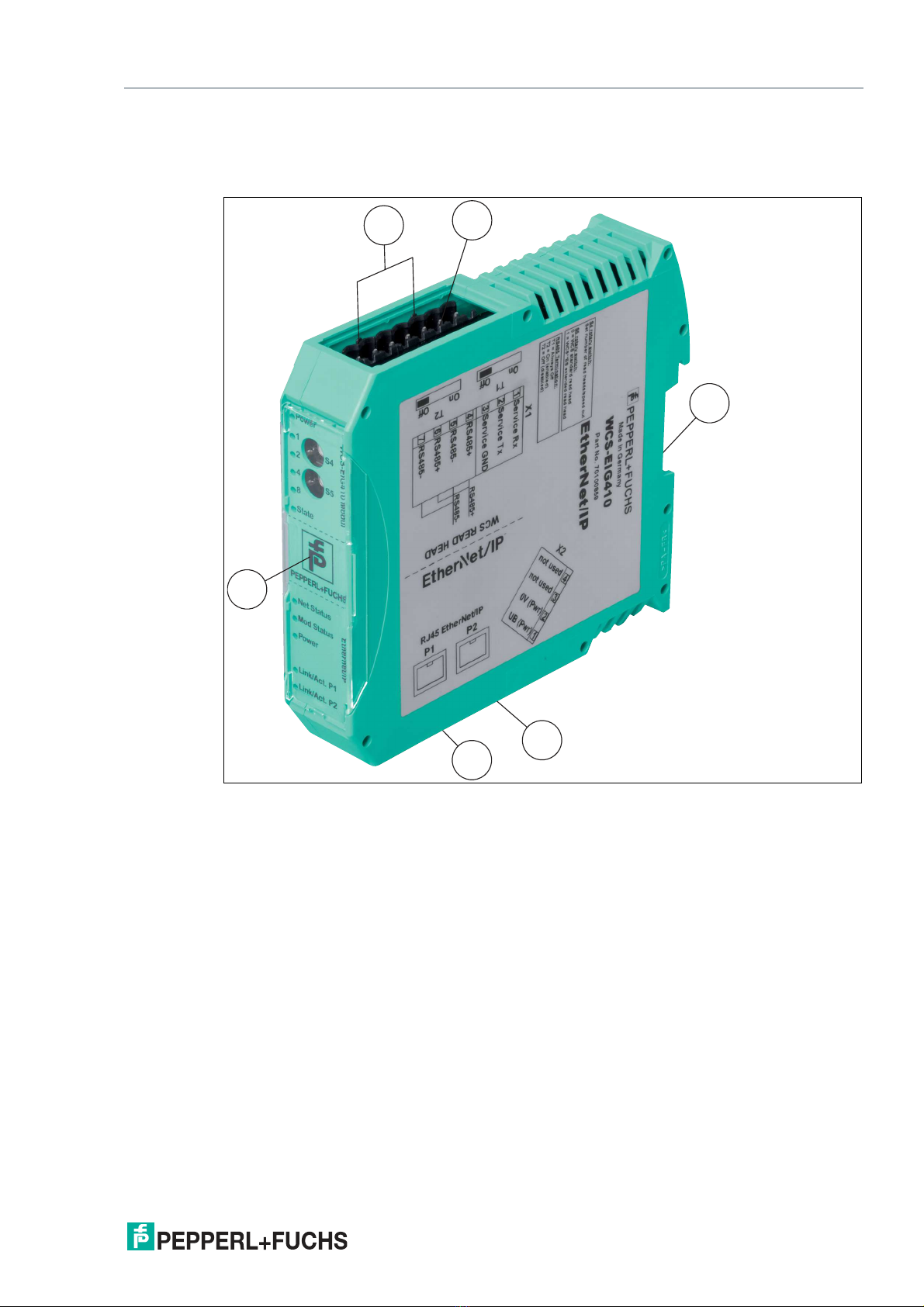

Figure 2.2 nterface module overview

1RS-485 bus termination slide switch

2X1: RS-485 interface

3Mounting bracket

4X2: Connection for power supply

5X3: EtherNet/ P communication interface

6Front panel with rotary coding switch and LED status indicator

2020-03

WCS-E G410

Product Description

Front Panel

Figure 2.3 Front panel overview

WCS read head: LED status indicator and rotary coding switch

Power:

The "Power" LED lights up green: power supply is present.

State:

The "State" LED is green: Data is being exchanged with the WCS read heads. The four "Error

No/Select D" LEDs are used to display the number of the currently polled WCS read head.

The "State" LED lights up red: The interface module has detected an error or a warning. The

interface module displays the binary-coded error and/or warning number via the "Error

No/Select D" LEDs.

Error No/Select ID Read head

address

8 4 2 1

00010

00101

01002

10003

Table 2.1 Display via the four "ErrorNo/Select D" LEDs when the "State" LED lights up green

Error (No. 1...5): Switch the interface module off and back on. f the error occurs

again, the module must be replaced.

Warning (No. 6...15): The warning provides information. The interface module displays

the warning for one minute and then resets automatically.

Power

State

WCS-EIG410 Modul

Net Status

Power

Link/Act. P1

Link/Act. P2

EtherNet/IP

Mod Status

WCS-E G410

Product Description

2020-03

Rotary Coding Switches S4 and S5

Rotary coding switches S4 and S5 are used to determine the number of read heads and the

protocol used (WCS or WCS Extended); see chapter 4.2.

LED ErrorNo/Select ID Error number Error description

LED8 LED4 LED2 LED1

00000

Reserved

00011

Hardware error

00102

EEPROM error

00113

nternal memory error

01004

Fieldbus hardware error or incorrect

fieldbus D

01015

Script error

01106

Reserved

01117

WCS read head communication, RS

send buffer overflow

10008

WCS read head communication, RS

receive buffer overflow

10019

WCS read head communication, RS

timeout

1 0 1 0 10

General fieldbus error

1 0 1 1 11

Parity error or frame check error

1 1 0 0 12

Reserved

1 1 0 1 13

Fieldbus configuration error

1 1 1 0 14

Fieldbus data buffer overflow

1 1 1 1 15

Reserved

Table 2.2 Significance of the error codes (display via the four "Error No/Select D" LEDs when the

"State" LED lights up red and thus indicates an error or a warning)

2020-03

WCS-E G410

Product Description

EtherNet/IP: LED status indicator

Net Status:

Mod Status:

Power:

The "Power" LED lights up green: This LED is directly connected to the supply voltage of the

serial interface (RS232/422/485).

Link/Activity P1:

The "Link/Activity Port 1" LED is directly activated by the Ethernet controller and lights up green

when the interface module at port 1 is on a working network. When there is data traffic on the

network, the LED flashes green at the same speed as the sent/received data.

Link/Activity P2:

The "Link/Activity Port 2" LED is directly activated by the Ethernet controller and lights up green

when the interface module at port 2 is on a working network. When there is data traffic on the

network, the LED flashes green at the same speed as the sent/received data.

"Net Status" LED Interface state

Flashes green/red Self-test

Lights up green Connection present, data exchange is active

Flashes green Waiting for a connection to be established

Flashes red Connection has timed out

Lights up red P address assigned twice

Table 2.3 "Net Status" LED indicator

"Mod Status" LED Interface state

Flashes green/red Self-test

Lights up green Data exchange active

Flashes green Standby/module waiting for connection

Flashes red Module error

Lights up red Serious module error

Table 2.4 "Mod Status" LED indicator

Table des matières

Autres manuels Pepperl+Fuchs Unité de contrôle

Pepperl+Fuchs

Pepperl+Fuchs VAA-2E-KE1-S Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs IQT-F116-R4M-V1 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs PS1000-D2-24.40.RM Manuel

Pepperl+Fuchs

Pepperl+Fuchs PSU-IDM160-BD-1D-J1-N0 Series Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VLX-F231-B6 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs EtherCAT WCS-ECG110 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs IC-KP2-2HB17-2V1D Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs 7500 Series Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VU120 Guide de référence

Pepperl+Fuchs

Pepperl+Fuchs ICE11-8IOL-G60L-V1D Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VAA-4E4A-G20-ZEJ/M2L-P7-GEB Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs WCS-ECG410 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VAA-2E1A-CB10-SJ/E2J-FL Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs 5500 Series Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VU121 Guide de référence

Pepperl+Fuchs

Pepperl+Fuchs VAA-2E2A-KE1-S/E2 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs WCS-CG310 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs HD2-DM-A Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VBA-2E-G11-I/U/PT100-F Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs PSE4-SC-01 Manuel du propriétaire

Pepperl+Fuchs

Pepperl+Fuchs VBA-2A-KE5-IL/UL Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs IDENT-M System V MVI-F57-2HB12 Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs VBA-2E-KE5-IJL Manuel utilisateur

Pepperl+Fuchs

Pepperl+Fuchs WCS-PNG410 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
