ZALMAN Z9 series Manuel utilisateur

SERIES

English / 한글 / Français / Español

ATX Mid Tower PC Case Z9 series

Ver.130709

Z9D

Ⅰ

Z9 / Z9 Plus

Z9D

Ⅲ

Z9D

Ⅱ

Z9D

Ⅳ

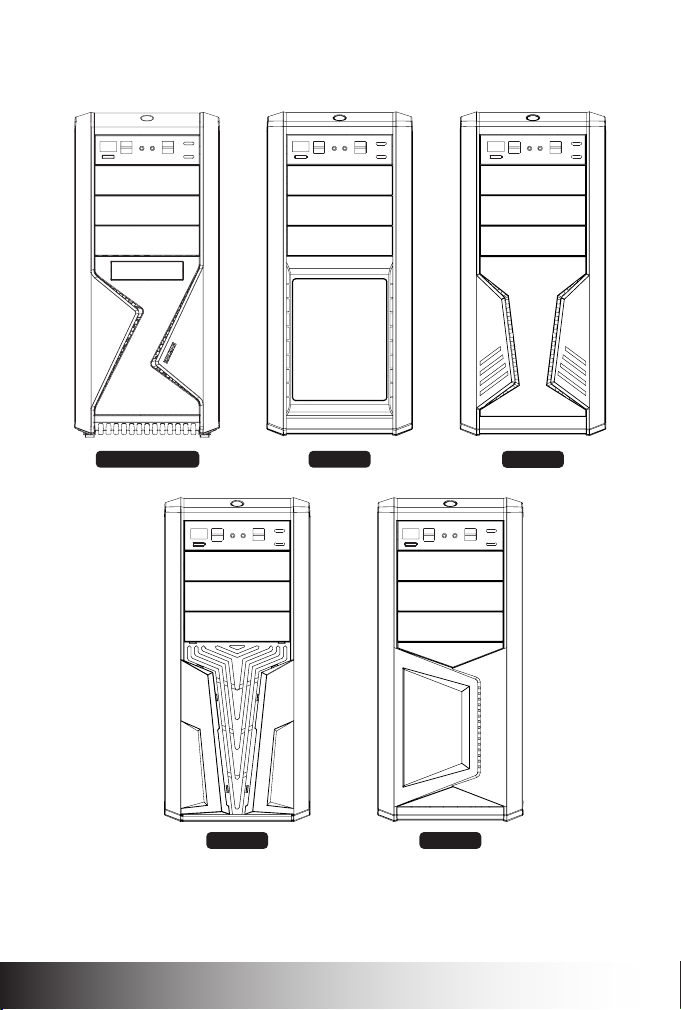

ENG) Front Bezels differ by model.

KOR) 전면 베젤은 모델명에 따라 다를 수 있습니다.

FRA) La façade avant peut différer en fonction du modèle.

ESP) El bisel frontal se puede ser diferente dependiendo del modelo.

ENG

Z9 Series

1) Please read this manual thoroughly prior to installation.

2) Before installing, check the components and condition of the product,

and if any problem is found, contact the retailer.

3) Avoid inserting objects or hands into the system while it is in operation

to prevent product damage and injuries.

4) Check the manual when connecting cables. Incorrect connections

may cause short circuits leading to 󰘰re hazards.

5) Do not block the front intake vent or the rear exhaust vent.

6) Keep this unit away from heat sources, direct sunlight, water, oil, and

humid environments, and place the unit on a 󰘱at, stable, vibration-free,

and well-ventilated area.

7) Do not clean the product surface with chemicals or wet cloth.

(chemicals: industrial brightener, wax, benzene, alcohol, paint thinner,

mosquito repellent, aromatics, lubricant, detergent etc.)

8) Please wear gloves while handling this product to prevent injuries.

9) Product design and speci󰘰cations may be revised to improve quality

and performance.

The diagrams used in this manual are based on model Z9 Plus. Installation

for the Z9 , Z9D series follows the exact installation procedure.

Cautionary Notes

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages

due to external causes, including but not limited to, improper

use, problems with electrical power, accident, neglect,

alteration, repair, improper installation, or improper testing.

Z9 Series

2Product Details

(1) Speci󰘰cations

Models Z9 Series

Type ATX Mid Tower

Dimensions (W×H×D) 207 × 464 × 504㎜ (8.1 × 18.2 × 19.8”)

Materials Plastic, Steel

Color Black

Motherboard Compatibility Standard ATX / m-ATX

Power Supply Compatibility

Standard ATX / ATX12V

PCI/AGP Compatibility Full Size 290㎜ (11.4")

Drive Bays

5.25” External Bay x 3

3.5“ External Bay x 1, Internal Bay x 5

5.25"/3.5"/2.5”

1 (3in-1)

Hot-swap

Expasion Card Solts 7 Slots

Cooling

Components

Front 120mm/140mm Fan Vent x 1 (1 Fan included)

Top

Z9 Plus /

Z9D Series

120mm/140mm Fan Vent x 2

(1 Fan included, 1 optional)

Z9 120mm/140mm Fan Vent x 2

(Fans optional)

Bottom 120㎜ or 140㎜ Fan × 1(Optional)

Rear 120mm/140mm Fan Vent x 1 (Fan optional)

Side

Z9 Plus /

Z9D Series

120mm Fan Vent x 2

(1 Blue LED Fan included, 1 optional)

Z9 120mm Fan Vent x 2

(Fans optional)

Front Panel

I/O Port

Z9 Plus /

Z9D Series

Headphones x 1, Mic x 1, Fan controller,Temperature display

USB 2.0 x 4 ( or USB 2.0 x 2 / USB 3.0 x 2)

Z9 Headphones x 1, Mic x 1, USB 2.0 x 4

※ USB3.0 port is available as option by model.

ENG

Z9 Series

(2) Product Information

Front Top Side (left)

(3) Front Panel I/O Ports

Mic

Headphones

HDD LED

Reset Button

USB 2.0

USB 2.0 USB 2.0

RESET

HDD

MIC HEADPHONE

USB 2.0

(or USB 3.0)

Power Button

Temperature Display

Fan Controller

※ Temperature and Fan Controller display are only available on the Z9 Plus, Z9D Series.

Z9 Series

(4) Parts

Cable Tie × 5 CPU 12V Extension Cable × 1

Stand-O󰘯 × 5Main Unit

A Bolt (#6-32*6mm) × 11

[PSU, PCI]

B Bolt (M3*5mm) × 17

[M/B, FDD, SSD]

D Bolt (#6-32*4mm) × 20

[3.5” Bay HDD]

C Bolt (M3*6mm) × 12

[5.25”Bay ODD]

HDD Anti-static rubber × 20

[3.5” Bay HDD]

User’s Manual

E Bolt (#6-32*6mm) × 5

[3.5” HDD]

ENG

Z9 Series

Installation

(1) Side Panel Removal

Z9 Series

(2) PSU Installation

A Bolt

▶ Type A (PSU independent cooling)

If the PSU’s fan points downwards, the PSU’

s cooling performance is enhanced.

▶ Type B (Case Air Circulation Type)

If the PSU’s fan points inwards, the PSU’s

cooling performance is enhanced.

※ When using the case in a dusty environment, use Type B.

Tip

ENG

Z9 Series

(3) Motherboard Installation

ATX Board

m-ATX Board

There are 4 Stand O󰘯s preinstalled. Please refer to the diagrams below for

additional Stand O󰘯 positions (based on motherboard type).

Stand-O󰘯

B Bolt

Z9 Series

(4) VGA Card Installation

(5) 5.25” and 3.5” Drive Installation

PULL

1) Front Cover Removal

A Bolt
