ZALMAN CNPS10X Flex Manuel utilisateur

User’s Manual

CNPS10X Flex

www.ZALMAN.com

Ver. 1.2

To ensure safe and easy installation,

please read the following precautions.

Intel Socket 1155/1156/1366/775 CPU

Core i7

Core i5

Core i3

Core 2 Quad

Core 2 Duo

Core 2 Extreme

Dual Core Pentium

Pentium D

Pentium 4

Celeron D

AMD Socket AM3/AM2+/AM2/754/939/940 CPU

Phenom Ⅱ

Phenom

Athlon ⅡX2

Athlon

Athlon 64

Athlon X2

Athlon 64 X2

Athlon FX

Athlon 64 FX

Opteron

Dual-Core Opteron

Sempron

.COM

ENGLISH

1. Precautions

2. Specifications

1) This cooler must be used with a 120mm fan.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and

eyes. If contact is made with skin, wash off with water. If ingested or

irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan and/

or system.

5) Use and keep product away from reach of children.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) During transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

8) Product design and specifications may be revised to improve quality

and performance.

Model

Spec. CNPS10X Flex

Material Pure Aluminum and Copper

Weight 700g

Dimensions 133(L) Ⅹ74(W) Ⅹ151(H)㎜

Thermal

Grease

(ZM-STG2)

Contents 3.5g

Thermal Range -40℃~ +150℃(-40 ~ +302℉)

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration,

repair, improper installation, or improper testing.

2.COM

ENGLISH

3. Components

1) Common Components

Thermal Grease

(ZM-STG2)

Vibration PadsFan Fixing Clips

Loading Block

Side Caps

Bolts

Nuts

Double-Sided Tape

Backplate User’s ManualCooler

※120mm Fan is not included and must be purchased separately.

AMD A Clip AMD B Clip

Intel Clip

2) Intel Components 3) AMD Components

Socket 1155/1156/1366/775 Socket AM3/AM2+/AM2 Socket 754/939/940

.COM

ENGLISH

4. Installation Requirements

1) Space Requirements

2) Air Guide Removal

3) Cooler Orientation

The cooler’s installation requires unobstructed space with dimensions of

140mm(width), 140mm(length), 155mm(height), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

into the required space.

Air guides on enclosures must be removed, before the cooler’s installation, for

they protrude into the cooler’s required space.

Zalman recommends installing the cooler so that the air channeled through the cooler

exits thought the rear of this case as shown below.

※Recommended cooler orientation may differ according to the motherboard model.

140㎜

155㎜

140㎜

4.COM

ENGLISH

5. Installation

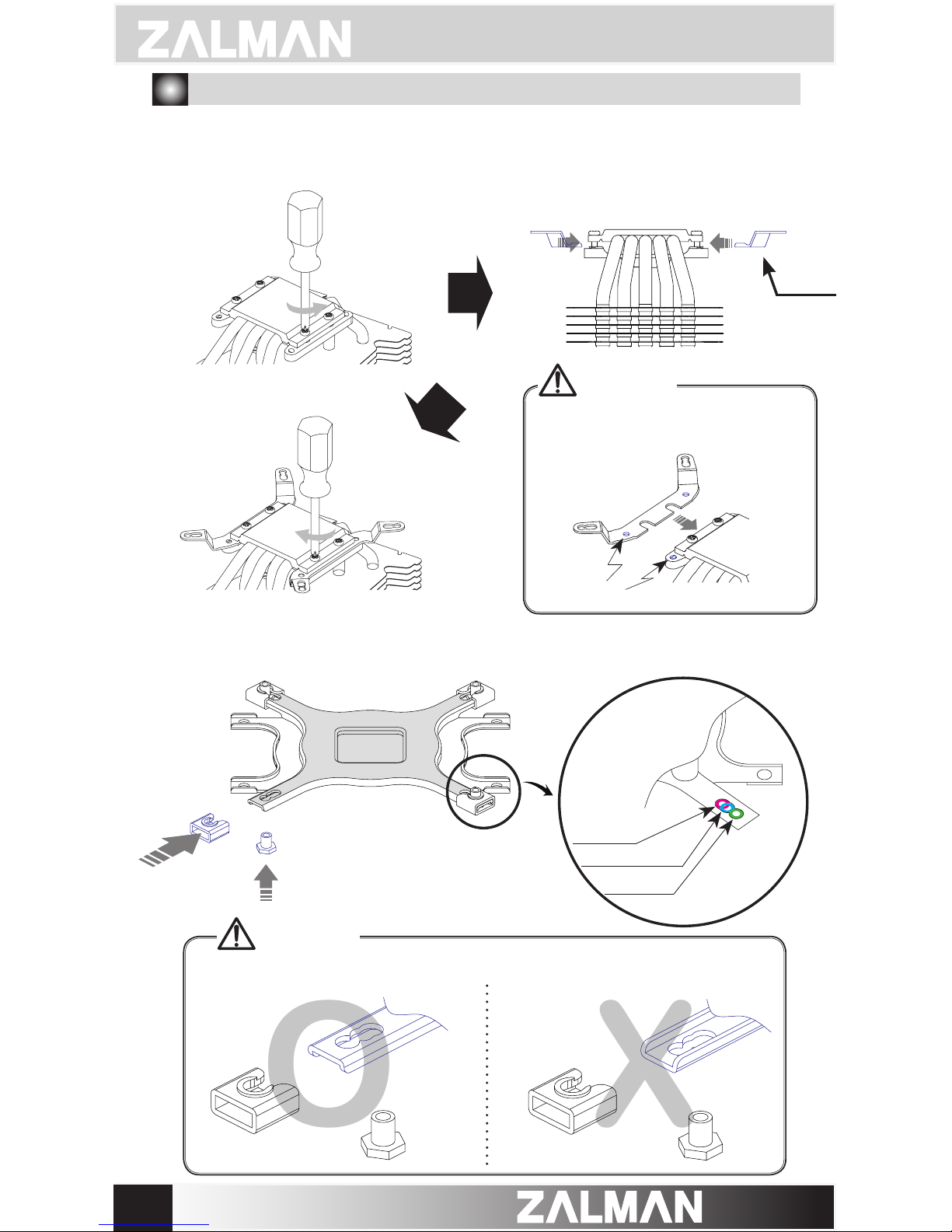

1) Intel Socket 1155 / 1156 / 775 and Socket 1366 Installation

②Insert the Nuts to the Backplate according to the Socket type and fix with

the Side Caps.

Socket 775

Socket 1155/1156

Socket 1136

Please note the direction of the Nuts and Side Caps.

Caution

①Unfasten the cooler base’s Bolt’s one thread, insert the Intel Clips

between the cover and base and refasten the Bolts.

Make sure the Intel clip’s holes and

the base cover protrusion’s holes are

aligned.

Caution

Align

Intel Clip

.COM

ENGLISH

Caution

Please make note of the Loading Block’s direction.

③- ⓑSocket 1155 / 1156 / 1366

Attach the Double-Sided Tape to the center of the Backplate and

remove the cover on the other side.

※Sockets 1155 / 1156 / 1366 do not use the Loading Block.

③- ⓐSocket 775

Remove the tape covering film from the Loading Block’s surface and attach

to the Backplate.

Attach Double-Sided Tape to the installed Loading Block and remove the

other side’s cover.

Double-Sided Tape

Loading Block

6.COM

ENGLISH

④Align the Backplate’s Nuts

to the motherboard Clip

Support’s holes and attach the

Backplate to the backside of

the motherboard.

⑤Spread about 1/3 of the included Thermal Grease on the CPU and the

fasten the Bolts to install the cooler.

⑥Attach the Vibration Pads to the cooler and use the Fixing Clips to install

one or two fans.

M/B

.COM

ENGLISH

2) AMD Socket AM3 / AM2+ / AM2 Installation

②Insert the Nuts to the Backplate according to the Socket type and fix with

the Side Caps.

Please note the direction of the Nuts and Side Caps.

Caution

①Unfasten the Bolts on the Cooler’s Base one thread, insert the AMD A Clip

between the Cover and the Base, and then refasten the Bolts.

AMD A Clip

Make sure the AMD clip’s holes and

the base cover protrusion’s holes

are aligned.

Caution

Align

8.COM

ENGLISH

④Remove the Clip Support attached to the motherboard.

M/B

③Remove the tape covering film from the Loading Block’s surface and attach

to the Backplate.

Caution

Please make note of the Loading Block’s direction.

Attach the Double-Sided Tape to the installed Loading Block and remove

the other side’s cover.

Loading Block

Double-Sided Tape

.COM

ENGLISH

⑤Align the Backplate’s Nuts

to the motherboard Clip

Support’s holes and attach the

Backplate to the backside of

the motherboard.

⑥Spread about 1/3 of the included Thermal Grease on the CPU and the

fasten the Bolts to install the cooler.

⑦Attach the Vibration Pads to the cooler and use the Fixing Clips to install

one or two fans.

M/B
