ZALMAN CNPS7000C-Cu Manuel utilisateur

User’s Manual

CNPS7000C Series

www.ZALMAN.com

V 2.3

To ensure safe and easy installation,

please read the following precautions.

Intel Socket 1156/775 CPUs

Core i7

Core i5

Core i3

Core 2 Quad

Core 2 Duo

Pentium Dual Core

Pentium D

Pentium 4

Celeron D

AMD Socket AM2/754/939/940 CPUs

Athlon 64

Athlon 64 X2 Dual-Core

Sempron

.COM

1. Precautions

2. Specifications

Model

Spec.

CNPS7000C-Cu

CNPS7000C-Cu LED

CNPS7000C-AlCu

CNPS7000C-AlCu LED

Materials Pure Copper Pure Copper and

Aluminum

Weight 750g 434g

Dimensions 109(L) Ⅹ107(W) Ⅹ63(H)㎜

Fan

Bearing-Type 2 Ball-Bearing

RPM 1,350 ~ 2,400rpm ±10%

Noise Level 17.0 ~ 24.0dBA ±10%

Input Voltage 12V

Fan

Mate 2

Output Voltage 5V ~ 11V ±2%

Maximum Capacity Up to 6W

1) Use and keep product away from reach of children and pets.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and

eyes. If contact is made with skin, wash off with water. If ingested or

irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan and/

or system.

5) Avoid inserting objects or hands into the fan while it is in operation to

prevent product damage and injuries.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) Zalman Tech Co., Ltd. is not responsible for any damages due to

overclocking.

8) During transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

9) Product design and specifications may be revised to improve quality

and performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration,

repair, improper installation, or improper testing.

.COM

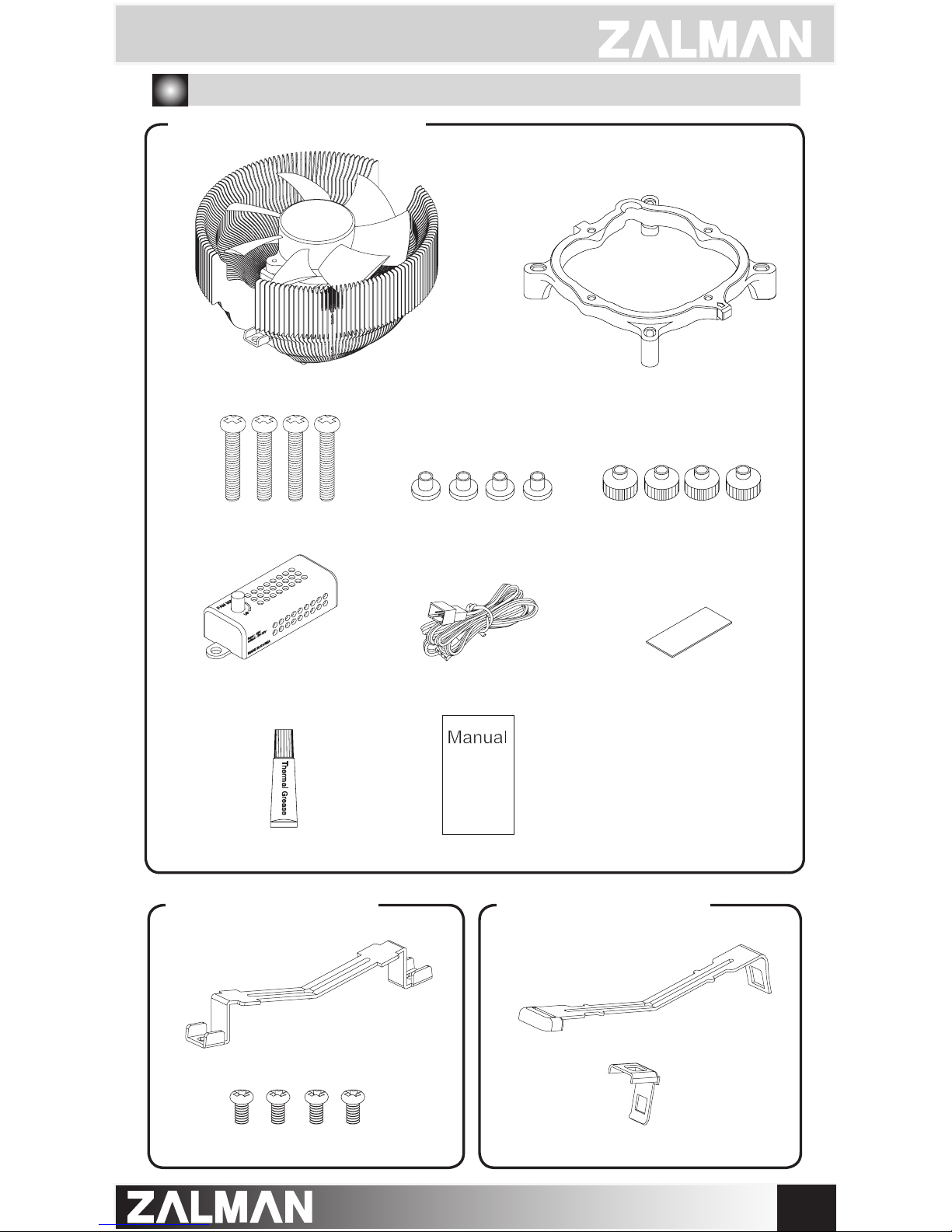

3. Components

Clip Support

Intel Clip

Cooler

User’s Manual

Thermal Grease

Clip Support Fixing Bolts Washers Nuts

Intel Clip Fixing Bolts

AMD Clip

AMD Clip Lever

Fan Mate 2 Cable

Fan Mate 2 Double-Sided Tape

1) Common Components

2) Intel Components 3) AMD Components

Socket 1156 / 775 Socket AM2 / 754 / 939 / 940

.COM

4. Installation Requirements

1) Space Requirements

2) Compatible CPUs

The cooler’s installation requires unobstructed space with dimensions of

112㎜(width), 110㎜(height), 62㎜(depth), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

into the required space.

①Intel Socket 1156 / 775 CPUs

②AMD Socket AM2 / 754 / 939 / 940 CPUs

Core i7 / i5 / i3 Core 2 Quad Core 2 Duo

all clock speeds all clock speeds all clock speeds

Pentium 4 Celeron D

Prescott Cedar Mill

up to 540 up to 650 all clock speeds

Athlon 64 FX Athlon 64 X2 Athlon 64 Sempron

up to 53 up to 5600+ all clock speeds all clock speeds

112㎜

65㎜

110㎜

3) (For heatsink-installed RAM users) Check for physical

interference between the RAM and CPU

For users of Intel and AMD motherboards, please check the RAM’s height before

installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU

cooler and RAM may prevent the use of Dual/Full-Channel Mode.

.COM

1) Intel Socket 1156 / 775 Installation

①Install the Clip Support to the motherboard according to the socket-type.

5. Installation

②Clear off any particles or residue from the CPU’s surface then spread

a thorough layer of Thermal Grease on the CPU and the base of the

cooler.

▶Please make note of the Lever Slot’s direction when

installing the Clip Support.

Caution

Nut

Washer

Bolt(silver)

Clip Support

M/B

Socket 1156

Socket 775

Lever

Slot

.COM

2) AMD Socket

AM2 / 754 / 939 / 940

Installation

③Insert the Clip Fixing Bolts to the Clip’s Installation Holes and fasten with

a screwdriver.

①The 7000C comes pre-installed with the Intel Clip. Remove the Intel Clip

and exchange with the AMD Clip. Insert the AMD Clip upright and insert

along the direction of the Fan power line and fasten.

Tip

The 7000C comes pre-installed with the Intel Clip, so Intel user’s can

proceed with installation out of the box. If the Intel Clip needs to be

reinstalled, please follow the directions in the diagram below.

.COM

①Connect Fan Mate 2 between the

Fan Cable and the motherboard

as shown in the diagram below.

②Fan Mate 2 can be installed to the

side of the case using Double-Sided

Tape.

M/B

Fan Connector (Cooler)

Double-Sided Tape

6. Fan Mate 2 Installation and Usage

1) Fan Mate 2 Installation

③Insert the AMD Clip Lever in the AMD Clip and align the Lever’s Lug Slot

with the Lug.

②Clear off any particles or residue from the CPU’s surface then spread

(outwards from center) a thorough layer of Thermal Grease on the CPU

and the base of the cooler.

.COM

2) Fan Mate 2 Operation

Ajust the Fan Speed Control Knob

for RPM control.

Fan Speed Control Knob

In the case that you get a BIOS error beep:

①Rotate the Fan Speed Control Knob clockwise to the maximum setting.

②Disable CPU Fan Detected in BIOS setting or set the system monitoring

program’s CPU Fan RPM to the lowest setting.

※Certain motherboards will not boot if the CPU fan’s RPM is not detected. In this

case inquire to the motherboard’s manufacturer for additional details.

BIOS Booting Error
