ZALMAN CNPS7000B Series Manuel utilisateur

* Please read before installation

http://www.zalman.co.kr http://www.zalmanusa.com

CNPS7000B

Intel Pentium 4

Socket 478 CPU

AMD Duron/Athlon/Athlon XP

Socket 462 CPU

AMD Sempron/AMD64 (Athlon 64/Opteron)

Socket 754/939/940 CPU

User

’’

s Manual

(English Edition)

User

’’

s Manual

1) Does not generate noise or vibration in Silent Mode.

2) Pure copper and/or pure aluminum base materials ensure excellent heat dissipation.

3) Intel Pentium (Socket 78), AMD Duron / Athlon / Athlon XP (Socket 62), and Sempron / AMD6

(Socket 75 /939/9 0) compatible design for broad compatibility.

) 92mm fan inside the FHS maximizes airflow and makes installation easier.

5) Adjustable fan speed controller (FAM MATE 2) enables control of noise and fan performance.

6) Fan should be set to Normal Mode if OVERCLOCKING.

7) Zalman Tech Co., Ltd. is not responsible for any damage resulting from CPU OVERCLOCKING.

2) Fan

- Bearing Type : 2-Ball

- Rotation Speed : 1,350rpm 10 % (Silent Mode)

2, 00rpm 10 % (Normal Mode)

- Noise Level : 20dB 10% (Silent Mode) - measured at 1m distance from noise source

25dB 10% (Normal Mode) - measured at 1m distance from noise source

3) FAN MATE 2

- Output Voltage : 5V ~ 11V 2 %

- Allowable Power : 6W or lower

Note 1)

The maximum weight for a cooler is specified as 50g for Intel Socket 78 and AMD Socket 75 /939/9 0

and 300g for AMD Socket 62. Special care should be taken when moving a computer equipped with a

cooler which exceeds the relevant weight limit. Zalman is not responsible for any damage that occurs when

moving a computer.

1) Flower Heats nk (FHS)

CNPS7000B-AlCu CNPS7000B-Cu

Model

Spec.

Weight (g)

T.R.

(°C/W )

Silent Mode

Normal Mode

438(1)

0.29

0.22

109 (L) X 109 (W) X 62 (H)

3,154

755(1)

0.27

0.20

Dimensions

(mm)

Dissipation Area

(

㎠

)

※

The specifications of any product may change without prior notice to improve performance.

1. Features

3. Exploded View

. Specifications

Fan

Clip

Fan Support

Fan Fixing Screw

Bolt

Fan Support Fixing Screw

FHS

※

The specifications of any product may change without prior notice to improve performance.

󳣍Korean Patent Application No. 00-5 635

󳣍Korean Design Applications Nos. 02-17 70, 02-25208, 02-25209, etc.

󳣍Patent Applications pending in over 20 nations around the world, including USA, EU, and Japan

4. Patents

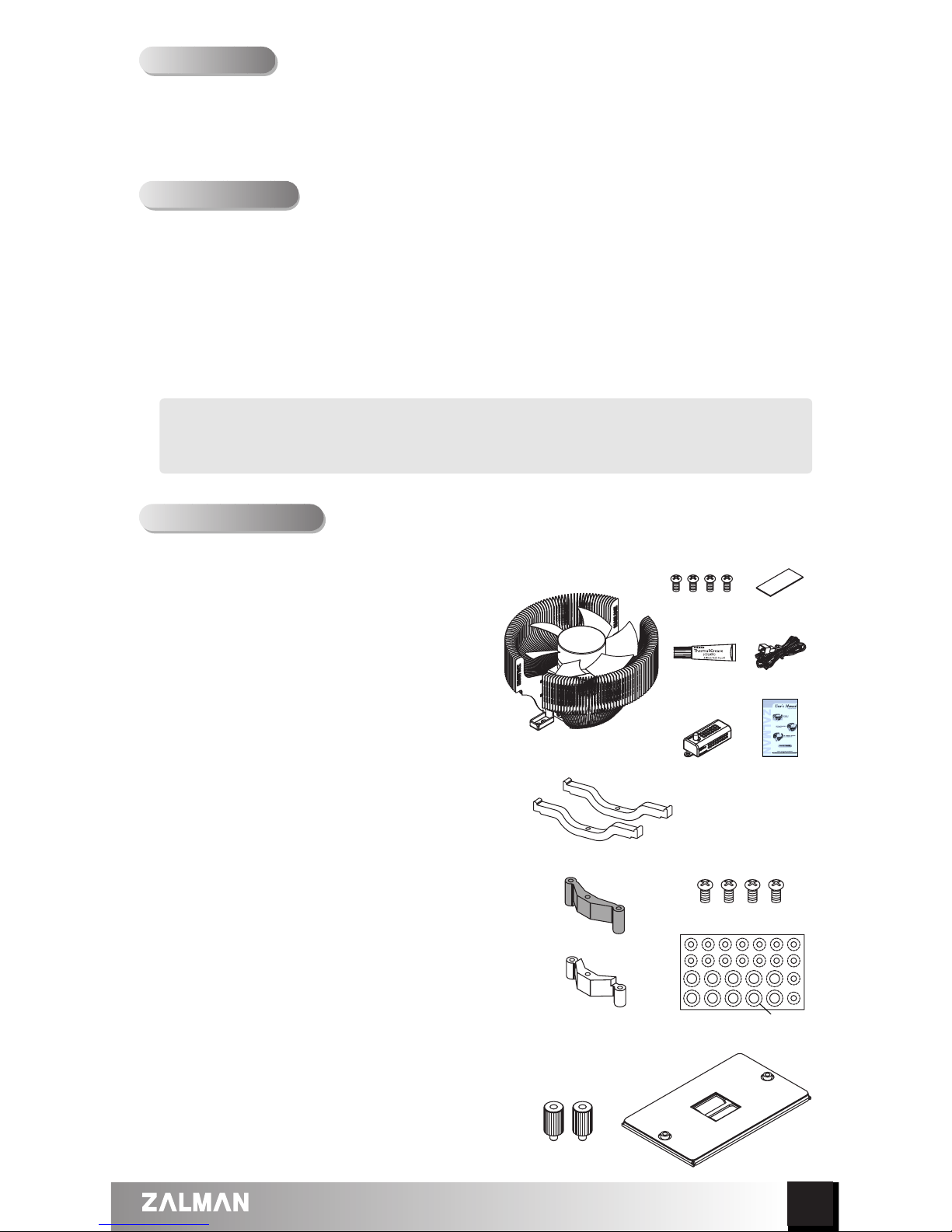

1) Common Components

❶

FHS Assembly (CNPS7000B-AlCu/Cu)

❷

Four ( ) Bolts (for installing the FHS)

❸

Thermal Grease

❹

Fan Speed Controller (FAN MATE 2)

❺

Double - sided Tape (for installing FAN MATE 2)

❻

Cable for FAN MATE 2

❼

User’s Manual (in English and Korean)

❶

❽

❾

❿

󱆎󱆏

❷

❹

❸

❺

❼

❻

5. Components

2) Components for Intel Pentium (Socket 78)

❽

Two (2) Clip Supports For Socket 78

Components for AMD Duron / Athlon / Athlon XP (Socket 62)

❾

One (1) A-Type (blue) Clip Support for Socket 62

❿

One (1) B-Type (white) Clip Support for Socket 62

󱆌

Four ( ) Bolts (for fastening the Clip Supports)

󱆍

One (1) set of Washers

)

Components for AMD Sempron / AMD6 (Socket 75 /939/9 0)

󱆎

Two (2) Nipples

󱆏

One (1) Backplate

󱆐

Big washers (from component

󱆍

)

󱆌

󱆍󱆐

Precautions

1) If excessive force is exerted on the fan, it may malfunction and result in damage to the product and/or the computer.

2) Do not put your finger in the fan while it is running.

3) Keep the product away from children.

) Check the components list and condition of the product before installing. If there is any problem, contact the shop

where you purchased it and get a replacement or refund.

5) The exposed core of a Socket 62 CPU can be cracked if proper care is not taken. Read the “Installation” section

thoroughly before installing.

NOTICE) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including improper

use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or

improper testing.

※

The specifications of any product may change without prior notice to improve performance.

1) Intel Pent um 4 - Socket 478

All speeds of Pentium Socket 78 CPUs up to 3. GHz

When using 3. GHz Northwood CPU or Prescott CPUs of 2.8A/E GHz or faster, please refer to the

following table to set the fan speed accordingly for sufficient cooling.

6. Compatible CPUs

Cautions )

①As shown in Figure 2, a motherboard that is not compliant with the“10.2mm Motherboard

component height restriction”standard, introduced by Intel, may create interference between

components and the clip. Please do not install the CNPS7000B if this interference is observed.

②No components higher than 39mm (possible examples : PSU, graphics card, RAM, etc.) should

be present within a 55mm radius from the center of the CPU to install this product.

③For more information, please visit the Zalman website (http://www.zalman.co.kr) and click on“Compatibility

between CNPS7000(A/B) and Socket 78 Pentium Motherboards”

link.

2) AMD Duron / Athlon / Athlon XP - Socket 462

All CPUs conforming to Socket 62 platform

Cautions )

①This product requires “Heatsink Attach Holes”around the

CPU socket as shown on the right.

②No components higher than 39mm (possible examples : PSU,

graphics card, RAM, etc.) should be present within a 55mm

radius from the center of the CPU to install this product.

③

This product cannot be installed if any motherboard component

(usually capacitor) taller than 15mm is located under the clip.

④For more information, please visit the Zalman website

(http://www.zalman.co.kr) and refer to“CNPS7000(A/B) Compatible

Socket 62 Motherboards List”

link.

②

①

③

10.2mm Motherboard component height restriction

Clip

Motherboard

Component

Motherboard Component

F gure 1

Compat ble

F gure 2

Not Compat ble

Top V ew Top V ew

S de V ew S de V ew

< CNPS7000B Fan Speed Table >

Northwood

3.4 2.8A/E, 3.0E, 3.2E, 3.4E

Prescott

Cooler

CNPS7000B-AlCu

CNPS7000B-Cu

2,500 rpm or faster

2,200 rpm or faster

※

Fan speed of 2,500rpm can be obtained by directly connecting 3-pin fan connector to motherboard. (Without Fan Controller)

※

The specifications of any product may change without prior notice to improve performance.

3) AMD Sempron / AMD64 - Socket 754/939/940

All CPUs conforming to Socket 75 /939/9 0 platform

Cautions )

①No components higher than 39mm (possible examples: PSU,

graphics card, RAM, etc.) should be present within a 55mm

radius from the center of the CPU to install this product.

②For more information, please visit the Zalman website

(http://www.zalman.co.kr) and refer to “CNPS7000(A/B) “Compatible

Socket 75 /939/9 0 Motherboards List”

link.

①

1) Apply Thermal Grease

Clean off particles and residue and then spread

the included thermal grease thinly and evenly over

the CPU that touches the FHS surface.

2) Install Cl p Supports for Socket 478

Install the clip supports for socket 78 on both sides of

the retention guide as shown on the right.

3) Insert Bolts

Insert the two bolts into the inner holes of the clip.

4) Place FHS

Set the FHS at the center of the CPU. Screw the

bolts in slightly, and then tighten them in an alternating

fashion until the clip supports are completely pressed

against the clip.

7. Installation (Intel Pentium 4 - 478)

CPU (IHS)

Thermal Grease

Retention Guide

Clip Support for Socket 78

󳦈

󳦇

󳦊

Bolt

Inner Hole

Clip

FHS

Cilp Support for

Socket 78

5) Supply Power (Connect FAN MATE 2)

◆

Please refer to FAN MATE 2 Installation and Usage on page 7.

※

The specifications of any product may change without prior notice to improve performance.

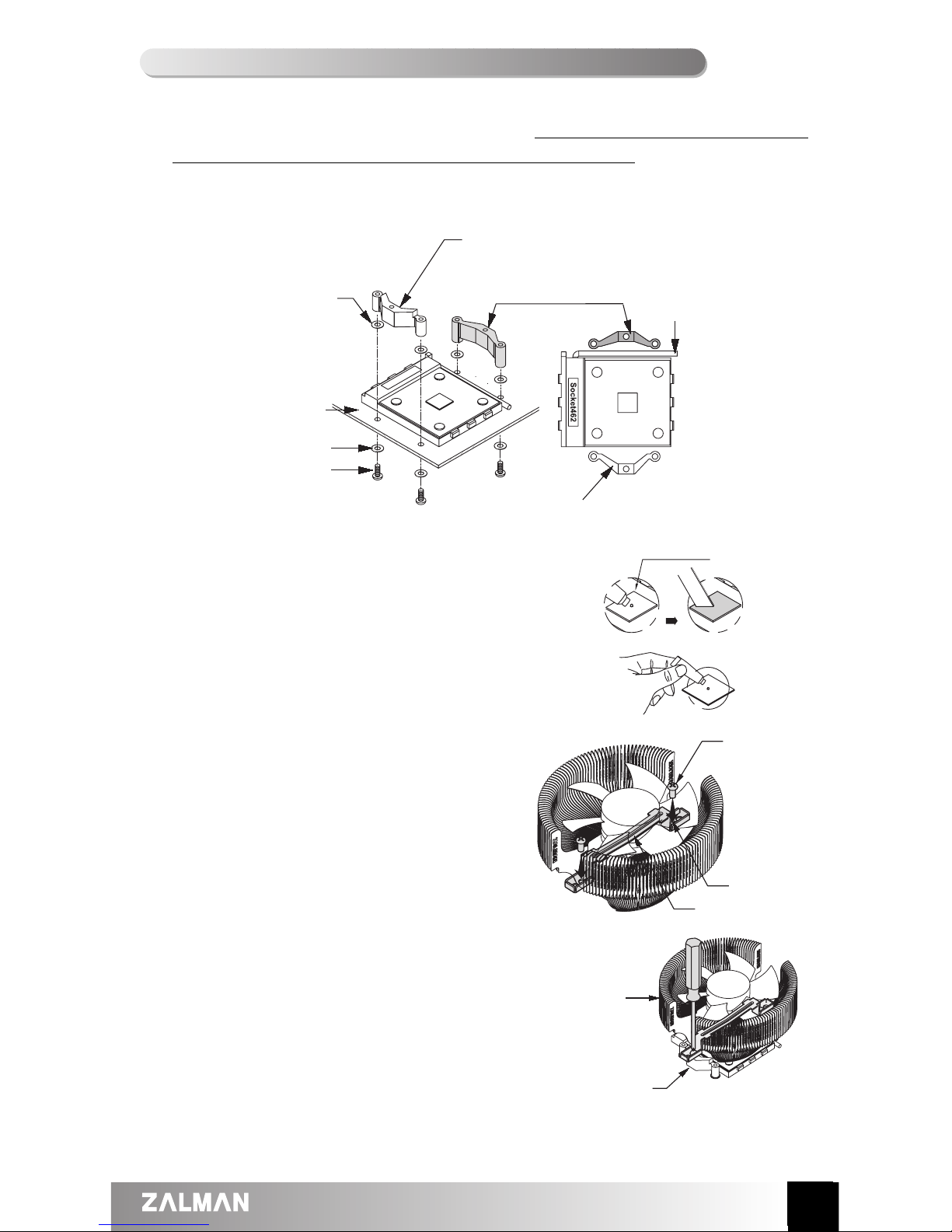

1) Install Cl p Supports for Socket 462

Install the clip supports for socket 62 on the motherboard. Make sure to place A-type (blue : nstalled

near the lever) and B-type (wh te) supports at the appropr ate locat on.

The installation should be done in the order of : bolts > small washers > motherboard > small washers >

clip supports (see below).

2) Apply Thermal Grease

Clean off particles and residue and then spread the

included thermal grease thinly and evenly over the CPU

core that touches the FHS surface.

8. Installation (AMD Duron / Athlon / Athlon XP - 46 )

5) Supply Power (Connect FAN MATE 2)

◆

Please refer to FAN MATE 2 Installation and Usage on page 7.

CPU

Thermal Grease

Bolt

Inner Hole

Clip

FHS

Cilp Support for

Socket 62

3) Insert Bolts

Insert the two bolts into the inner holes of the clip.

4) Place FHS

Set the FHS at the center of the CPU. Screw the

bolts in slightly, and then tighten them in an alternating

fashion until the clip supports are completely pressed

against the clip.

Clip Support B for Socket 62 (White)

Lever

Small Washer

Motherboard

Small Washer

Bolt

Clip Support B for Socket 62 (White)

Clip Support A for

Socket 62 (Blue)

※

The specifications of any product may change without prior notice to improve performance.

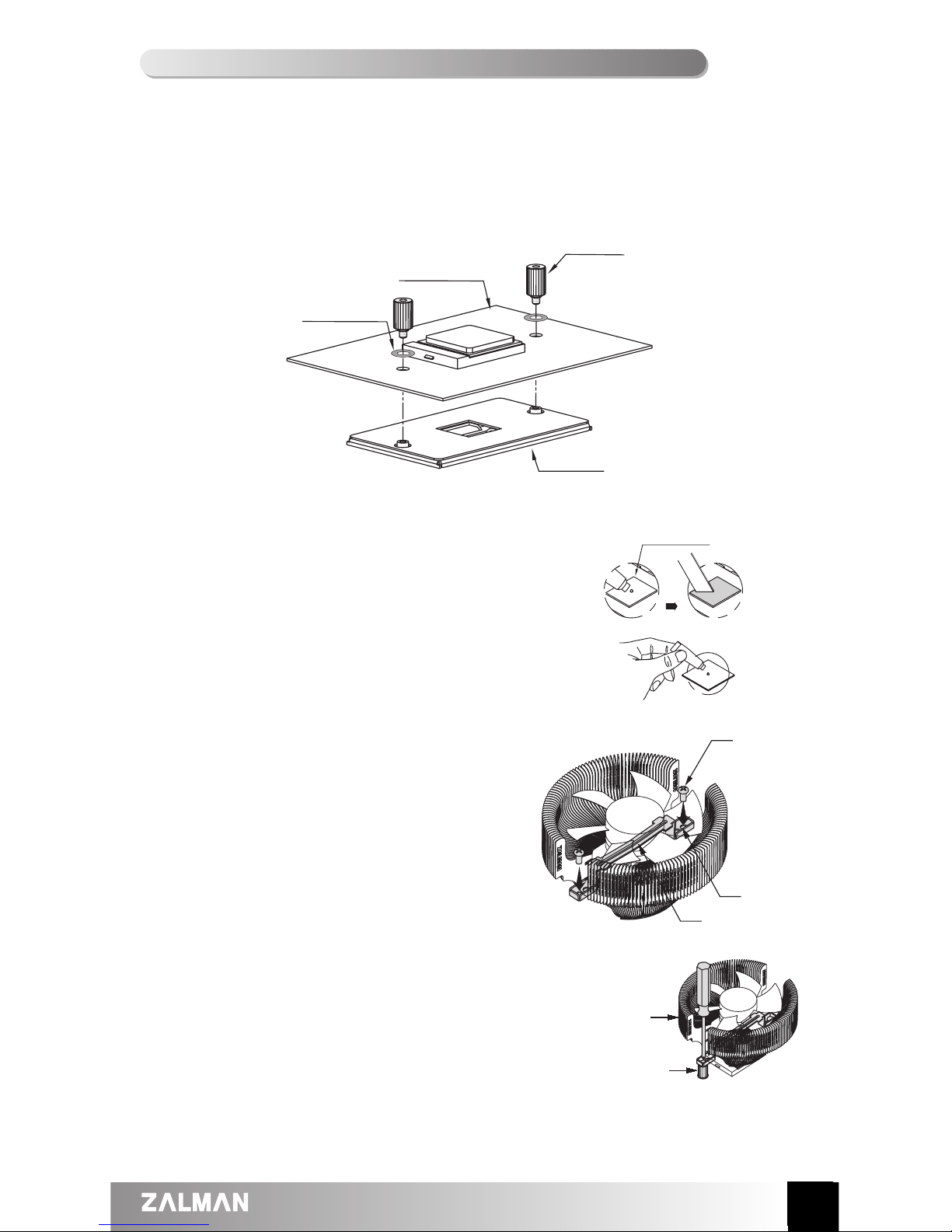

1) Fasten N pples

Place a big washer on the motherboard. Then, put a nipple over it and fasten the nipple until the

motherboard is firmly stuck to the backplate.

* Retention Guide is not needed when installing CNPS7000B on Socket 75 /939/9 0.

3) Insert Bolts

Insert the two bolts into the outer holes of the clip.

4) Place FHS

Set the FHS at the center of the CPU. Screw the

bolts in slightly, and then tighten them in an alternating

fashion until the nipples are completely pressed against

the clip.

9. Installation (AMD Sempron / AMD64 - 754/939/940)

Bolt

Outer Hole

Clip

FHS

Nipple

5) Supply Power (Connect FAN MATE 2)

◆

Please refer to FAN MATE 2 Installation and Usage on page 7.

Backplate

Nipple

Motherboard

Big Washer

2) Apply Thermal Grease

Clean off particles and residue and then spread the

included thermal grease thinly and evenly over the

CPU that touches the FHS surface.

CPU (Lid)

Thermal Grease

※

The specifications of any product may change without prior notice to improve performance.

1) Installing FAN MATE 2 on the Inside of the System 2) Installing FAN MATE 2 on the Outside of the System

※FAN MATE Installation and Usage

10. Notes on Usage

11. Thermal Resistance (℃/W) & Noise (dB) Curve

Connect the appropriate 3-pin connector on the

cable to the motherboard fan header and the

CNPS7000B’s fan connector.

Pull the 6-pin connector out of the system through

the back and connect it to FAN MATE 2, which

should be installed on the case using the included

double-sided tape.

◆

When the speed control knob on FAN MATE 2 is turned fully counter-clockwise, the fan operates in Silent Mode.

Turned fully clockwise, it operates in Normal Mode. You can select the desired fan speed by turning the knob.

Note) FAN MATE 2 has been specifically designed for the fan of this product. Zalman Tech Co., Ltd. is not

responsible for any damage to systems or CPUs caused by using it with other types of fans.

1) Check ng CPU Compat b l ty

Please refer to “Compatible CPUs” on page 3 to confirm that your CPU is compatible before using the CPU cooler.

2) Caut ons Dur ng Boot ng

When booting the computer, it may automatically power down after an alarm sound by a system

monitoring program to indicate that the the CPU fan is rotating slowly. If this happens, turn the speed

control knob fully clockwise to increase the fan speed. Then set ‘CPU Fan Detected’ to ‘Disabled’ in the

BIOS settings, or set the slowest rotational speed of the CPU fan in the system monitoring program to

less than or equal to 1,300rpm.

Note) Some motherboards do not boot if the rotational speed of the CPU fan is below a certain

rpm. If the BIOS settings are updated, Silent Mode can be used. For more information on

updating your BIOS, please refer to your motherboard manufacturer's website. Disabling

CPU fan speed detection in BIOS settings does not affect computer performance.

Fan Connector

(CNPS7000B)

Motherboard

Double-sided Tape

FAN MATE 2

6-Pin Connector

※

The specifications of any product may change without prior notice to improve performance.

When building a noiseless computer, use Zalman’s Noiseless Power Supply, Noiseless Case Fan,

Fanless Northbridge Cooler, Heatpipe HDD Cooler, Heatpipe VGA Cooler, and Fan Controller to achieve

stable performance and maintain a noiseless environment.

1 . Zalman Noise Prevention System

Noiseless Power Supply Fanless Northbridge Cooler Heatpipe HDD Cooler

Noiseless Case Fan Heatpipe VGA Cooler Fan Controller

Autres manuels pour CNPS7000B Series

Ce manuel convient aux modèles suivants

Autres manuels ZALMAN Matériel informatique

ZALMAN

ZALMAN ZM-WB3 Gold Manuel utilisateur

ZALMAN

ZALMAN VF2000 LED Manuel utilisateur

ZALMAN

ZALMAN CNPS7000C Series Manuel utilisateur

ZALMAN

ZALMAN CNPS9700 LED Manuel utilisateur

ZALMAN

ZALMAN Reserator 5 Manuel utilisateur

ZALMAN

ZALMAN ZM-RF1 Manuel utilisateur

ZALMAN

ZALMAN CNPS9500 AT Manuel utilisateur

ZALMAN

ZALMAN RESERATOR2 Guide de démarrage rapide

ZALMAN

ZALMAN ZM80D-HP Manuel utilisateur

ZALMAN

ZALMAN CNPS16X Manuel utilisateur

ZALMAN

ZALMAN CNPS8700 NT Manuel utilisateur

ZALMAN

ZALMAN CNPS14X Manuel utilisateur

ZALMAN

ZALMAN CNPS9500 AT Manuel utilisateur

ZALMAN

ZALMAN CNPS8700 NT Manuel utilisateur

ZALMAN

ZALMAN ZM-RWB1 Manuel utilisateur

ZALMAN

ZALMAN CNPS7000B-AlCu Manuel utilisateur

ZALMAN

ZALMAN CNPS7000B Series Manuel utilisateur

ZALMAN

ZALMAN ZM-WB2 Gold Manuel utilisateur

ZALMAN

ZALMAN FX100 Manuel utilisateur

ZALMAN

ZALMAN CNPS12X Manuel utilisateur

ZALMAN

ZALMAN ZM-2HC2 Manuel utilisateur

ZALMAN

ZALMAN CNPS6000-Al Manuel utilisateur

ZALMAN

ZALMAN CNPS 7600 Manuel utilisateur

ZALMAN

ZALMAN ZM80C-HP Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
