ZALMAN CNPS9900A LED Manuel utilisateur

Ver. 3.0

To ensure safe and easy installation, please read

the following precautions

www.ZALMAN.com

Core i7 Extreme, Core i7, Core i5, Core i3, Core 2 Extreme, Core

2 Quad, Core 2 Duo, Pentium Dual-Core, Pentium D, Pentium 4,

Celeron D

Zambezi, Llano, Phenom II, Phenom, Athlon II, Athlon X2, Athlon

FX, Athlon, Opteron Dual-Core, Opteron, Sempron

Intel Socket 1366/1156/1155/775 CPU

AMD

Socket

FM1/AM3+/AM3/AM2+/AM2 CPU

Core i7 Extreme, Core i7, Core i5, Core i3, Core 2 Extreme, Core

2 Quad, Core 2 Duo, Pentium Dual-Core, Pentium D, Pentium 4,

Celeron D

Zambezi, Llano, Phenom II, Phenom, Athlon II, Athlon X2, Athlon

FX, Athlon, Opteron Dual-Core, Opteron, Sempron

CNPS9900 Max

CNPS9900A LED / NT

Intel Socket 2011/1366/1156/1155/775 CPU

AMD

Socket

FM1/AM3+/AM3/AM2+/AM2 CPU

User’s Manual

.COM

1. Precautions

6SHFL¿FDWLRQV

1) Avoid inserting objects or hands into the fan while it is in operation to

prevent product damage and injuries.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and

eyes. If contact is made with skin, wash off with water. If ingested or

irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan and/

or system.

5) Use and keep product away from the reach of children and pets.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) Zalman Tech Co., Ltd. is not responsible for any damages due to

overclocking.

8) Before transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

9) Enable PWM function in BIOS settings after installation.

10) Product design and specifications may be revised to improve quality

and performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration, repair,

improper installation, or improper testing.

AcXY`

GdYW" 7BDG--$$5@98 7BDG--$$BH 7BDG--$$A5L

6@I9#F98

AUhYf]U` DifY7cddYf DifY7cddYf 6`UW_!DYUf`B]W_Y`D`UhYX

KY][\h +'$[ +))[

8]aYbg]cbg -(@Ṋ%'%KṊ%)&<ỻ

<YUh8]gg]dUh]cb5fYU ) ($&Wa

:Ub

6YUf]b[ &6U``!6YUf]b[ @cb[@]ZY6YUf]b[

Ei]YhAcXY

Ok#FYg]ghYfQ

FDA ,$$r%'$$fda᳗%$ -$$r%)$$fda᳗%$

Bc]gY@YjY` %,r&,")X65᳗%$ %,r&+X65᳗%$

BcfaU`AcXY

Ok#cFYg]ghYfQ

FDA %$$$r&)$$fda᳗%$ -$$r%+$$fda᳗%$

Bc]gY@YjY` %-")r',"$X65᳗%$ %,r'$X65᳗%$

H\YfaU`;fYUgY

ONA!GH;&Q

7UdUW]hm '")[

HYad"FUb[Y !($᳢r%)$᳢!($r'$&ᴬ

.COM

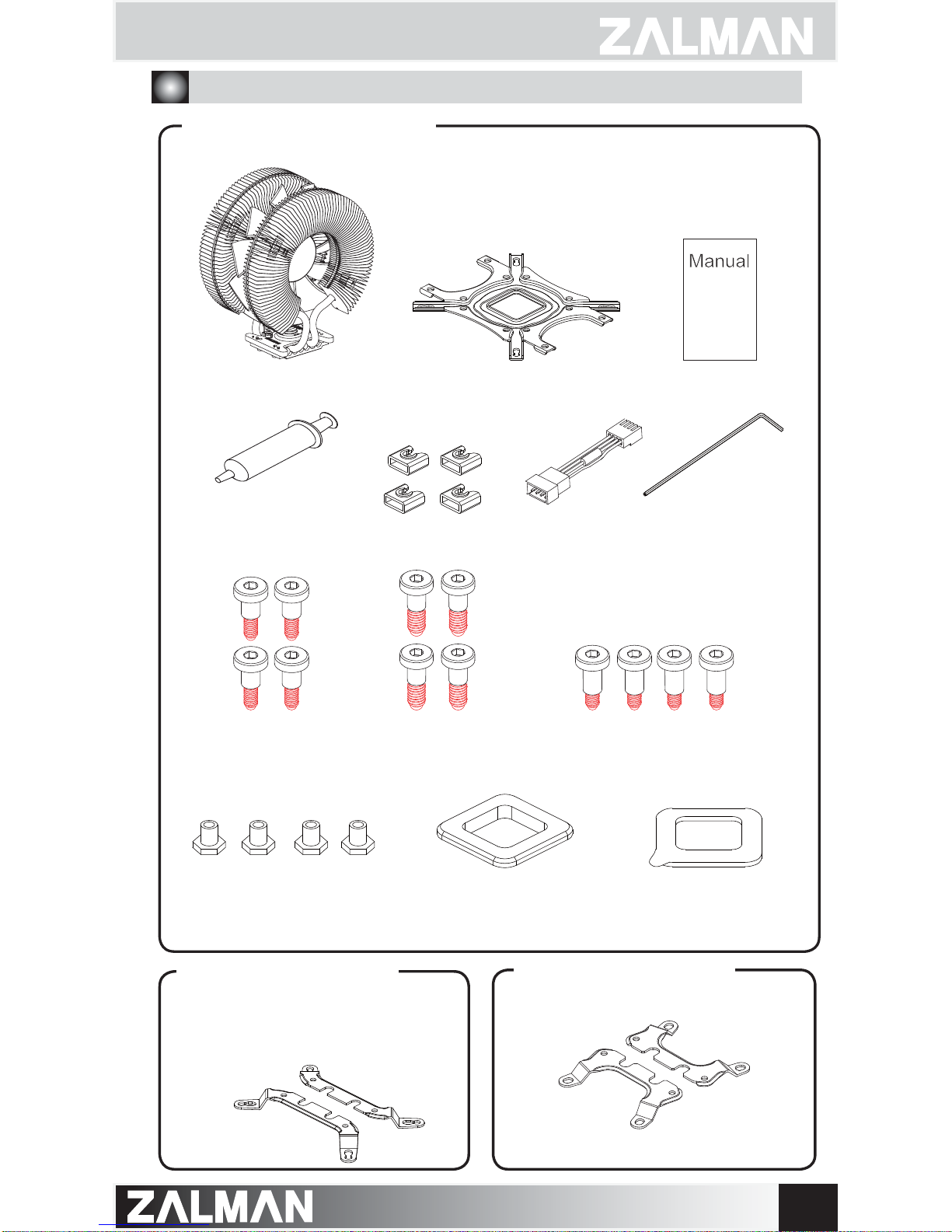

3. Components

1) Common Components

Thermal Grease

[ZM-STG2]

Loading Block

Side Caps

Nuts Double-sided Tape

Backplate

Resistor Wrench

User’s Manual

Cooler

Silver Bolts B (3mm)

(Socket 1156/1155/775/AMD)

Silver Bolts A (4mm)

(Socket 2011,

CNPS9900MAX Only)

Gold Bolts

(Socket 1366 )

AMD Clip

Intel Clip

2) Intel Components 3) AMD Components

CNPS9900MAX:Socket2011/1366/1156/1155/775

CNPS9900ALED/NT:Socket1366/1156/1155/775 Socket FM1/AM3+/AM3/AM2+/AM2

.COM

("=bghU``Uh]cbFYei]fYaYbhg

1) Space Requirements

The cooler’s installation requires unobstructed space with dimensions of

133mm(width), 96mm(length), 154mm(height), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

into the required space.

2) Air Guide Removal

4) Cooler Orientation

5) Cooler Handling

Air guides on enclosures must be removed, before the cooler’s installation, for

they protrude into the cooler’s required space.

In relation to the cooler’s centrally located fan,

DLUÀRZVIURPWKH³WKLQQHU´IURQWKHDWVLQNWRWKH

³WKLFNHU´UHDUKHDWVLQN$VVKRZQLQWKHGLDJUDP

below, it is recommended that the cooler be

LQVWDOOHGVRWKDWDLUÀRZVIURPWKHFRROHUWRZDUG

the enclosure’s rear exhaust fan to be released.

Please hold the cooler with both

hands as shown in the diagram.

-*ỻ

%)(ỻ

%''ỻ

3) Protective Brace Removal

Please unclip and remove the heatsink’s Plastic Brace before installing the cooler.

.COM

5. Installation

Intel Socket Installation

1) Intel Socket 2011 Installation (CNPS9900 MAX Series Only)

!Unfasten the Bolts on the Cooler’s Base one thread, insert the Intel Clip

between the Cover and the Base, and then refasten the Bolts.

Make sure the Intel Clip’s ingresses

DUHÀXVKDJDLQVW

the protrusions of

the Base Cover.

Align

Intel Clip

- Apply a suitable amount of the included Thermal Grease on the CPU’s

surface and then fasten the Bolts to install the cooler.

Check the size of the silver-

colored bolts before installing

because silver-colored bolt A

and B have similar color. Gold Bolts

(Socket 1366) Sliver Bolts A (4mm)

(Socket 2011) Sliver Bolts B (3mm)

(Socket 1156/1155/

775/AMD)

Sliver Bolt A

(4mm)

Wrench

Caution

.COM

Socket 775

Socket 1156/1155

Socket 1366

Take note of the orientation of the Nuts and the Side Caps.

Caution

2) Intel Socket 1366/1156/1155/775 Installation

ᾒ

Install Bolts to the Backplate according to the Socket Type and secure

with Side Caps.

ᾓSocket 1366/1156/1155 Installation

Attach Double-sided Tape to the center of the Backplate and remove

the Double-sided Tape’s Cover.

ᳱSocket 1366/1156/1155 Installation does not require the Loading Block.

.COM

ᾔ

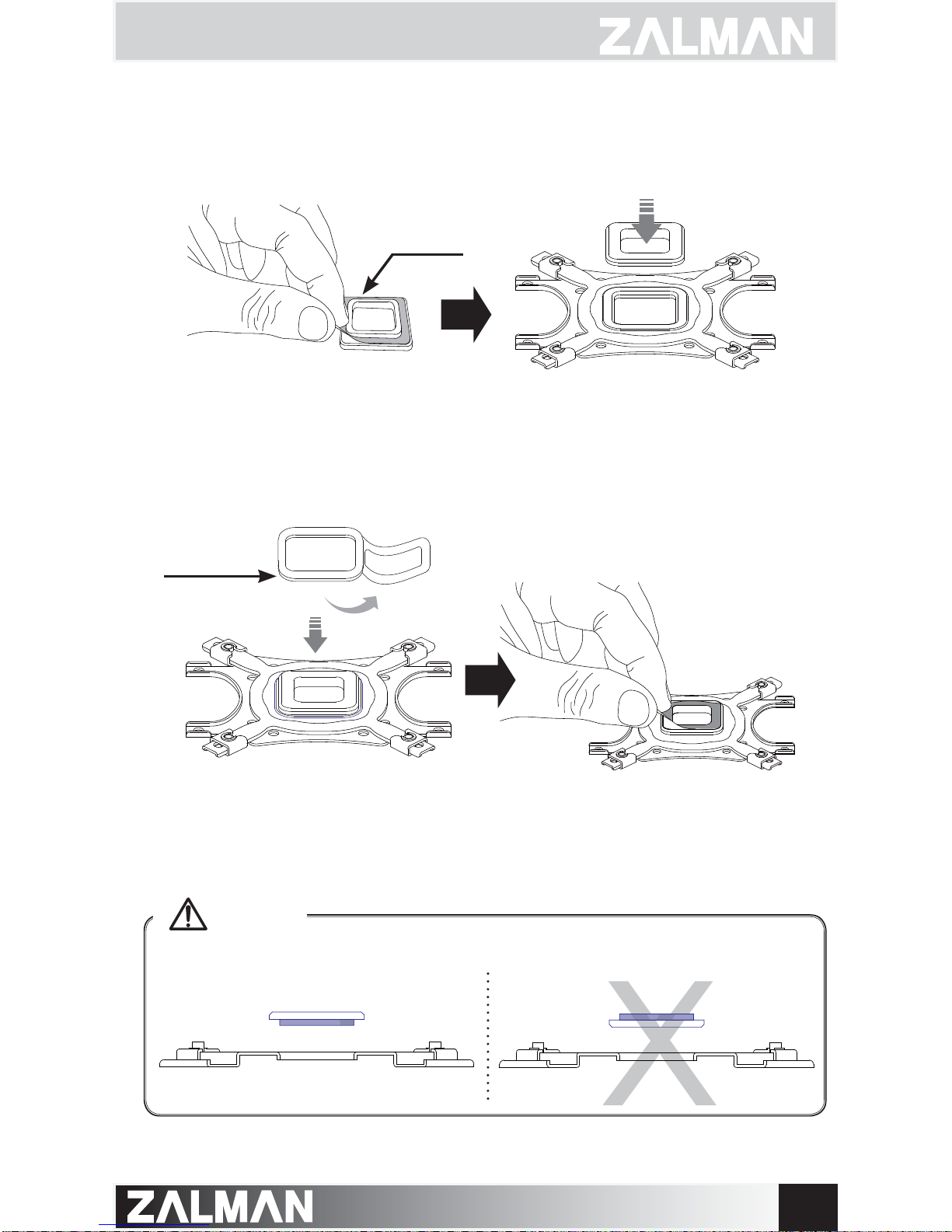

Socket 775 Installation

Remove the Sticker Cover from the Lower Tier of the Loading Block and

attach to the Backplate.

Attach Double-sided Tape to the Loading Block and remove the Double-sided

Tape Cover.

Double-sided Tape

Loading Block

Caution

Please make note of the orientation of the Loading Block’s Installation.

.COM

ᾕ

Align the Backplate’s Nuts with

the motherboard’s Clip Support

installation holes and then fasten

to the motherboard.

M/B

Gold Bolt

(Socket 1366)

Sliver Bolt B (3mm)

(Socket 1156/1155/775)

ᾖApply a suitable amount of the included Thermal Grease on the CPU’s

surface and then fasten the Bolts to install the cooler.

Check the size of the silver-

colored bolts before installing

because silver-colored bolt A

and B have similar color. Gold Bolts

(Socket 1366) Sliver Bolts A (4mm)

(Socket 2011) Sliver Bolts B (3mm)

(Socket 1156/1155/

775/AMD)

Caution

M/B

Wrench

Please make sure that PWM Control Mode is activated in the motherboard’s BIOS settings.

Caution

ᾗ

Connect the cooler’s 4-pin connector to the

motherboard’s CPU Fan header.

M/B

Fan RPM-reducing

resistance

M/B

.COM

1) AMD Socket FM1/AM3+/AM3/AM2+/AM2 Installation

ᾒ

Unfasten the Bolts on the Cooler’s Base one thread, insert theAMD Clip

between the Cover and the Base, and then refasten the Bolts.

Make sure the AMD Clip’s ingresses

DUHÀXVKDJDLQVWWKHSURWUXVLRQVRI

the Base Cover.

Caution

Align

B. AMD Socket Installation

ᾓInstall Bolts to the Backplate according to the Socket Type and secure

with Side Caps.

5A87`]d

Take note of the orientation of the Nuts and the Side Caps.

Caution

.COM

ᾔ

Remove the Sticker Cover from the Lower Tier of the Loading Block

and attach to the Backplate.

Caution

Please make note of the orientation of the Loading Block’s Installation.

Attach Double-sided Tape to the Loading Block and remove

the Double-sided Tape Cover.

Loading Block

Double-sided Tape

ᾕDisassemble the motherboard’s Clip Support.

A#6
