TOORX WBX-250 Manuel utilisateur

INSTRUCTION

Ed: 09/17 Rev: 00

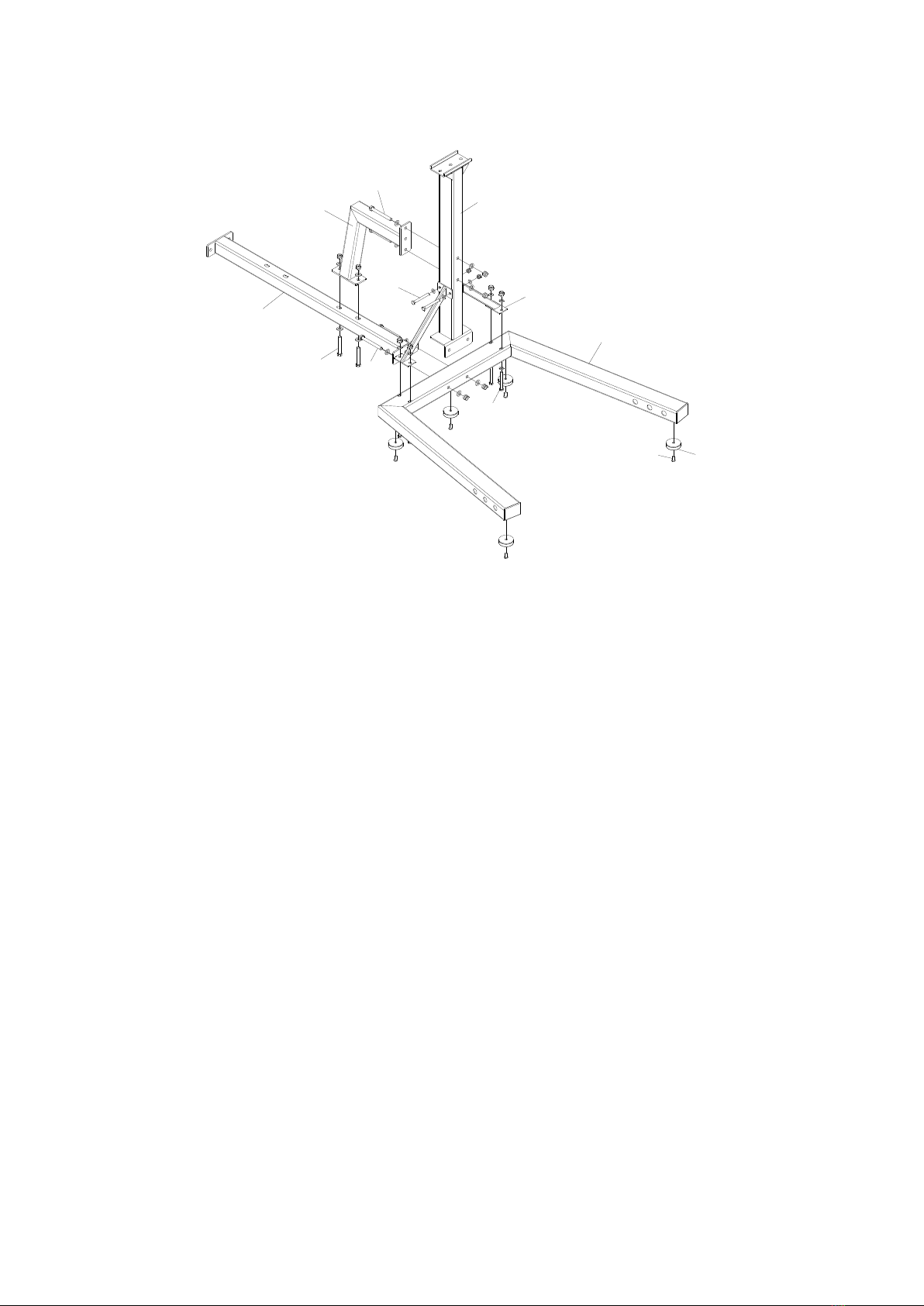

STEP 01

40 42

30 26

1. Attach five parts 26 to part 2 with five parts 30.

2. Attach part 4 and part 12 to part 2 with two parts 42.

3. Attach part 10 to part 4 and part 12 with two parts 41 and two parts 40.

4. Attach two parts 5 to part 2 with four parts 36.

5. Attach parts 5 to part 4 with two parts 37.

Assembling your machine

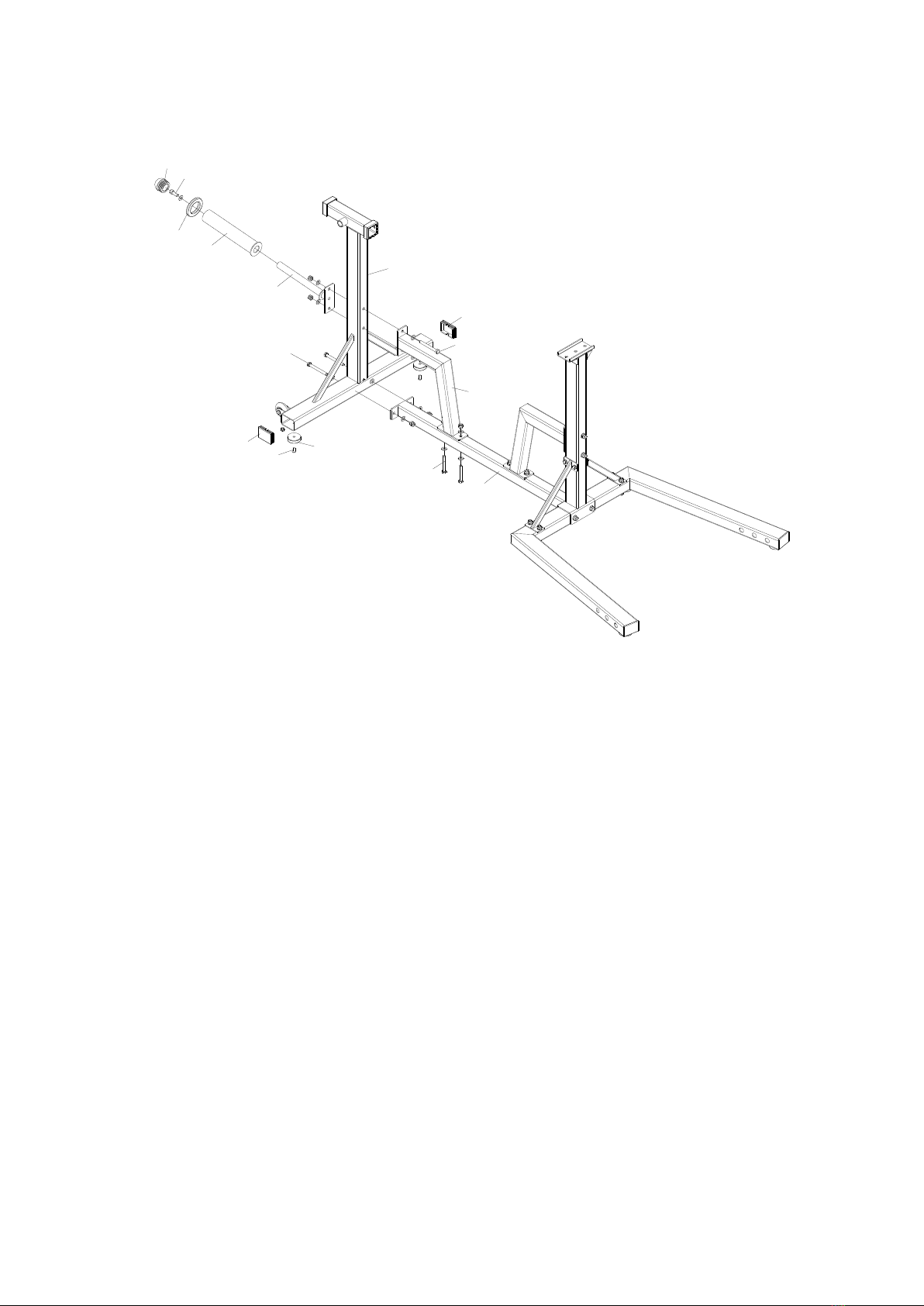

STEP 02

2134

25 16

31 40 12

1. Attach two parts 26 to part 1 with two parts 31. Attach part 19 to part 1.

2. Attach part 1 to part 12 with two parts 41.

3. Attach part 10 to part 12 with two parts 40.

4. Attach part 3 to part 1 and part 10 with two parts 42.

5. Attach part 16 to part 3 with part 34.

6. Attach part 21 and part 25 to part 16.

STEP 03

29 7

128

11 6

1. Attach part 11 and part 6 to part 4 with two parts 39.

2. Attach part 7 to part 1 with part 28 and part 29.

3. Attach part 8 to part 7 with two parts 38.

4. Attach part 9 to part 8 with two parts 38.

5. Attach part 33 to part 7.

6. Insert part 13 into tube on part 8.

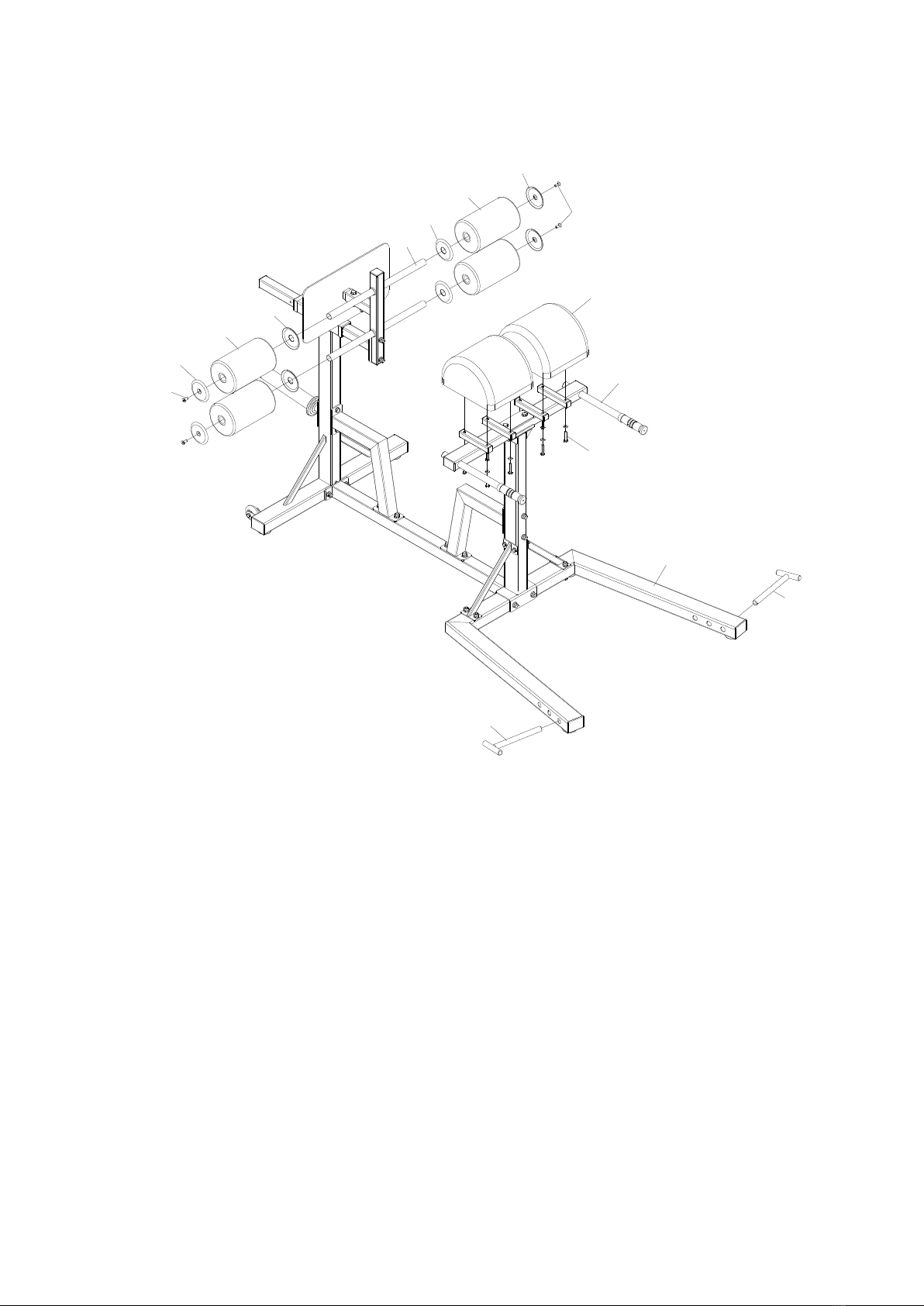

STEP 04

27 15

1315 27

1. Attach two parts 43 to part 6 with eight parts 35.

2. Attach parts 15, parts 27 and parts 14 to part 13 and secure with parts 32.

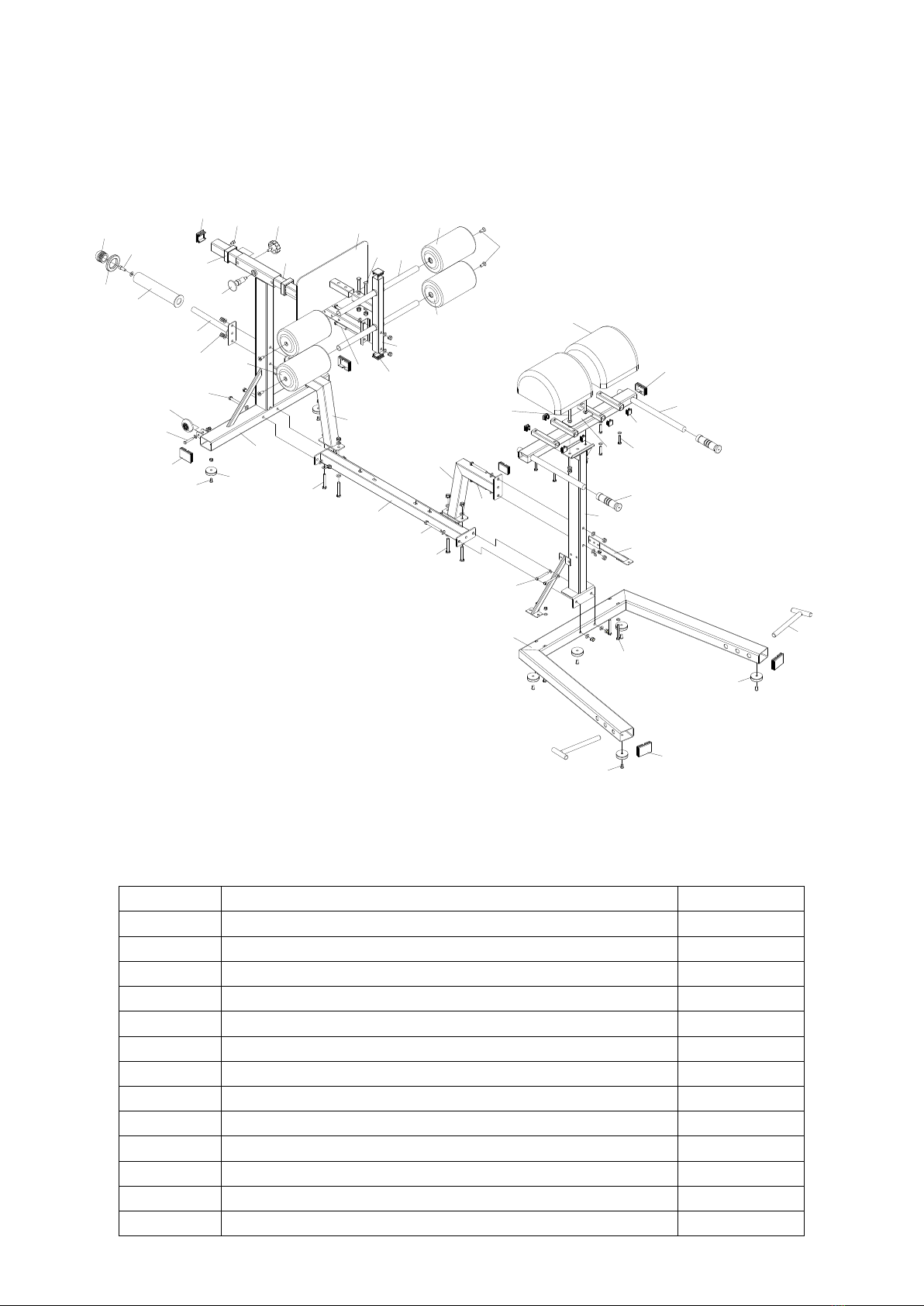

EXPLODED DRAWING

21 22

40 41

PART LIST

NUMBER

DESCRIPTION

QUANTITY

REAR SUPPORT

BASE FRAME

PLATE BAR

UPRIGHT SUPPORT

OBLIQUE SUPPORT

BACK CUSHION SUPPORT

ADJUSTABLE TUBE

FOAM TUBE SUPPORT

FOOT PLATE

CONNECTION

CONNECTION PLATE

CONNECTION TUBE

FOAM TUBE

COVER (OUTSIDE)

COVER (INSIDE)

OLYMPIC SLEEVE ADAPTER

SQUARE PLUG (SMALL)

RECTANGLE PLUG

RECTANGLE PLUG (BIG)

BOLT M8×45 + TWO WASHERS + LOCK NUT

ROUND PLUG - 50

SQUARE PLUG - 44

SQUARE BUSHING

HANDLE

RUBBER BUFFER

BUFFER

FOAM (WITH COVER)

FAST PIN

LOCKING KNOB (MALE)

ALLEN HEAD BOLT M8×16

ALLEN HEAD BOLT M8×16 + LOCK NUT

HEX SOCKET HEAD SCREWS M8×30

HEXAGON SOCKET CAP BOLT M10*16

HEXAGON SOCKET CAP BOLT M10*25 + WASHER 10

BOLT M8×50 + WASHER

BOLT M8×65 + TWO WASHERS + LOCK NUT

BOLT M8×70 + TWO WASHERS + LOCK NUT

BOLT M10×55 + TWO WASHERS + LOCK NUT

BOLT M10×60 + TWO WASHERS + LOCK NUT

BOLT M10×70 + TWO WASHERS + LOCK NUT

BOLT M10×90 + TWO WASHERS + LOCK NUT

BOLT M10×95 + TWO WASHERS + LOCK NUT

BACK CUSHION

BAND HOOK

SQUARE PLUG -38

WHEEL

GARLANDO SPA

Via Regione Piemonte, 32 - Zona Industriale D1

15068 - Pozzolo Formigaro (AL) - Italy

www.toorx.it - info@toorx.it
