TOORX BRX3000 Manuel utilisateur

Ed : Rev : Cod :

INSTRUCTION

07/18 GRLDTOORXBRX3000

iConsole App Manual

www.toorx.it/iconsole

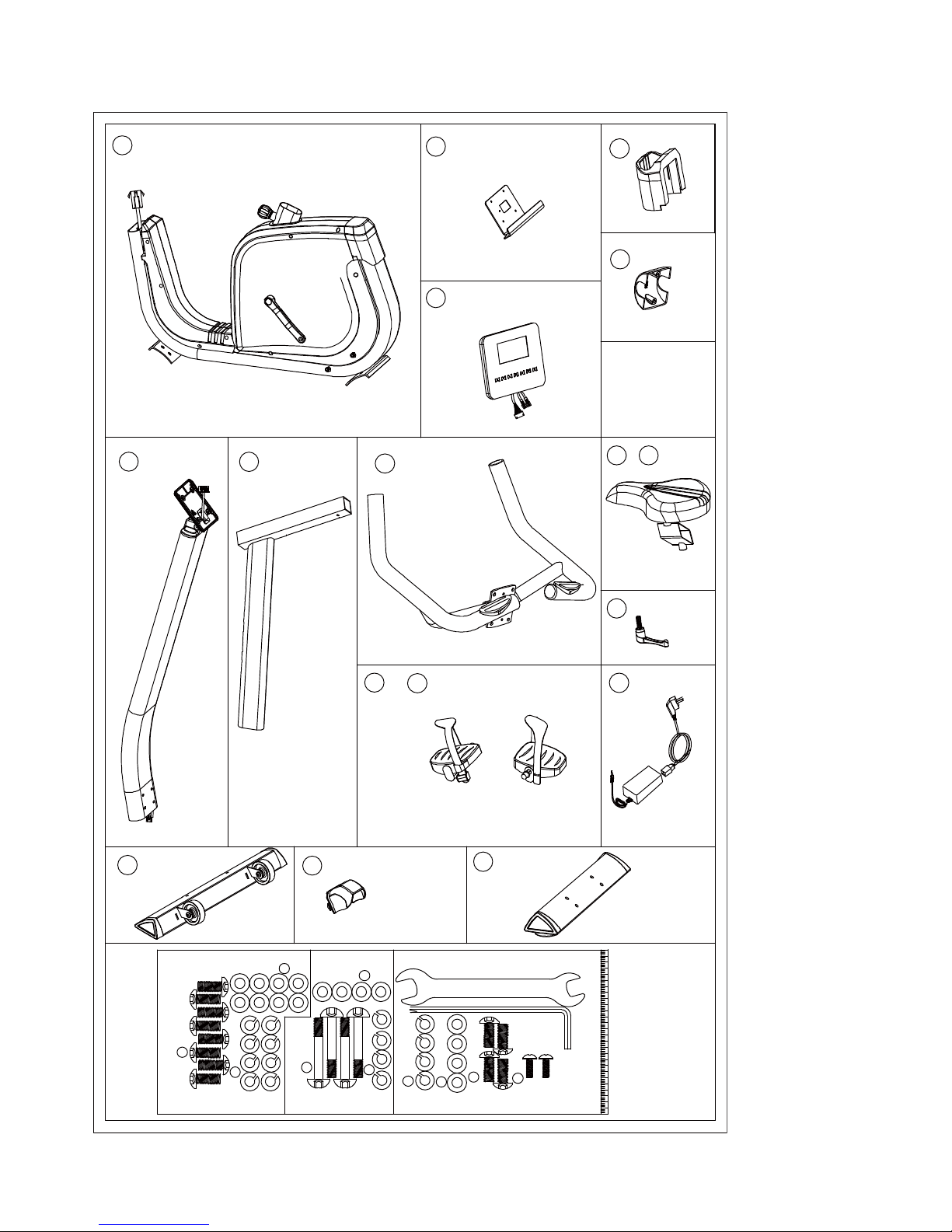

CHECK LIST (CONTENTS OF PACKAGE):

x1x1

x1 x1

9M8*20L 8pcS

7D16 8pcs

8D15.4 8pcs

M8*50 L 4pcs

8D15.4 4pcs

7D16 4pcs

9M8*20L 4pcs

7D16 4pcs

M5x15 L 2pcs

8D15.4 4pcs

88 81

10 &

( MM)

Step 3

Step 1

Step 4

KH 815

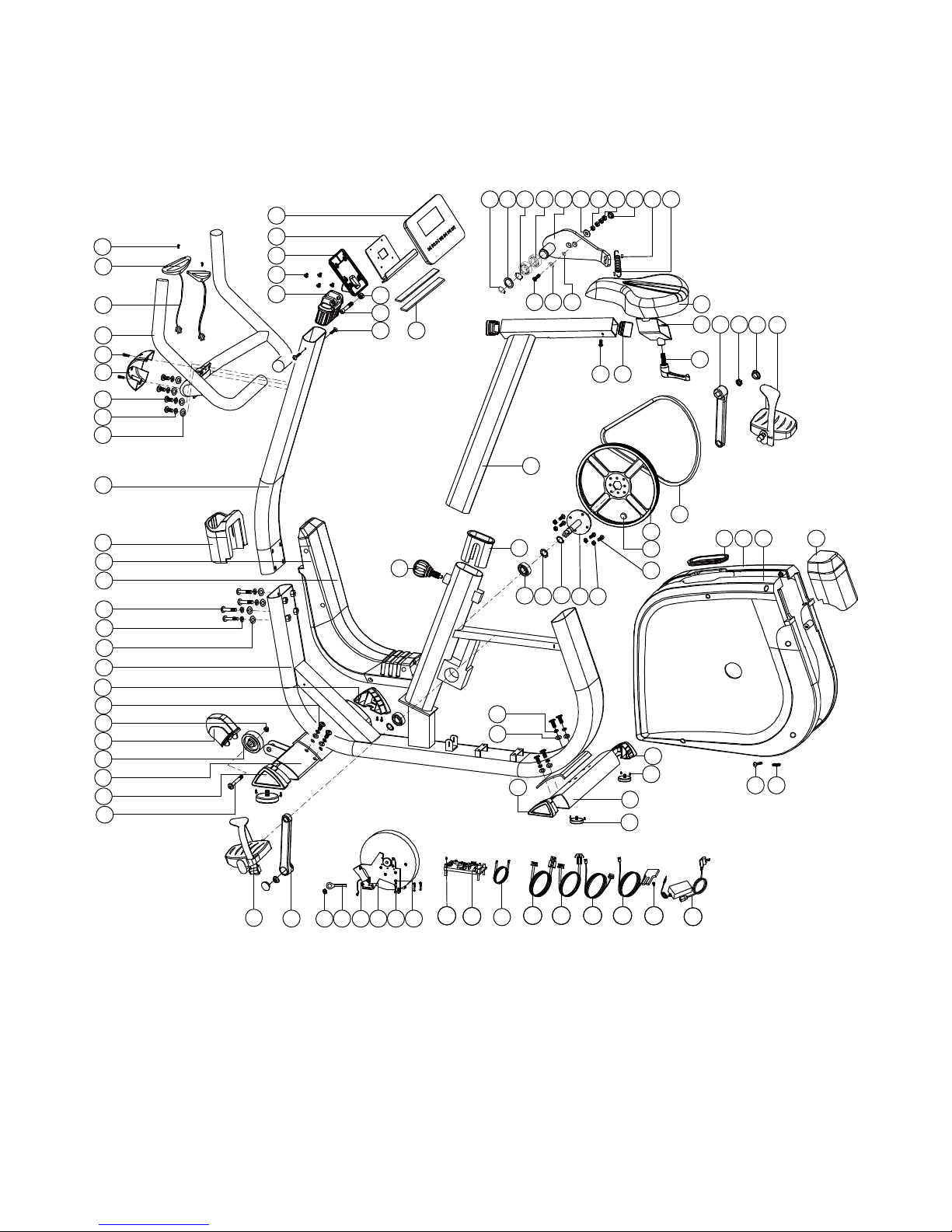

Exploded drawing:

70 18 27 26

72 73 63 74 81

34 3389 88

3640

4344 4541 82

60 77 49 59 54 51 53 52 55 56

575842

3938

Part List

Part NO. Description Material Specification QTY

1 Main frame 　　 1

2 Rear stabilizer Q195 95.4*50.6*2.0Tx500L 1

3 Adjustable wheel Q235A+ABS D59*M10*40L 4

4 Front stabilizer 　　 1

5 Tri angle cap(left) PE 95.7*57.2*51.3 2

6 Tri angle cap(right) PE 95.7*57.2*51.3 2

7 Flat washer Q235A D16*D8.5*1.2T 16

8 Spring washer 70# D15.4 XD8.2x2T 16

9 Allen bolt 35# M8x1.25x20L,8.8 12

10 Seat PVC A28 1

11 Seat adjustment tube 　　 1

12 Allen screw 35# M8*1.25*45L 1

13 Nut Q235A M8*1.25*8T 1

14 Square cap PE 38x38x18L 2

15 Knob AL+45# M12*25L 1

16 Screw Q235A M5*0.8*10L 2

17 Computer 　SE 1699 31 1

18 C ring 65Mn D22.5*D18.5*1.2T 2

19 Rear cover HIPS 137.2*61.2*158.3 1

20 Bolt Q235A M5x0.8x15L 2

21 Belt 　995 J6 1

22 Waved washer 65Mn D27*D20.3*0.5T 1

23 Cover for wheel PP 93.2*64.7*62 2

24 Belt wheel ZL102 D260*19 1

25 Hex bolt 35# M6x1.0x15L，8.8 4

26 Nut Q235A M6x1.0x6T 4

27 Crank axle 　　 1

28 Upper protective cover HIPS 137.1*121*73.4 1

29 Handlebar post 　　 1

30 Allen bolt 35# M8*1.25*50L,8.8 4

31 Bolt cover PVC D29*21(M8) 1

32 Handlebar 　　 1

33 Bolt cover PE D26*11L 2

34 Anti loosen nut 35# M10*1.25*10T 2

35 Left crank 1015A 170Lx9/16" 20BC 1

36 Left chain cover HIPS 534.7*502*78.1 1

37 Right chain cover HIPS 534.7*502*82.7 1

Part NO. Description Material Specification QTY

38 Hex nut Q235A M6*1*6T 2

39 Adjustable bolt Q235A M6*1.0*46 1

40 Round cycle for chain cover PVC 117*58*9.3 1

41 EMS system 　D265*86 1

42 Allen bolt 35# M8x1.25x50L,8.8 1

43 Flat washer Q235A D13*D6.5*1.0T 4

44 Spring washer 70# D10.5*D6.1*1.3T 4

45 Allen screw 35# M6*1.0*15L,8.8 4

46 Computer bracket ABS 120*40*70 1

47 Computer fixed bracket ABS 120*110*2.5T 1

48 Screw 10# ST4*25L 2

49 Waved washer 65Mn D21xD16.2x0.3T 1

50 Screw 10# ST4.2x1.4x15L 2

51 Plastic washer NL D50*D10*1.0T 1

52 Nut Q235A M8*1.25*8T 2

53 Hex nut Q235A M8*1.25*6T 2

54 Fixing plate for idle wheel 　　 1

55 Bolt cover PVC D3*30L 2

56 Spring 72A# D2.2*D14*65L 1

57 Plastic washer NL66 D10*D24*0.4T 1

58 Flat washer Q235A D28*D8.5*3T 1

59 Bearing GCr15 #99502 2

60 C ring 65Mn S 16(1T) 1

61 Fixing plate for computer Q235A 220*120*3T 1

62 Left pedal 　JD 36A 9/16" 1

63 Electric cable 　1250L 1

64 Bolt 10# M5x0.8x15L 4

65 Protective cover ABS 100*81*40.8 1

66 Seat post 　　 1

67 Handle pulse 　PE18 2

68 Handle pulse cable 　700L 2

69 Round magnet 　M02 1

70 Bearing GCr15 #6004 2RS(C0) 2

71 Connecting cable 　350L 1

72 Upper computer cable 　1000L 1

73 Lower computer cable 　1800L 1

74 Sensor cable 　450L 1

75 Inner tube PE 40x80x129 1

Part NO. Description Material Specification QTY

76 Inner tube PE 40x80x129 1

77 Flat washer Q235A D24*D16*1.5T 1

78 Round wheel PVC+PP D70.5*23 2

79 Bolt Q235A M5x0.8x12L 1

80 Allen bolt Q235A M8*1.25*40L,8. 2

81 Adaptor 　Out put：26V,2.3A 1

82 Controller 　EMS2500 A01 1

84 Screw 10# ST4.2x1.4x20L 13

85 Nut Q235A M8*1.25*8T 2

86 Pin ABS D6*26.5*7.7 3

87 Screw 10# ST4*1.41*15L 8

88 Right pedal 　JD 36A 9/16" 1

89 Right crank 1015A 170Lx9/16" 20BC 1

90 Front left decorative cover HIPS88 338.3*72.2*420.5 1

91 Front right decorative cover HIPS88 338.3*68*420.5 1

92 Screw 10# ST4.2x1.4x15L 2

93 Buffer strip EVA 219*15*2T 2

/ Allen spanner 35# M6,8.8 1

/ Spanner Q235A 155*30*5T 1

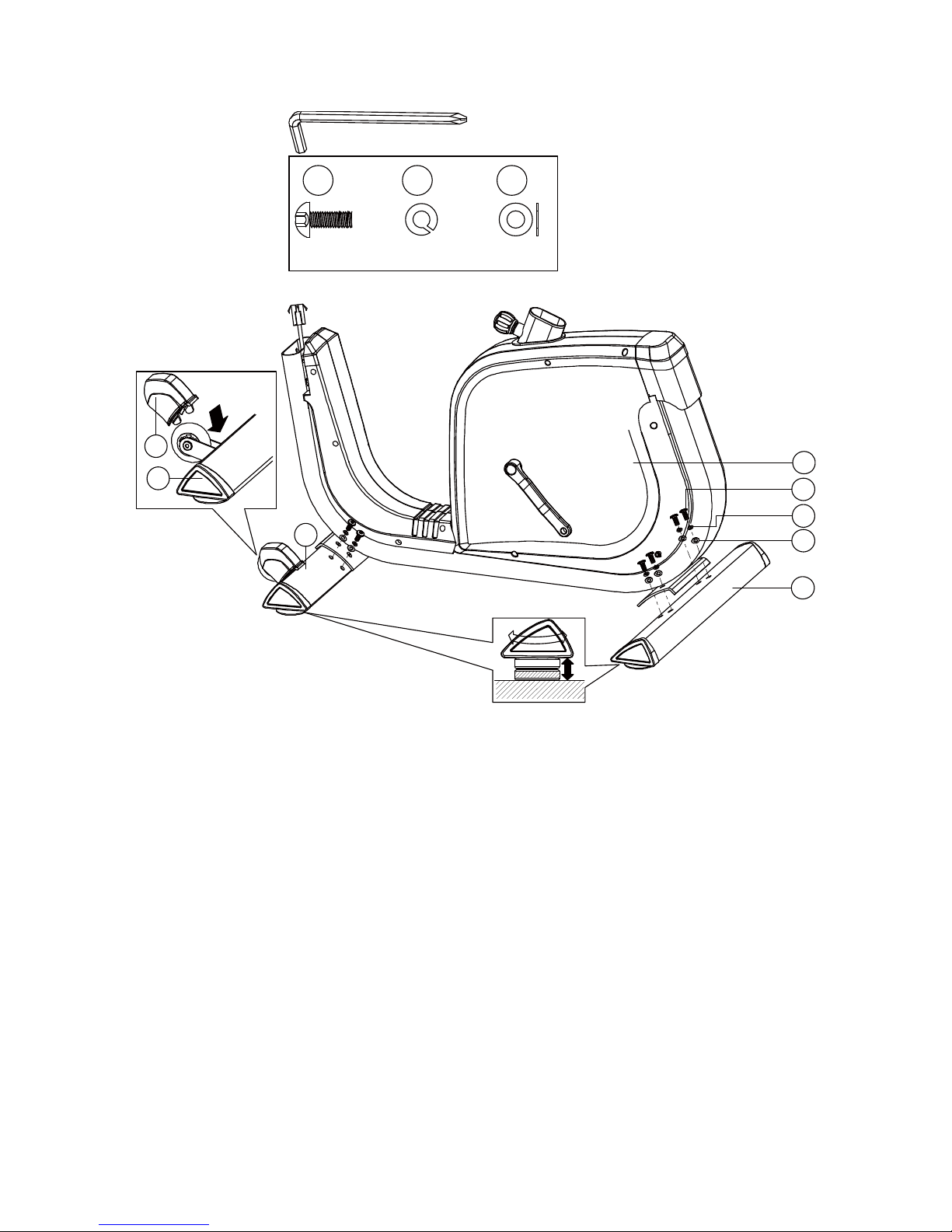

STEP 1

Step 1

D15.4

M8*20 D16

97x8

1) Assemble the front stabilizer (4) and rear stabilizer (2) to the main frame (1) by

using the flat washer (7), spring washer (8) and Allen bolt (9).

2) Adjust the proper height by turning the wheel of rear foot cap (3).

STEP 2

step 2

M5*10L (x1)16 16

DOWN

1) Fix the seat (10) to the seat adjustable tube (11).

2) Mount the adjusting tube on the seat post (66) with the help of the screw (16) and

knob (15)

3) The seat can be adjusted up and down, frontward and backward as Fig a. and

Fig b. shown.

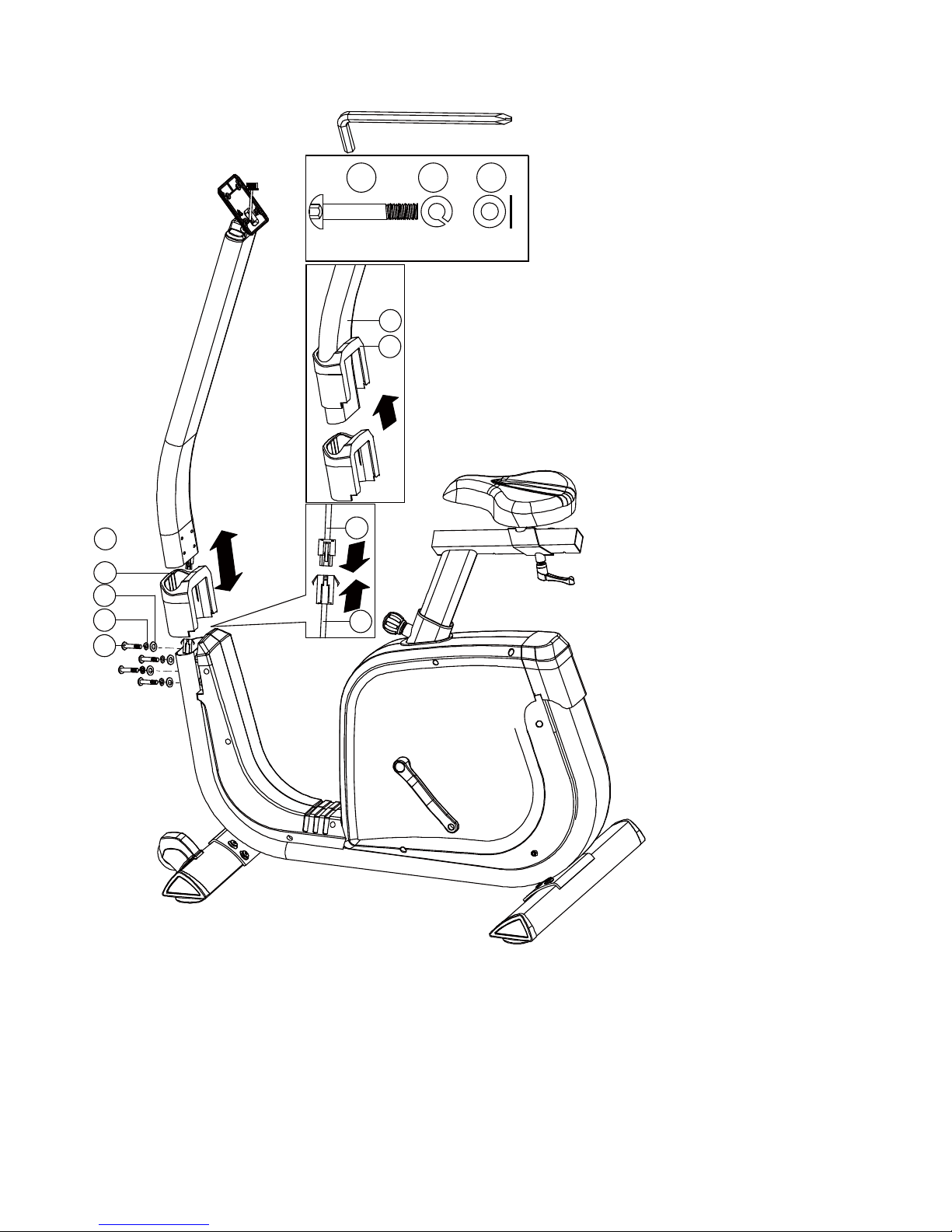

STEP 3

D15.4

M8*50 D16

30 8 7 x4

step 3

1) Suggest assembling this step by two persons.

2) First, lift up the upper protective cover (28) like Fig a. Then connect the computer

cable (72 & 73) like Fig b.

3) Insert the handlebar post (29) on the main frame and tighten it by using the flat

washer (7), the spring washer (8) and the Allen bolt (30). Place down the upper

protective cover and make it tight on the main frame.

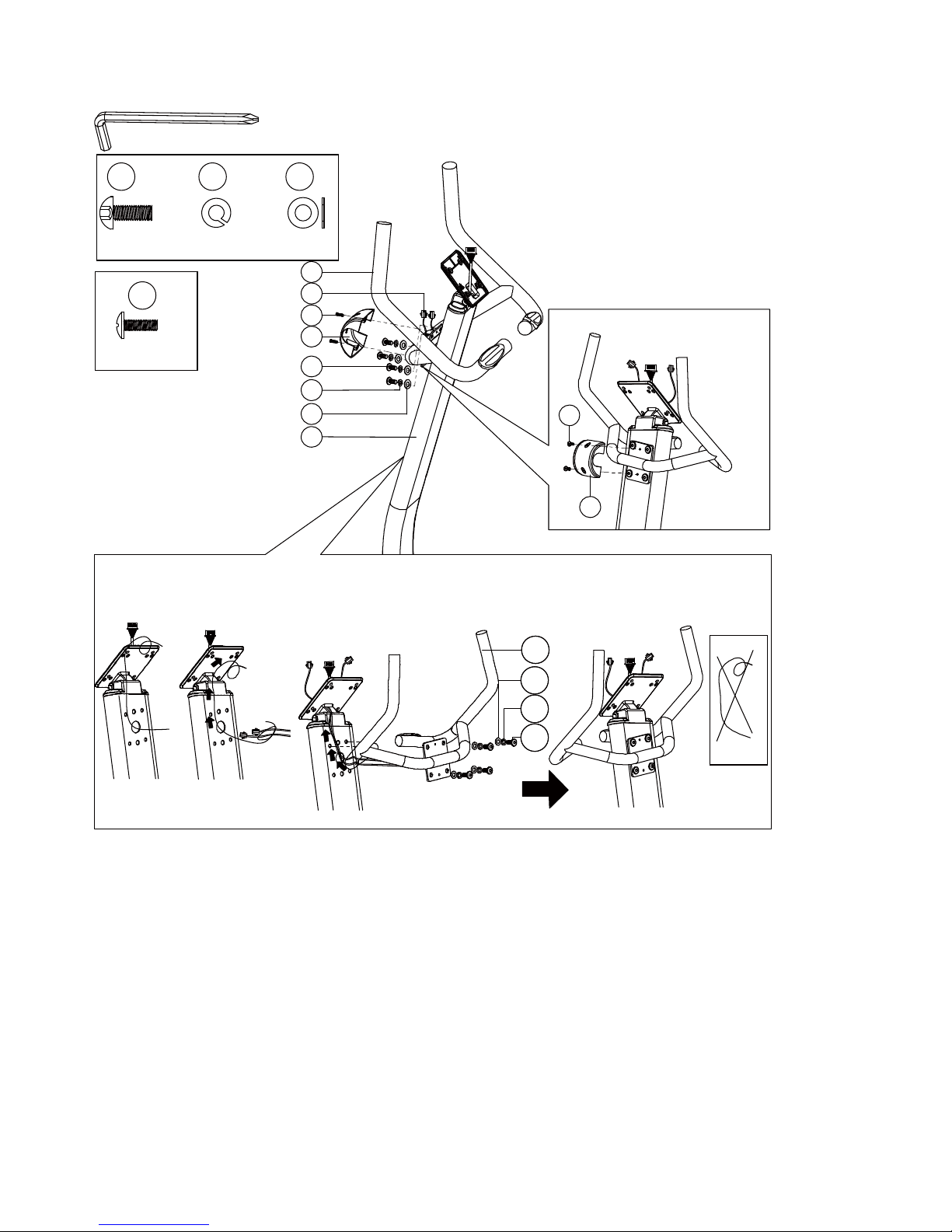

STEP 4

D15.4

M8*20 D16

97x4

step 4

M5*15

4-2

4-1

a b c

1) Assemble the handlebar (32) to the handlebar post (29) by using the flat washer

(7), the spring washer (8), the Allen bolt (9).Then mount the protective cover (65)

with the help of the bolt (20) as the 4 2 shown.

2) See drawing a b c d to make sure cables correctly assembly as the 4 1 shown.
