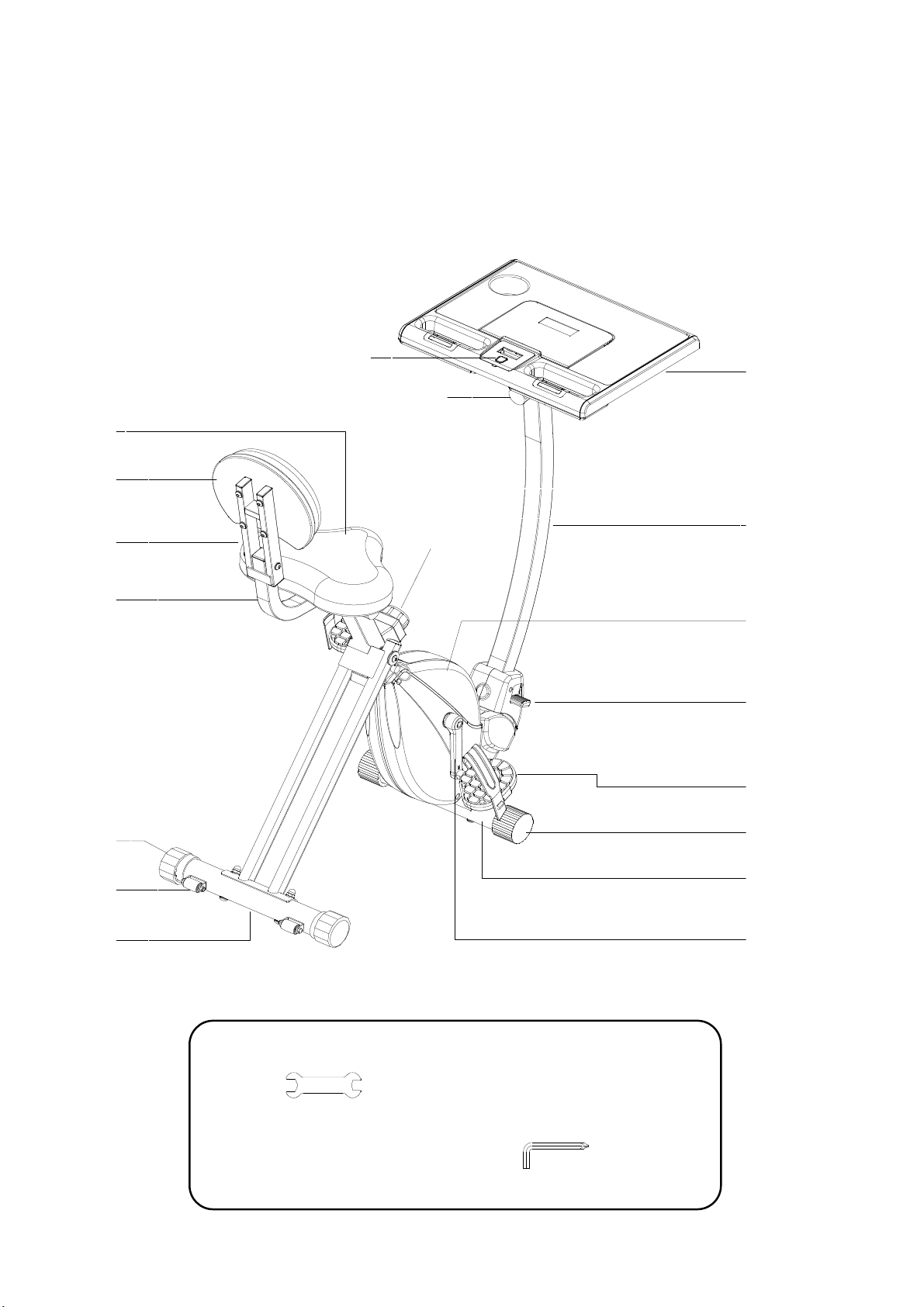

PRODUCT OVERVIEW

Meter

Upright

Right

Pedal

Lever Cover

Right Crank

Levering

Cap

Front Stabilizer

Top Cover

Back Cushion

Back

Support

Desktop

djustment Knob

Adjustment Knob

Seat

End Cap

Wheel

Rear Stabilizer

THEFOLLOWINGTOOLS ARE INCLUDED

Wrench:

FOR ASSEMBLY

Allen Wrench (5mm) w/ Screwdriver:

Meter

Back Frame

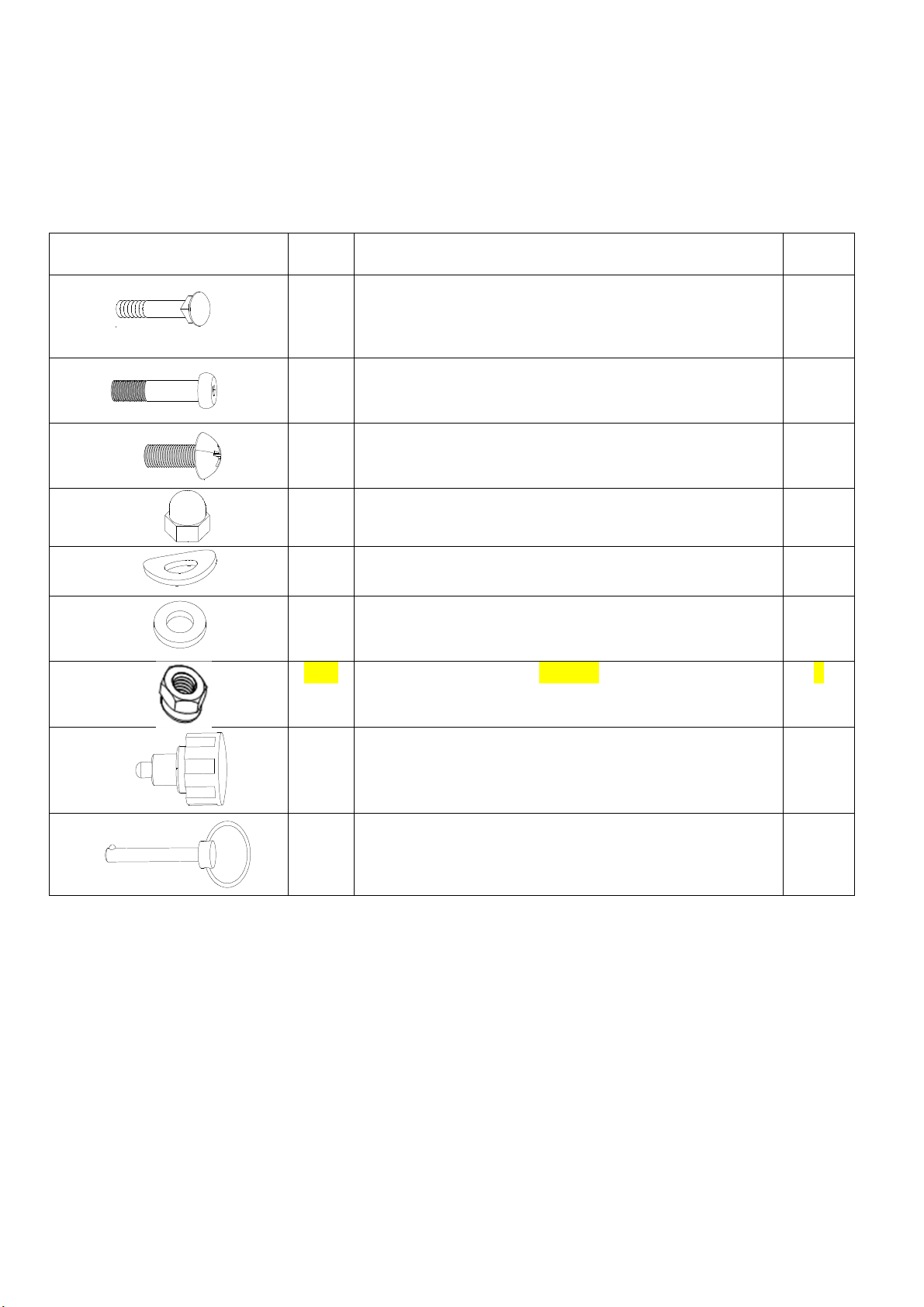

HARDWARE IDENTIFICATION CHART

Figure No.

Description Qty

Carriage Bolt (M8 * 1.25 * 60mm)

Carriage Bolt (M8 * 1.25 x*45mm)

D7 Bolt, Button Head (M6*1 *12mm) 4

D17 Screw, Round Head (M6* 12mm) 1

D22 Acorn Nut (M8*1.25) 4

D23 Arc Washer (M8) 4

D24 Washer (M8) 6

D25

Nut M8 2

D1 Adjustment Knob 2

Pull Pin

Place all parts from the box in a cleared area and position them on the floor in front of you.

Remove all packing materials from your area and place them back into the box. Do not

dispose of the packing materials until assembly is completed. Read each step carefully

before beginning.

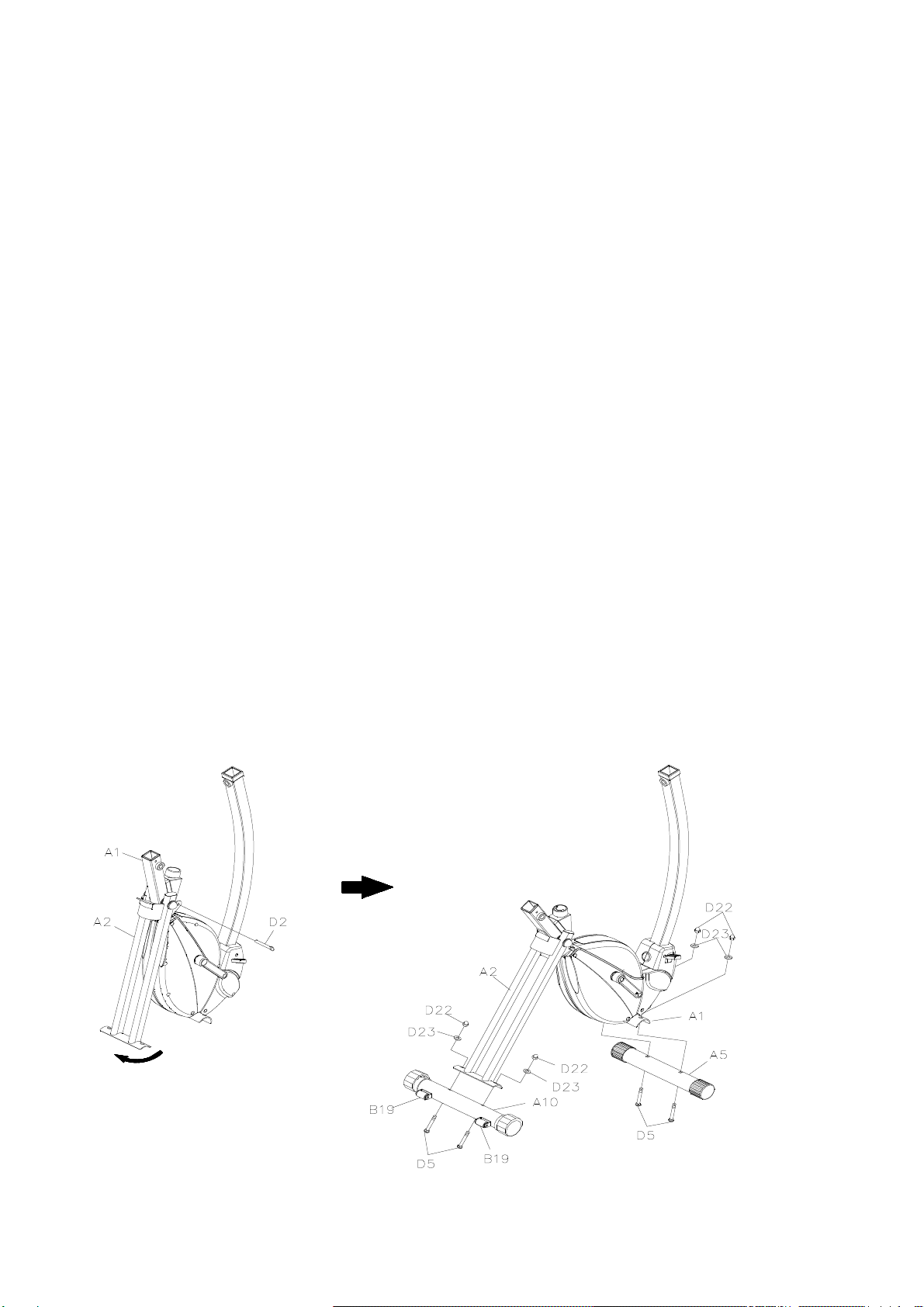

STEP 1: Unfold the Rear Frame (A2) away from the Main Frame (A1). Locking the frame

assembly in unfold position by inserting the Pull PIN (D2) into the hole in the Rear Frame

(A2). Forward pushing Upright (A3) to the maximum angle and stepping down to fixed

the Lever Cover (B6).

STEP2: Attach the Rear Stabilizer (A10), the one with Transport Wheels (B19), to the Rear

Frame (A2) with the wheels facing backward. Secure with Carriage Bolts

(M8*1.25*60mm) (D5), Acorn Nuts (M8) (D23), and Arc Washers (M8*1.25) (D22).

STEP 3: Attach the Front Stabilizer (A5) to the Main Frame (A1) with Carriage Bolts

(M8*1.25*60mm) (D5), Acorn Nuts (M8) (D23), and Arc Washers (M8*1.25) (D22).

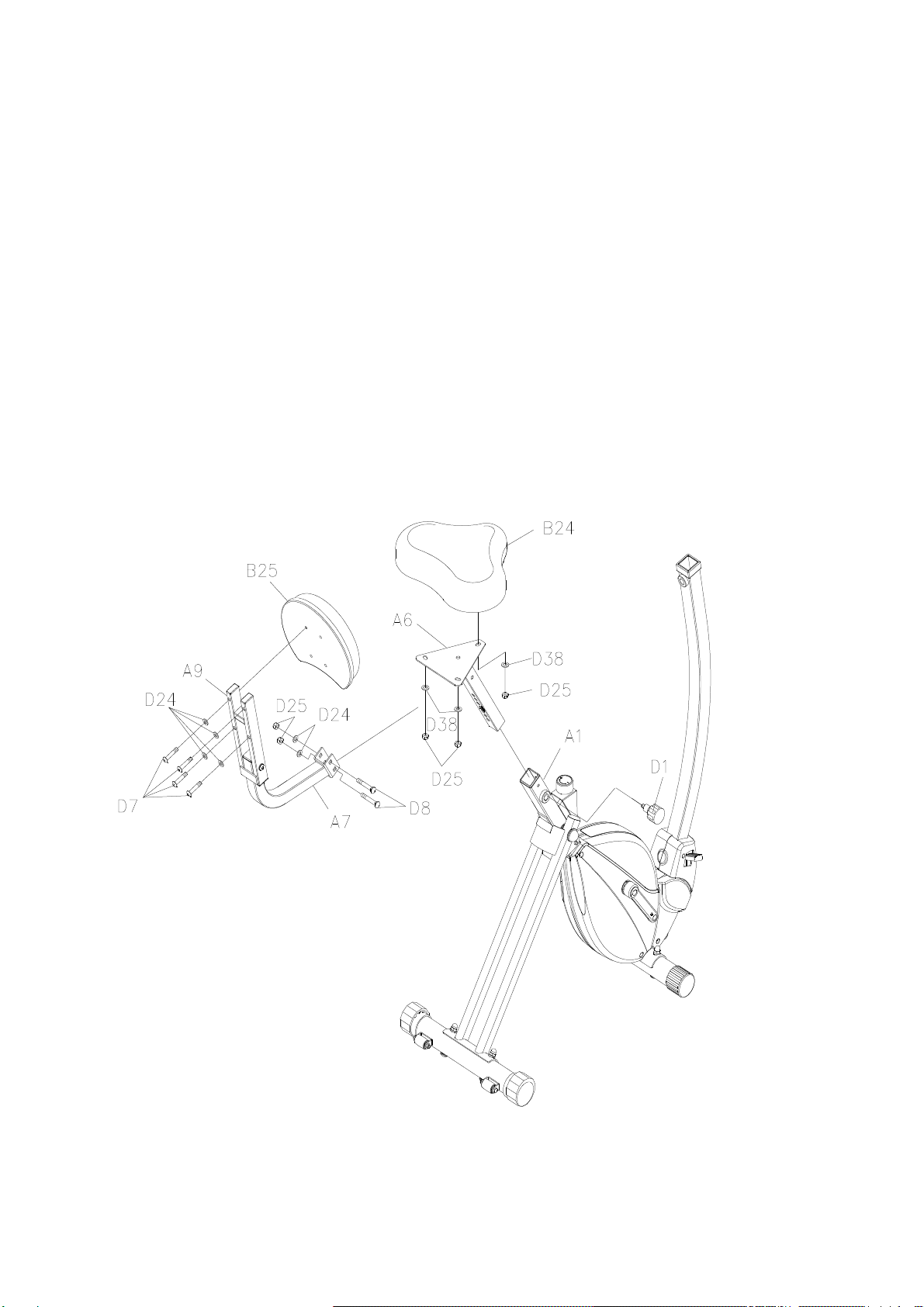

STEP 4: Attach the Seat (B24) to the Seat Post (A6) with Nylock Nuts (M8) (D25) and Washer

(M8) (D38). Insert the Seat Post (B24) into the Main Frame (A1) and secure with the

Adjustment Knob (D1).

NOTE:

1. Make sure that the pin on the Adjustment Knob (D1) is inserted into one of the holes in Seat

Post (B24).

2. The Adjustment Knob (D1) should be screwed in tight to make the Seat Post (B24) fit securely

in the Main Frame (A1).

STEP 5: Attach the Back Support (A7) and Back Frame (A6) by using Carriage Bolt

(M8*1.25*45mm) and Washer (M8) (D24).

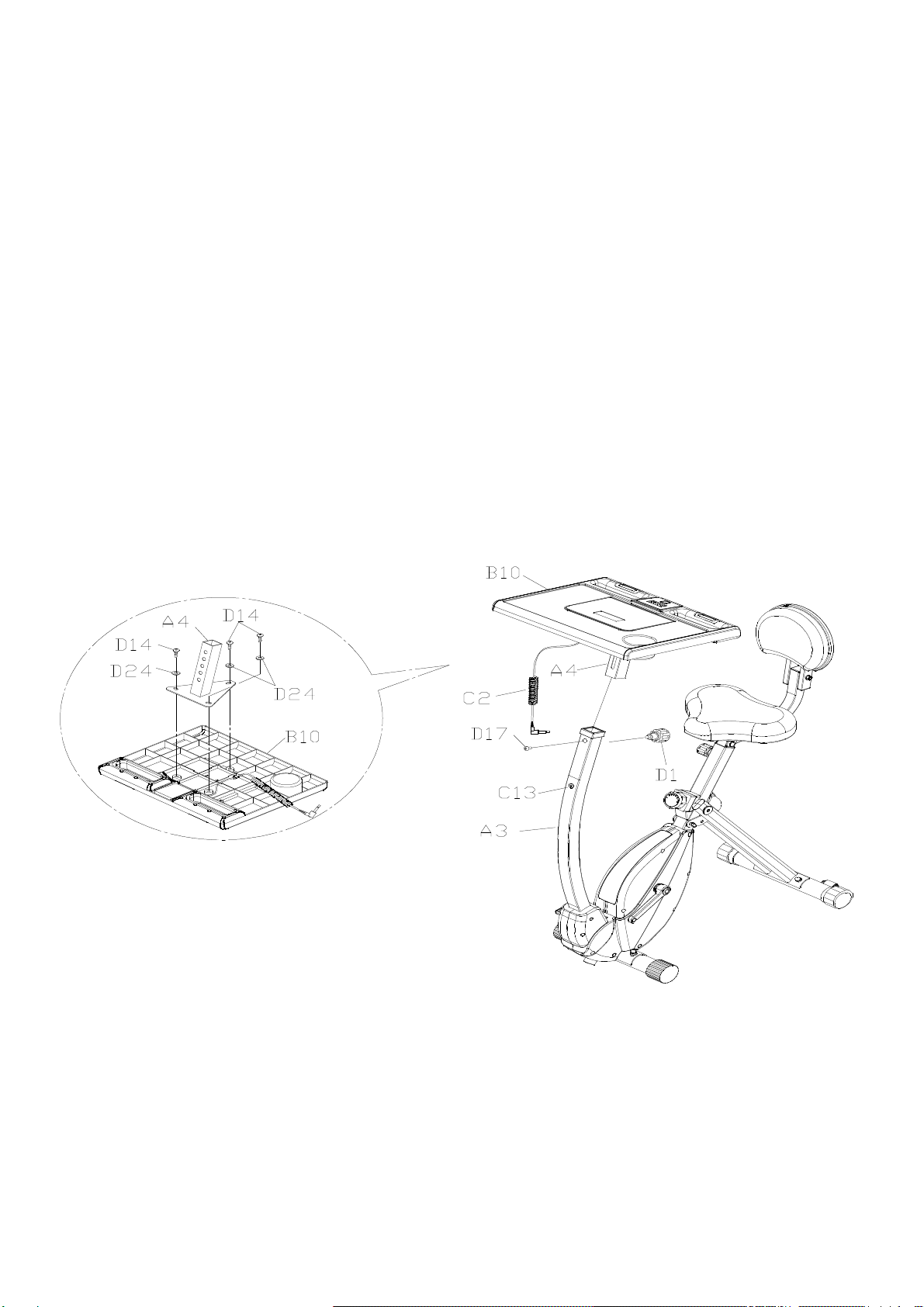

STEP 6: Attach the Desktop post (A4) to the Desktop (B10) with Button Head Bolts

(M8*1.25*12mm) (D14) and Washer (M8) (D24).

STEP7: Insert the Desktop Post (A4) into the Upright (A3) and secure with the Adjustment Knob

(D1). Bolt the Round Head Bolt (M6*1*12 mm) (D17) onto the Upright (A3) for security.

NOTE:

1. Make sure that the pin on the Adjustment Knob (D1) is inserted into one of the holes in

Desktop Post (A4).

2. The Adjustment Knob (D1) should be screwed in tight to make the Desktop Post (A4) fit

securely in the Upright (A3).

STEP8: Connecting Meter Transmission Wire (C2) into the

Sensor Bracket (C13)

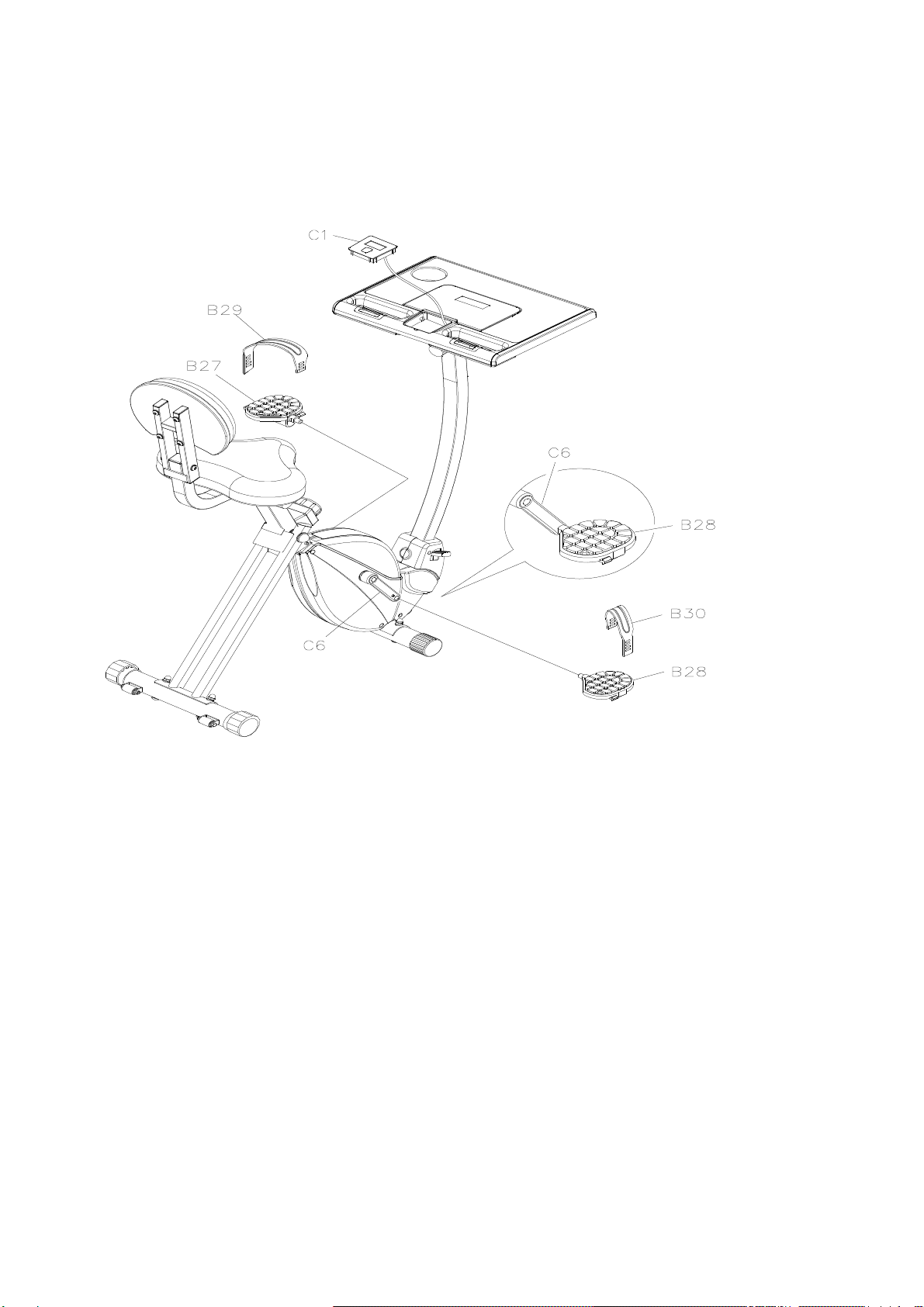

STEP 9: Lock and tight the Left Pedal (B27) and Right Pedal (B28) on the Left Crank (B29) and

Right Crank (B30) by using the Wrench.

FUNCTION INSPECTION:

Visually inspect the Bike to verify that assembly is as shown in the above illustration.

Check the function of the Bike by turning the c rank s lowly through one complete revolution to

verify that the drive train functions properly. Adjust the Adjustment Knob (B32) and verify that it

functions properly and the resistance changes.

OPERATIONAL INSTRUCITONS

USING THE FITNESS METER

MODE: This key lets you to select and lock on to a pa ticula

function you want.

SET(IF HAVE) :To set the values of time. distance and calo ies

when not in scan mode.

RESET/CLEAR (IF HAVE): The key to eset the value to ze o by

p essing the key .

FUNCTIONS:

SCAN:

Automatically scans each function of SPEED,

DISTANCE,TIME, ODOMETER, CALORIES and

PULSE. in sequence, display changes every six

seconds. Press and release the button until "SCAN"

appears on the display.

TIME:

Displays the time f om one second up to 99:59 minutes.

SPEED

Displays the current speed from zero to 999.9 KM per hour.

DISTANCE

Displays the distance from zero to 999.9 KM.

CALORIES:

Displays the calories burned from zero to 999.9 Kcal.

The calorie readout is an estimate for an average user. It should be used only as a

comparison between workouts on this unit.

ODOMETER

Displays the total accumulated distance you have traveled from zero to 9999 KM. The

total accumulated distance is retained when the meter is turned off.

PULSE:

Displays your pulse rate in beats per minute. To display pulse, select the PULSE MODE and

grasp the pulse sensors on the Desktop, one in each hand. The heart icon will begin flashing

when the ELECTRONIC METER senses your pulse. Your pulse will be displayed approximately

five (5) seconds after the heart icon is displayed. If the heart icon does not appear, relax your

grip or change your grip on the pulse sensors.

NOTE:

The meter will shut off automatically after four minutes of inactivity. All function values

will be kept. Press the button and hold it down for two seconds to reset all functions to zero, except

ODOMETER.

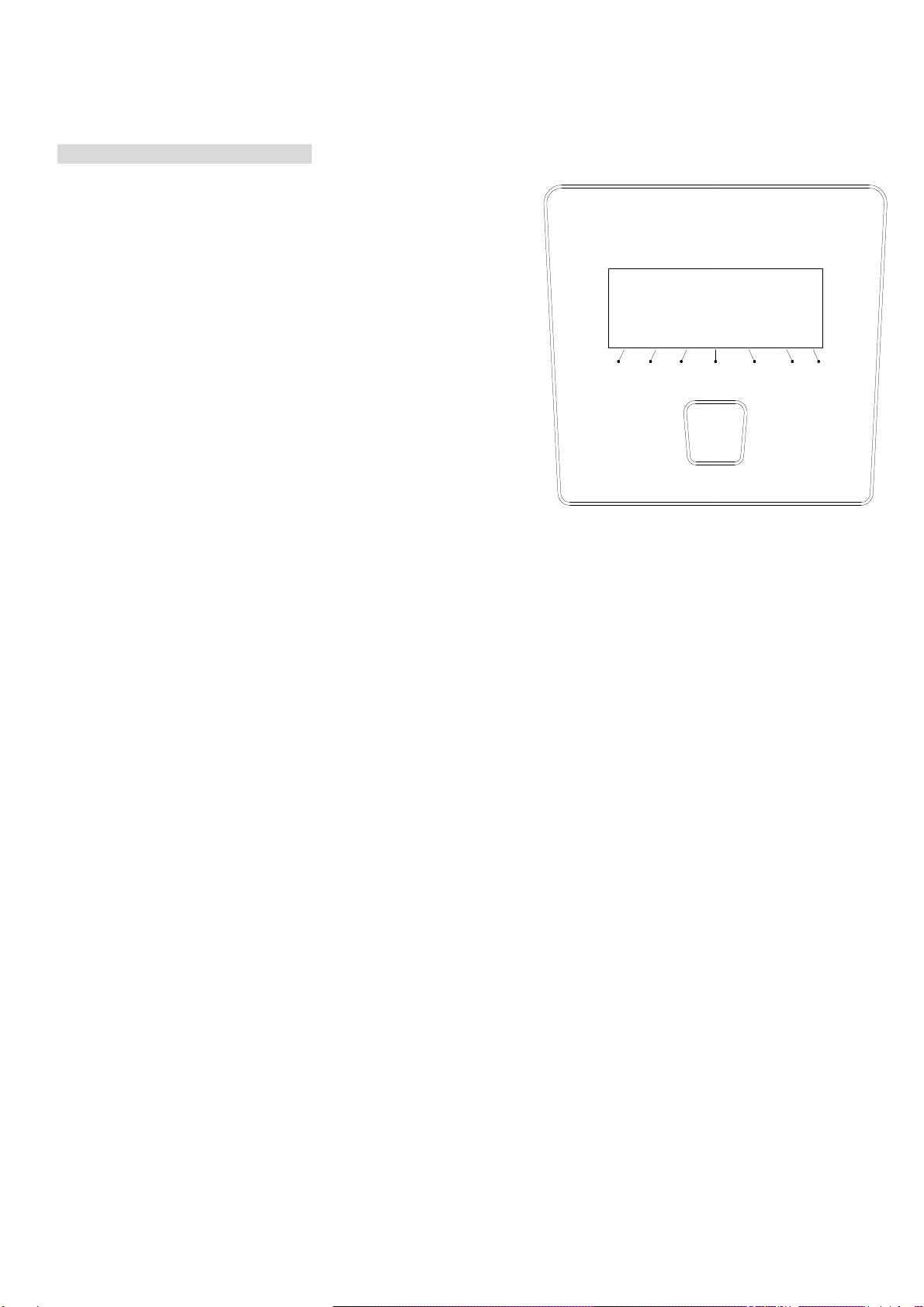

TIME

SCAN SPEED DISTANCE CALORIES ODO PULSE

MODE

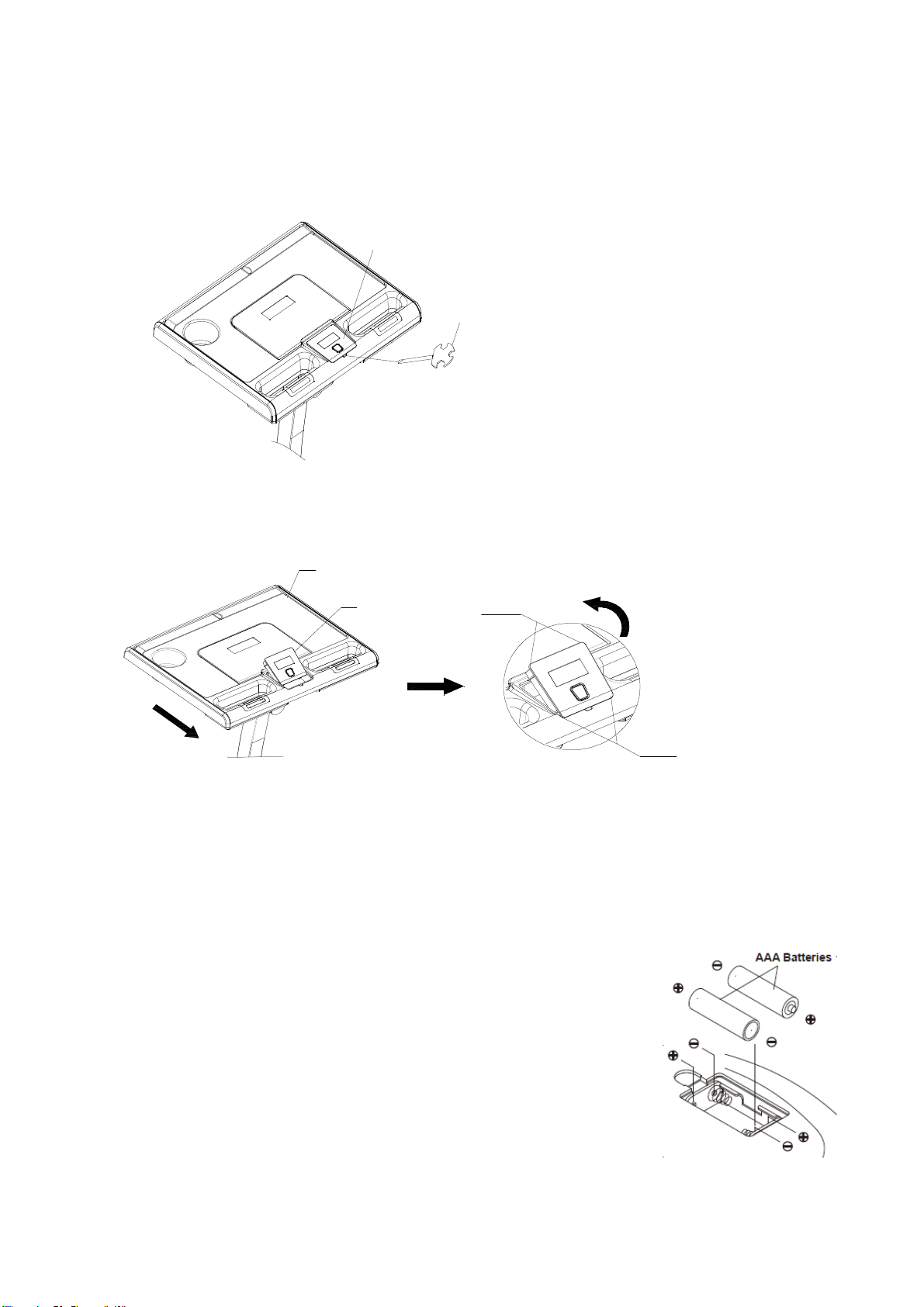

HOW TO INSTALL AND REPLACE BATTERIES

Open the Meter (C1) by using the Shaped Wrench (D3).

The meter operates with two AAA batteries, the batteries are not included. After changing the batteries,

push the Meter (C1) back and press down to reset.

B10

C1 Front

Back

NOTE:

1. Do not mix a new battery with an old battery.

2. Use the same type of battery. Do not mix an alkaline battery with another type of battery.

3. Rechargeable batteries are not recommended.

4. Ultimate disposal of battery should be handled according to all state laws and regulations.

5. Do not dispose of batteries in fire.

B32

LOAD ADJUSTMENT

To increase the load, turn the 8 Section Adjustment Knob (B32) clockwise.

To decrease the load, turn the 8 Section Adjustment Knob (B32) counterclockwise.

There are eight levels for the load adjustment.

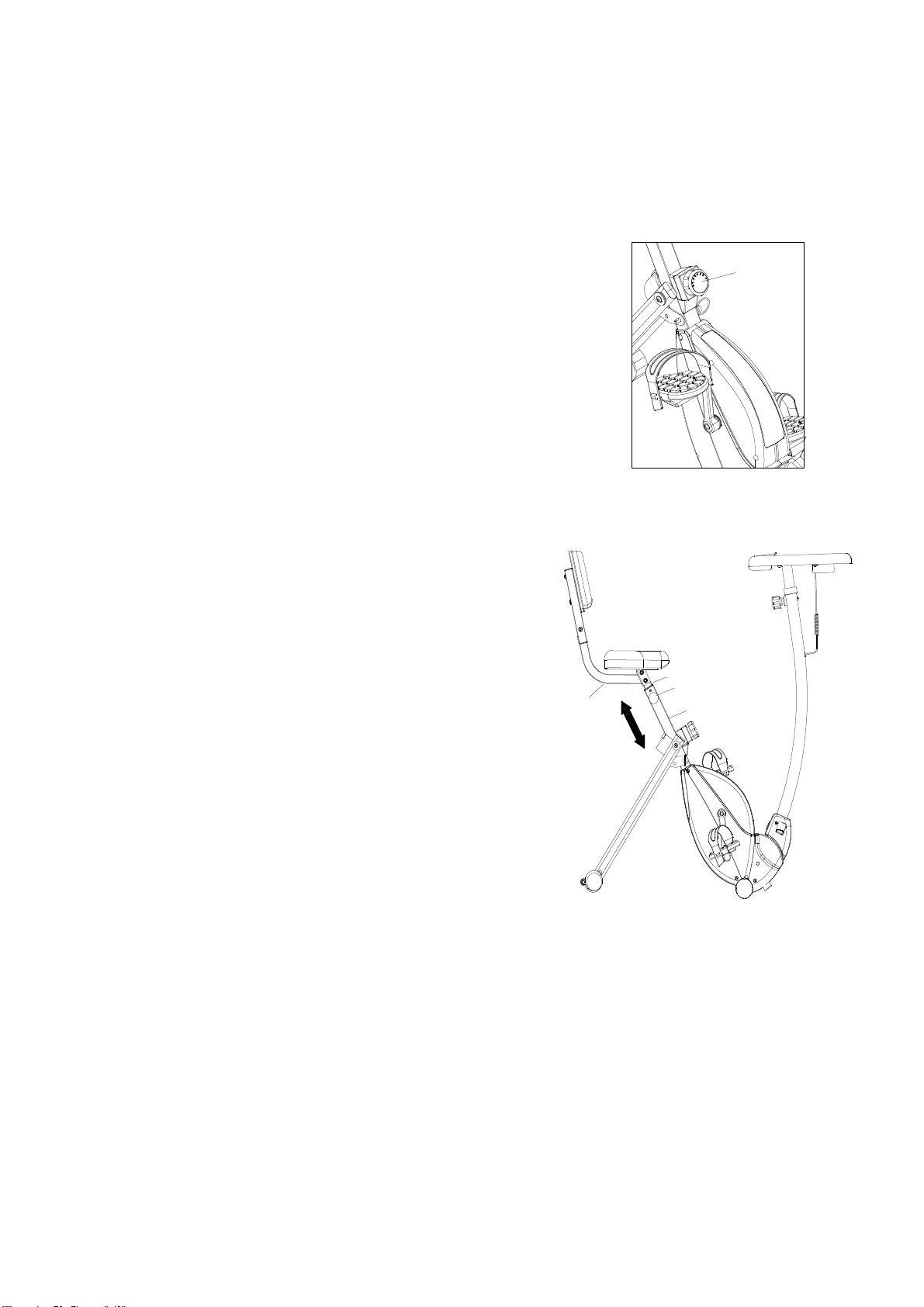

SEAT ADJUSTMENT

Proper seat adjustment is important.

Turn the Adjustment Knob (D1) to loosen, then pull the

Adjustment Knob (D1) to release the pin. Slide the Seat Post

(A6) until the Seat (A7) is at the proper height. Release the

Adjustment Knob (D1) making sure the pin catches in one of

the holes of the Seat Post (A6) and tighten the Adjustment

Knob (D1).

Sit on the seat and place your feet on the pedals. You

should be able to move through a complete pedal

stroke without locking your knees or shifting your hips

on the seat. The seat is too close to the pedals if you

have more than as light bend in your knees at the

bottom of the pedal stroke. The seat is too far from the

pedals if you have to completely straighten your knees

at the bottom of the pedal stroke. Refer to the

illustration.

CAUTION:

1. Do not attempt to adjust the seat while you are on

the BIKE.

2. Always tighten the Adjustment Knob (D1) after

adjusting the seat to a new position.
