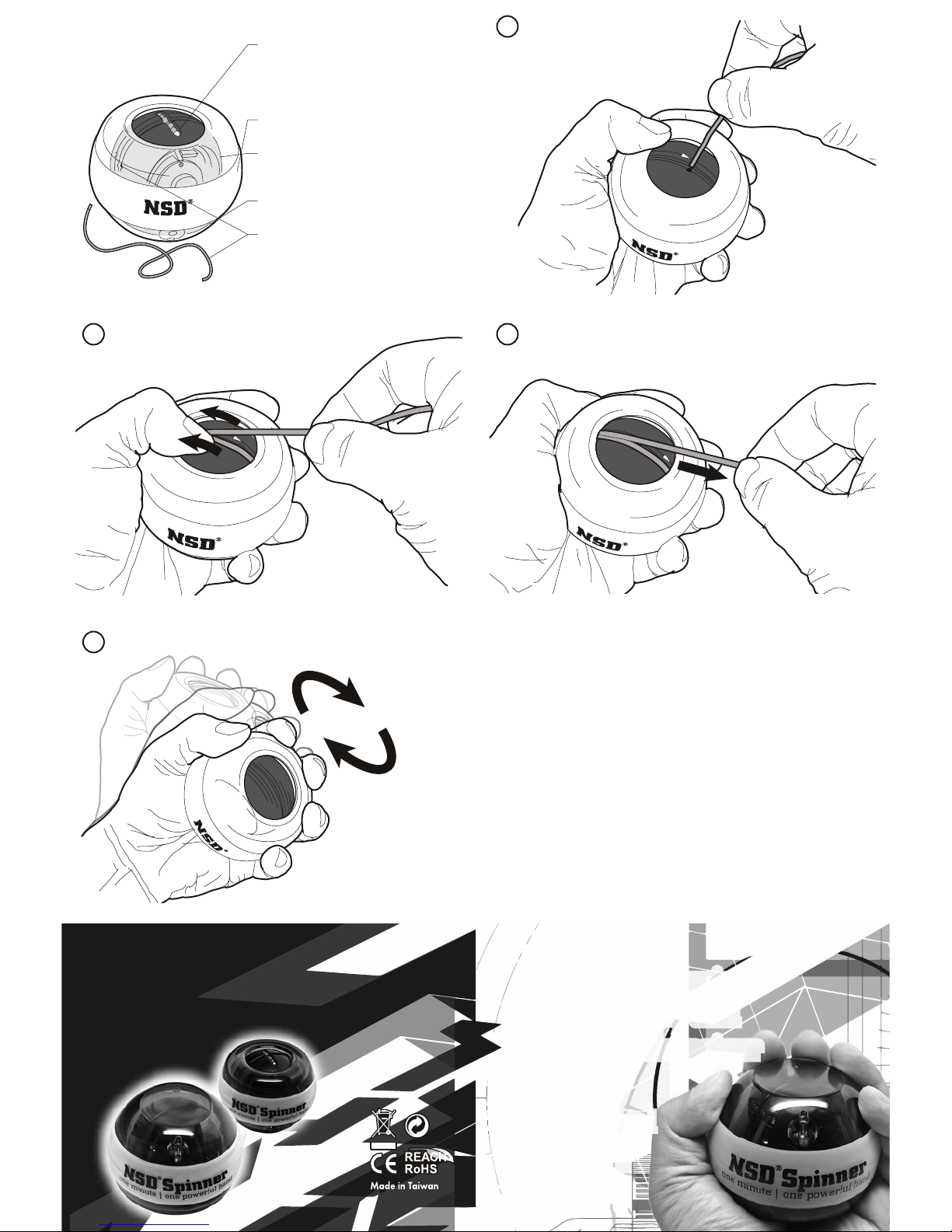

NSD®LED Matrix Display Counter
Highest RPM per Session
When the speed of the rotor exceed 6,000 RPM, the internal
speedometer will start recording the top speed of the session and
the red LEDs will go from a sweeping pattern to a flashing pattern.
The higher the RPM achieved, the more “rows” of LED will be lit.
Stop moving your wrist and let the rotor slow down naturally, and
your top speed, or highest RPM of current session, will display on
the rotor surface once the last row of red LEDs turn off.
The score will display twice, one digit at a time on the rotor
surface, following an up “arrow.” Once speed of the rotor falls
below 2,500 RPM the score will reset for the session.
Physical Strength Index (30 seconds)
NSD Patents
If the rotor speed is kept between 2,500 RPM and 6,000 RPM for 18
seconds, the blue LED will light up to indicate the speedometer is
now in “Physical Strength Index” mode. The red LED will continue
in a sweeping pattern until the speed of the rotor exceed 6,000
RPM.
When the rotor exceeds 6,000 RPM, the blue LED will change to a
flashing pattern and a 30 second countdown will start, as the red
LEDs glow solid. The faster the gyroscope is spinning, the more
rows of red LEDs will glow. At the end of the 30 second interval,
the blue LED will glow solid, and the numbers of revolutions
achieved in the 30 second interval will display on the rotor,
following the Physical Strength Index icon ( ) of a flexing arm,
after the last row of red LED turns off.
NanoSecond Technology owns multiple patents in countries as listed.
We will aggressively pursue and protect our intellectual property
rights.
Australia
No. 2004100675
No. 2008100053
No. 2007100698
No. 2005100371
No. 2006100976
No. 2007100698
France
No. 2873301
No. 2897271
No. 2909890
No. 2897270
No. 2912924
No. 2904230
Germany
Nr.20215476.9
Nr.20212121.6
Nr.202005017793.8
Nr.20311474.4
Nr.20320189.2
Nr.202006014737.3
Nr.20319784.4
Nr.202004017469.3
Nr.202007010179.1
Nr.20201408.8
Nr.202004016651.8
China
No. 02253289.7
No. 02285307.3
No. 200520027599.4
No. 3258043.6
No. 200320112335.X
No. 200520130995.X
No. 200320112334.5
No. 200320112356.1
No. 200620027443.0
No. 02233006.2
No. 200420029473.6
The PB-188P gyroscopic exerciser uses advanced microchip
technology in combination with an LED matrix and a built-in
counter to display information about your workout, including a top
speed counter and a 30 second interval physical strength index.
The matrix display consists of a row of 7 LEDs controlled by an
internal chip powered by your exercise energy, and will light in a
precise sequence to display the result of your workout right on the
rotor surface.

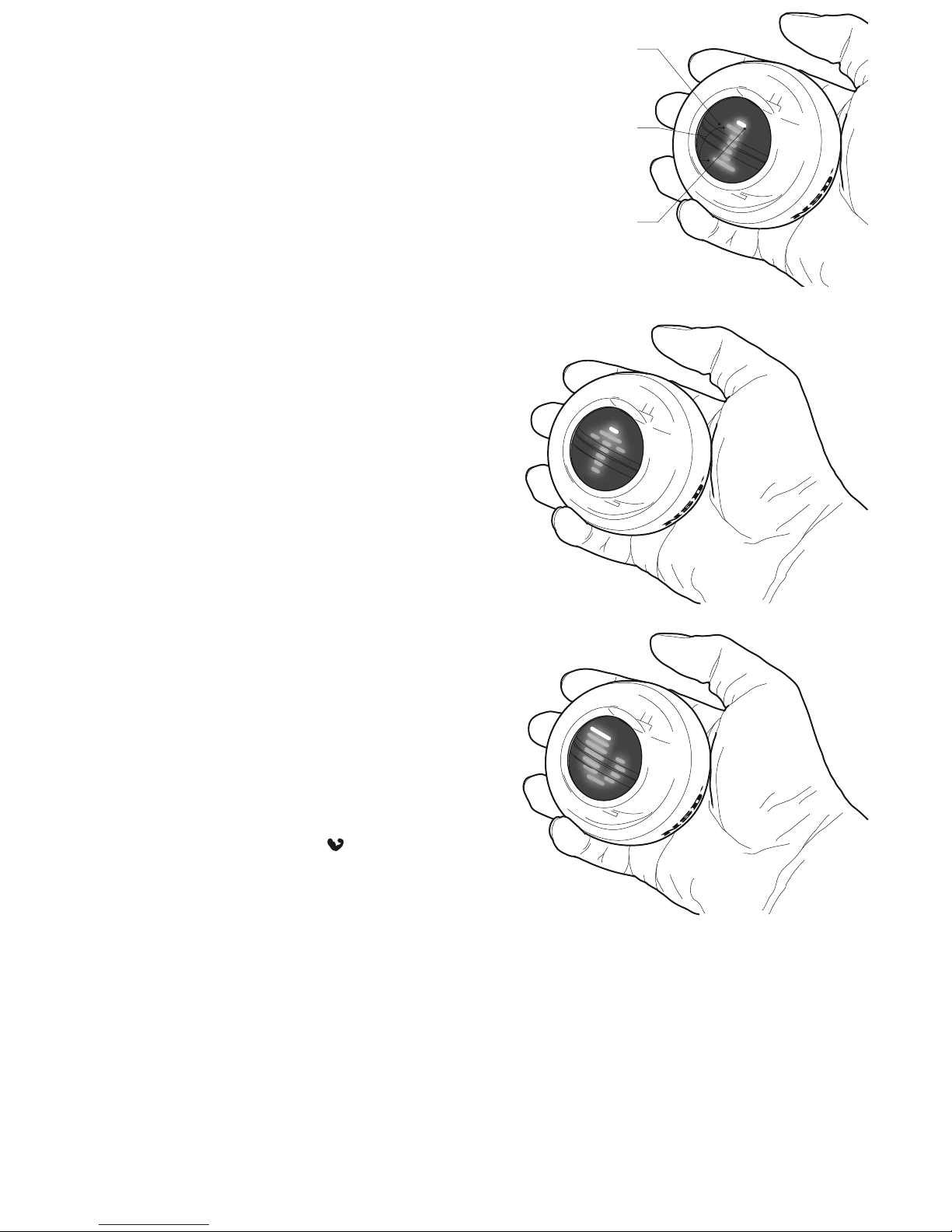

LED Display Matrix
Highest RPM in session
30 second interval physical
strength index
Red LEDs
Sweeping LEDs indicate
speedometer is counting
Flashing rows of LEDs
indicate top speed achieved
Blue LED
Solid row of LED indicate
counter is in physical
strength index mode
