Ruijie RG-S7800C Series Manuel d'installation et d'exploitation

RG-S7800C Series Switches

Hardware Installation and Reference Guide V1.11

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by anymeans,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: http://caseportal.ruijienetworks.com

Community: http://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Skype: service_rj@ruijienetworks.com

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

Launched by Ruijie independently, RG-S7800C series next generation core switches adopt the crossbar/FULLMESH

architecture and support dual supervisor modules and power supply redundancy.

The RG-S7808C: supports dual supervisor modules and provides six service module slots.

The RG-S7805C: supports dual supervisor modules and provides three service module slots.

The RG-S7810C: supports dual supervisor modules and provides eight service module slots and two switch fabric

slots.

1.1 RG-S7808C

Specifications

Model

RG-S7808C

Module Slot

two supervisor module slots and six service module slots

Supervisor Module

M7800C-CM

Supervisor Module

Redundancy

Supported

Service Module

M7800C-16SFP8XS-EA

M7800C-24SFP/12GT4XS-EA

M7800C-36GT12SFP4XS-EA

M7800C-48GT4XS-EA

M7800C-48GT4XS-P-EA

M7800C-48SFP4XS-EA

Hot Swapping

Supported

Power Supply

Module

RG-PA600I-F: 90-180V~ power: 600W;

180-264V~ power: 600W

RG-PA1600I-F: 90-180V~ power: 1200W;

180-264V~ power: 1600W

RG-PD600I-F: -40- -75V~power: 600W;

RG-PA3000I-PL: 90-176V~ power: 1200W;

176-210V~ power: 2500W;

210-264V~ power: 3000W

RG-PA1600I-PL: 90-176V~ power: 1200W;

176-264V~ power: 1600W

RG-PA800IF: 90-176V~ power: 400W; 176-264V~power: 800W

Power Supply

Redundancy

The power supply redundancy of the same model is supported

Fan Module

M08-FAN

EMC Standards

GB9254-2008 CLASS A, FCC CLASS A

Safety Standards

GB4943-2011

Altitude

Long term operation height: 3000m at 50℃. The temperature decreases by 1℃as the altitude

ranging from 3000m to 5000m increases by 200m.

Operation height: 5000m max

Storage height: 5000m max

Operating

Temperature

0°C to 50°C

Storage

Temperature

-40°C to 70°C

Operating Humidity

10% to 90% RH (non-condensing)

MTBF

216,000 hours

Noise

55.9 dB at 35℃

73.4 dB at 50℃

Weight

Net weight: 32.35 kg (including the chassis and fans)

Dimensions

(W x D x H)

442 mm x 465 mm x 441.7 mm (cable management brackets excluded), 10U

Hardware Installation and Reference Guide Product Overview

The weight only includes that of the empty chassis and fans. The whole device's weight is subject to that of the

modules selected.

RG-S7808C switch is a class A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

Product Appearance

The hardware system of the RG-S7808C switch is composed of the chassis, the power system, modules and the cooling

system.

The power system provides four power supply slots and supports N+N power redundancy. After M78-PSE or

M78-PSE-L is configured, two PoE power slots are available. PoE power supports 1+1 power redundancy. Users are

recommended to configure redundancy for the power supplies.

The RG-S7808C switch provides two supervisor module slots and six service module slots. The supervisor modules

support 1+1 redundancy. Users are recommended to configure redundancy for the supervisor modules. Users may

choose different service modules as needed.

The cooling system is composed of the fan trays and air filters. Fan trays are at the back of the chassis. The air filters

are on the right side of the chassis.

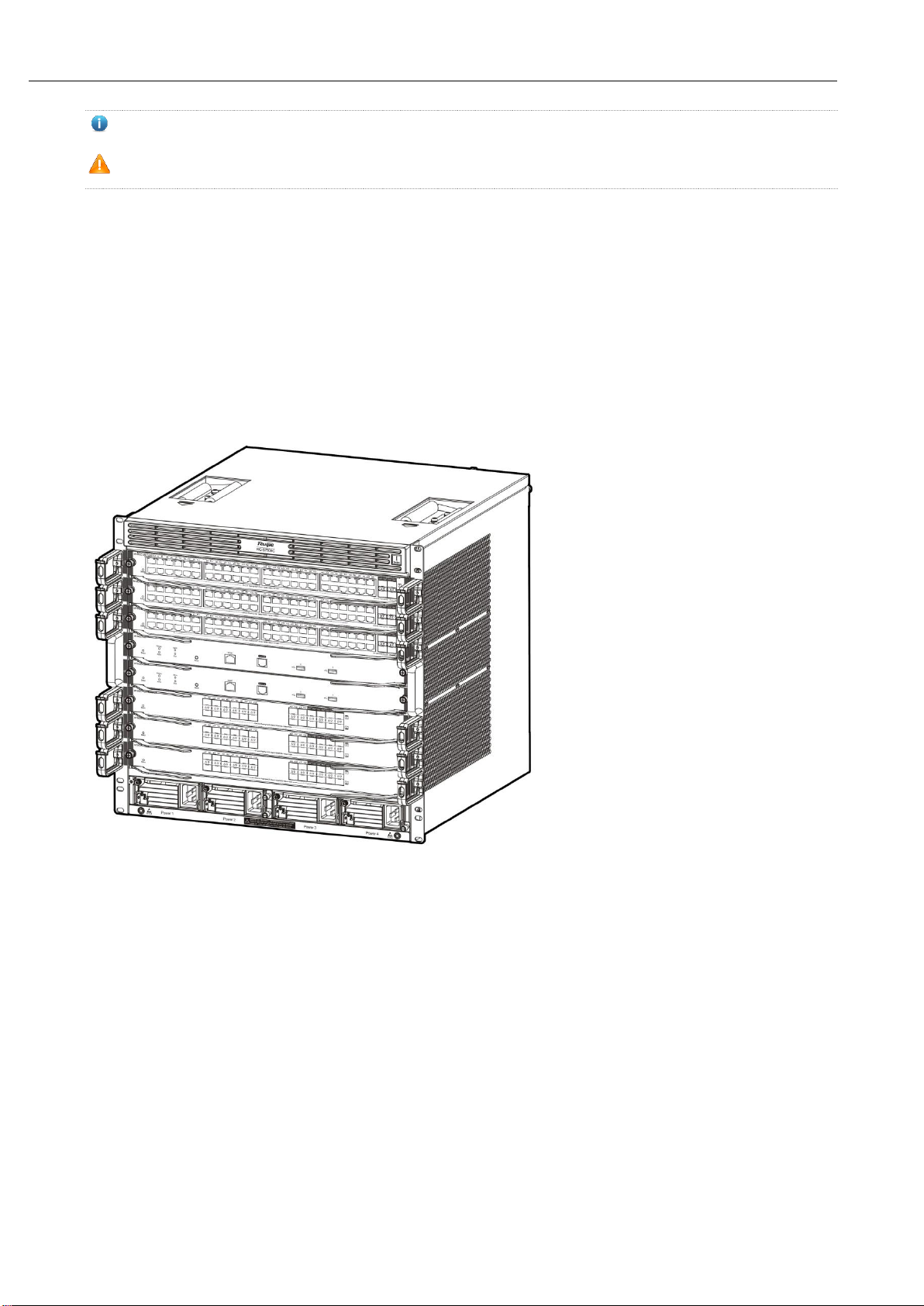

Figure 1-1 Appearance of the RG-S7808C Switch

Front Panel

The front panel of the RG-S7808C switch is shown in Figure 1-2.

Figure 1-2 Front Panel of the RG-S7808C Switch

Hardware Installation and Reference Guide Product Overview

Note:

1. Supervisor module slots

2. Service module slots

3. Cable management bracket

4. Slot for system power supply module

5. Anti-static wrist strap socket

Ensure the supervisor module, service module, and power supply module are removed from the chassis before you

move or transport the RG-S7808C chassis.

Back Panel

The back panel of the RG-S7808C switch is shown in Figure 1-3.

Figure 1-3 Back Panel of the RG-S7808C Switch

Hardware Installation and Reference Guide Product Overview

Note:

1. PoE power supply slot

2. Direction sign for installing air filter

3. Captive screw of the air filter

4. Air filter module

5. Fan Tray

6. Handle of the fan tray

7. Captive screws of the fan tray

For S7808C, the PoE power supply slot consists of a frame of PoE power supply module-- M78-PSE. For more

information, please refer to M78-PSE. If PoE power supply input is in demand, you need to purchase a frame so as

to install a PoE power supply module.

Power supply

The RG-S7808C switch adopts both AC and PoE power supply input.

AC power supply input: The RG-PA1600I-F and the RG-PA600I-F power supply modules are supported. The two

types of power supply modules support power management. The supervisor module of the RG-S7808C switch can

read the power supply information and implement flexible and intelligent power management.

PoE power supply input: The RG-PA3000I-PL and the RG-PA1600I-PL power supply modules are supported. The

two types of power supply modules support power management. The supervisor module of the RG-S7808C switch

can read the power supply information and implement flexible and intelligent power management.

The RG-S7808C switch supports N+N power supply redundancy to improve the system stability and reliability. We

recommend users to configure N+M redundancy for power supply modules.

Heat Dissipation System

The operating environment temperature of the RG-S7808C switch ranges between 0 and 50°C . The thermal design must

satisfy the requirement on the device's reliability in the temperature range while ensuring the device's safety and

maintainability. According to the thermal design of the RG-S7808C switch, fans are used to draw air for forced convection

cooling in order to ensure that the device works properly in the specified environment.

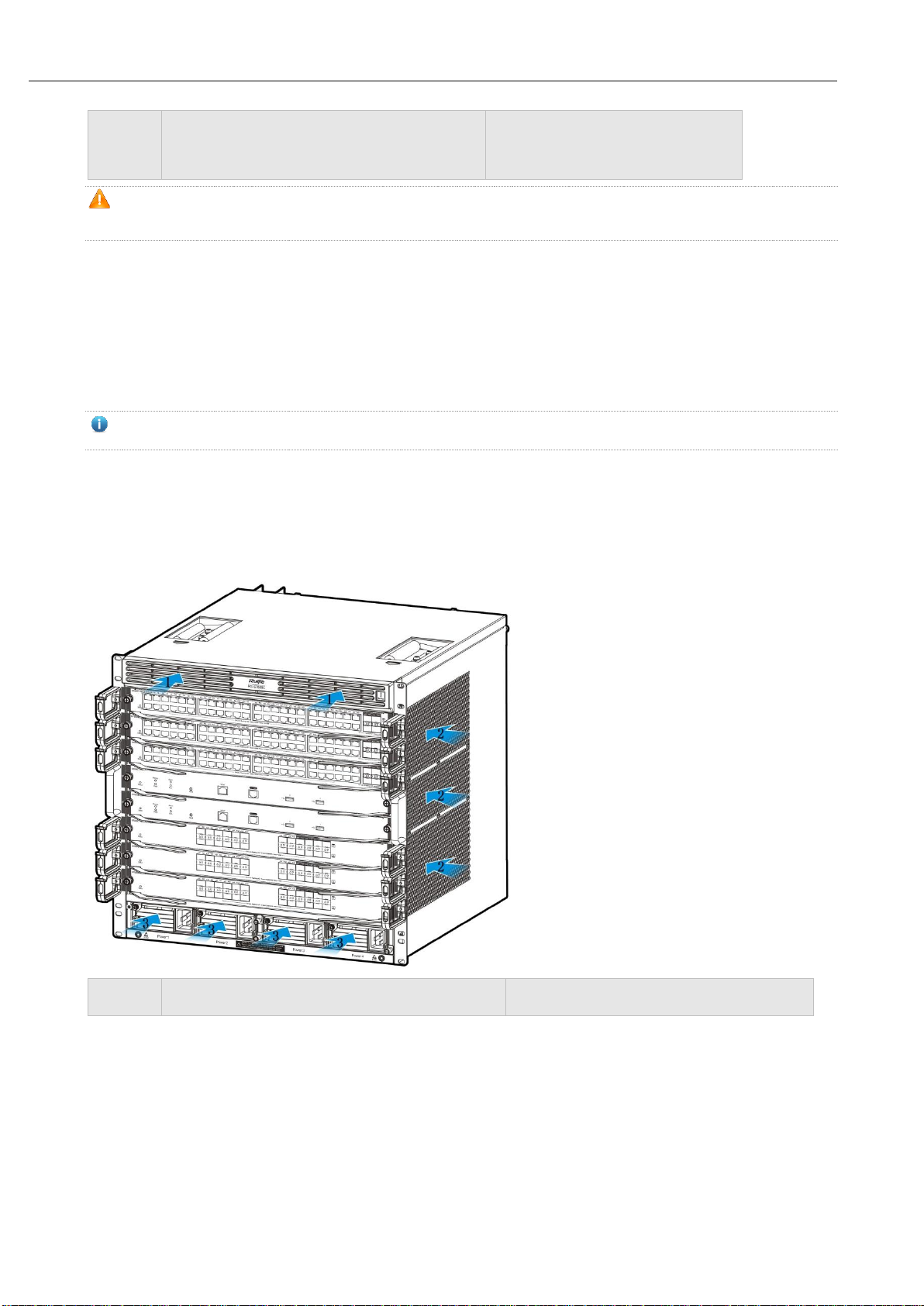

Figure 1-4 Ventilation and Heat Dissipation System of the RG-S7808C Switch (Air Intakes)

Note:

1. Air intakes for PoE power modules

2. Air intakes for service and supervisor modules

3. Air intakes for system power modules

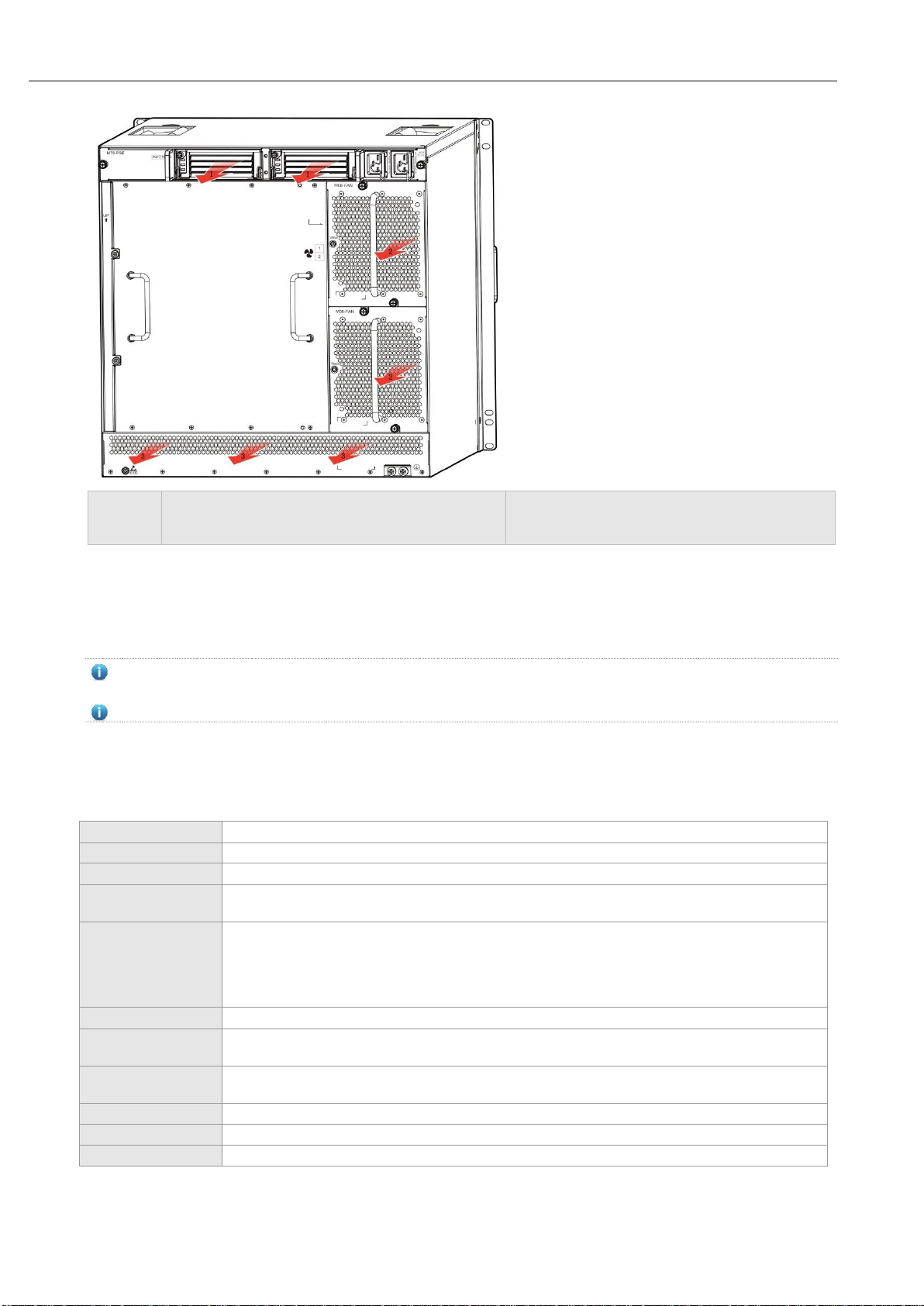

Figure 1-5 Ventilation and Heat Dissipation System of the RG-S7808C Switch (Exhaust Vents)

Hardware Installation and Reference Guide Product Overview

Note:

1. Exhaust vents for PoE power modules

2. Exhaust vents for service and supervisor

modules

3. Exhaust vents for system power modules

For the PoE power supply modules, air flows across the chassis from the back intakes to the front vents.

For the supervisor and service modules, air flows across the chassis from the right intakes to the back vents.

For the power supply modules, air flows in from the front intakes and out from the back vents.

The chassis should be mounted in a place with sufficient space for air circulation. Maintain a minimum clearance of

10cm around the chassis.

If any module slot is unoccupied, install a filler panel to ensure proper airflow.

1.2 RG-S7805C

Specifications

Model

RG-S7805C

Module Slot

two supervisor module slots and three service module slots

Supervisor Module

M7805C-CM

Supervisor Module

Redundancy

Supported

Service Module

M7800C-24SFP/12GT4XS-EA

M7800C-36GT12SFP4XS-EA

M7800C-48GT4XS-EA

M7800C-48SFP4XS-EA

M7800C-24GT24SFP4XS-EA

Hot Swapping

Supported

Power Supply

Module

RG-PA300I-F: 90-290V~ power: 300W;

192-290V~ power: 300W

Power Supply

Redundancy

The power supply redundancy of the same model is supported.

Fan Module

M05C-FAN

EMC Standards

GB9254-2008 CLASS A, FCC CLASS A

Safety Standards

GB4943-2011

Hardware Installation and Reference Guide Product Overview

Altitude

Long term operation height: 3000m at 50℃. The temperature decreases by 1℃as the altitude

ranging from 3000m to 5000m increases by 200m.

Operation height: 5000m max

Storage height: 5000m max

Operating

Temperature

0°C to 50°C

Storage

Temperature

-40°C to 70°C

Operating Humidity

10% to 90% RH (non-condensing)

MTBF

200,000 hours

Noise

64.3 dB at 35℃

70.3 dB at 50℃

Weight

Net weight: 12.42 kg (including the chassis and fans)

Dimensions

(W x D x H)

442 mm x 451 mm x 175 mm (cable management brackets excluded), 4U

The weight only includes that of the empty chassis and fans. The whole device's weight is subject to that of the

modules selected.

RG-S7805C switch is a class A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

Product Appearance

The hardware system of the RG-S7805C switch is composed of the chassis, the power system, modules and the cooling

system.

The power system provides two power supply slots and supports 1+1 power supply redundancy. Users are

recommended to configure redundancy for the power supplies.

The RG-S7805C switch provides two supervisor module slots and three service module slots. The supervisor

modules support 1+1 redundancy. Users are recommended to configure redundancy for the supervisor modules.

Users may choose different service modules as needed.

The cooling system is composed of the fan trays. Fan trays are at the back of the chassis.

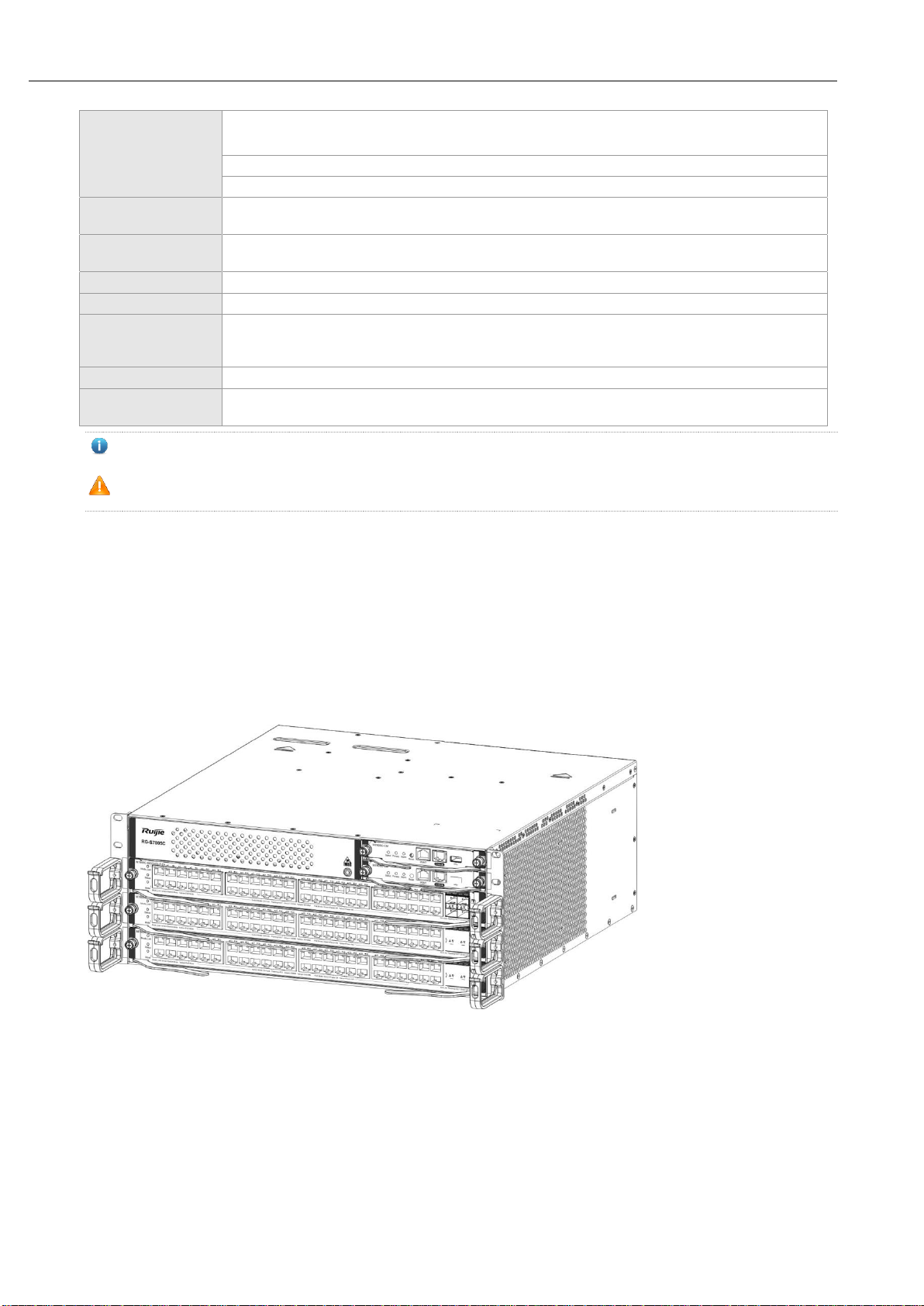

Figure 1-65 Appearance of the RG-S7805C Switch

Front Panel

The front panel of the RG-S7805C switch is shown in Figure 1-7.

Figure 1-7 Front Panel of the RG-S7805C Switch

Hardware Installation and Reference Guide Product Overview

Note:

1. Supervisor module slot

2. Service module slots

3. Cable management bracket

4. Anti-static wrist strap socket

Ensure the supervisor module, service module, and power supply module are removed from the chassis before you

move or transport the RG-S7805C chassis.

Back Panel

The back panel of the RG-S7805C switch is shown in Figure 1-8.

Figure 1-8 Back Panel of the RG-S7805C Switch

Note:

1. Power module slot

2. Fan tray

3. Handle of the fan tray

4. Captive screws of the fan tray

Power supply

The RG-S7805C switch adopts the AC power supply.

AC power supply input: The RG-PA300I-F and the RG-PA460I-F power supply modules are supported. The two

types of power supply modules support power management. The supervisor module of the RG-S7805C switch can

read the power supply information and implement flexible and intelligent power management.

Heat Dissipation System

The operating environment temperature of the RG-S7805C switch ranges between 0 and 50°C . The thermal design must

satisfy the requirement on the device's reliability in the temperature range while ensuring the device's safety and

maintainability. According to the thermal design of the RG-S7805C switch, fans are used to draw air for forced convection

cooling in order to ensure that the device works properly in the specified environment.

Figure 1-9 Ventilation and Heat Dissipation System of the RG-S7805C Switch (Air Intakes)

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie XS-S1960-24GT4SFP-UP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RGOS 11.X Manuel utilisateur

Ruijie

Ruijie RG-ES05 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES126S-P Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS1805C-P Manuel utilisateur

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS88-08 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS Series Manuel utilisateur

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P V2 Manuel utilisateur

Ruijie

Ruijie RG-S2924GT/8SFP-XS-P Manuel utilisateur

Ruijie

Ruijie Reyee RG-ES126S-P V2 Manuel utilisateur

Ruijie

Ruijie RG-EG210G-P Manuel utilisateur

Ruijie

Ruijie RG-IS2712G Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5000-24GT4MS-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS3100 Series Comment utiliser

Ruijie

Ruijie RG-S6150-X Series Comment utiliser

Ruijie

Ruijie RG-CS86-20XS Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
