Ruijie Reyee RG-ES100 Series Switches

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form

or by any means, without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice.

Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to

ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to

content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps,

hardware troubleshooting, module technical specifications, and specifications and usage guidelines for

cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At

the same time, it is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that

supported by the product, with configuration examples.

Command Reference

Describes the related configuration commands, including

command modes, parameter descriptions, usage guides, and

related examples.

Symbol Conventions

The symbols used in this document are described as below:

Means reader take note. Notes contain helpful suggestions or references.

This symbol means that you must be extremely careful not to do some things that may damage the

device or cause data loss

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

1 Product Overview

The RG-ES100 series switches include the following models:

Model

10/100Base-TX Auto-sensing

Ethernet Port

10/100/1000Base-T

Auto-sensing

Ethernet Port

1000Base-X SFP

Port

Console

Port

RG-ES106D-P

6（Ports 1-4 support PoE/PoE+）

N/A

RG-ES126S-LP

24（Ports 1-24support PoE/PoE+）

1 (Combo)

N/A

RG-ES110D-P

8（Ports 1-8 support PoE/PoE+）

N/A

RG-ES116G

N/A

RG-ES124GD

N/A

RG-ES118S-LP

16（Ports 1-16 support PoE/PoE+）

2 (Combo)

N/A

1000Base-T is downward compatible with 100Base-TX and 10Base-T.

The SFP ports cannot be downward compatible with 100Base-FX.

1.1 RG-ES106D-P

Technical Specifications

Model

RG-ES106D-P

Ports

6 10/100Base-TX auto-sensing Ethernet ports, ports 1-4 support PoE/PoE+.

Power Supply

AC input

Rated voltage range: 100 VAC to 240 VAC

Maximum voltage range: 90 VAC to 264 VAC

Frequency: 50/60 Hz

Rated current: 1.5 A

Adapter output

Rated voltage range: 51 VDC

Rated current range: 1.25 A

EEE

Not supported

PoE

Support PoE and PoE+.

Ports 1-4 are PoE/PoE+-capable with the maximum power output of 30W per port. Ports 5-6 do

not support PoE or PoE+.

The overall maximum output power of PoE/PoE+ is 58W.

Power

Consumption

Less than 7W with no PoE load

Less than 67W with PoE full load

Operating

Temperature

0℃to 45℃(32°F to 113°F)

Storage

Temperature

-40℃to 70℃(-40°F to 158°F)

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Port Mode

Support switchover in three modes:

1. Flow Control On

2. Flow Control Off

3. Port Isolation. When this mode is enabled, ports 1-4 are isolated from each other, but can

communicate with ports 5-6.

Fan

Not supported

Temperature

Warning

Not supported

Accessing Optical

Module Information

Not supported

EMC Standards

GB9254-2008

EN 55032:2015

EN 55035:2017

EN IEC61000-3-2:2019

EN 61000-3-3:2013

Draft ETSI EN 300 386 V2.2.0 (2020-10)

Security Standards

GB4943-2011

EN 62638-1

Earth Leakage

Current

≤1.5mA

Dimensions

(W x D x H)

100 mm x 100 mm x 26 mm (3.94 in. x 3.94 in. x 1.02 in.)

Weight

(With Package)

0.66 kg (1.46 lbs)

The RG-ES106D-P switch is a class A product. In a domestic environment, this product may cause radio interference

in which case the user may be required to take adequate measures.

Product Appearance

RG-ES106D-P provides 6 10/100Base-TX auto-sensing Ethernet ports on the front panel, and a port mode switch-over

button, a system status LED, a power socket and a grounding pole on the back panel.

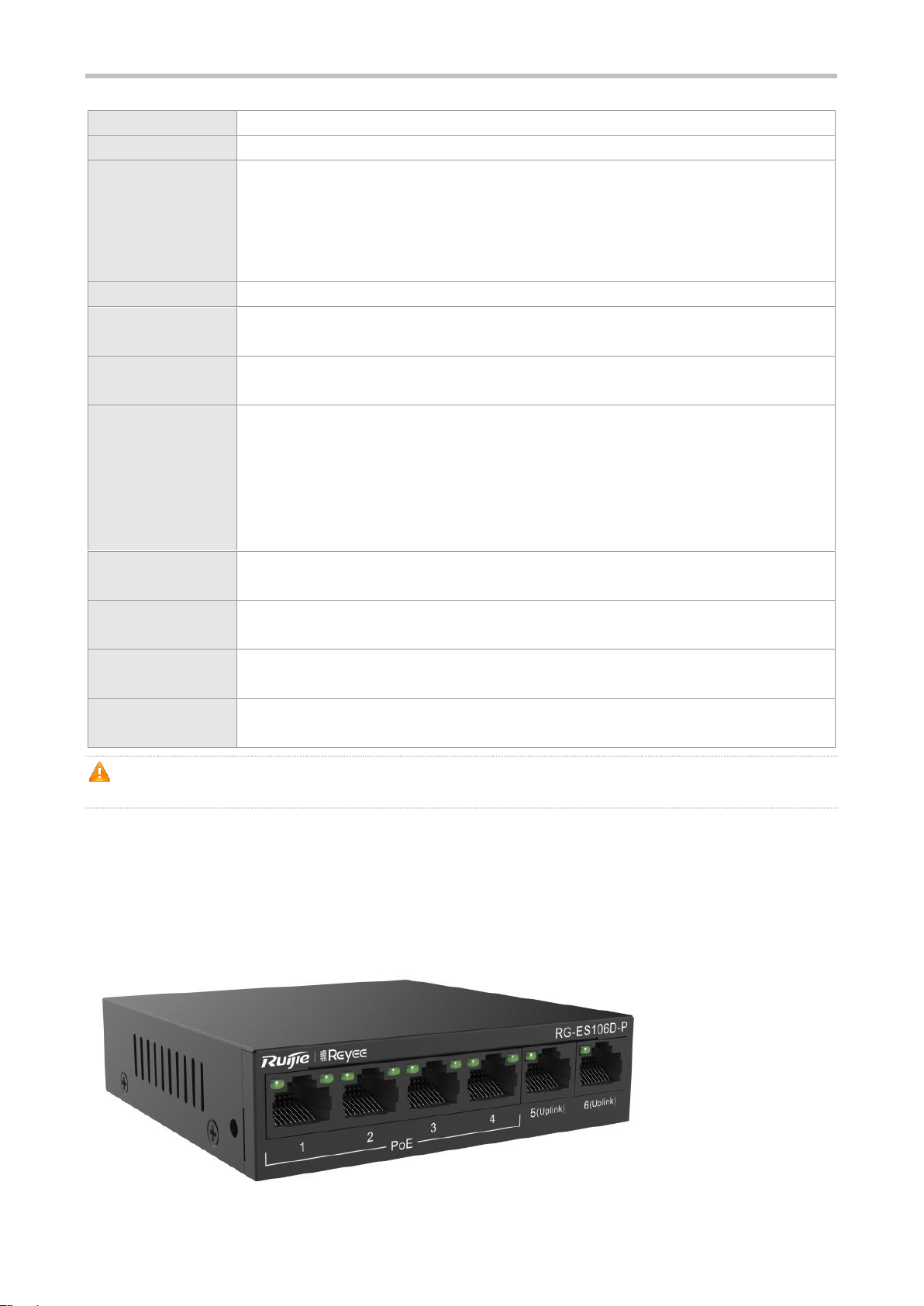

Figure 1-1 Appearance of RG-ES106D-P

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

Front Panel

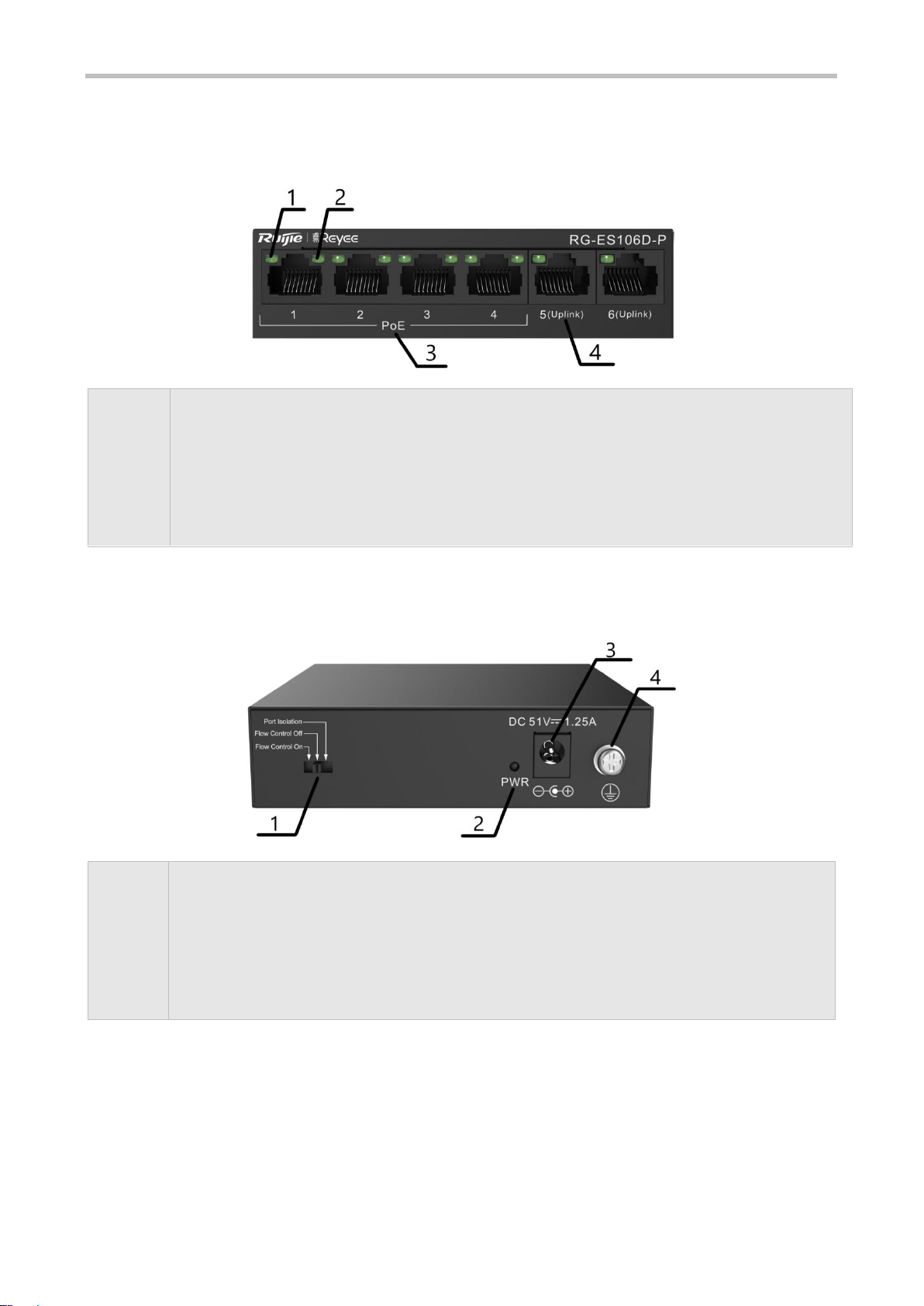

Figure 1-2 Front Panel of RG-ES106D-P

Note:

1. Copper port status LED

2. PoE status LED

3. 10/100Base-TX PoE port

4. 10/100Base-TX auto-sensing Ethernet port

Back Panel

Figure 1-3 Back Panel of RG-ES106D-P

Note:

1. Port mode switch-over button

2. System status LED

3. DC power socket

4. Grounding pole

Heat Dissipation

The RG-ES106D-P adopts natural heat dissipation, thereby ensuring normal function of the device. Maintain a minimum

clearance of 100 mm (3.94 in.) around the device. It is recommended to clean the device once every 3 months to avoid

dust from blocking vents.

LEDs

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

LED

Panel Identification

State

Meaning

System status LED

PWR

Off

The switch is powered off.

Solid green

The switch is operational.

RJ45 port status LED

Upper left corner of the

port

Off

The port is not connected.

Solid green

The port is connected at 10/100 Mbps.

Blinking green

The port is receiving or sending traffic at 10/100

Mbps.

RJ45 PoE status LED

Upper left corner of the

port

Off

PoE does not supply power.

Solid green

PoE is operational.

1.2 RG-ES126S-LP

Technical Specifications

Model

RG-ES126S-LP

Ports

Ports 1-24 are 10/100Base-TX auto-sensing Ethernet ports, and support PoE/PoE+

Ports 25 and 26 are 10/100/1000Base-T auto-sensing Ethernet ports, and do not support

PoE/PoE+

Port 26F is a 1000Base-X SFP port multiplexed with Port 26 as a combo port, and the SFP port

takes priority

Power Supply

AC input

Rated voltage range: 100 VAC to 240 VAC

Maximum voltage range: 90 VAC to 264 VAC

Frequency: 50/60 Hz

Rated current: 4 A Max

EEE

Not supported

PoE

Support PoE and PoE+.

Ports 1-24 are PoE/PoE+-capable with the maximum power output of 30W per port. Ports 25-

26 do not support PoE or PoE+.

The overall maximum output power of PoE/PoE+ is 180W.

Power

Consumption

Less than 10W with no PoE load

Less than 220W with PoE full load

Operating

Temperature

0℃to 45℃(32°F to 113°F)

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

Storage

Temperature

-40℃to 70℃(-40°F to 158°F)

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Port Mode

Support switchover in three modes:

1. Flow Control On

2. Flow Control Off

3. Port Isolation. When this mode is enabled, ports 1-24 are isolated from each other, but can

communicate with ports 25, 26 and 26F.

Fan

Supported

Temperature

Warning

Not supported

Accessing Optical

Module Information

Not supported

EMC Standards

GB9254-2008

EN 55032:2015

EN 55035:2017

EN IEC61000-3-2:2019

EN 61000-3-3:2013

Draft ETSI EN 300 386 V2.2.0 (2020-10)

Security Standards

GB4943-2011

EN 62638-1

Earth Leakage

Current

≤1.5mA

Dimensions

(W x D x H)

440 mm x 208 mm x 44 mm (17.32 in. x 8.19 in. x 1.73 in.)

Weight

(With Package)

3 kg (6.61 lbs)

The RG-ES126S-LPswitch is a class A product. In a domestic environment, this product may cause radio interference

in which case the user may be required to take adequate measures.

Product Appearance

RG-ES126S-LP provides 24 10/100Base-TX auto-sensing Ethernet ports, 2 10/100/1000Base-T auto-sensing Ethernet

ports, a 1000Base-X SFP port, system status LEDs and a port mode switch-over button on the front panel, and a power

socket and a grounding pole on the back panel.

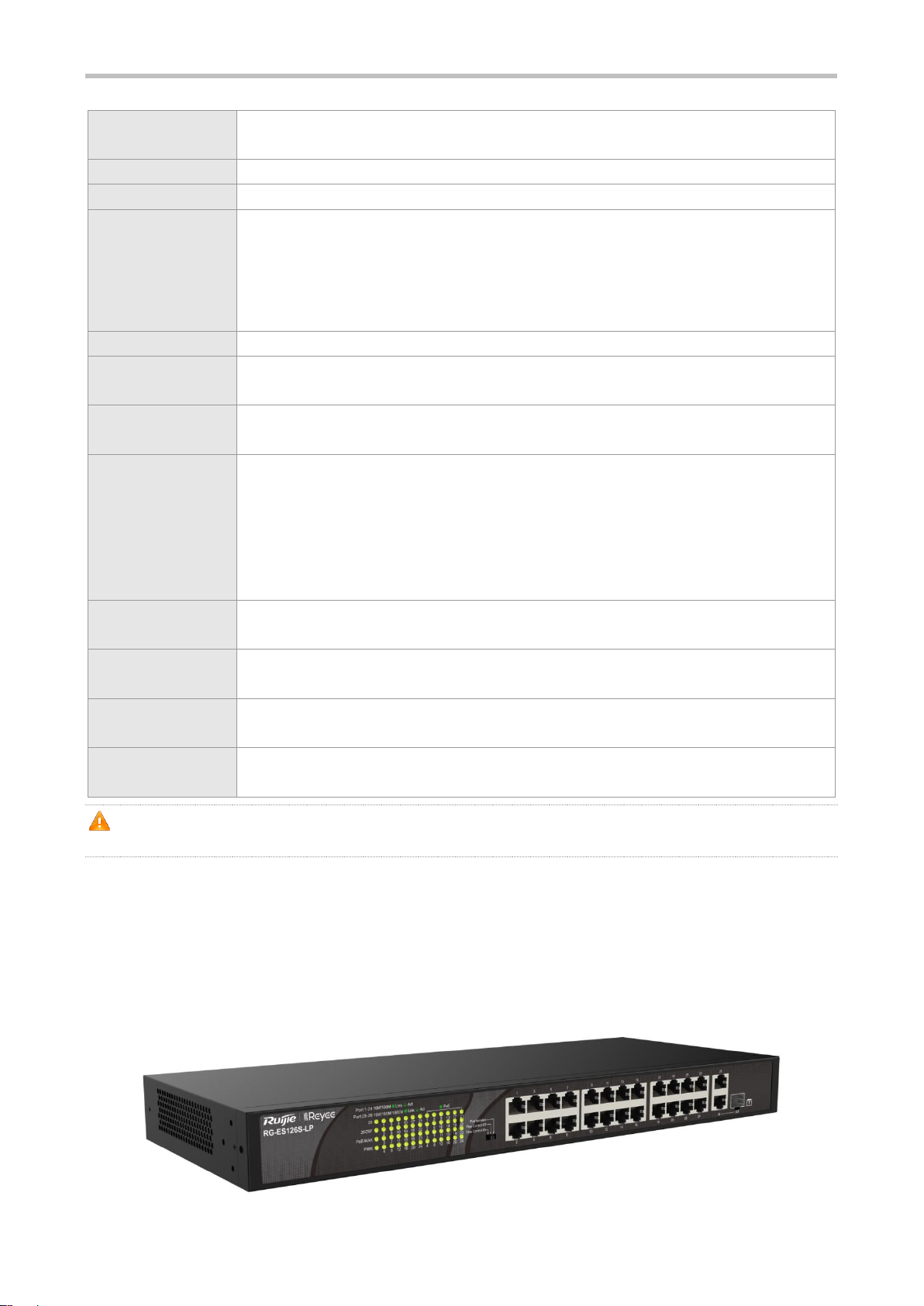

Figure 1-4 Appearance of RG-ES126S-LP

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

Front Panel

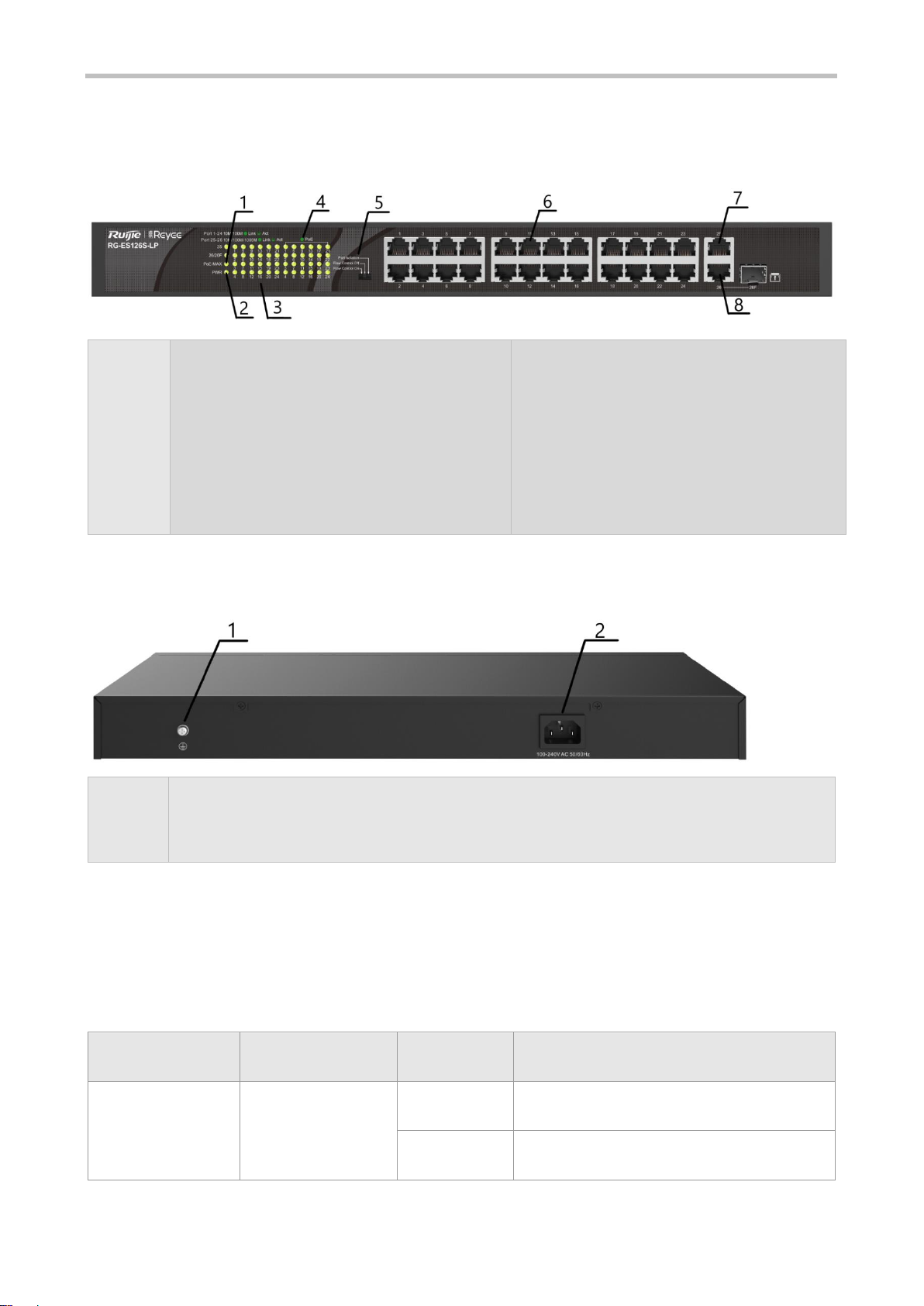

Figure 1-5 Front Panel of RG-ES126S-LP

Note:

1. PoE overload LED

2. System status LED

3. Port status LED

4. PoE status LED

5. Port mode switch-over button

6. 10/100Base-TX auto-sensing Ethernet port

7. 10/100/1000Base-T auto-sensing Ethernet port

8. 10/100/1000Base-T combo port

Back Panel

Figure 1-6 Back Panel of RG-ES126S-LP

Note:

1. Grounding pole

2. AC power socket

Heat Dissipation

The RG-ES126S-LP adopts fans for heat dissipation, thereby ensuring normal function of the device in the specified

environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air

circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

LEDs

LED

Panel Identification

State

Meaning

System status LED

PWR

Off

The switch is powered off.

Solid green

The switch is operational.

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide

PoE overload LED

PoE-max

Off

The overall PoE output does not reach the

maximum power.

Solid green

The overall PoE output reaches the maximum

power.

RJ45 port status LED

Link/Act

(1-24, 25, 26/26F)

Off

The port is not connected.

Solid green

The port is connected at 10/100/1000 Mbps.

Blinking green

The port is receiving or sending traffic at

10/100/1000 Mbps.

RJ45 PoE status LED

PoE (1-24)

Off

PoE does not supply power.

Solid green

PoE is operational.

1.3 RG-ES110D-P

Technical Specifications

Model

RG-ES110D-P

Ports

8 10/100Base-TX auto-sensing Ethernet ports (Auto MDI/MDIX), and support PoE/PoE+

2 10/100/1000Base-T auto-sensing Ethernet ports (Auto MDI/MDIX)

Power Supply

AC input

Rated voltage range: 100 VAC to 240 VAC

Maximum voltage range: 90 VAC to 264 VAC

Frequency: 50/60 Hz

Rated current: 1.6 A

Adapter output

Rated voltage range: 53.5 VDC

Rated current range: 2.24 A

EEE

Port 1-8: Supported

Port 9-10: Not Supported

PoE

Support PoE and PoE+.

Ports 1-8 are PoE/PoE+-capable with the maximum power output of 30W per port. Ports 9-10

do not support PoE or PoE+.

The overall maximum output power of PoE/PoE+ is 110W.

Power

Consumption

Less than 8W with no PoE load

Less than 129W with PoE full load

Operating

Temperature

0℃to 45℃(32°F to 113°F)

Autres manuels pour RG-ES100 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6910-3C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5300-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5310-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S7800C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6980-64QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES05 Series Manuel utilisateur

Ruijie

Ruijie RG-NBS5200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5200-48GT4XS-UP Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS Series Manuel utilisateur

Ruijie

Ruijie RG-ES200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES05 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-NBS7003 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2910-24GT4SFP-UP-H Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS3100-48GT4SFP-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S3760E Series Manuel utilisateur

Ruijie

Ruijie RG-S7800 Series Manuel

Ruijie

Ruijie RG-S5750-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
