Ruijie Reyee RG-ES106D-P V2 Manuel utilisateur

To better use the Ruijie device,

read this manual before installation and usage,

and save the manual for future reference.

User Manual

RG-ES106D-P V2

Package Contents

Item Quantity

RG-ES106D-P V2 Switch 1

Desiccant Bag 1

Power Adapter (1.2 m/3.94 ft) 1

KA3 x 25 mm Screw 2

Expansion Anchor 2

User Manual 1

the corresponding product category to find the product and download the related

documentation.

1. Tabletop or Workbench Mounting

Step 1 Take out the switch from the packing materials.

Step 2 Place the switch on the tabletop or workbench and maintain a certain clearance

around the switch to ensure proper ventilation.

User Manual

Installation

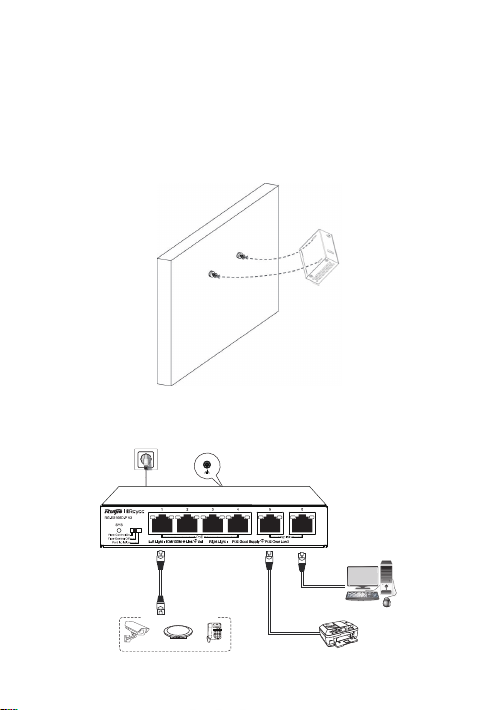

2. Wall Mounting

Step 1 Take out two expansion anchors and two screws from the packing materials.

Step 2 Drill two holes on the wall. The holes should be level with each other and their

centers should be 112.6 mm (4.43 in) apart. Hammer the two expansion anchors into the

holes, and drive two screws into the expansion anchors.

Step 3 Place the two keyholes on the back of the switch over the two screws mounted on

the wall, and pull the switch down slightly to hang it on the screws.

Network Configuration

Connect the switch according to your networking needs. The switch does not need any

configuration after being connected.

Power Supply

Printer

IP Camera

PoE Powered Device

Grounding Cable

IP TelephoneAP

②① ③ ④ ⑤

1. System Status LED

2. DIP Switch

3. 10/100Base-T Self-adaptive Ethernet

ports (Ports 1 to 4 are PoE ports)

4. 10/100Base-T Link/Act LED

5. PoE Status LED

LEDs and Ports

Specifications

Model

RG-ES106D-P V2

Standard & Protocol IEEE802.3i, IEEE802.3u, IEEE802.3x,

IEEE802.3az, IEEE802.3at, IEEE802.3af

Port

Six 10/100 Mbps self-adaptive Ethernet Ports (Auto

MDI/MDIX).

Ports 1-4 support PoE power supply.

PoE

IEEE802.af-compliant and 802.3at-compliant

Maximum PoE/PoE+ output power: 54 W

Maximum PoE/PoE+ output power per port: 30 W

Switching Capacity

1.6 Gbps

Maximum Power Consumption

60.6 W

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

4- -0ºC to 70ºC ( 40°F to 158°F)

Operating Humidity

10% to 90% RH (non-condensing)

Storage Humidity

5% to 90% RH (non-condensing)

Working Mode

Standard mode: Flow control is enabled and all

ports can communicate with each other.

Flow Control Off mode: Flow control is disabled and

all ports can communicate with each other.

VLAN mode: Ports 1 to 4 cannot communicate with

each other but they can communicate with ports 5

and 6.

Dimensions (W x D x H) 140 mm x 67 mm x 26 mm (5.51 in. x 2.64 in. x 1.02

in.)

The device may cause radio interference in the living environment.

CE Mark warning
