Ruijie Reyee RG-NBS Series Manuel utilisateur

Ruijie Reyee RG-NBS Series Switches

ReyeeOS 1.86

Web-based Configuration Guide

Document Version: V1.0

Date: 2022.08.31

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document

or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks

is prohibited.

Trademarks including , , are owned by Ruijie

Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

⚫Network engineers

⚫Technical support and servicing engineers

⚫Network administrators

Technical Support

⚫Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee

⚫Technical Support Website: https://ruijienetworks.com/support

⚫Case Portal: https://caseportal.ruijienetworks.com

⚫Community: https://community.ruijienetworks.com

⚫Technical Support Email: [email protected]

Conventions

1. GUI Symbols

Interface

symbol

Description

Example

Boldface

1. Button names

2. Window names, tab name, field name and

menu items

3. Link

1. Click OK.

2. Select Config Wizard.

3. Click the Download File link.

Multi-level menus items

Select System >Time.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

The manual offers configuration information (including model, description, port type, software interface) for

indicative purpose only. In case of any discrepancy or inconsistency between the manual and the actual version,

the actual version prevails.

Web-based Configuration Guide Login

1 Login

1.1 Configuration Environment Requirements

1.1.1 PC

⚫Google Chrome, Internet Explorer 9.0, 10.0, and 11.0, and some Chromium/Internet Explorer kernel-based

browsers (such as 360 Extreme Explorer) are supported. Exceptions such as garble characters or format

error may occur if an unsupported browser is used.

⚫1024 x 768 or a higher resolution is recommended. If other resolutions are used, the page fonts and formats

may not be aligned, the GUI is less artistic, or other exceptions may occur.

1.2 Logging in to the Web Page

1.2.1 Connecting to the Device

Use a network cable to connect the switch port to the network port of the PC, and configure an IP address for

the PC that is on the same network segment as the default IP of the device to ensure that the PC can ping

through the switch. For example, set the IP address of the PC to 10.44.77.100.

Table 1-1 Default settings

Feature

Default Value

Device IP Address

10.44.77.200

Password

Username and password are not required at your first

1.2.2 Logging in to the Web Page

(1) Enter the IP address (10.44.77.254 by default) of the device in the address bar of the browser to open the

Note

If the static IP address of the device is changed, or the device dynamically obtains a new IP address, the new

IP address can be used to access the web management system of the device as long as the PC and the

device are on the same LAN, and their IP addresses are in the same network segment.

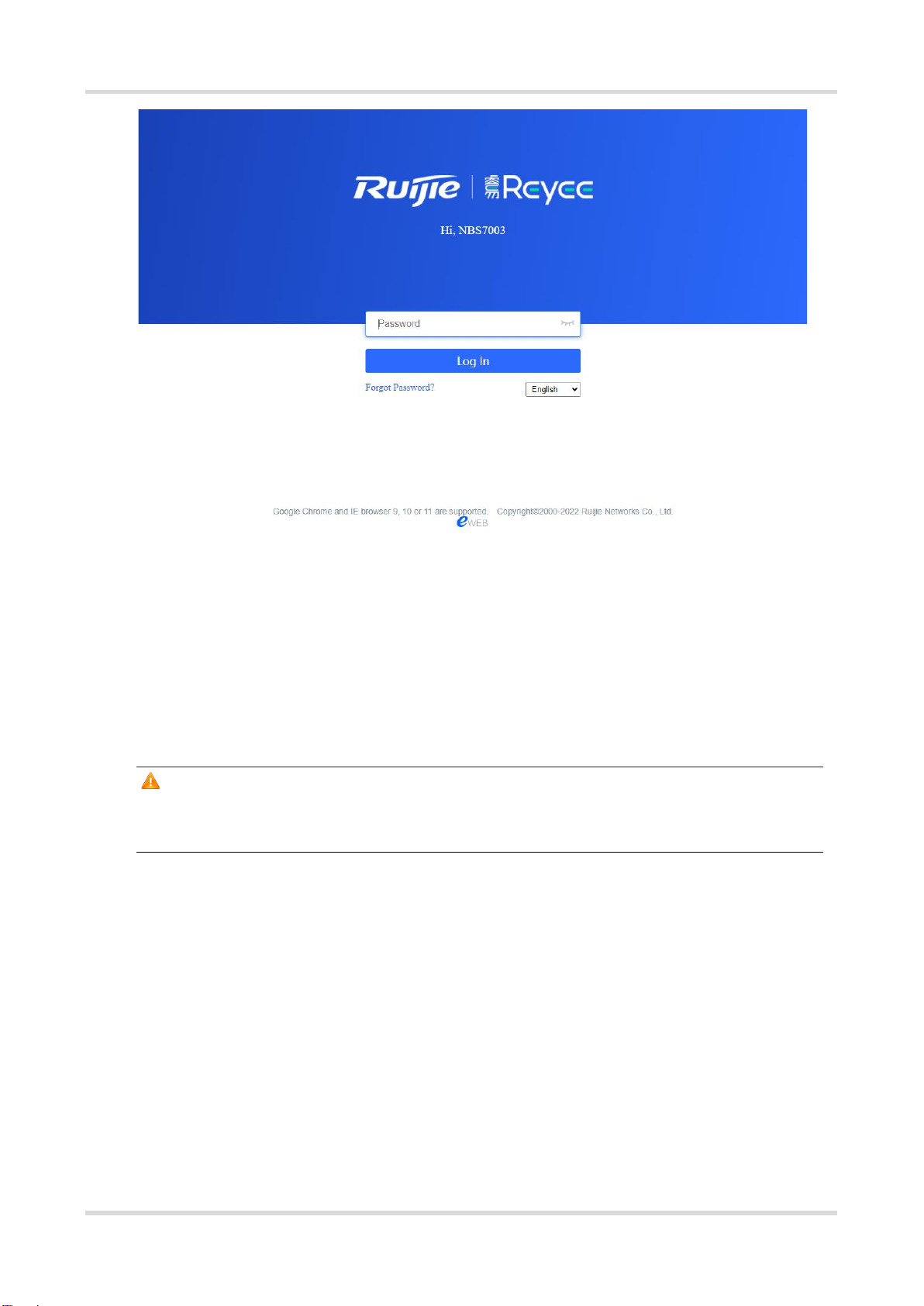

(2) Enter the password and click Log In to open the homepage of the web management system.

Web-based Configuration Guide Login

Username and password are not required at your first login and you can configure the bridge directly.

For device security, you are advised to set the management password after your first login to the web

management system. After the password is set, you need to enter the password when you log in to the web

management system again.

If you forget the Device IP address or password, hold down the Reset button on the device panel for more than

5s when the device is connected to the power supply to restore factory settings. After restoration, you can use

the default IP address and password to log in.

Caution

Restoring factory settings will delete all configurations of the device. Therefore, exercise caution when

performing this operation.

1.3 Quick Setup

1.3.1 Configuration Preparations

Connect the device to the power supply, and connect the device port to an uplink device with a network cable.

1.3.2 Procedure

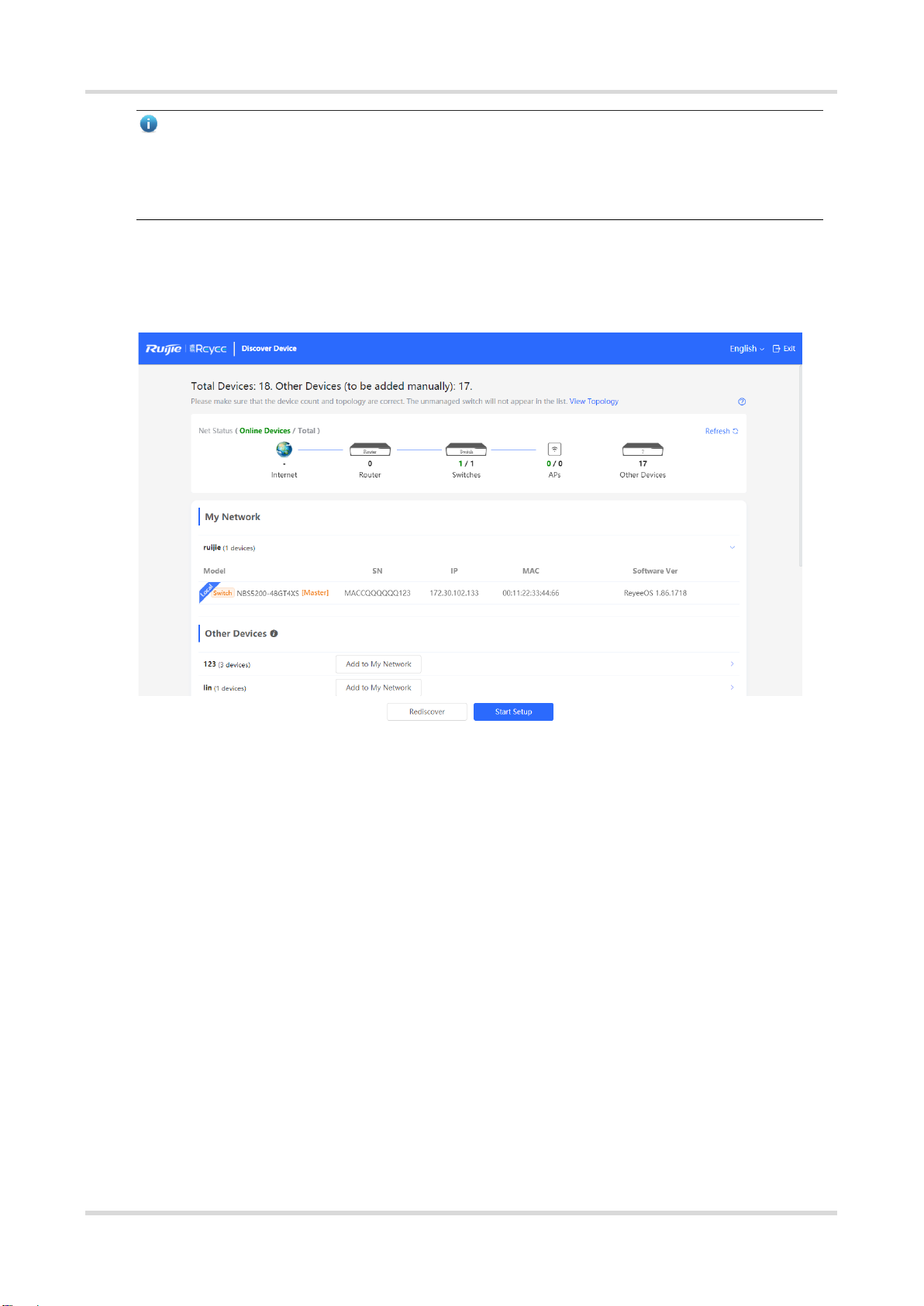

1. Adding Device to Network

By default, users can perform batch settings and centralized management of all devices in the network.

Therefore, before starting configuration, you need to check and confirm the number of online devices and

network status in the network.

Web-based Configuration Guide Login

Note

Under normal circumstances, when multiple new devices are powered on and connected, they will be

automatically interconnected into a network, and the user only needs to confirm that the number of devices is

correct.

If there are other devices in the network that are not added to the current network, you can click Add to My

Network and enter the management password of the added device to manually add the corresponding device

to the network where the device is located, and then start the network-wide configuration.

2. Creating a Web Project

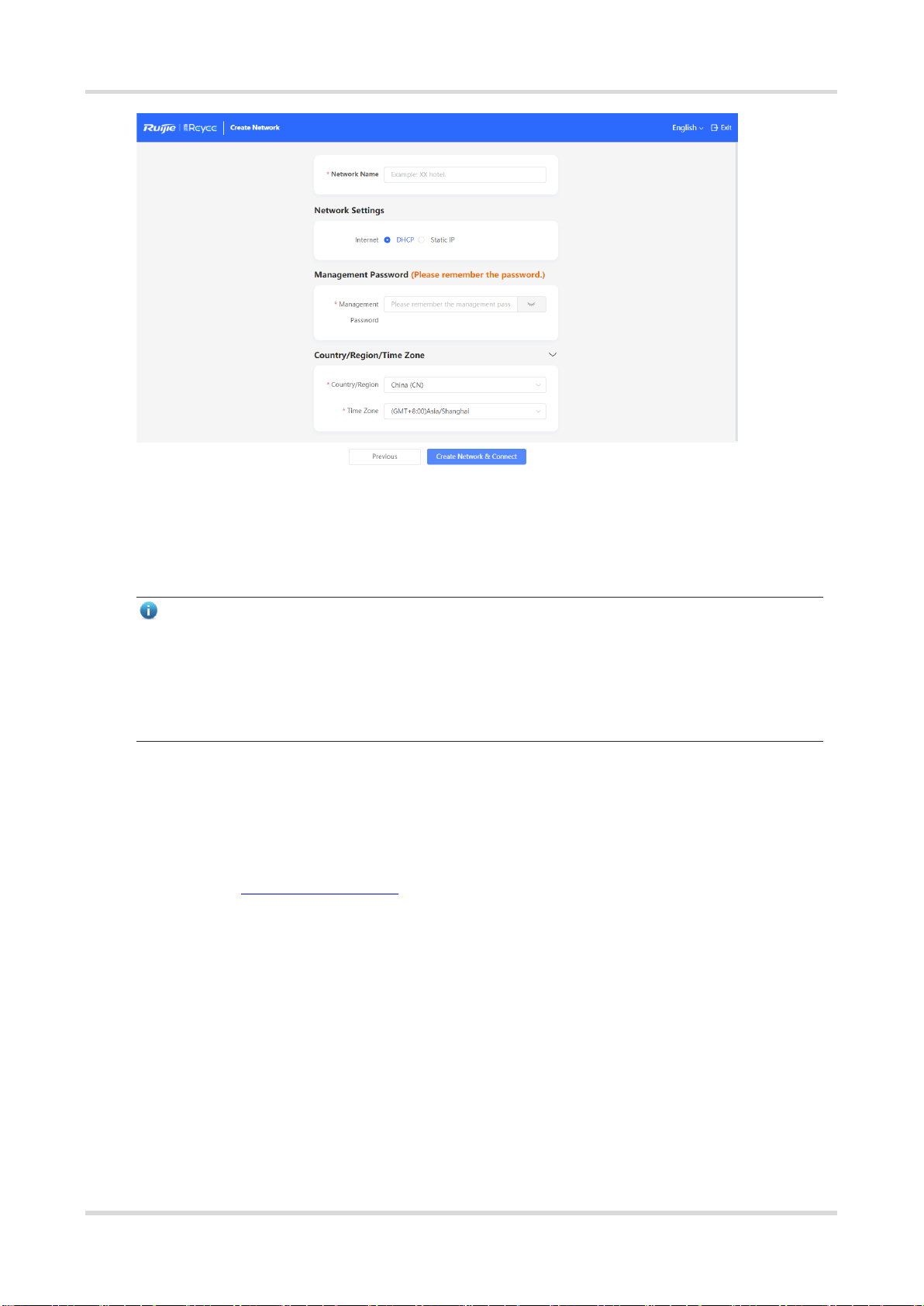

Click Start Setup to set the networking modes and management password of the device.

(1) Network Name: Identify the network where the device is located.

(2) Internet: Select the networking mode.

○DHCP: An IP address is assigned to the device by the uplink DHCP server. By default, the device detects

whether the IP address can be dynamically obtained. If the IP address is obtained successfully, there is

no need to manually set the IP address.

○Static IP: The user manually enter a specified IP address, subnet mask, gateway IP address, and DNS

address.

(3) Management Password: Set the password for logging in to the management page.

(4) Country/Region: Select the country or region where the device is located.

(5) Time Zone: Set the system time. The network time server is enabled to provide time services by default.

Please select your actual time zone.

Web-based Configuration Guide Login

Click Create Network & Connect to deliver related configuration for initialization and detect the network. After

completing the quick setup, the new device is connected to the Internet, and you can continue to bind the device

to the cloud account for remote management. For specific operations, please refer to the instructions on the page

to log in to the Noc Cloud platform for configuration.

Note

●Click Exit in the upper right corner and follow prompts to perform operations. Then, the device can skip

quick setup to go to the Eweb management system. To configure again after exiting or completing the

quick configuration, click the sign in the navigation bar at the top of the web page.

●After changing the management password, you need to re-visit the device management address and use

the new password to log in to the device.

1.4 Work Mode

The device supports two work modes: Standalone and Self-Organizing Network. It works in Self-Organizing

Network mode by default. The system presents different menu items based on the work mode. To modify the

work mode, see Switching the Work Mode.

Self-Organizing Network: After the self-organizing network discovery function is enabled, the device can be

discovered in the network and discover other devices in the network. Devices network with each other based on

the device status and synchronize global configuration. You can log in to the Web management page of the

device to check management information about all devices in the network. After self-organizing network

discovery is enabled, users can maintain and manage the current network more efficiently. You are advised to

keep this function enabled.

When the device is in self-organizing network mode, the Web page has two configuration modes: the network

mode and the local device mode. For more information, see Switching the Management Mode.

Standalone mode: If the self-organizing network discovery function is disabled, the device will not be

discovered in the network. After logging in to the Web page, you can configure and manage only the currently

Web-based Configuration Guide Login

logged in device. If only one device is configured or global configuration does not need to be synchronized to

the device, you can disable the self-organizing network discovery function.

1.5 Switching the Management Mode

In standalone mode, you can configure and manage only the current logged in device without self-organizing

network function. As shown in

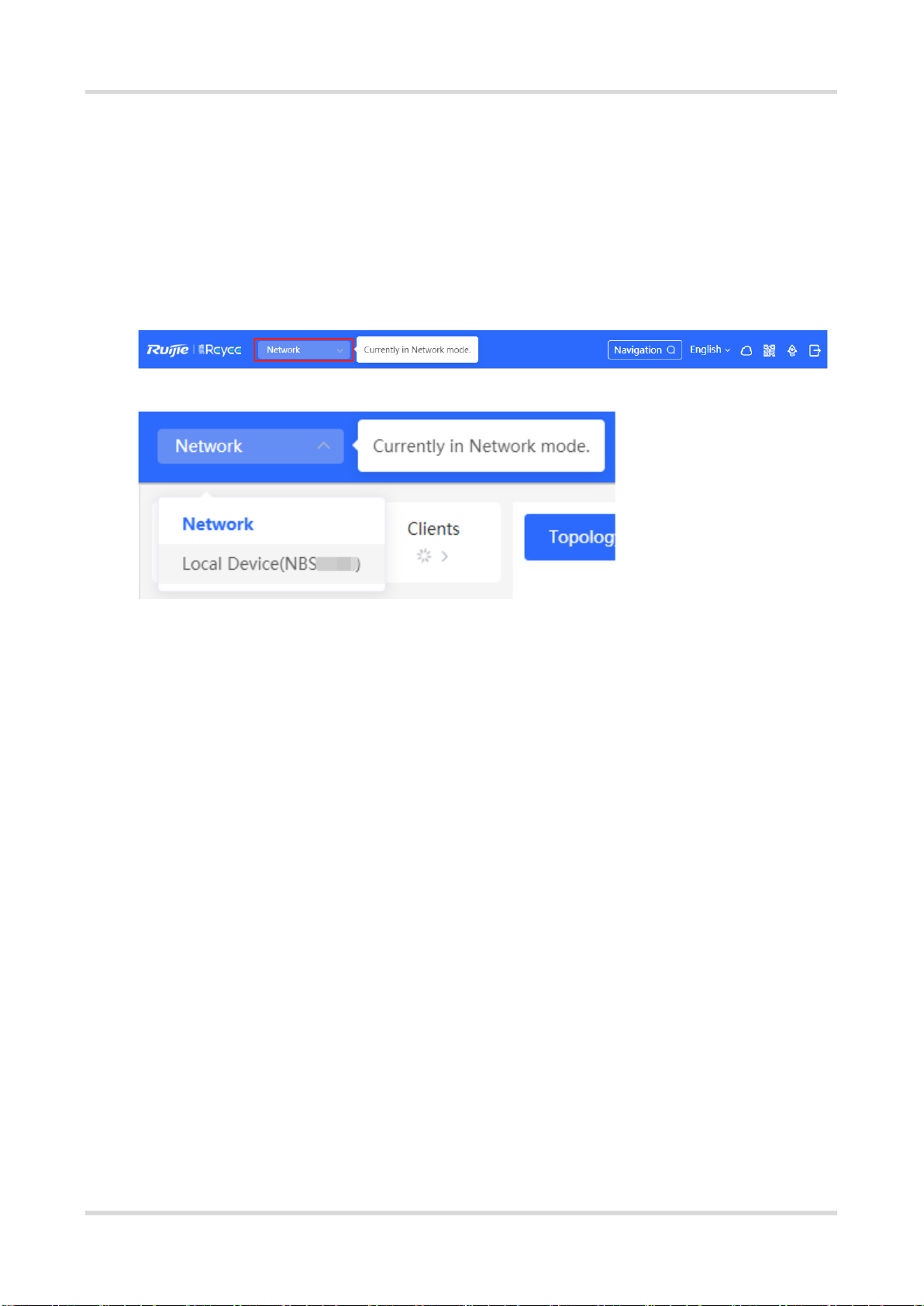

In self-organizing network mode, the Web page has the network mode and the local device mode. Click the

Currently in Network mode in the navigation bar and select the desired mode from the drop-down list box.

⚫The network mode: Display the management information of all devices in the network and configure all

devices in the current network from the network-wide perspective. As shown in;

⚫The local device mode: Only configure the device that you log in to. As shown in.

Web-based Configuration Guide Login

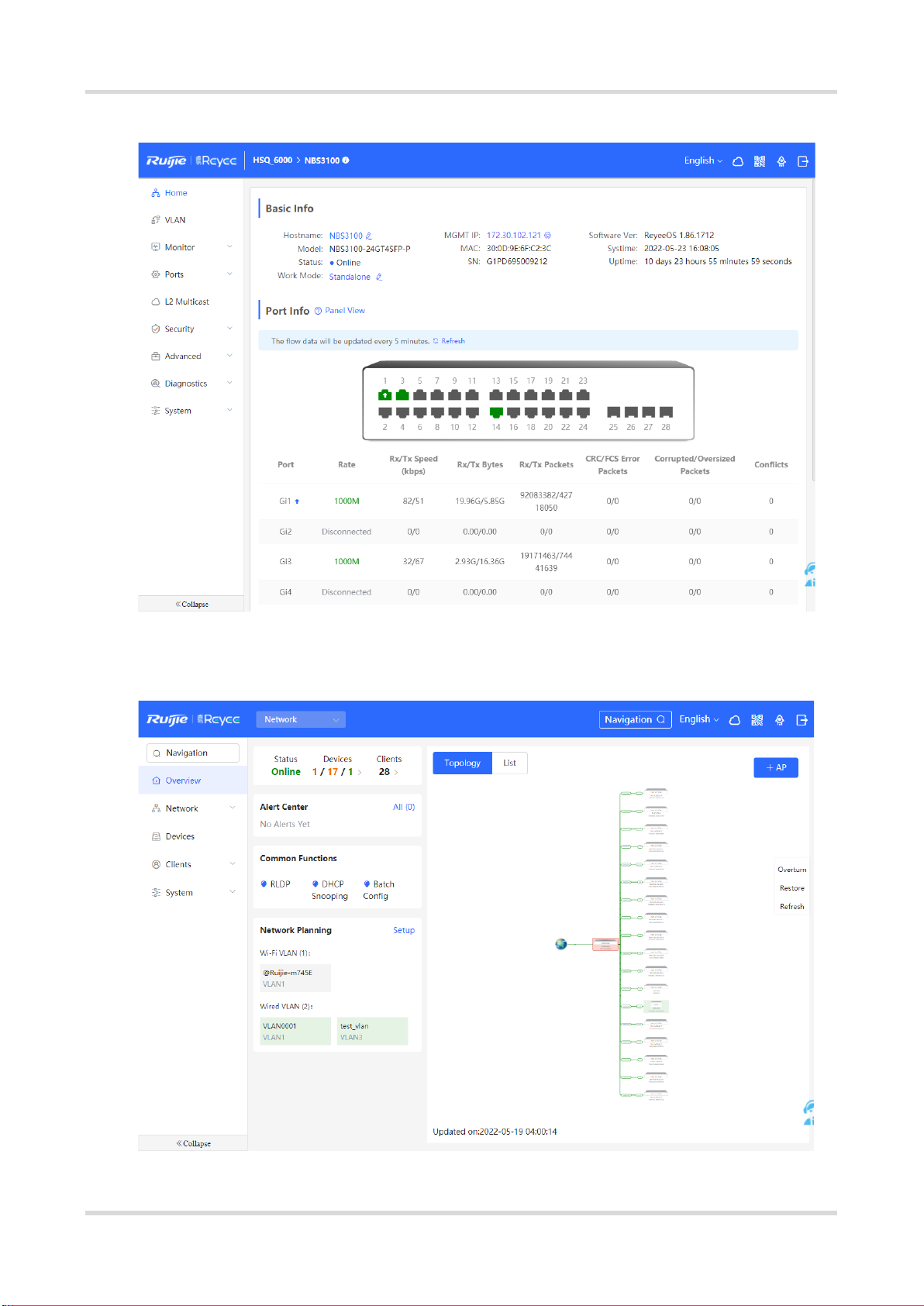

Figure1-1 The Web Page in Standalone Mode

Figure1-2 The Web Page in Network Mode in Self-Organizing Mode
