Ruijie RGOS 11.X Manuel utilisateur

Ruijie RGOS 11.X High-end Data Center

Switches

(N18000-X) Installation

Contents

■Hardware Installation

Hardware Installation

Preparations Installing the Chassis

to a Specified

Position Grounding Installing Power

Modules or Cards Checking

Tip: Read the Hardware Installation Manual if you install the switch for the first time.

Safety Notes

Do not install the switch in a wet place and keep it away from liquid.

Do not wear loose clothes during installation to avoid hooking components and causing damage.

Therefore, fasten clothes ribbons, scarves, and sleeves.

Place tools and components away from passageways to prevent collision.

Check for potential risks in the working area, for example, ungrounded power supplies, unreliable

grounding of power supplies, or wet floor.

Ambient Requirements

Temperature: 0C to 45C

Relative humidity: 10% to 90%

Cleanness: ≤ 1.4×105(particle diameter ≥ 5 μm)

Ventilation: at least 20 cm clearance around the chassis for efficient heat dissipation

Anti-interference: far away from high-power (radar or radio transmitting station), high-frequency, or

large-current devices

Hardware Installation

Preparations Installing the Chassis

to a Specified

Position Grounding Installing Power

Modules or Cards Checking

Confirming the Cabinet Specifications

The cabinet depth (distance between the front

and rear doors) must be large than 1200 mm.

There must be a distance of more than 180 mm

between the front mounting rails and front door of

the cabinet, and the thickness of the front door

must be smaller than 25 mm, so that more than

155 mm space is available. See Figure 1.

The load capacity of the cabinet must be large

than 400 kg.

If the N18000-X switch uses RG-PA2700I power

modules, check whether the cabinet is an IEC

cabinet, in which the PDU provides power outlets

as shown in Figure 2. In this case, use C19-C20

power cables as shown in Figure 3.

Figure 2 Figure 3

Figure 1

Hardware Installation

Preparations Installing the Chassis

to a Specified

Position Grounding Installing Power

Modules or Cards Checking

Unpacking:

An N18000-X series switch

is packed in carton, so it

can be unpacked more

quickly than an N18000

series switch.

You will find a wrench and a

screwdriver in the carton.

Use them to remove the four

L-shaped plates that fix the

chassis on the pallet. Remove

screws used to

fix the chassis

Hardware Installation

Preparations Installing the Chassis

to a Specified

Position Grounding Installing Power

Modules or Cards Checking

Moving the Chassis: Operation by Four

Persons Recommended

Precautions:

1. Do not hold the panels, power module

handles, or chassis handles when moving

the chassis. These parts are not

designed to bear the weight of the whole

chassis. Holding them to move the

chassis may cause damage to the parts

or even personal injury.

2. Before moving the chassis, remove the

Supervisor Engine modules, line cards,

and power modules to reduce weight of

the chassis.

Do not hold

fan handles

when moving

the chassis

Hardware Installation

Preparations Installing the

Chassis to a

Specified Position Grounding Installing Power

Modules or Cards Checking

Installing Shelf Brackets

An N18000-X chassis is delivered with a

pair of expandable shelf brackets.

Reserve 2 U height above the cabinet

bottom for shelf bracket installation. The

two shelf brackets are marked RIGHT

and LEFT to identify their installation

positions.

See the figure on the right for installation

positions of the shelf brackets.

Hardware Installation

Preparations Installing the

Chassis to a

Specified Position Grounding Installing Power

Modules or Cards Checking

There Is a Ground Bar in the Installation Environment

(Recommended)

①Remove the ground screw from the rear panel of the

chassis.

②Put the OT terminal of the ground cable delivered

with the switch on the ground screw of the chassis.

③Install the ground screw with the OT terminal to the

ground hole, fasten it with a screwdriver, and connect

the other end of the ground cable to the ground bar

of the equipment room. (Adjust the length of the

ground cable based on the distance with the ground

bar.)

There Is No Ground Bar in the Installation Environment

If the switch adoptsAC power supply, the PE cable of the

AC power supply needs to be grounded. Check whether

the PE cable of theAC power supply is properly grounded

in the power distribution room or on theAC transformer

side.

Hardware Installation

Preparations Installing the

Chassis to a

Specified Position Grounding Installing Power

Modules or Cards Checking

Installing Power Modules

All the chassis models have power module

slots at two sides of the chassis.

Precautions:

1. Ensure that there are no objects, such

as a PDU, near the rear mounting rails

within depth of the chassis in the cabinet

to hinder installation or removal of power

modules.

2. Each power module has a locking latch.

After connecting a power cable to a

power module, close the locking latch

to secure the power cable.

Two columns of

power modules

Hardware Installation

Preparations Installing the

Chassis to a

Specified Position Grounding Installing Power

Modules or Cards Checking

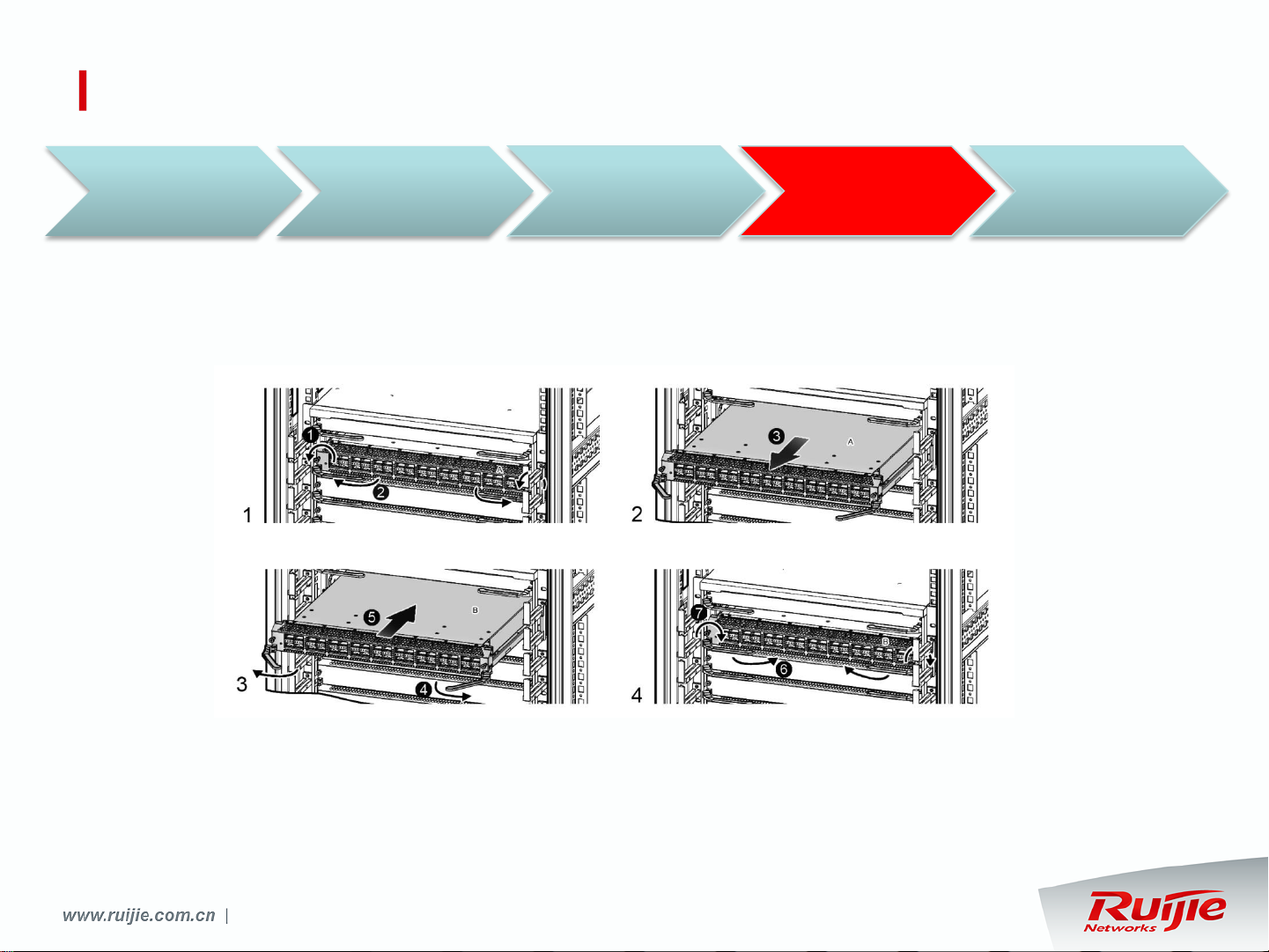

Installing Line Cards

Caution: N18000-X line cards do not use self-locking ejector levers.
