Ruijie RG-NBS3200 Series Manuel d'installation et d'exploitation

Ruijie RG-NBS3200 Series Switches

RG-NBS3200-24GT4XS&RG-NBS3200-24SFP/8GT4XS&

RG-NBS3200-24GT4XS-P&RG-NBS3200-48GT4XS&

RG-NBS3200-48GT4XS-P

Hardware Installation and Reference Guide

DocumentVersion:V1.1

Date: 2022-11-16

All rights arereservedin this documentand this statement.

Without the priorwritten consentof Ruijie Networks,anyorganization orindividual shall notreproduce,extract,

back up,modify, or propagate the content of this document in anymanneror in anyform, or translate it into other

languages orusesome orallparts ofthe documentforcommercialpurposes.

,, and other Ruijienetworks logos aretrademarks ofRuijieNetworks.

All other trademarks or registered trademarks mentioned in this document are owned bytheir respective owners.

Disclaimer

The products,services, or features you purchase are subject to commercial contracts and terms, andsome or all

of the products,services, or features described in this document maynot be available for you to purchase oruse.

Except for the agreementinthe contract, RuijieNetworks makes noexplicitorimplicitstatementsorwarranties

with respectto the contentof this document.

The content of this document will beupdated from time to time due to product version upgrades or other reasons,

RuijieNetworks reserves therightto modifythe content of the documentwithoutanynoticeor prompt.

This manual is designed merelyas auserguide.RuijieNetworks has tried its bestto ensurethe accuracyand

reliabilityof the content whencompiling this manual,butit does notguarantee that the content of the manual is

completelyfree of errors or omissions,and allthe information in this manual doesnotconstituteanyexplicit or

implicitwarranties.

Preface

Thank you for usingourproducts.This manual will guide youthroughtheinstallationofthe device.

This manualdescribesthefunctionalandphysicalfeatures andprovides thedevice installation steps,hardware

troubleshooting,moduletechnicalspecifications,andspecifications andusageguidelines forcables andconnectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed thatthe users arealreadyfamiliarwiththerelatedterms and concepts.

Obtaining Technical Assistance

RuijieNetworks website:https://www.ruijienetworks.com/

Technical supportwebsite:https://www.ruijienetworks.com/support

Case portal:https://caseportal.ruijienetworks.com

Community:https://community.ruijienetworks.com

Technical supportemail:service_rj@ruijienetworks.com

Skype: service_rj@ruijienetworks.com

Related Documents

Document

Description

Configuration Guide

Describes networkprotocolsandrelatedmechanismsthatsupportedbythe

product, withconfiguration examples.

Command Reference

Describes therelatedconfiguration commands,includingcommandmodes,

parameterdescriptions,usage guides,andrelatedexamples.

Conventions

1. Signs

The signs used inthis documentaredescribedas follows.

Warning

An alert that calls attention to importantrules and information thatif not understood orfollowed can resultin

data loss orequipmentdamage.

Caution

An alert that calls attention to essential information thatifnot understood orfollowed can resultin function

failureor performancedegradation.

Note

An alert that contains additional orsupplementaryinformation thatif not understood orfollowed will notlead to

serious consequences.

Specification

An alert that contains a description ofproductor version support.

2. Note

This manualprovides installationsteps,troubleshooting,technicalspecifications,andusageguidelines for

cables and connectors. Itis intended for users whowant to understand theabove and have extensive experience

in networkdeploymentand management,andassumethatusers are familiar withrelatedterms andconcepts.

Ruijie RG-NBS3200 SeriesSwitchesHardware Installation andReferenceGuide Product Overview

1 Product Overview

RuijieRG-NBS3200 seriesswitches aremainlyapplicable to the small-andmedium-sized enterprise (SME)networks

to provide services according toservice needs toensure prompttransmission ofkey data. The RG-NBS3200 series

switches providevarious interfaces tomeet different requirements.

RG-NBS3200 Series Switches

Model

10/100/1000

Base-T Ethernet Port

1000Base-XSFP

Port

10G SFP+ Port

Console Port

Power

Supply

RG-NBS3200-2

4GT4XS

N/A

Single

RG-NBS3200-2

4SFP/8GT4XS

8 (combo)

N/A

Single

RG-NBS3200-2

4GT4XS-P

24 (PoE+ support)

N/A

Single

RG-NBS3200-4

8GT4XS

N/A

Single

RG-NBS3200-4

8GT4XS-P

48 (PoE+ support)

N/A

Single

1000Base-Tis downwardcompatiblewith100Base-TXand10Base-T.

The combo port consists of one 1000Base-XSFP port and one 10/100/1000Base-T Ethernet port. That is, onlyone

port of them is available at a time.

1.1 RG-NBS3200-24GT4XS

Technical Specifications

Model

RG-NBS3200-24GT4XS

CPU

Built-in CPU, single-coreprocessor,and800MHz

BootROM

N/A

Flash Memory

256MB

SDRAM

DDRIII 512 MB

Optical Module

The coppercable is not supported.See AppendixB.

The supportedmodule type may change at anytime. ConsultRuijie Networks forthe latest

information.

SFP+ Port

10GBase-R

1000Base-X

Power Supply

AC input

Rated voltage range: 100 V to 240 V

Ruijie RG-NBS3200 SeriesSwitchesHardware Installation andReferenceGuide Product Overview

Maximum voltage range: 90V to 264 V

Frequency: 50/60 Hz

Rated current: 1.5 A

Input Leakage

Current

≤3.5 mA

EEE

Supported

PoE

Not supported

Power

Consumption

28 W

Temperature

Operating temperature:0°Cto 50°C(32°F to +122°F)

Storage temperature:-40°Cto +70°C(-40°F to +158°F)

Humidity

Operating humidity:10% to 90% RH

Storage humidity: 5% to 95%RH

Fan

Adaptive speedadjustment

Temperature

Alarm

Not supported

Certification

Dimensions

(W x D x H)

440mmx 207.5mmx 43.6 mm(withfront panel )

Weight

2.9 kg

Device operationina residentialenvironmentmaycauseradiointerference.

The device is not suitable forusein locations where childrenarelikelyto bepresent.

Product Appearance

On the front panel,the RG-NBS3200-24GT4XS Ethernet switchprovides twenty-four 10/100/1000Base-TEthernet

ports andfour SFP+ ports.On the back panel,it provides an AC powerport.

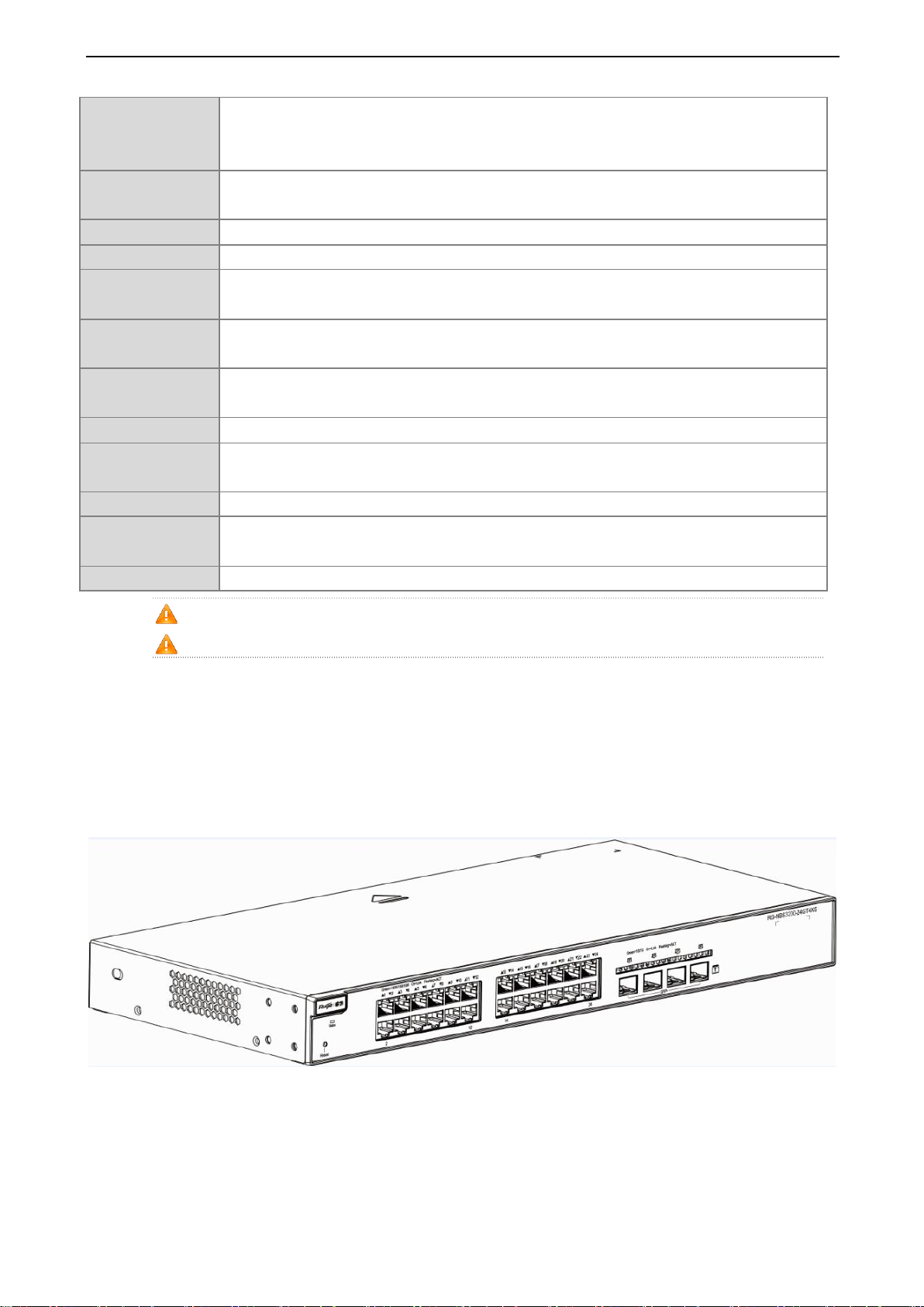

Figure 1-1 Appearance of the RG-NBS3200-24GT4XS

Front Panel

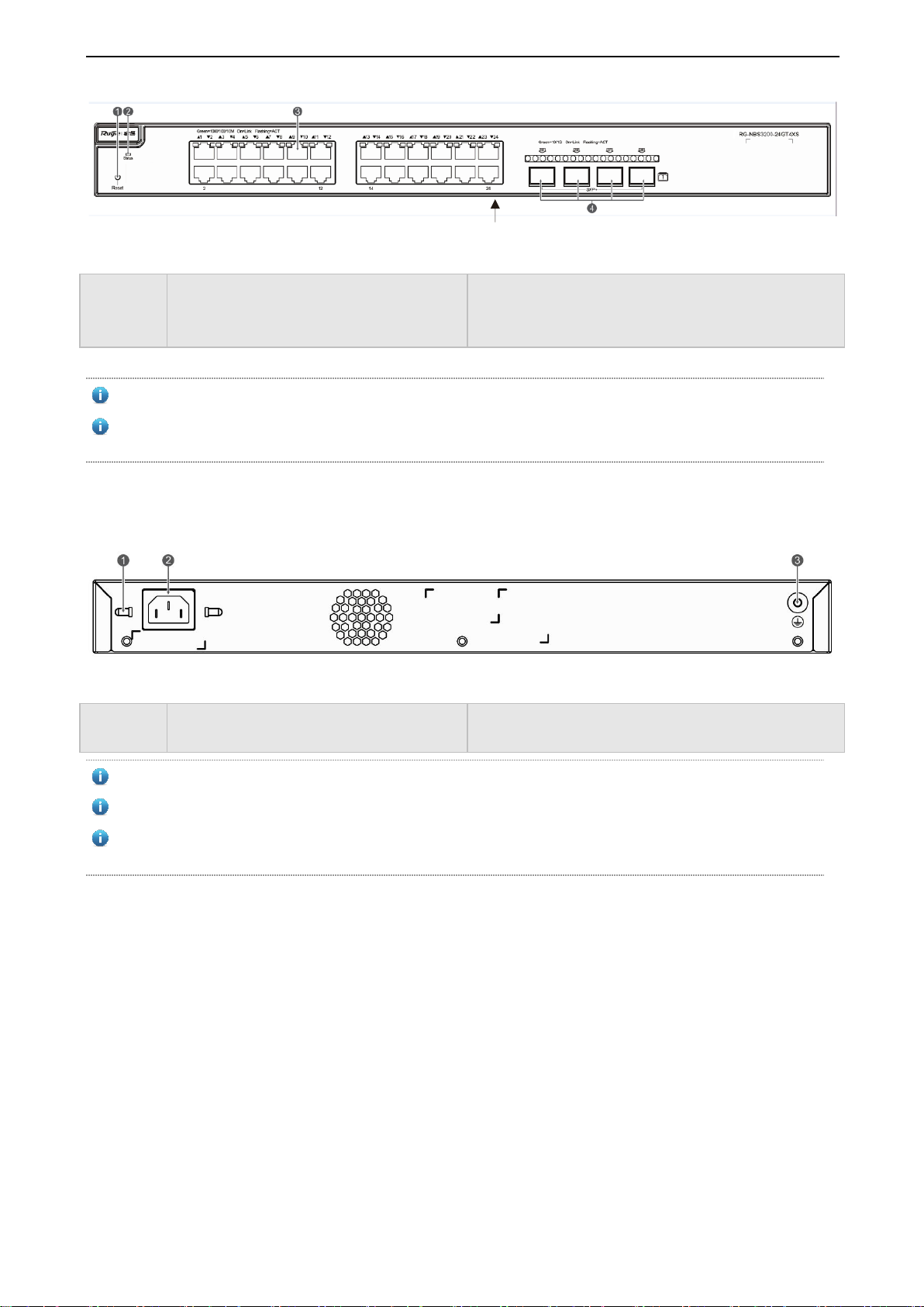

Figure 1-2 Front Panel of the RG-NBS3200-24GT4XS

Ruijie RG-NBS3200 SeriesSwitchesHardware Installation andReferenceGuide Product Overview

Note:

1. Resetbutton

2. System status LED

3. 10/100/1000 Base-TEthernetport

4. 10GE SFP+ port

5.Nameplateonthebottom of the device

The switchrestarts afterthe resetbutton is pressedforless than 2seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the

status LED blinks).

Back Panel

Figure 1-3 Back Panelof the RG-NBS3200-24GT4XS

Note:

1. Power cord retention clips

2. Three-hole AC powerreceptacle

3. Protective earthing terminal

The device relies on the separateprotectiveearthingterminal.

The device installation mustbe permanentlygrounded.

The device must be intended to be used in a location with equipotential bonding (such as a telecommunication

center, a dedicatedcomputerroom,ora restrictedaccess area).

Heat Dissipation

The RG-NBS3200-24GT4XSadopts side-to-rearheatdissipation,therebyensuringnormal operation.You must

reserve10 cm distancespaceatboth sides andthebackplane of the cabinetto allow airflow. It is recommendedthat

you clean the device onceevery 3 months to avoid dustfrom blockingvents.

Figure 1-4 Flow SchemeofHeat Dissipation

Ruijie RG-NBS3200 SeriesSwitchesHardware Installation andReferenceGuide Product Overview

LED

Panel Identification

State

Meaning

System status LED

Status

Off

The switchis not receiving power.

Blinkinggreen

(0.5 Hz)

The switchis running,butis not connected to

RuijieCloud.

Blinkinggreen (10

Hz)

The switchis being upgradedorinitialized.

Solidgreen

The switchis connectedto RuijieCloud.

10/100/1000Base-T

Ethernet port status

LED

1–24

Off

The port is not connected.

Solidgreen

The port is connected at a rate of 10/100/1000

Mbps.

Blinkinggreen

The port is receiving or transmitting traffic.

SFP+ port status

LED

25F–28F

Off

The port is not connected.

Solidgreen

The port is connected.

Blinkinggreen

The port is receiving or transmitting traffic.

1.2 RG-NBS3200-24SFP/8GT4XS

Technical Specifications

Model

RG-NBS3200-24SFP/8GT4XS

CPU

Built-in CPU, single-core processor,and 800 MHz

BootROM

N/A

Flash Memory

256 MB

SDRAM

DDRIII 512 MB

Optical Module

The coppercable is not supported. See AppendixB.

The supported module typemay change at anytime. ConsultRuijie Networksforthe

Ruijie RG-NBS3200 SeriesSwitchesHardware Installation andReferenceGuide Product Overview

latestinformation.

SFP Port

100Base-FX

1000Base-X

SFP+ Port

10GBase-R

1000Base-X

Power Supply

AC input

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264 V

Frequency: 50/60 Hz

Rated current: 2 A

Input Leakage

Current

≤3.5 mA

EEE

Supported

PoE

Not supported

Power

Consumption

42 W

Temperature

Operating temperature:0°Cto 50°C(32°F to +122°F)

Storage temperature:-40°Cto +70°C(-40°F to +158°F)

Humidity

Operating humidity:10% to 90% RH

Storage humidity: 5% to 95% RH

Fan

Adaptive speed adjustment

Temperature

Alarm

Not supported

Certification

Dimensions

(W x D x H)

440 mm x 267.5mm x 43.6 mm (withfront panel )

Weight

3.35 kg

Device operationina residentialenvironmentmaycauseradiointerference.

The device is not suitableforusein locations wherechildrenare likelyto be present.

Product Appearance

On the front panel,the RG-NBS3200-24SFP/8GT4XS Ethernetswitchprovides 24SFP ports (8 Gigabit combo ports)

and 4 SFP+ ports.On the back panel,it provides anAC powerport.

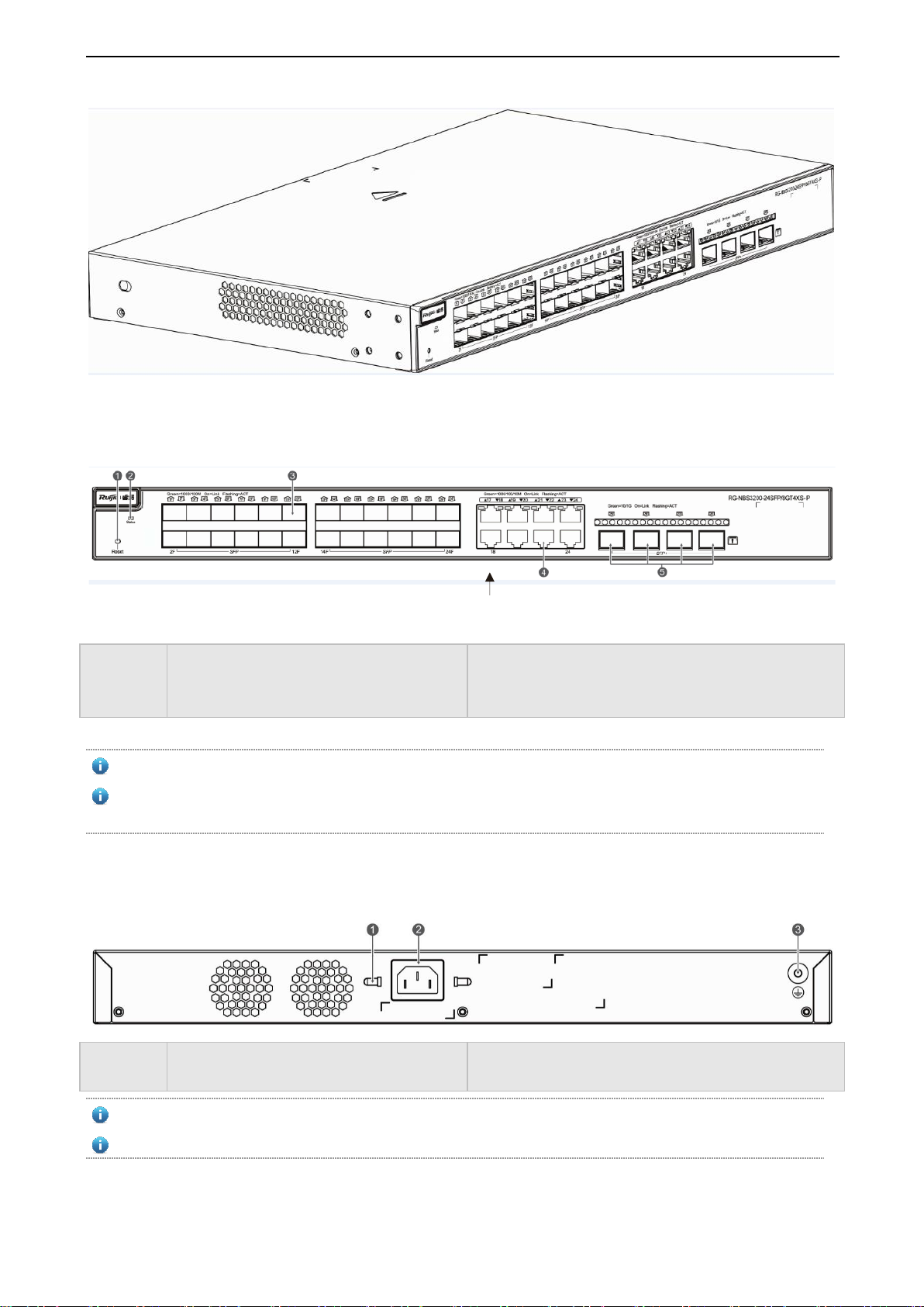

Figure 1-5 Appearance of the RG-NBS3200-24SFP/8GT4XS

Ruijie RG-NBS3200 SeriesSwitchesHardware Installation andReferenceGuide Product Overview

Front Panel

Figure 1-6 Front Panel of the RG-NBS3200-24SFP/8GT4XS

Note:

1. Resetbutton

2. System status LED

3. 1000Base-XSFP port

4. Combo port

5. 10GE SFP+ port

6. Nameplateon thebottom of the device

The switchrestarts afterthe resetbutton is pressedforless than 2seconds.

The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the

status LED blinks).

Back Panel

Figure 1-7 Back Panel of the RG-NBS3200-24SFP/8GT4XS

Note:

1. Power cord retention clips

2. Three-hole AC powerreceptacle

3. Protective earthing terminal

The device relies onthe separateprotective earthingterminal.

The device installationmustbe permanentlygrounded.

Autres manuels pour RG-NBS3200 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6520 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS Series Manuel utilisateur

Ruijie

Ruijie RG-IS2712G Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IF2920U-12GT1XS-DC Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1960-48GT4SFP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES106D-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-N18000-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS88-08 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5000-E Series Comment utiliser

Ruijie

Ruijie RG-S6220-48XS6QXS-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920U-4GT1MS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6120 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SF2920U Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
