Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie Reyee RG-NBS7006 Switch

Hardware Installation and Reference Guide

DocumentVersion:V1.0

Date:Apirl 20, 2023

All rights arereservedin this documentand this statement.

Any reproduction,excerption,backup, modification,transmission,translationorcommercialuse ofthis

documentorany portionofthis document,inany form or by any means,withoutthepriorwritten consentof

RuijieNetworks is prohibited.

Trademarks including , are ownedby RuijieNetworks.

All othertrademarks orregisteredtrademarksmentionedinthis documentareowned bytheir respective

owners.

Disclaimer

The products,services, or features you purchase are subjectto commercial contracts and terms. Some or all of

the products,services orfeatures describedinthis documentmaynot be withinthe scopeofyour purchaseor

use. Unless otherwise agreed in the contract, Ruijie Networks does not make anyexpress or implied statement

or guarantee for the content of this document.

Dueto productversion upgrades orotherreasons,thecontentof this documentwillbeupdatedfrom timeto

time.RuijieNetworks reserves therightto modifythe content of the documentwithoutany notice or prompt.

This manualis forreferenceonly. RuijieNetworks endeavors toensurecontentaccuracyandwill not shoulder

any responsibilityfor lossesanddamagescaused duetocontent omissions,inaccuracies orerrors.

Preface

IntendedAudience

This documentis intended for:

Networkengineers

Technicalsupportandserviceengineers

Networkadministrators

Technical Support

Official websiteofRuijieReyee: https://www.ruijienetworks.com/products/reyee

Technicalsupportwebsite:https://ruijienetworks.com/support

Caseportal:https://caseportal.ruijienetworks.com

Community:https://community.ruijienetworks.com

Technicalsupportemail:service_rj@ruijienetworks.com

Conventions

1. GUI Symbols

Interface

symbol

Description

Example

Boldface

1. Button names

2. Window names,tab name,field nameand

menuitems

3. Link

1. Click OK.

2. Select Config Wizard.

3. Click the Download File link.

Multi-level menus items

ChooseSystem >Time.

2. Signs

The signs used in this documentare describedas follows:

Warning

An alert that calls attention to importantrules and information thatif not understood orfollowed can resultin

data loss orequipmentdamage.

Caution

An alert that calls attention to essentialinformation thatifnot understoodorfollowedcan resultin function

failureor performancedegradation.

Note

An alert that contains additional orsupplementaryinformation thatif not understoodorfollowed willnotleadto

serious consequences.

Specification

An alert that contains a description ofproductor version support.

3. Note

This manual provides thedevice installationsteps,hardwaretroubleshooting,module technicalspecifications,

andspecifications andusageguidelines forcables andconnectors.Itis intendedfor the users whohavesome

experiencein installingandmaintaining networkhardware.At the sametime,itis assumedthatthe users are

alreadyfamiliarwiththerelated terms andconcepts.

Hardware Installation and Reference Guide ProductOverview

1 Product Overview

The RG-NBS7000series switchesarenext-generationswitcheslaunched byRuijieindependently.The switch

comes intotwomodels:RG-NBS7006 andRG-NBS7006.

RG-NBS7006:The switchprovides twosupervisorengineslotsandsixline card slots.

1.1 RG-NBS7006Switch

1.1.1 Package Contents

Table 1-1Package Contents

Item

Quantity

Chassis

M7006-FAN Module

Cablemanagementbrackets

M3 x 10 mm screw

M6 x 16 mm screw

M6 cagenuts

Anti-static wriststrap

Yellow/greengroundingcable

Warranty Card

UserManual

Mounting bracket

2 (pre-installed)

Product managementsoftwareofRuijieNetworks

1 (pre-installed)

Instruction

●The precedingtablelists itemsdeliveredinnormalcases.Theactuallydelivereditems mayvary with the

contract. Carefullycheck your goods againstthe package contents orcontract. Contact the sellerifyou

have any questions orfind anyerrors.

1.1.2 Product Appearance

The hardware system ofthe RG-NBS7006 switch includes thechassis,powersupplysystem,system modules

and heat dissipationsystem.

The powersupplysystem:The switchprovides fourpowersupplyslots and supports 1+1 and2+2 power

redundancy.You are advisedto configurepowersupplyredundancy.

Hardware Installation and Reference Guide ProductOverview

System modules:Theswitch provides twosupervisorengineslots andsixlinecardslots.Theswitch

supports 1+1 supervisorengineredundancy.You are advised to configuresupervisorengineredundancy.

You canselectdifferentline cards as needed.

The heat dissipationsystem:The heatdissipationsystem consists offan modules intherear of the chassis.

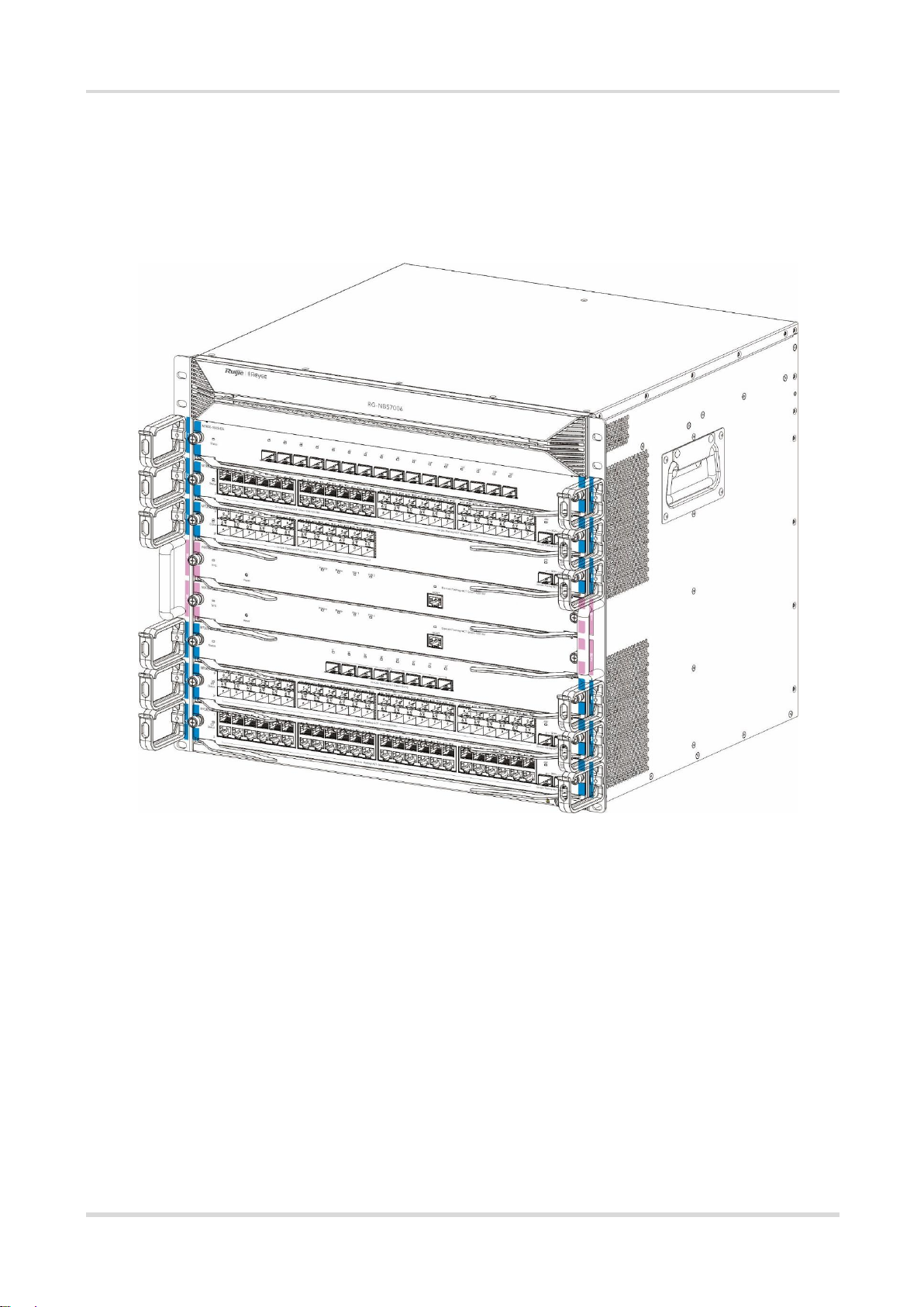

Figure 1-1 Appearance of the RG-NBS7006 Switch

1.1.3 Ports - Front Panel

The front panelof the RG-NBS7006 switchis shown in Figure1-2.

Hardware Installation and Reference Guide ProductOverview

Figure 1-2 Front Panel of the RG-NBS7006 Switch

1. SupervisorEngineSlot

2. LineCard Slot

3. CableManagementFrame

Caution

Ensurethe linecards andpower supplymodulesareremovedfrom thechassis beforeyoumove the

RG-NBS7006 chassis.

●Press the Reset button for no morethantwo seconds,and allmoduleswillbereset.

●Press the Reset button between two andfive seconds,and no configurationswillbechangedandno

modulewill be reset.

●Press the Reset button for over 5 seconds,andallmodules will be restoredto factorysettings with

configurationbackup saved.After restart,usethe defaultpasswordtologinto the Web management

system.You can selectResetBackup to restore previous configurations,orselectDelete Delete to

deleteprevious configurations.

1.1.4 Ports - Back Panel

The back panelof the RG-NBS7006 switch is showninFigure1-3.

Hardware Installation and Reference Guide ProductOverview

Figure 1-3 Back Panel of the RG-NBS7006 Switch

1. PowerSupplyModule

2. Fan Module

3. Fan Module Handle

4. Captive Screw

5. Nameplate

Power Supply

The RG-NBS7006 switchadopts AC powerinput.

The RG-PA600I-FS modules areavailable.If you want to use a combinationofline cards whosepower

consumptionexceeds 600W, suchas sixM7000-16XS-EA modules,selecttwo powersupplymodules.

Note

The RG-NBS7006 switchsupports 1+1 and 2+2 powersupplyredundancy. You are advised to configure power

supplyredundancyto improve system stabilityandreliability.

1.1.5 LEDs

LED

Panel

Identification

Status

Meaning

System Status LED

SYS

Off

The switchis poweredoff.

Blinkinggreen

The switchis beinginitialized.

Solidgreen

The switch has beeninitialized.

Blinkingyellow

Possiblecases:

1. Atemperature alarm is generated.

Hardware Installation and Reference Guide ProductOverview

2. A fan moduleis notin place.

3. The supervisorengine is notfunctioning

properly.

Blinkingred

The system is notfunctioningproperly due

to a fan fault, powerfault, or system fault.

The switch maybe damaged if it continues

to work.

MGMT Port Status

LED

Link/ACT

Off

No linkis detected for this port.

Solidgreen

The port has made asuccessful 10/100

Mbps link.

Blinking

The port is transmitting orreceivingdata.

Fan Status LED

FAN1

Off

The switchis poweredoff.

Solidgreen

The fan module is operatingnormally.

Blinkingyellow

The fan module is notinplace.

Blinkingred

The fan module is notfunctioningproperly.

Fan Status LED

FAN2

Off

The switchis poweredoff.

Solidgreen

The fan moduleis operatingnormally.

Blinkingyellow

The fan module is notinplace.

Blinkingred

The fan module is notfunctioningproperly.

PowerSupply

Status LED

Power

Off

The switchis poweredoff.

Solidgreen

The powersupplymodule is operating

normally.

Blinkingred

The powersupplymodule is not

functioningproperly.

1.1.6 Heat Dissipation

The workingtemperatureofthe RG-NBS7006 switchranges from 0to 50°C (32°Fto 122°F).The heat

dissipationdesign needs to ensurethe stability,safetyand maintainabilityof the switchinsuch environment.

The RG-NBS7006switchadopts fan ventilation andforced convection to ensurethe switchcan worknormally

in specifiedenvironment.

Hardware Installation and Reference Guide ProductOverview

Figure 1-4 Air Intake Design

1. Air intakes for powersupplymodules

2. Air intakes for linecards andsupervisor

engines

3. Air intakes for linecards and

supervisorengines
