Ruijie RG-S6120 Series Manuel d'installation et d'exploitation

Ruijie RG-S6120 Series Switches

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by any means,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time,

it is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss

of data.

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

1 Product Overview

The RG-S6120 series switch is a next-generation L3 switch featured with high performance, high security and multiple

services. Mainly applied to the aggregation layer of the campus network, the switch provides multi-layer switching at full

line rate and complete end-to-end Quality of Service (QoS) policies, assigning different service flow with different

bandwidth and ensuring no delay for key service flow. RG-S6120-48XS8CQ provides 48 10G SFP+ ports and eight

100G QSFP28 ports. S6120-20XS4VS2QXS provides 20 10G SFP+ ports, four 25G SFP28 ports and two 40G QSFP+

ports. RG-S6120-24XMG4XS4VS-UP-E provides four 25G SFP28 ports, four 10G SFP+ ports and 24

100M/1G/2.5G/5G/10G Ethernet Ports

Model

100G

QSFP28

Port

40G

QSFP+

Port

25G

SFP28

Port

10G

SFP+

Port

100M/1G/2.5

G/5G/10G

Ethernet Port

Fan

Redundancy

Power

Redundancy

RG-S6120--48XS8

3+1

1+1

RG-S6120-20XS4V

S2QXS

1+1

RG-S6120-24XMG4

XS4VS-UP-E

2+1

1+1

10G SFP+ ports of RG-S6120-48XS8CQ support both 10Gbase-R and 1000base-X. 10G SFP+ ports working in

1000base-X do not support auto-negotiation. The peer device must be set to 1000Mbps and full duplex.

QSFP28 ports of RG-S6120-48XS8CQ support both 100G/40G mode and 4x25G/4x10G mode.

All 25G/10G SFP28 ports must work at the same rate, either 25G or 10G.

25G SFP28 ports working in 25G support SFP modules and do not support DAC cables. Please see Appendix B

for supported models and specifications.

40G QSFP+ ports of RG-S6120-20XS4VS2QXS support both 40G mode and 4x10G mode.

10G SFP+ ports of RG-S6120-20XS4VS2QXS support both 10Gbase-R and 1000base-X. 10G SFP+ ports

working in 1000base-X support auto-negotiation.

10G SFP+ ports of RG-S6120-24XMG4XS4VS-UP-E support both 10Gbase-R and 1000base-X. 10G SFP+ ports

working in 1000base-X support auto-negotiation.

1.1 RG-S6120-48XS8CQ

Specifications

Model

RG-S6120-48XS8CQ

CPU

Quad-Core CPU, each core with the clock speed of 1.2 GHz

BOOT ROM

16MB

Flash Memory

8GB

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

RAM

DDR4 4GB (Compatibility: 8GB)

Expansion Module

Slot

Unsupported

Fan Slot

4 (3+1 redundancy. At least three fans are required.)

Hot Swapping

Supported

Fan Module

M1EFAN II-F

Power Supply Slot

2 (1+1 redundancy)

Power Module

RG-PA550I II-F

Power Supply Input

AC input

Rated voltage: 100 VAC to 240 VAC

Maximum voltage: 90 VAC to 264 VAC

Rated Frequency: 50 Hz to 60 Hz

Rated input current: 7.2 A to 3.5 A

High voltage direct current (HVDC) input:

Rated voltage: 240 VDC

Maximum voltage: 192 VDC to 288 VDC

Rated Input current: 3.6 A

Power

Consumption

< 260 W

Optical Module

Refer to Appendix B

The supported modules may update at any time. Please contact Ruijie Networks for details.

Temperature

Warning

Support temperature warning and overheat protection.

EMC

GB9254-2008 CLASS A

EMI

GB4943-2011

Altitude

0 to 5000 m (16404.2 feet)

Working

Temperature

0°C to 45°C (32°F to 113°F)

The temperature decreases by 1°C (1.8°F) as the altitude ranging from 3000m (9842.52 feet) to

5000m (16404.2 feet) increases by 220m (721.78 feet).

Storage

Temperature

-40°C to 70°C (-40°F to 158°F)

Working Humidity

10% to 90% RH( non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

Weight

(With two fans and

Without the power

module)

8 kg (17.64 lbs, with four fan modules and two power modules)

Dimensions

(W x D x H)

442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.), 1RU

The RG-S6120-48XS8CQ switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

The 10G Ethernet port of the RG-S6120-48XS8CQ switch supports DAC. For a detailed model and specification,

refer to Appendix B.

Appearance

The RG-S6120-48XS8CQ switch includes the chassis, the power system and the heat dissipation system.

The power supply system: Provides two power supply slots, which support 1+1 power supply redundancy. It is

recommended to configure power supply redundancy.

The heat dissipation system: Provides four fan module slots, which support 3+1 fan redundancy. It is

recommended to configure fan redundancy.

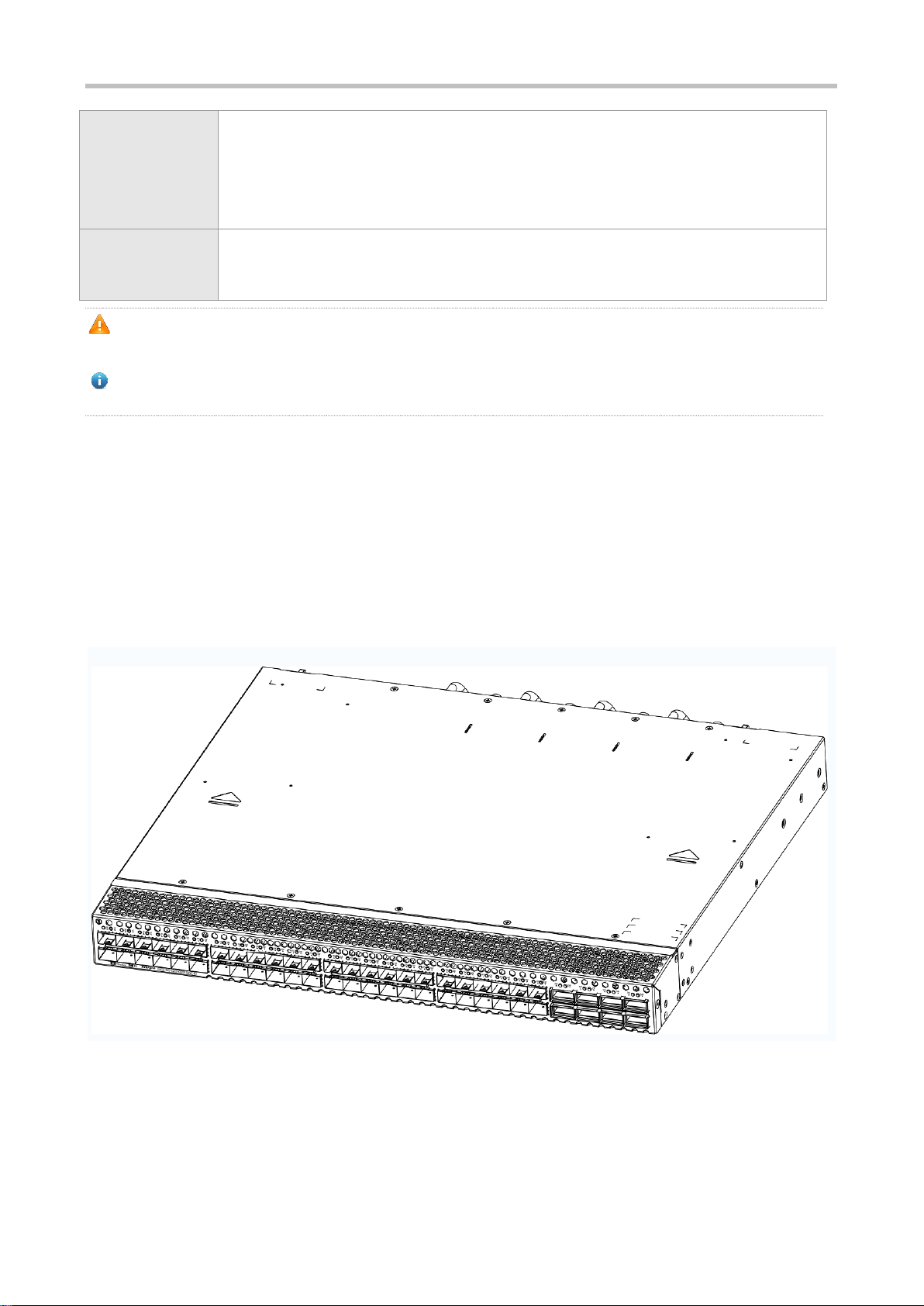

Figure 1-1 Appearance of RG-S6120-48XS8CQ

Front Panel

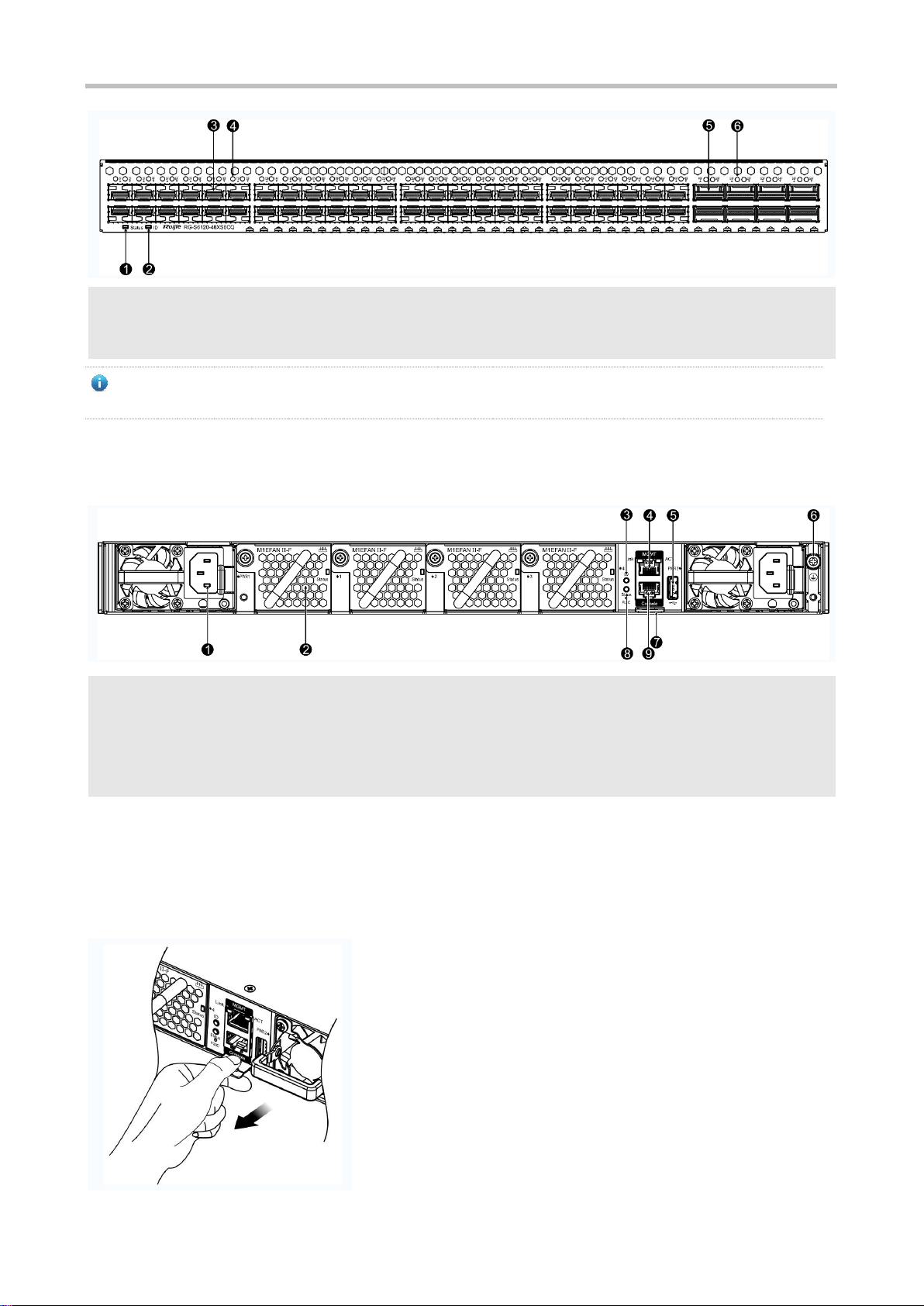

Figure 1-2 Front Panel of RG-S6120-48XS8CQ

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

Note:

1. System indicator

2. Locator indicator

3. SFP+ port

4. SFP+ port indicator

5. QSFP28 port

6. QSFP28 port indicator

RG-S6120-48XS8CQ supports 100G QSFP28, 10G SFP+ and 1G SFP modules. For a detailed model and

specification, refer to Appendix B.

Rear Panel

Figure 1-3 Rear Panel of RG-S6120-S6120-48XS8CQ

Note:

1. Power slot

2. Fan slot

3. Locator indicator

4. MGMT port

5. USB2.0 port

6. Grounding point

7. Asset management label

8. System indicator

9. Console port

Asset Management Label

The asset management label is in the lower right corner of the rear panel and can be removed. The label contains

information such as asset name, category, number and registration date on the label.

Figure 1-1 Asset Management Label of the RG-S6120-48XS8CQ

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

External Ports

The RG-S6120-48XS8CQ switch provides the following ports:

Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions, warnings

and other diagnostic messages. Therefore, it is more convenient to upgrade the software version of the switch on

line and save the log information.

To protect the data and avoid device damage, use qualified USB flash disks of good brands. At the same time, the

local USB port is compatible with most of the USB controllers except some USB flash disks.

The RG-S6120-48XS8CQ switch supports debugging, configuration, maintenance, management and host

software uploading of Console ports.

Console port: Use RS-232 interface electrical level and standard RJ45 connector. This interface is connected with

the serial port of terminal PC to perform system debugging, configuration, maintenance, management, and host

software uploading.

MGMT port: This is an out-band Ethernet port, which uses standard RJ45 connector. This interface is connected

with Ethernet port of a PC to perform program downloading.

SFP+ port: There are 48 10G SFP+ ports, which support optical modules and DAC copper cables, and are

compatible with 1000BASE-X.

QSFP28 port: There are eight 100G QSFP28 ports, which support 100G QSFP28 modules, 40G QSFP28

modules and DAC copper cables. The port can work in 4x25G mode.

Indicator

Identificatio

n on the

panel

Status

Meaning

System indicator

(Front panel/rear panel)

Status

Off

The system is powered off.

Solid red

1）One of the modules of the system fails.

2）There are less than 3 fans.

3）The internal or partial temperature exceeds the

temperature limit, and the switching service

resets.

Blinking green

Initialization is in progress.

Solid green

The system works properly.

Solid yellow

1）The temperature reaches the warning threshold.

2）Only 3 fans are in the position.

3）One of the dual powers is not connected with the

AC power cord.

MGMT port indicator

MGMT

Off

The MGMT port is NOT connected.

Green

The MGMT port is connected at

1000M/100M/10Mbps.

Blinking yellow

The MGMT port is transmitting or receiving data.

Locator indicator

Off

The locator is controlled by CPLD by default.

Solid blue

The locator is controlled by O&M personnel remotely.

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

SFP+ port indicator

1F-48F

Off

The SFP+ port is NOT connected.

Solid green

The SFP+ port is connected at 10G/1G.

Blinking green

The SFP+ port is transmitting or receiving data at

10G/1G.

QSFP28 port indicator

49F-56F

Off

The QSFP28 port is NOT connected.

Solid green

The QSFP28 port is connected at 100G/40G.

Blinking green

The QSFP28 port is transmitting or receiving data at

100G/40G.

Heat Dissipation

The working temperature of the RG-S6120-48XS8CQ switches is 0°C to 45°C (32°F to 113°F), and the heat dissipation

design needs to ensure the stability, safety and maintainability in such environment. The RG-S6120-48XS8CQ series

switches adopt fan ventilation and forced convection to ensure the device can work normally in specified environment.

Dust the device every three months to avoid blocking the ventilation openings.

The RG-S6120-48XS8CQ supports M1EFAN II-F and provides fan speed regulation, fan failure warning, and fan hot

swapping.

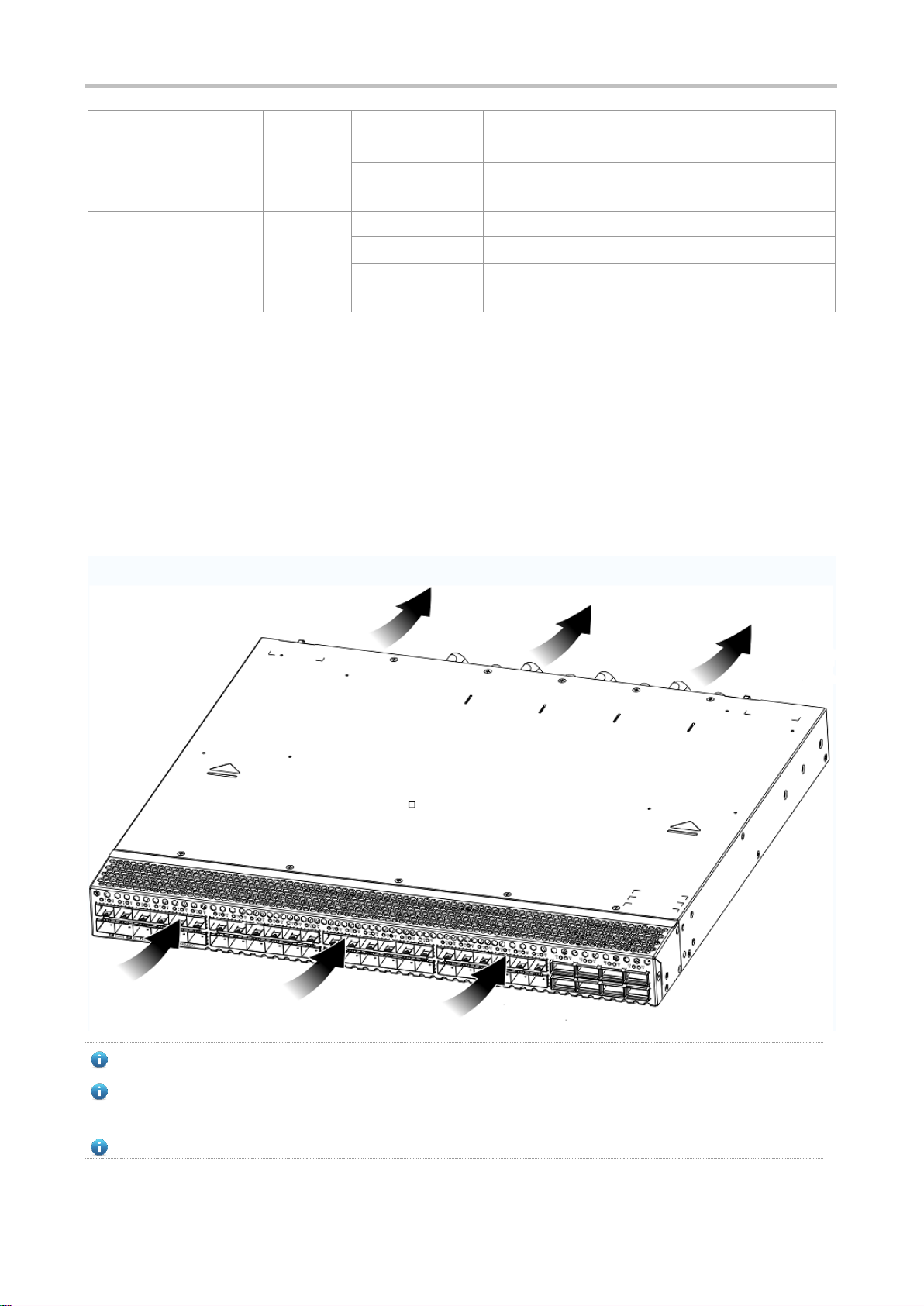

Figure 1-2 Ventilation and Heat Dissipation of the RG-S6120-48XS8CQ

Maintain a minimum clearance of 20 cm around the switch for ventilation.

It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan

module slots to ensure ventilation and heat dissipation and avoid dusts.

Power modules and fan modules with different air direction cannot be used together.

Ruijie RG-S6120 Series Switches Hardware Installation and Reference Guide

1.2 RG-S6120-20XS4VS2QXS

Specifications

Model

RG-S6120-20XS4VS2QXS

CPU

ARM CPU, each core with the clock speed of 1.25 GHz

BOOT ROM

16MB

Flash Memory

1GB

RAM

1GB, 32-bit wide + 4-bit ECC

Expansion Module

Slot

Unsupported

Fan Slot

2 (Two fans are required.)

Fan Module

M1SFANI-F

Power Supply Slot

Power Module

RG-PA150I-F

Power Supply Input

AC input

Rated voltage: 100 VAC to 240 VAC

Maximum voltage: 90 VAC to 264 VAC

Rated frequency: 50 Hz to 60 Hz

Rated input current: <3 A@90~264 VAC@full

load

High voltage direct current (HVDC) input:

Rated voltage: 240 VDC

Rated voltage: 192 VDC to 288 VDC

Rated input current: 3 A

Power

Consumption

< 85 W

Optical Module

Refer to Appendix B

The supported modules may update at any time. Please contact Ruijie Networks for details.

Temperature

Warning

Support temperature warning and overheat protection.

EMC

GB9254-2008 CLASS A

EMI

GB4943-2011

Altitude

0 to 5000 m (16404.2 feet)

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie Reyee RG-NIS Series Manuel utilisateur

Ruijie

Ruijie RG-S2915-L Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS7003 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2910-24GT4SFP-UP-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6000C-48GT4XS-E-AC DCN Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES05 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS5100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NBS5200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-48VS8CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS Series Manuel utilisateur

Ruijie

Ruijie XS-S1960-10GT2SFP-P-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES1 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IF2920U-12GT1XS-DC Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie RG-S2928G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS88-08 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83-24GT4XS-PD Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6910-3C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2600E Series Manuel utilisateur

Ruijie

Ruijie XS-S1960-48GT4SFP-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
