Hardware Installation and Reference Guide Product Overview

- 3 -

1 Product Overview

RG-S6920-4C switches are data center oriented high density 100G aggregation switches, providing 100G access, low

latency, and complete data center features. RG-S6920-4C switches provide 128 100G ports and can be used with

RG-N18000-X switches to compose a high-performance and high-reliability data center network.

Model

400G QSFPDD

Ethernet Port

100G QSFP28

Ethernet Port

10G SFP+

Ethernet Port

Expansion

Module Slot

Redundant

Fan

Redundant

Power Supply

RG-S6920-4C

128

5+1

2+2

A QSFP28 port supports 100G/40G mode.

A QSFPDD port supports 400G/100G mode.

Specifications

Model

RG-S6920-4C

CPU

Quad-core eight-thread CPU processer, 2.2 GHz

L2 Cache

16 MB

eMMC

64 GB

SDRAM

DDR4 8GB (Compatible: 16 GB)

Expansion

Module Slot

Expansion

Module

32-Port QSFP28 Module

8-Port 400G Line Card

Fan Slot

6 (support 5+1 redundancy, configure at least 3 fan modules in one switch)

Fan Module

M2EFAN I-F

Power Supply

Slot

4 (support 2+2 redundancy)

Power Module

RG-PA1200I-F

Power Supply

Input

AC input

Rated voltage range: 100 VAC to 240 VAC

Maximum voltage range: 90 VAC to 26VAC

Frequency: 50 Hz to 60 Hz

Rated current: 5.2 A to 14 A

High voltage direct current (HVDC) input:

Input voltage range: 192 VDC to 288 VDC

Input current range: 6 A

Power

Consumption

Less than 2400 W

Optical Module

Refer to Appendix B

The supported modules update at any time, contact Ruijie Networks for details.

SFP+ Port

Supported

QSFP28 Port

Supported

FC Port

Unsupported

10GBASE-T Port

Unsupported

Hardware Installation and Reference Guide Product Overview

- 4 -

Temperature

Warning

Support temperature warning and over-heating protection.

EMC Standards

GB9254-2008 CLASS A

Safety Standards

GB4943-2011

Working

Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage

Temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Working Humidity

10% to 90% RH (non-condensing)

Weight

Net weight: 43.5 kg (95.90 lbs, with 6 fan modules , 4 power modules and 4 line cards)

Dimensions

(L x W x H)

442 mm x 735 mm x 173.5 mm, 1RU (17.40 in. x 28.93 in. x 6.83 in.)

RG-S6920-4C switch is a class A product. In a domestic environment, this product may cause radio interference in

which case the user may be required to take adequate measures.

The 10G/100G Ethernet port of the RG-S6920-4C switch supports DAC. For a detailed model and specification,

refer to Appendix B.

Product Appearance

The hardware of the S6920-4C includes the chassis, the power supply system and the heat dissipation system.

The power supply system: Provides four power supply slots, which support 2+2 power supply redundancy. It is

recommended users configure power supply redundancy.

The heat dissipation system: Provides six fan module slots, which support 5+1 fan redundancy. It is recommended

users configure all fans redundancy.

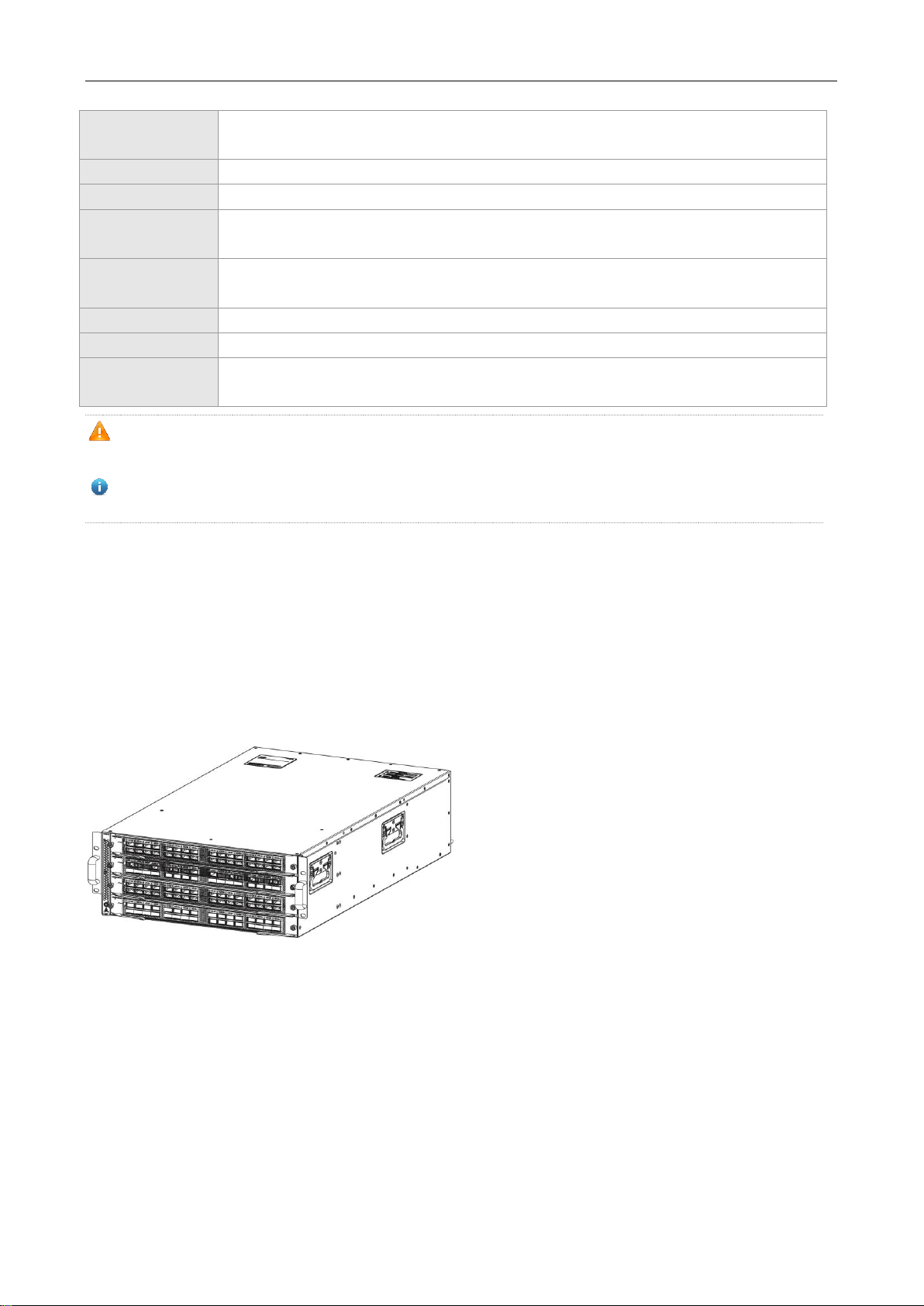

Figure 1-1 Appearance of the RG-S6920-4C

Front Panel

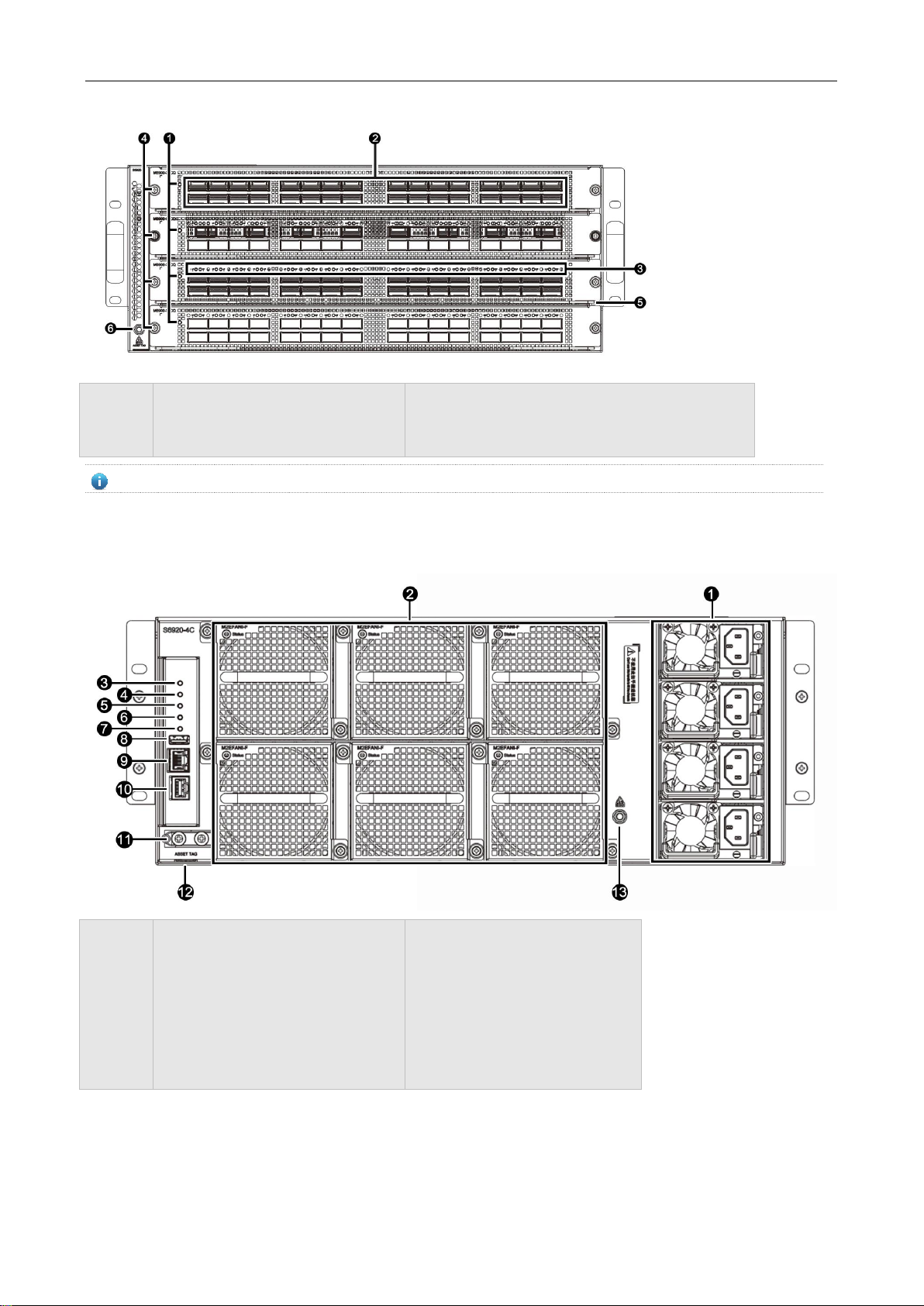

Figure 1-2 Front Panel of the S6920-4C

Hardware Installation and Reference Guide Product Overview

- 5 -

Notes:

1. Line Card Indicator

2. QSFP28 Port

3. QSFP28 Port Indicator

4. Screws

5. Line Card Handle

6. Ground for ESD Wrist Strap Banana Jack

The S6920-4C supports 100G QSFP28 module and 10G SFP+ module.

Rear Panel

Figure 1-3 Rear Panel of the S6920-4C

Notes:

1. Power Module Slot

2. Fan Module Slot

3. System Indicator

4. BMC Indicator

5. Fan Indicator

6. Power Indicator

7. ID Indicator

8. USB2.0 Port

9. MGMT Port

10. Console Port

11. Grounding Point

12. Asset Tag

13. ESD Wrist Strap

Asset Tag

Hardware Installation and Reference Guide Product Overview

- 6 -

The asset management label is in the lower right corner of the rear panel. The label is movable and can be withdrawn

from the device. Users can mark the information such as asset name, category, code and registration date on the label

which helps to improve asset management accuracy and efficiency.

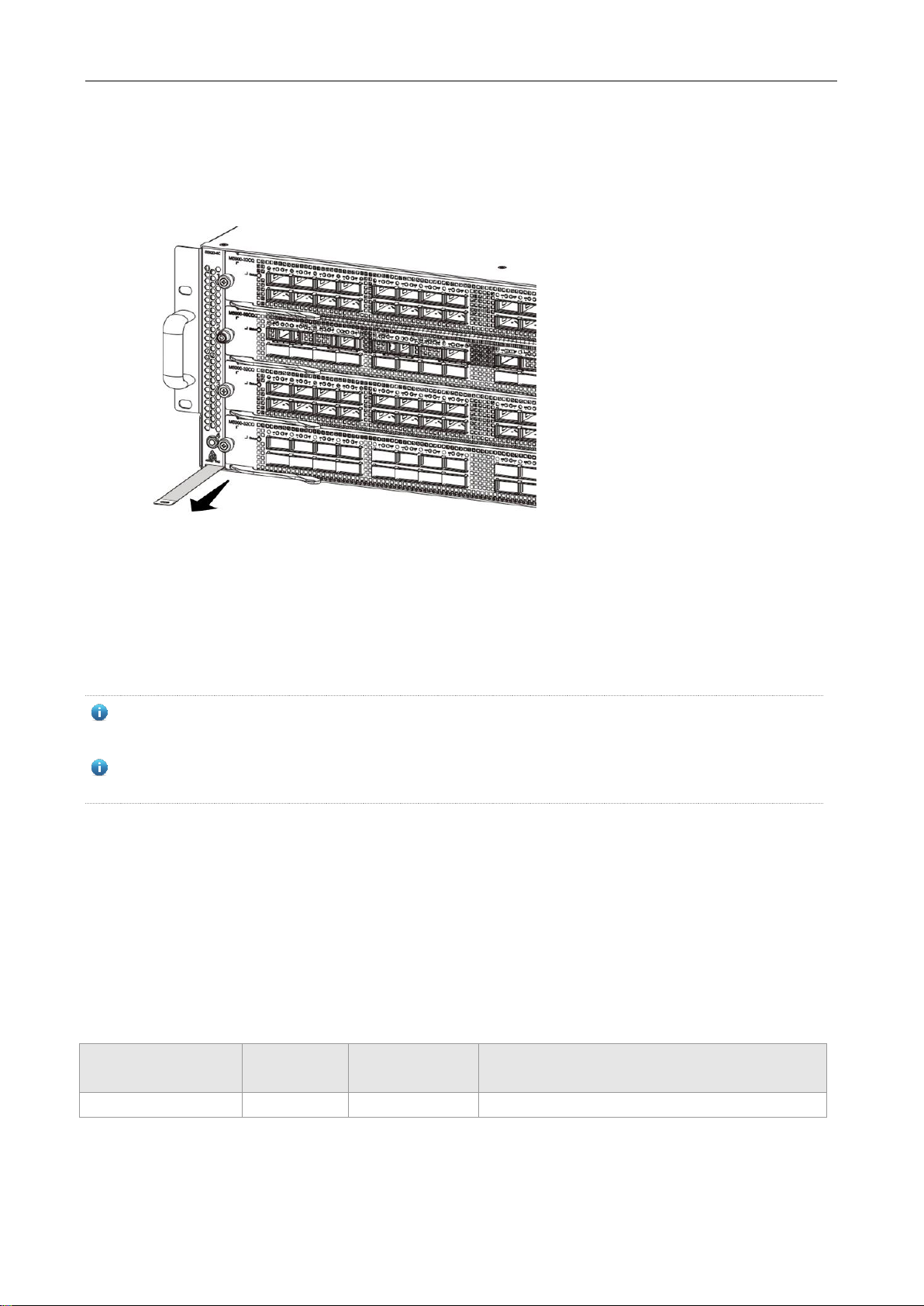

Figure 1-4 Asset Tag of the RG-S6920-4C

External Ports

The RG-S6920-4C provides the following ports:

Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions, warnings

and other diagnostic messages. Therefore, it is more convenient to upgrade the software version of the switch on

line and save the log information.

To protect the data and avoid device damage, use qualified USB flash disks of good brands. At the same time, the

local USB port is compatible with most of the USB controllers except some USB flash disks.

RG-S6920-4C series switches support debugging, configuration, maintenance, management and host software

uploading of Console ports.

Console port: Use RS-232 interface electrical level and standard RJ45 connector. This interface is connected with

the serial port of terminal PC to perform system debugging, configuration, maintenance, management, and host

software uploading.

MGMT port: This is an out-band Ethernet port, which uses standard RJ45 connector. This interface is connected

with Ethernet port of a PC to perform program downloading.

QSFP28 port: There are 8 100G QSFP28 ports, which support optical modules and DAC copper cables. These

ports can also work in 4x10G mode.

Indicator

Panel

Identification

Status

Meaning

Switch indicator

SYS

Off

The system is not powered on.

Hardware Installation and Reference Guide Product Overview

- 7 -

(Rear panel)

Solid red

1) One of the modules of the system fails.

2) There are less than 3 fans.

3) The internal or partial temperature exceeds the

warning working temperature, and the switching

service resets.

Blinking green.

The system is being initialized.

Solid green

The system is operational.

Solid yellow

1) The temperature exceeds the warning threshold.

2) Only 3 fans are in the position.

3) One of the power module is not plugged in with a

power cable in 1+1 power redundancy mode.

BMC indicator (Rear

Panel)

BMC

Off

The BMC module is not in place or does not work.

Solid green

The BMC module works properly.

Blinking green

The BMC module is being initialized.

Fan indicator (Rear

panel)

FAN

Off

The system is not powered on.

Blinking green

The fan modules are being initialized.

Solid green

The fan modules work properly.

Solid yellow

One fan module does not work.

Solid red

The fan module is not in place or more than one fan

module do not work.

Power indicator (Rear

panel)

PWR

Off

The system is not powered on.

Blinking green

The power modules are being initialized.

Solid green

The power modules work properly.

Solid yellow

One power module does not work.

Solid red

More than one fan module do not work.

ID indicator

(Rear panel)

Off

Locator is disabled.

Solid blue

Locator is enabled.

MGMT port indicator

LINK/ACT

LINK Off

The port is not connected.

LINK Solid Green

The port is connected at 1000Mbps.

LINK Solid Yellow

The port is connected at 100Mbps.

ACT Off

The port is not transmitting or receiving data.

ACT Blinking

Green

The port is transmitting or receiving data.

QSFP28 port indicator

(Front panel)

1F-32F

Off

The port is not connected.

Solid green

The port is connected at 40G/100Gbps.

Blinking green

The port is transmitting or receiving data at

40G/100Gbps.

Power Supply

The RG-S6920-4C series switches support power supply the RG-PA1200I-F. The smart power supply module supports

power management, and the host can read input power, input current, and temperature in real time. The power supply

module supports hot swapping.

Hardware Installation and Reference Guide Product Overview

- 8 -

The RG-S6920-4C series switches support 2+2 power supply redundancy. To improve the stability and reliability

of the entire system, it is recommended to configure 2+2 power supply redundancy. When the four power supply

modules work normally, the switch is in the status of current sharing.

It requires at least two power supply modules to work normally. Filler panels need to be installed in the unoccupied

power supply module slots to ensure ventilation and heat dissipation and avoid dusts.

Heat Dissipation

The working temperature of the RG-S6920-4C switches is 0°C to 45°C (32°F to 113°F), and the heat dissipation design

needs to ensure the stability, safety and maintainability in such environment. The RG-S6920-4C series switches adopt

fan ventilation and forced convection to ensure the device can work normally in specified environment. Dust the device

every three months to avoid blocking the ventilation openings.

The RG-S6920-4C supports M2EFAN I-F and provides fan speed regulation, fan failure warning, and fan hot swapping.

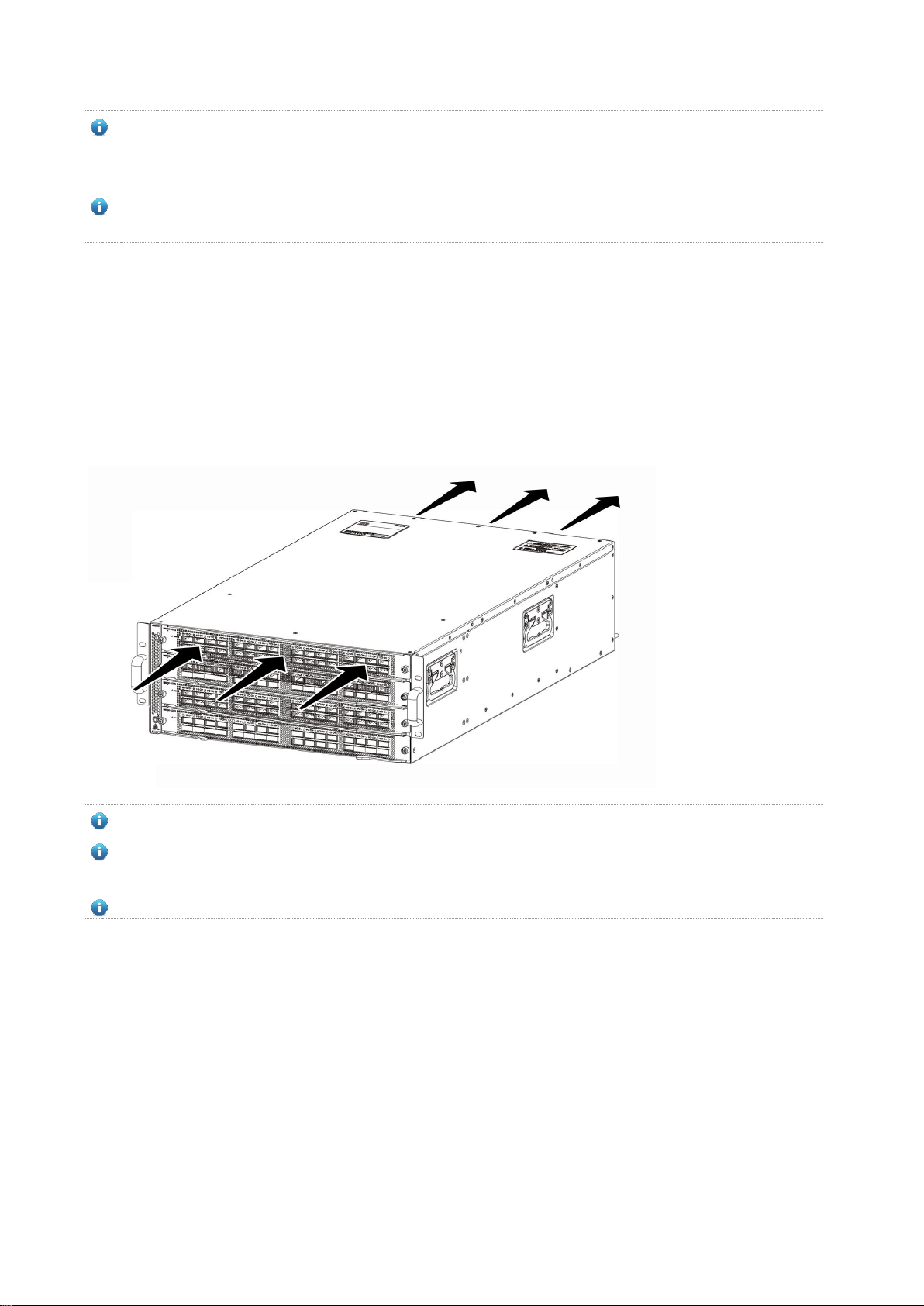

Figure 1-5 Ventilation and Heat Dissipation of the RG-S6920-4C

Maintain a minimum clearance of 20 cm around the switch for ventilation.

It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan

module slots to ensure ventilation and heat dissipation and avoid dusts.

The power module and fan module with different ventilation direction cannot be used together.

Autres manuels pour RG-S6920-4C Series

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S5300-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IS2700-P Series Manuel d'installation

Ruijie

Ruijie RG-S3760E Series Manuel utilisateur

Ruijie

Ruijie RG-CS88-08 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6100 Series Comment utiliser

Ruijie

Ruijie RG-S6510-32CQ Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS7006 Manuel d'installation et d'exploitation

Ruijie

Ruijie HS2310-16GH2GT1XS Manuel d'installation et d'exploitation

Ruijie

Ruijie S5750 Series Manuel utilisateur

Ruijie

Ruijie RG-ES109DS Manuel utilisateur

Ruijie

Ruijie RG-S6920-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-ES Series Manuel utilisateur

Ruijie

Ruijie RG-S6250-48XS8CQ Series Manuel

Ruijie

Ruijie RG-S6930-2C Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS5100-24GT4SFP-P Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83-PD Series Manuel utilisateur

Ruijie

Ruijie XS-S1930J Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS Series Manuel utilisateur

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S8600E Series Manuel de l'opérateur

Ruijie

Ruijie Reyee RG-NBS5200-48GT4XS-UP Manuel d'installation et d'exploitation

Ruijie

Ruijie 5310-E Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
