Ruijie RG-S6510 Series Manuel d'installation et d'exploitation

RG-S6510 (V2.0) Series Switches

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by anymeans,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our switches. This guide will help you install and use the switches.

Scope

This manual describes the functions and physical features of the switches, and presents the installation procedure,

troubleshooting procedure, technical specifications, and specifications and usages rules of cables and connectors. It is

intended for the users that have some experience in installing andmaintaining network hardware and want to learn the

above information. At the same time, it is assumed that the users of this switch are already familiar with the related

terms and concepts of Ethernet.

Document Structure

Chapter 1 "Product Overview" describes the main characteristics, technical specifications, and related modules

of this product.

Chapter 2 "Preparation before Installation" lists the safety, power supply, and site requirements that must be

met before the switch can be installed.

Chapter 3 "Product Installation" describes how to install the integrated switch and modules, and connect its

power cables and grounding lines.

Chapter 4 "System Debugging" describes the commissioning after the switch is powered on for the first time.

Chapter 5 “Monitoring and Maintenance”

Chapter 5 "Troubleshooting" describes possible problems met during the installation and use of the switch and

solutions for such problems.

Appendix A "Connector and Connection Media"

Appendix B "10G, 25G, 40G and 100G Modules"

Appendix C “Lightening Protection”

Appendix D “Cabling Recommendations in Installation”

Appendix E “Site Selection”

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Skype: service_rj@ruijienetworks.com

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss

of data.

Hardware Installation and Reference Guide Product Overview

- 3 -

1 Product Overview

RG-S6510 (V2.0) switches are data center oriented high density 10G/25G access switches, providing 25G/100G

access, low latency, and complete data center features. RG-S6510 (V2.0) switches, with up to 48 25G ports and 8

100G ports, can be used with RG-N18000-X/RG-S6500-4C switches to compose a high-performance and

high-reliability data center network.

The RG-S6510 (V2.0) Series Switches:

Model

100G

QSFP28

Ethernet

Port

25G/10G

SFP28

Ethernet

Port

10GBase-T

Ethernet Port

Extension

Module Slot

Redundant

Fan

Redundant

Power Supply

RG-S6510-48VS8CQ

N/A

3+1

1+1

An SFP28 port supports 25G/10Gbase-R and does not support 1000base-X.

A QSFP28 port supports both 100G/40G mode and 4x25G/4x10G mode.

Specifications

Model

RG-S6510-48VS8CQ

CPU

Quad-core processer, 1.2GHz

BOOT ROM

16MB

FLASH Memory

8GB

SDRAM

DDR4 4GB (Compatibility: 8GB)

Extension Module

Slot

Unsupported

Extension Module

Unsupported

Fan Slot

4 (support 3+1 redundancy, configure at least 3 fan modules in one switch)

Fan Module

M6510-FAN-F, M6510-FAN-R

Power Supply

Slot

2 (support 1+1 redundancy)

Power Module

RG-PA550I-F, RG-PA550I-R

Power Supply

Input

AC input

Rated voltage range: 100V AC to 240V AC

Maximum voltage range: 90V AC to 264V AC

Frequency: 50 Hz to 60 Hz

Rated current: 3.5Ato 7.2A

High voltage direct current (HVDC) input:

Input voltage range: 192V DC to 288V DC

Input current range: 3.6A

Power

Consumption

Less than 300W

Optical Module

Refer to Appendix B

The supported modules update at any time, contact Ruijie Networks for details.

SFP28 Port

Supported

Hardware Installation and Reference Guide Product Overview

- 4 -

QSFP28 Port

Supported

FC Port

Unsupported

10GBASE-T Port

Unsupported

Temperature

Warning

Support temperature warning and over-temperature protection.

EMC Standards

GB9254-2008 CLASS A

Safety Standards

GB4943-2011

Working

Temperature

0°C to 45°C (32°F to 113°F)

Storage

Temperature

-40°C to 70°C (-40°F to 158°F)

Working Humidity

10% to 90% RH (non-condensing)

Weight

Net weight: 8 kg (including 4 fan modules and 2 power modules)

Dimensions

(L x W x H)

442 mm x 387 mm x 44 mm, 1RU

RG-S6510-48VS8CQ switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

The 25G/100G Ethernet port of the RG-S6510-48VS8CQ switch supports DAC. For a detailed model and

specification, refer to Appendix B.

Product Appearance

The hardware of the S6510-48VS8CQ includes the chassis, the power supply system and the heat dissipation system.

The power supply system: Provides two power supply slots, which support 1+1 power supply redundancy. It is

recommended users configure power supply redundancy.

The heat dissipation system: Provides four fan module slots, which support 3+1 fan redundancy. It is

recommended users configure all fans redundancy.

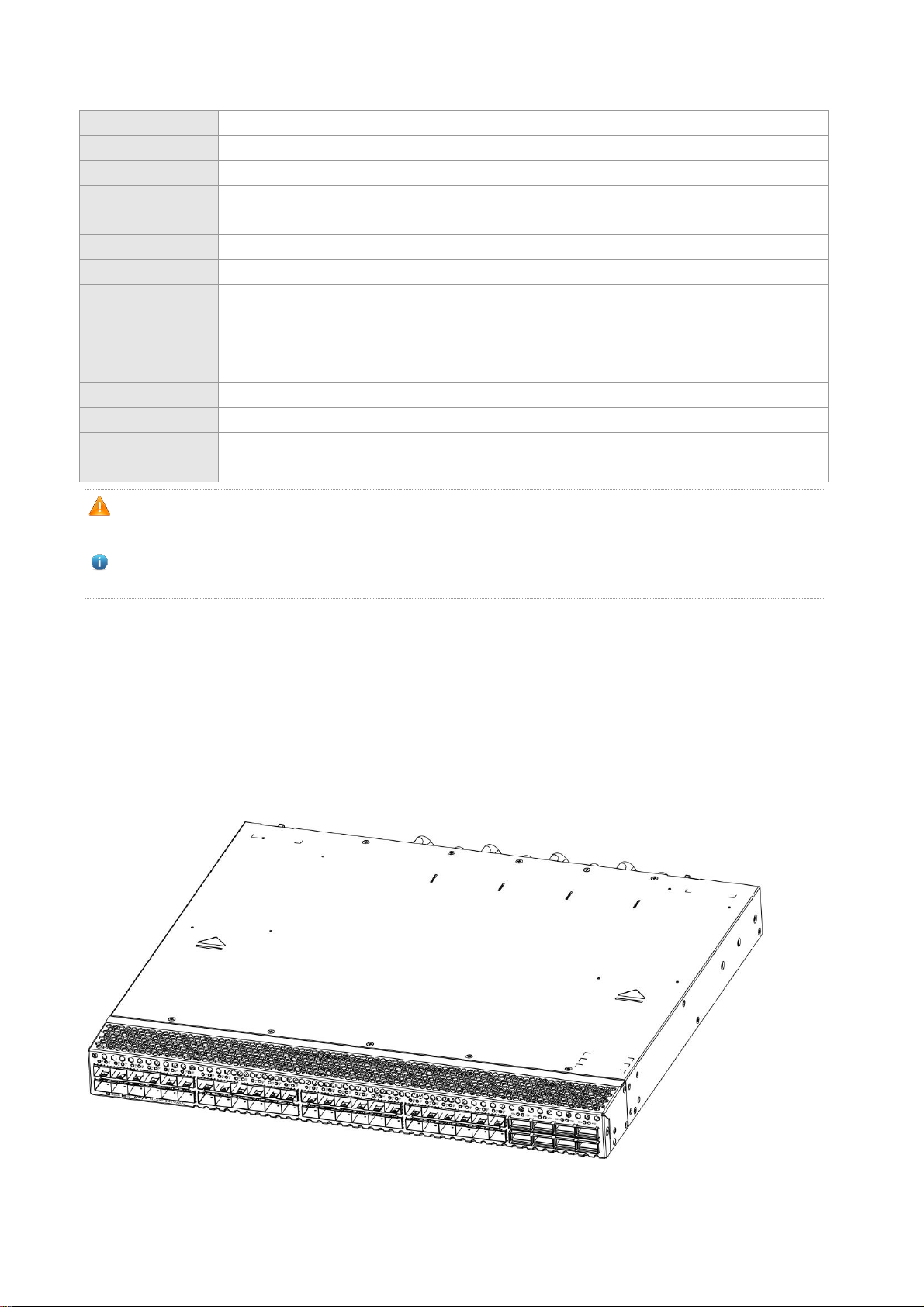

Figure 1-1 Appearance of the RG-S6510-48VS8CQ

Front Panel

Hardware Installation and Reference Guide Product Overview

- 5 -

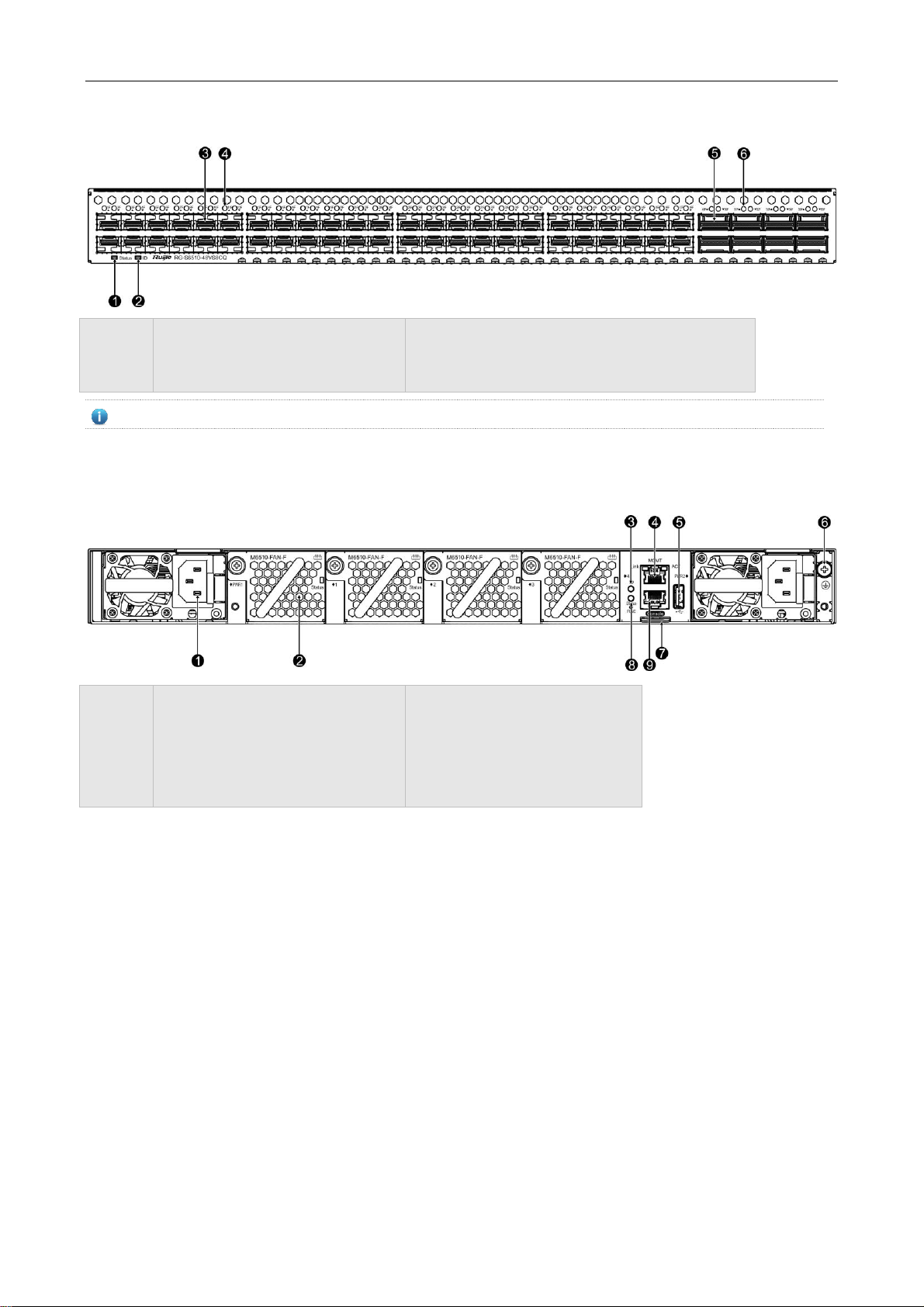

Figure 1-2 Front Panel of the S6510-48VS8CQ

Notes:

1. Switch status indicator

2. Switch locator indicator

3. SFP28 port

4. SFP28 port status indicator

5. QSFP28 port

6. QSFP28 port status indicator

The S6510-48VS8CQ supports 100G QSFP28 module and 25G SFP28 module.

Back Panel

Figure 1-3 Back Panel of the S6510-48VS8CQ

Notes:

1. Power supply module slot

2. Fan module slot

3. Locator indicator

4. MGMT port

5. USB 2.0 port

6. Grounding point

7. Asset label

8. Switch status indicator

9. Console port

Asset Management Label

The asset management label is next to the switch status indicator of the switch back panel. The label is movable and

can be withdrawn from the device. Users can mark the information such as asset name, category, code and registration

date on the label which helps to improve asset management accuracy and efficiency.

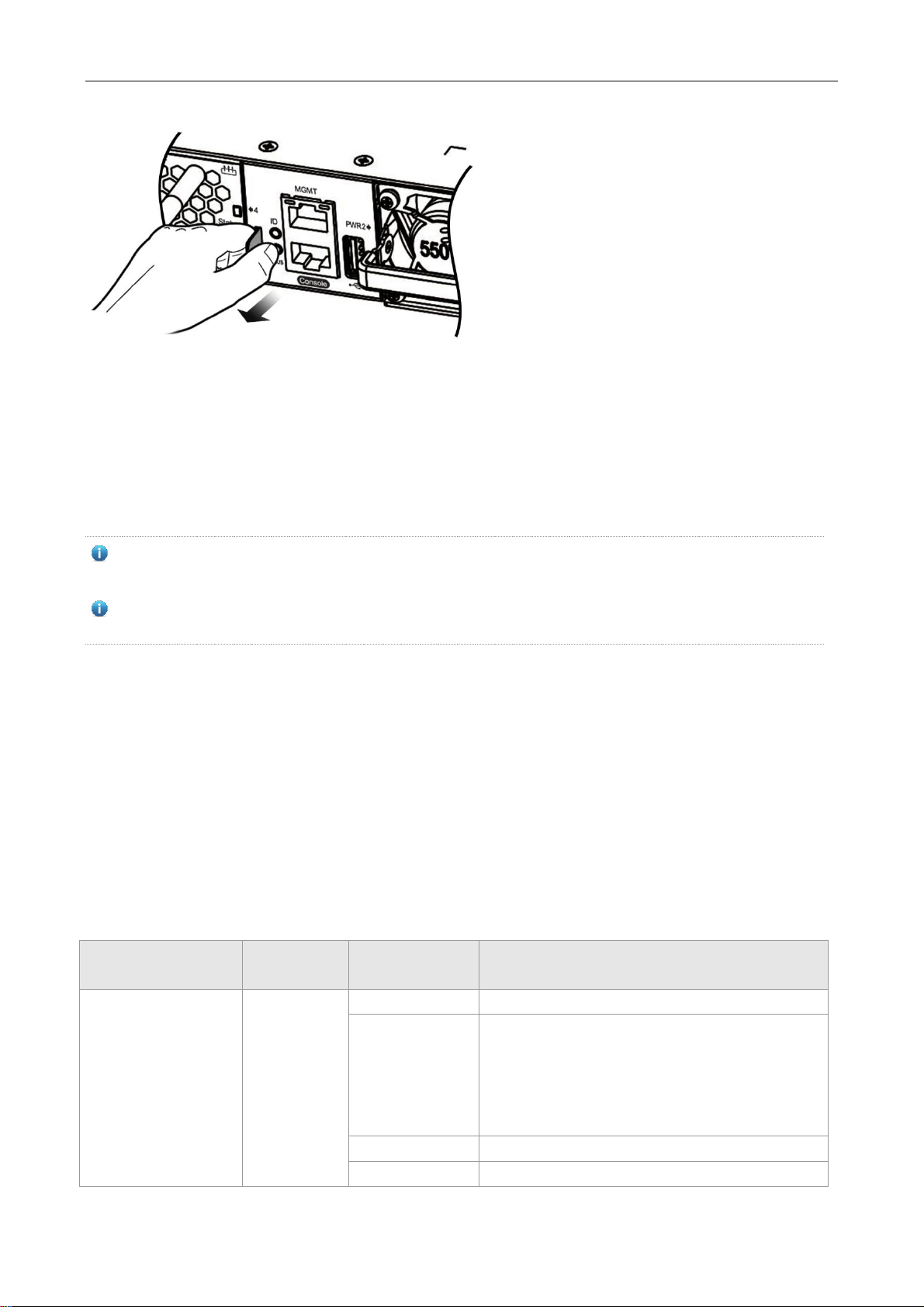

Figure 1-4 Asset Management Label of the RG-S6510-48VS8CQ

Hardware Installation and Reference Guide Product Overview

- 6 -

External Ports

The RG-S6510-48VS8CQ provides the following ports:

Universal serial bus (USB) port: This port can connect with USB memory to save logs, host versions, warnings

and other diagnostic messages. Therefore, it is more convenient to upgrade the software version of the switch on

line and save the log information.

To protect the data and avoid device damage, use qualified USB flash disks of good brands. At the same time, the

local USB port is compatible with most of the USB controllers except some USB flash disks.

RG-S6510-48VS8CQ series switches support debugging, configuration, maintenance, management and host

software uploading of Console ports.

Console port: Use RS-232 interface electrical level and standard RJ45 connector. This interface is connected with

the serial port of terminal PC to perform system debugging, configuration, maintenance, management, and host

software uploading.

MGMT port: This is an out-band Ethernet port, which uses standard RJ45 connector. This interface is connected

with Ethernet port of a PC to perform program downloading.

SFP28 port: There are 48 25G SFP28 ports, which support optical modules and DAC copper cables (10GBASE-X

compatible).

QSFP28 port: There are 8 100G QSFP28 ports, which support optical modules and DAC copper cables. These

ports can also work in 4x25G mode.

Indicator

Panel

Identification

Status

Meaning

Switch status indicator

(Front panel/Back

panel)

Status

Off

The system is not powered up.

Solid red

1) One of the modules of the system fails.

2) There are less than 3 fans.

3) The internal or partial temperature exceeds the

warning working temperature, and the switching

service resets.

Blinking green.

The system is initializing.

Solid green

The system is operational.

Hardware Installation and Reference Guide Product Overview

- 7 -

Solid yellow

1) The temperature gets to the warning threshold.

2) Only 3 fans are in the position.

3) One of the dual powers is not connected with the

AC power cord.

Switch locator indicator

(Front panel/Back

panel)

Off

Device location is disabled.

Solid blue

Device location is enabled.

MGMT port indicator

MGMT

Off

The port is not connected.

Green

The port is connected at 10M/100M/1000Mbps.

Blinking

The port is transmitting or receiving data.

SFP28 port status

indicator

1F-48F

Off

The port is not connected.

Solid green

The port is connected at 10G/25Gbps.

Blinking green

The port is transmitting or receiving data at

10G/25Gbps.

QSFP28 port status

indicator

49F-56F

Off

The port is not connected.

Solid green

The port is connected at 40G/100Gbps.

Blinking green

The port is transmitting or receiving data at

40G/100Gbps.

Power Supply

The RG-S6510-48VS8CQ series switches support power supply the RG-PA550I-F and RG-PA550I-R. The smart power

supply module supports power management, and the host can read input power, input current, and temperature in real

time. The power supply module supports hot swapping.

The RG-S6510-48VS8CQ series switches support 1+1 power supply redundancy. To improve the stability and

reliability of the entire system, it is recommended to configure 1+1 power supply redundancy.When the two power

supply modules work normally, the switch is in the status of current sharing.

It requires at least one power supply module to work normally. Filler panels need to be installed in the unoccupied

power supply module slots to ensure ventilation and heat dissipation and avoid dusts.

Heat Dissipation

The working temperature of the RG-S6510-48VS8CQ switches is 0°C to 45°C, or 32°F to 113°F, and the heat

dissipation design needs to ensure the stability, safety and maintainability in such environment. The

RG-S6510-48VS8CQ series switches adopt fan ventilation and forced convection to ensure the device can work

normally in specified environment. Dust the device every three months to avoid blocking the ventilation openings.

The RG-S6510-48VS8CQ supports M6510-FAN-F and M6510-FAN-R and provides fan speed regulation, fan failure

warning, and fan hot swapping.

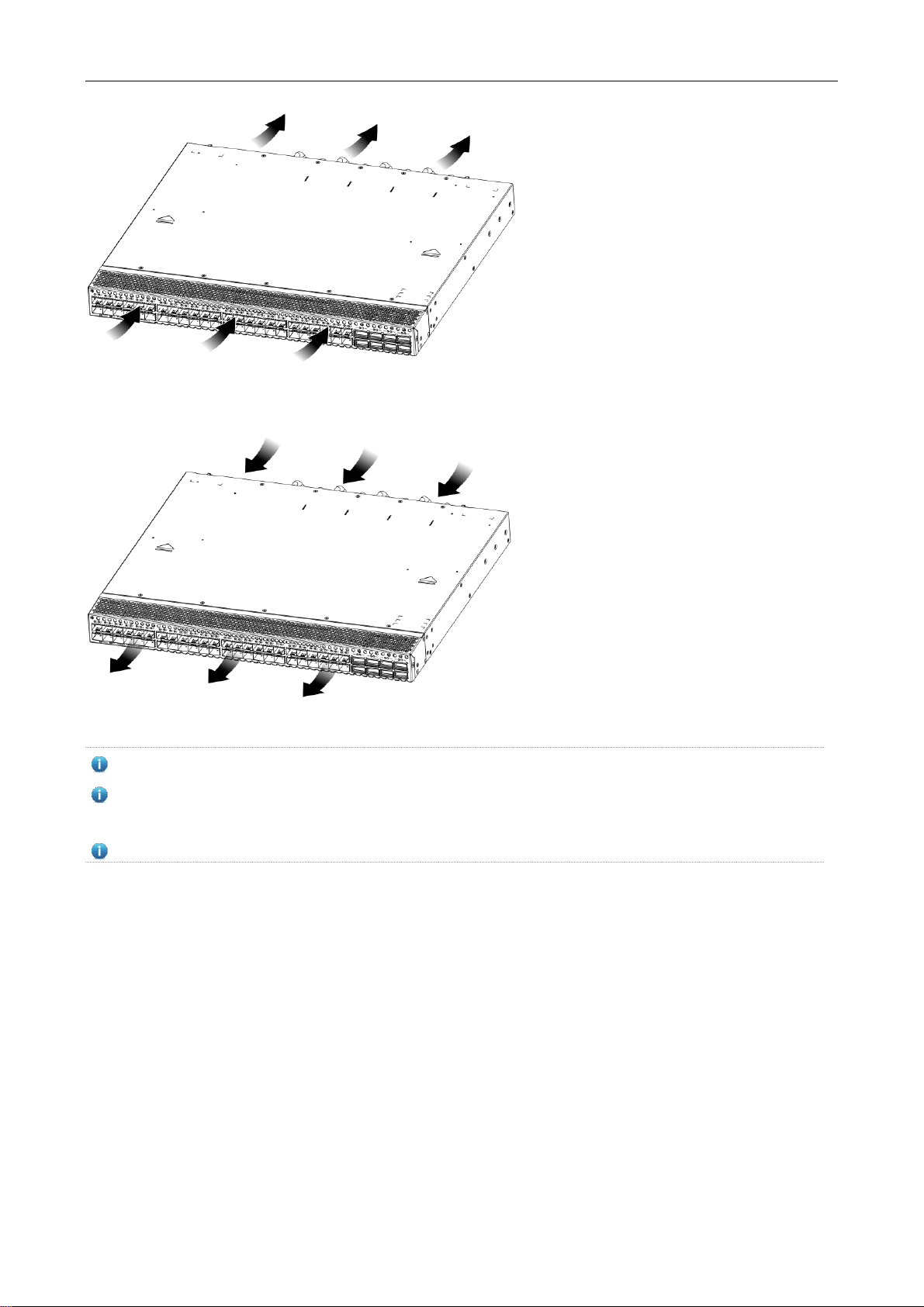

Figure 1-5 Ventilation and Heat Dissipation of the RG-S6510-48VS8CQ

Hardware Installation and Reference Guide Product Overview

- 8 -

Figure 1-6 Ventilation and Heat Dissipation of the RG-S6510-48VS8CQ

Leave sufficient space in the front and at the back of the chassis (at least 20 cm) for ventilation.

It requires at least three fan modules to work normally. Filler panels need to be installed in the unoccupied fan

module slots to ensure ventilation and heat dissipation and avoid dusts.

Power modules and fan modules with different air direction cannot be used together.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6110 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES08 Manuel utilisateur

Ruijie

Ruijie RG-CS88-08 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie 5310-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S7800C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SF2920U Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBS6002 Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-SF2920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2900G-E Series Manuel utilisateur

Ruijie

Ruijie RG-S5760C-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6150-X Series Comment utiliser

Ruijie

Ruijie RG-S2910-24GT4SFP-UP-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83-24GT4XS-PD Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES200 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2924GT/8SFP-XS-P Manuel utilisateur

Ruijie

Ruijie RGOS 11.X Manuel utilisateur

Ruijie

Ruijie S8600E Series Manuel

Ruijie

Ruijie XS-S1960-10GT2SFP-P-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-ES100 Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
