RG-S5750-E Series Switches

Hardware Installation and Reference Guide V1.58

Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification,

transmission, translation or commercial use of this document or any portion of this document, in any form or by anymeans,

without the prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: http://caseportal.ruijienetworks.com

Community: http://community.ruijienetworks.com

Technical Support Email: service_rj@ruijienetworks.com

Skype: service_rj@ruijienetworks.com

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

Hardware Installation and Reference Guide Product Overview

1 Product Overview

The RG-S5750-E series switches are the next generation Layer 3 switches introduced by Ruijie Networks. Featuring high

performance, reliable security, and multiple services, the RG-S5750-E series switches are mainly applicable to the

convergence layer of large-scale networks to provide full wire-speed exchanging and complete QoS services, classify

different services according to different business needs and ensure the prompt transmission of key data. The

RG-S5750-E series switches can provide various medium interfaces to meet the requirement for interfaces in network

constructions.

RG-S5750-E series switches

Model

10/100/1000Base-T

adaptive Ethernet

port

1000Base-X

SFP port

Console

Port

USB

Port

Extension

Module

Slot

Redundant

Power

Supply

RG-S5750-24GT/8SFP-E

V1.XX

8 (Combo)

RPS

RG-S5750-48GT/4SFP-E

V1.XX

4 (Combo)

RPS

RG-S5750-24GT/8SFP-E

V2.XX

8 (Combo)

RPS

RG-S5750-48GT/4SFP-E

V2.XX

4 (Combo)

RPS

RG-S5750-24GT/8SFP-P

24 (PoE+

supported)

8 (Combo)

Dual power

supplies

RG-S5750-48GT/4SFP-P

48 (PoE+

supported)

4 (Combo)

Dual power

supplies

RG-S5750-24SFP/8GT-E

8(Combo)

Dual power

supplies

1.1 RG-S5750-24GT/8SFP-E

Technical Specifications

Model

RG-S5750-24GT/8SFP-E

Optical Module

Type

Ethernet 100M:

FE-SFP-LX-MM1310

FE-SFP-LH15-SM1310

FE-SFP-LX20-SM1310-BIDI

FE-SFP-LX20-SM1550-BIDI

FE-SFP-LH40-SM1310-BIDI

FE-SFP-LH40-SM1550-BIDI

Hardware Installation and Reference Guide Product Overview

Ethernet 1000M:

MINI-GBIC-SX

MINI-GBIC-LX

MINI-GBIC-LH40

MINI-GBIC-ZX50

MINI-GBIC-ZX80

MINI-GBIC-ZX100

GE-SFP-LX20-SM1310-BIDI

GE-SFP-LX20-SM1550-BIDI

GE-SFP-LH40-SM1310-BIDI

GE-SFP-LH40-SM1550-BIDI

1000Base-T:

Mini-GBIC-GT

The supported module type may change at any time. For the detailed change information,

consult the Ruijie Networks.

BIDI optic module must be used in pairs. For example, FE-SFP-LX20-SM1310-BIDI is

used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.

Please refer to Appendix B for BIDI optic module details.

Extended Module

Type

M5000E-02SFP/GT

M5000E-01XS

M5000E-02XS

SFP Port

100Base-X

1000Base-X

RPS Type

RG-RPS150

Power Supply

AC input:

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current: 2 A

HVDC input:

Voltage range: 192 V DC to 290 V DC

Current range: 0.5 A to 0.24 A

Input Leakage

Current

≤2.5mA

Max. Power

Consumption

60 W (with extension modules); 43 W (without extension modules)

Temperature

Working temperature: 0ºC to 50ºC

Storage temperature: -40ºC to 70ºC

Humidity

Working humidity: 10% to 90% RH

Storage humidity: 5% to 90% RH

Fan

Support adjustment of fan speed and warning of fan trouble.

Hardware Installation and Reference Guide Product Overview

Temperature

Warning

Support

EMC

GB9254/GB17625 CLASS A

Security

Compliance

GB4943/IEC60950/UL/CE

Dimensions (W x

D x H)

440 mm x 260 mm x 44 mm

Weight

4.9 kg (with extension modules) ; 3.9 kg (without extension modules)

RG-S5750-24GT/8SFP-E switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Product Appearance

The front panel of the RG-S5750-24GT/8SFP-E Ethernet switch provides twenty four 10/100/1000Base-T Ethernet ports,

eight 1000M SFP fiber/copper combo ports, one Console port and one USB port. The back panel provides AC power input

ports, RPS input ports and two extension module slots.

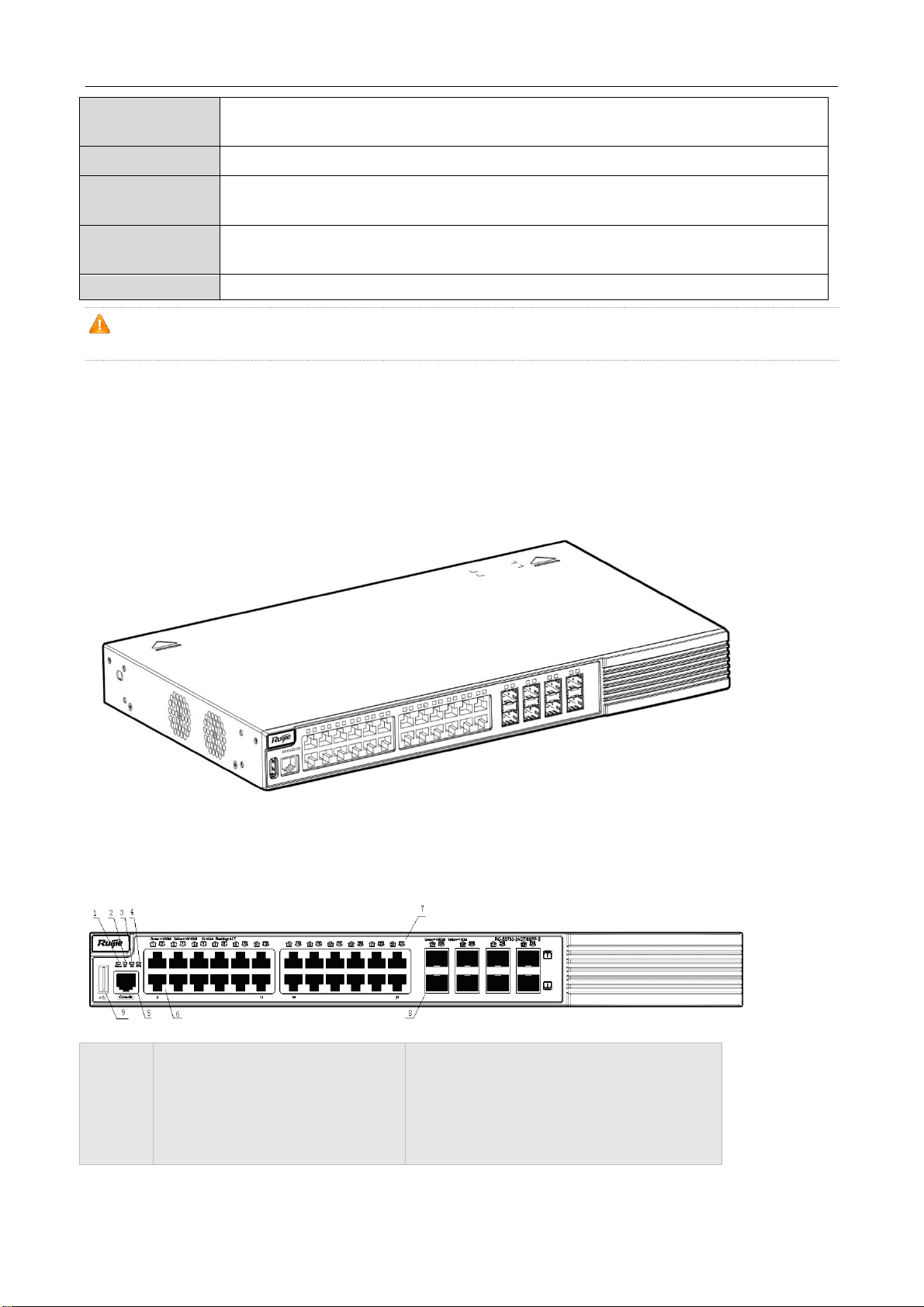

Figure 1-1 Appearance of the RG-S5750-24GT/8SFP-E

Front Panel

Figure 1-2 RG-S5750-24GT/8SFP-E Front Panel

Note:

1. Switch status indicator

2. Extension module 1 status indicator

3. Extension module 2 status indicator

4. RPS status indicator

5. Console port

6. 10/100/1000Base-T adaptive Ethernet port

7. Port status indicator

8. 100/1000Base-X SFP port

9. USB port (supported only by V2.XX)

Hardware Installation and Reference Guide Product Overview

Back Panel

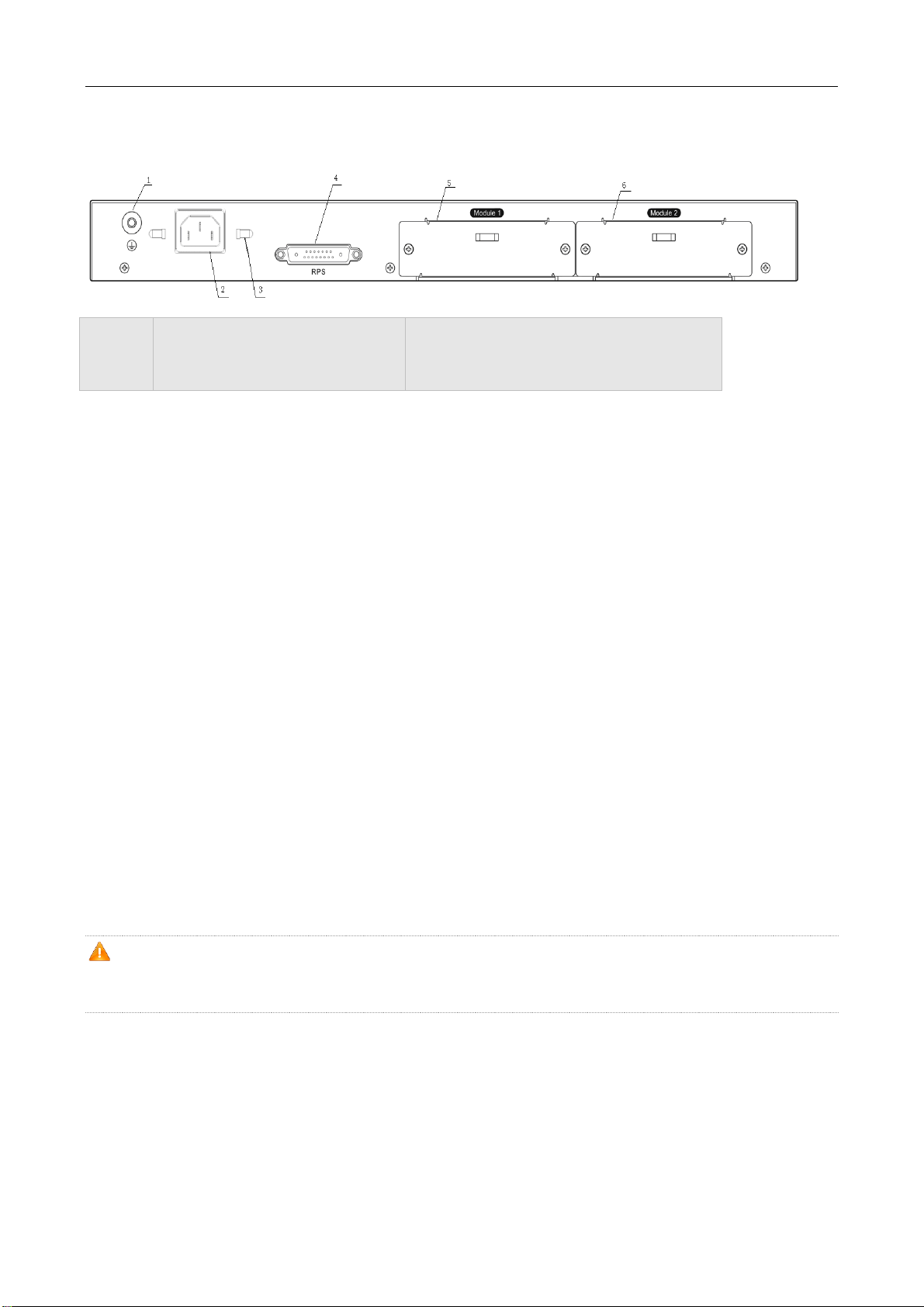

Figure 1-3 RG-S5750-24GT/8SFP-E Back Panel

Note:

1. Grounding pole

2. 3-core AC power port

3. Power defense shedding plug

4. RPS input port

5. Slot for extension module 1

6. slot for Extension module 2

Power Supply System

The RG-S5750-24GT/8SFP-E adopts the AC power input and RPS input.

AC input:

Rated voltage range: Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264V AC

Frequency: 50/60 Hz

Rated current: 2 A

Power cable: 10 A power cable

HVDC input:

Voltage range: 192 V DC to 290 V DC

Current range: 0.5 A to 0.24 A

RPS input:

The switch power can be supplied by the redundant power input or both the AC input and redundant power input.

When both the AC input and the redundant power input are available, the switch power is supplied by the AC power

input;

When the AC input is unavailable, the switch power supply switches to the redundant power input seamlessly.

At present, the redundant power supply interface can be used together with the RPS150 that are manufactured by

Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise,

an abnormality may occur or damage the switch.

Heat Dissipation

The RG-S5750-24GT/8SFP-E is designed with left and right fans for heat dissipation purposes, thereby ensuring the

device's functioning in the specified environment. Sufficient space (10 cm distance from both sides and the backplane of

the cabinet) should be reserved to allow air circulation. Dust the device every three months to avoid blocking the

ventilation openings.

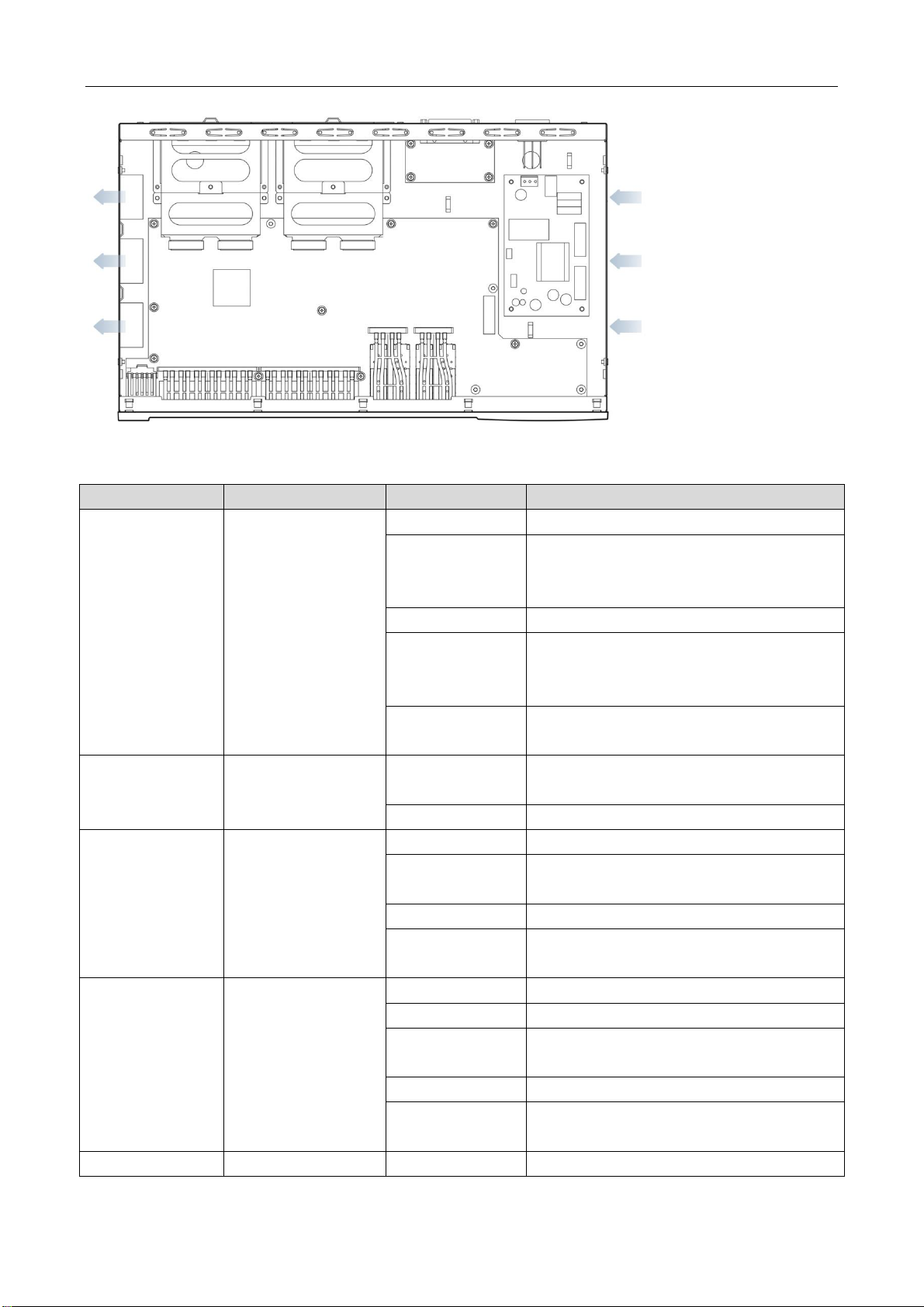

Figure 1-4 Flow Scheme of Heat Dissipation

Hardware Installation and Reference Guide Product Overview

LED Indicators

Indicator

Panel Identification

Status

Meaning

Status indicator

Status

Off

The switch is powered down.

Blinking green

The switch is being initialized. If the blinking

persists, however, it indicates that an

abnormality occurs.

Solid green

The switch is working properly.

Solid yellow

It indicates a warning on the switch temperature.

Check the working environment of the switch

immediately.

Solid red

Indicates a fault on the switch. For details, refer

to Section 5.2 Troubleshooting Common Faults.

Extension module

indicator

M1 / M2

Off

There is no extension module or the extension

module is not correctly installed.

Solid green

The extension module is correctly installed.

RPS status indicator

RPS

Off

The redundant power is not connected to a link.

Solid green

The redundant power is connected and can

supply power.

Solid yellow

The redundant power is supplying power.

Solid red

The redundant power is connected but cannot

supply power.

1000Mbps SFP port

indicator

21F-24F

Off

The port is link down.

Solid green

The 1000 M link that the port connects to is Up.

Blinking green

Data at a rate of 1000 M are being transceived at

the port.

Solid yellow

The 100 M link that the port connects to is Up.

Blinking yellow

Data at a rate of 100 M are being transceived at

the port.

1000Mbps RJ-45

1-24

Off

The port is link down.

Hardware Installation and Reference Guide Product Overview

Indicator

Panel Identification

Status

Meaning

port indicator

Solid green

The 1000 M link that the port connects to is Up.

Blinking green

Data at a rate of 1000 M are being transceived at

the port.

Solid yellow

The 100 or 10 M link that the port connects to is

Up.

Blinking yellow

Data at a rate of 100 or 10 M are being

transceived at the port.

1.2 RG-S5750-48GT/4SFP-E

Technical Specifications

Model

RG-S5750-48GT/4SFP-E

Optical Module

Type

Ethernet 100 MB:

FE-SFP-LX-MM1310

FE-SFP-LH15-SM1310

FE-SFP-LX20-SM1310-BIDI

FE-SFP-LX20-SM1550-BIDI

FE-SFP-LH40-SM1310-BIDI

FE-SFP-LH40-SM1550-BIDI

Ethernet 1000 MB:

MINI-GBIC-SX

MINI-GBIC-LX

MINI-GBIC-LH40

MINI-GBIC-ZX50

MINI-GBIC-ZX80

MINI-GBIC-ZX100

GE-SFP-LX20-SM1310-BIDI

GE-SFP-LX20-SM1550-BIDI

GE-SFP-LH40-SM1310-BIDI

GE-SFP-LH40-SM1550-BIDI

1000Base-T:

Mini-GBIC-GT

The supported module type may change at any time. For the detailed change information,

consult the Ruijie Networks.

BIDI optical module must be used in pairs. For example, FE-SFP-LX20-SM1310-BIDI is

used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.

Please refer to Appendix B for BIDI optic module details.

Extended Module

M5000E-02SFP/GT

Hardware Installation and Reference Guide Product Overview

Type

M5000E-01XS

M5000E-02XS

SFP Port

100Base-X

1000Base-X

RPS Type

RG-RPS150

Power Supply

AC input:

Rated voltage range: 100 V AC to 240 V AC

Maximum voltage range: 90 V AC to 264 V AC

Frequency: 50/60 Hz

Rated current: 2 A

HVDC input:

Voltage range: 192 V DC to 290 V DC

Current range: 0.7 A to 0.5 A

Input Leakage

Current

≤3.5mA

Max. Power

Consumption

90 W (with extension modules); 72 W (without extension modules)

Temperature

Working temperature: 0ºC to 50ºC

Storage temperature: -40ºC to 70ºC

Humidity

Working humidity: 10% to 90% RH

Storage humidity: 5% to 90% RH

Fan

Support fan speed adjustment and the fault warning function

Temperature

Warning

Support

EMC

GB9254/GB17625 CLASS A

Security

Compliance

GB4943 /IEC60950/UL/CE

Dimensions (W x

D x H)

440 mm x 300 mm x 44 mm

Weight

5.4 kg (with extension modules); 4.4 kg (without extension modules)

RG-S5750-48GT/4SFP-E switch is a class A product. In a domestic environment, this product may cause radio

interference in which case the user may be required to take adequate measures.

Product Appearance

The front panel of the RG-S5750-48GT/4SFP-E Ethernet switch provides 48 10/100/1000Base-T Ethernet ports, four

1000M SFP fiber/copper combo ports, one Console port and one USB port. The back panel provides AC power input

ports, RPS input ports and two extension module slots.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Changer

Ruijie

Ruijie RG-S6220-H Series Manuel utilisateur

Ruijie

Ruijie RG-S29 Series Manuel d'installation

Ruijie

Ruijie RG-CS83-24GT4XS-PD Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S1920 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS86-20XS Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-CS83 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie S8600E Series Mode d'emploi

Ruijie

Ruijie RG-ES200 Series Manuel utilisateur

Ruijie

Ruijie RG-S2910-24GT4SFP-UP-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-MF2920U Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-NIS3100 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5760C-X Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-PF2920U-4GT1MS-P Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S5750-H Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S2924GT/8SFP-XS-P Manuel utilisateur

Ruijie

Ruijie RG-IF2920U-12GT1XS Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6580-24DC8QC Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6120 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie XS-S1960-10GT2SFP-P-H Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6510-4C Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-IF2920U-12GT1XS-DC Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6910-3C Series Manuel d'installation et d'exploitation

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
