PEERLESS DS246 Mode d’emploi
ISSUED:02-03-09 SHEET#:202-9308-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 5
Installation and Assembly - WIDE SCREEN WALL MOUNT
FOR LGM3800S and LGM2900S Model: DS246
Some parts may appear slightly different than illustrated.
Before you start make sure all parts listed are included with your product.
IMPORTANT! Read instruction sheet before you start installation and assembly.
• Thisproductwasdesignedandintendedtobemountedtothefollowingsupportingsurfacescheckedbelowwiththe
hardware included in this product as specified in the installation sheet. To mount this product to an alternative support-
ingsurface,contactPeerlesscustomercareat1-800-865-2112.
• This product was designed to be installed on the following wall construction only;
WALLCONSTRUCTION ADDITIONALHARDWAREREQUIRED
xWoodStud None
xWoodBeam None
xSolidConcrete None
xCinderBlock None
xMetalStud Do not attach except with Peerless accessory kitACC415 for metal studs;
Contact Customer Service for Peerless accessory kit for metal studs.
Brick ContactCustomerService
Otherorunsure? ContactCustomer Service
WARNING
A
BCD
E
F
GH
Max Load Capacity: 50 lb (22.6 kg)
Description Qty. Part #
Atilt plate adapter bracket 1 201-1652
Bwall plate 1 201-1653
CM5 x 1" penta pin driver 1 520-9249
DM10 x 15 mm penta pin screw 4 520-9263
EM5 x 12 mm socket pin serrated washer head screw 6 510-1064
F#14 x 2.5 phillips hex head wood screw 4 5S1-015-CO3
Galligator anchor 4 590-0097
H4 mm Allen wrench 1 560-1131
Parts List
ISSUED:02-03-09 SHEET#:202-9308-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 5
Note: For concrete walls skip to step 5 on the
followingpage.
Note: For metal studs installation, please order
metal stud fastener kit ACC415.
For Single Stud Wood Walls drill four 5/32" (4 mm)
dia. holes to a minimum depth of 2.5" (64 mm).
Attach wall bracket (B) to center of wood stud using
four #14 x 2.5" wood screws (F). Use a stud finder to
locate center of stud.
2
3
1Attach PLP adapter plate (sold separately) onto back
ofscreen using four screws provided byPLP plate. For portrait installation skip to Step 3.
Attach tilt plate (A) to PLP adapter plate in the
landscape position using four M10 x 15 mm penta-pin
screws(D)usingpenta-pindriver(C)
Attach tilt plate (A) to adapter in the portrait position
using four M10 x 15 mm penta-pin screws (D) using
penta-pindriver(C).
B
F
A
A
D
D
4
PLP PLATE
PLP-V4X2 PLATE
(SOLD SEPARATELY)
SCREWS PROVIDED WITH PLP PLATE
(SOLD SEPARATELY)
PLP PLATE
ISSUED:02-03-09 SHEET#:202-9308-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
3 of 5
For Concrete Walls drill one 1/4" (6 mm) dia. hole
to a minimum depth of 2.5" (64 mm). Insert anchor
(G) in hole flush with wall as shown (fig. 5.1). Place
wallplate(B)overanchor(G)and secure with#14x
2.5" wood screw (F) as shown in fig. 5.2 through
5.4. Make sure adapter bracket is level, mark other
holesandrepeat stepswithotherfasteners.Tighten
allfasteners.
CUTAWAYVIEW
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part
of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications. It is
suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid
breakingoutthebackof the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware
andcomponents.
WARNING
• Tighten screws so that wall plate is firmly attached,
butdonotovertighten.Overtightening can damage the
screws,greatlyreducingtheirholdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
• Concreteanchorsarenot intendedforattachmentto
concretewallcoveredwithalayerofplaster,drywall,
orotherfinishingmaterial.Ifmountingtoconcretewall
coveredwithplaster/drywallisunavoidable, plaster/
drywall (up to 5/8" thick) must be counterbored. If
plaster/drywall is thicker than 5/8", custom fasteners
must be supplied by installer.
WARNING
G
concrete
wall
G
Drill holes
and insert
anchors.
Place wall
bracket over
anchor and
secure with
screw.
After
repeating
figure 5.1
tighten all
fasteners.
F
ADAPTERBRACKET
fig 5.1
fig 5.2
fig 5.3
5
B
F
fig 5.4
G
ISSUED:02-03-09 SHEET#:202-9308-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
4 of 5
Attaching Mounting Bracket Using Hook On Option
6
Attach four M5 x 12 mm socket pin serrated washer
head screws (E) to the holes on the sides of wall
plate (B) using the 4mm security allen wrench (H)
provided.
6-1
E
B
Position slots of tilt plate (A) onto the four M5 x 12
mm socket pin serrated washer head screws (E)
attached to wall plate (B).
E
A
SLOT
6-2
E
To secure tilt plate (A) to wall plate (B), attach two M5 x 12 mm socket pin serrated washer head screws (E) through
the slots on the sides of wall plate (B), and into the threaded holes of tilt plate (A). Tighten with the 4mm security
allenwrench(H).
E
B
E
A
TOPHOLE
7
For tilt option skip to Step 8
ISSUED:02-03-09 SHEET#:202-9308-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
5 of 5

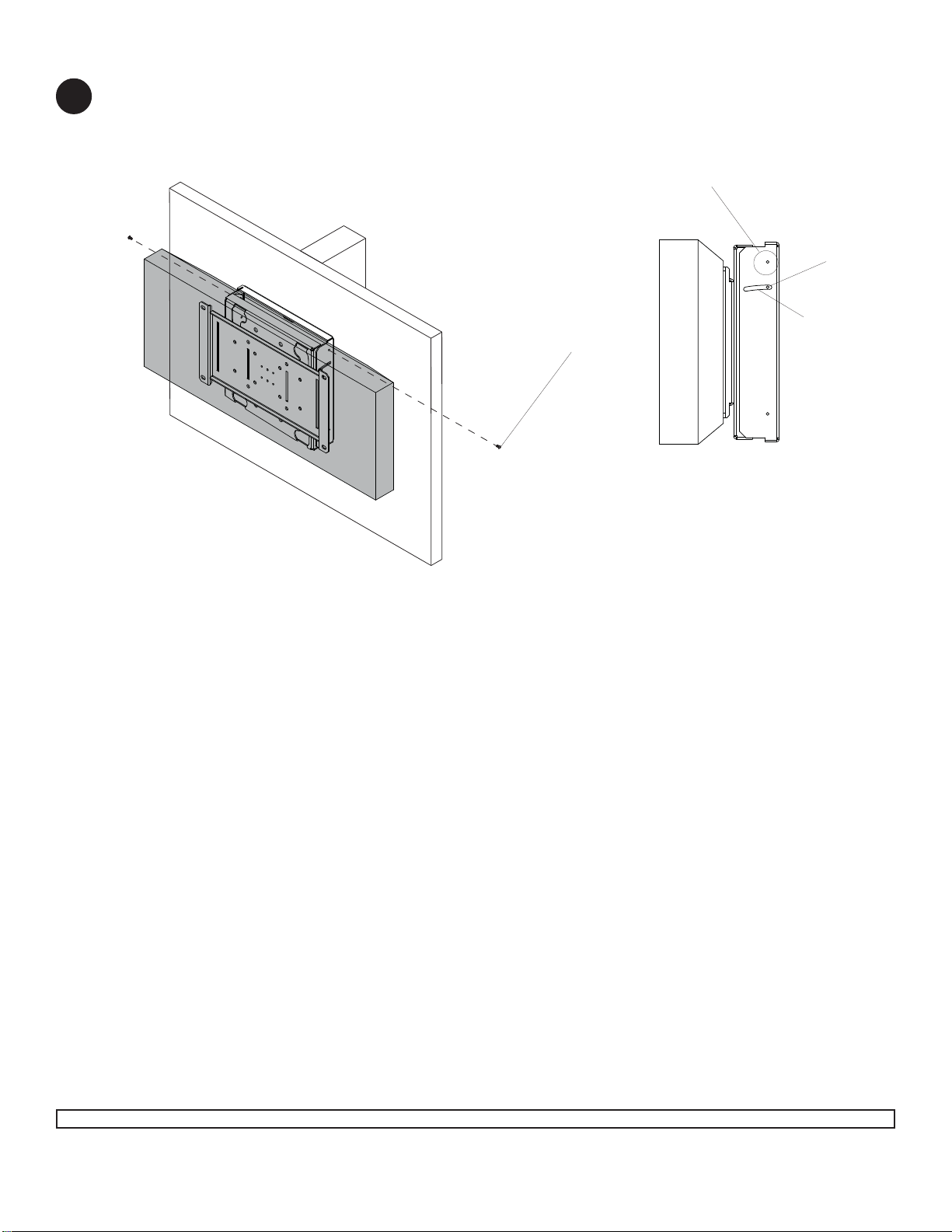

8
E
E
Detail 1
Attaching Mounting Bracket Using Tilt Option
Loosely fasten (E) in slot as shown in Detail 1. Remove top two M5 x 12 mm socket pin serrated washer head
screws (E) attached to wall plate (B). Tighten two M5 x 12 mm socket pin serrated washer head screws (E) in slots
at desired tilt as shown in Detail 1.
©2009PeerlessIndustries,Inc. Allrightsreserved.
PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
SLOT
E
