Installation&Assembly -Solid•Point™Wall Mountwith TiltandSwivel

IMPORTANT! Read entire instruction sheet before you start assembly and installation.

Model:PS1

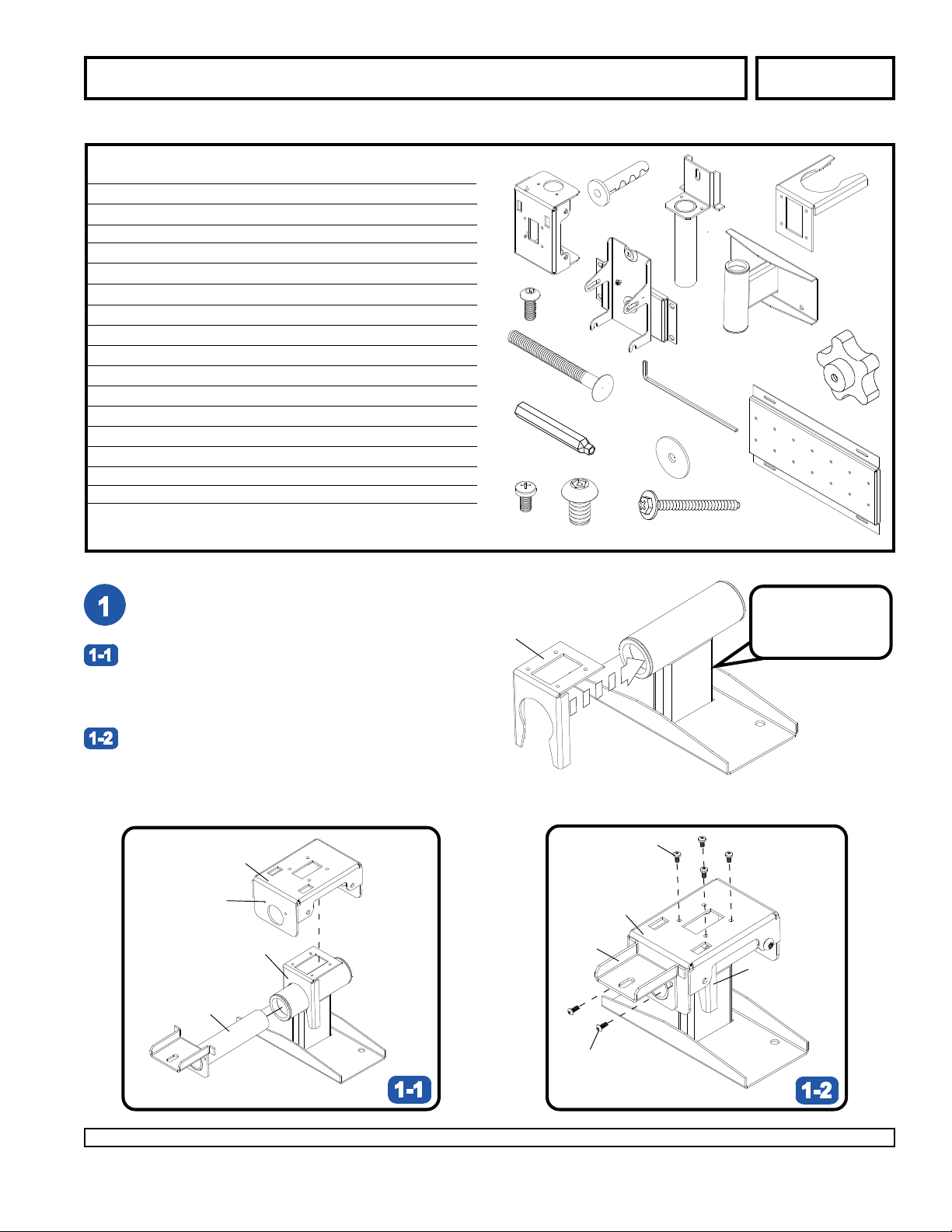

Place swivel lock bracket (I) on wall arm assembly (J)

as shown to the right.

Place rotation box (A) with threaded holes up over

wall arm assembly (J). Insert tilt pivot retainer

assembly (B) through rotation box (A) and wall arm

assembly (J).

Secure rotation box (A) to swivel lock bracket (I) using

four M5 x .8 x 10 mm phillips screws (H). Align holes

in tilt pivot retainer assembly (D) with holes in rotation

box (B) and secure with two 10-32 x 1/2" socket pin

screws (C) as shown.

Before you start make sure all parts

listed are included with your product.

PART # QTY. DESCRIPTION

A200-1434 1 rotation box

B200-1877 1 tilt pivot retainer assembly

C520-1055 2 10-32 x 1/2" socket pin screw

D200-0288 1 pitch roll assembly

E520-1001 1 carriage bolt 3/8"-16 x 3"

F520-9263 12 M10 x 1.5 x 15 mm penta-pin screw

G590-1087 1 tilt adjustment knob

H520-9250 4 M5 x .8 x 10 mm phillips screw

I200-1311 1 swivel lock bracket

J200-0342 1 wall arm assembly

K520-9260 1 M10 x 2" penta-pin™driver

L200-1338 1 wall plate

M590-0097 4 concrete anchor

N540-1008 4 fender washer

O5SI-015-C03 4 wood screw

P560-9646 1 4 mm security allen wrench

Parts List

Note: Some parts may appear slightly different than illustrated.

THREADED

HOLES

Note: Lay flat on sufrace for ease of assembly.

Hole in bottom of

rectangular tube

denotes bottom of

wall arm assembly.

2 of 6 ISSUED: 07-03-02 SHEET #: 200-9386-6 01-25-11

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

M5 SCREW

SLOT

RETAINING

SPACER

BRACKET

VERTICAL

POSITION

OPTIONAL:

PLASMA IN VERTICAL POSITION

HORIZONTAL

POSITION

TILTBRACKET

BRACKET

M5 SCREWS

CENTER

BOLT

Insert and tape carraige bolt (E) into top hole

of pitch roll assembly (D). Attach pitch roll

assembly (D) to adapter bracket with four M10

penta-pin screws (F). Tighten M10 screws

with penta-pin driver (K).

Note: Adapter bracket may be ordered

separately and will vary in size and style.

GENERIC

ADAPTER

BRACKET

TILTBRACKET

CENTER

BOLT

GENERIC ADAPTER BRACKET

RETAINING

SPACER

WASHER

SLOT

M5 SCREW

BRACKET

CARRIAGEBOLT

DETAIL 4

DO NOT REMOVE M5 SCREWS. Forverticalorientation,

unscrew two M5 screws until screw is able to move

freely in slot of tilt bracket as shown in details 4 and 4A.

Hold adapter bracket stationary and rotate tilt bracket

90° by hand or using a lever (example: wood 2 x 4).

Align M5 screws with threaded holes on bracket and

tighten two M5 screws back into bracket.

DETAIL 4A

M5 SCREW

WASHER

THREADED

HOLE

GENERIC

ADAPTER

BRACKET

NOTE: Refer to adapter plate instruction sheet (not included

with PS-1) for attachment of adapter plate to plasma before

proceeding with step 2.

• Donot overtightenscrews.Overtightening mayhinder

rolloption.

CAUTION

3 of 6 ISSUED: 07-03-02 SHEET #: 200-9386-6 01-25-11

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

Use stud finder to locate stud centers. Place wall plate

(L) on wall as template, level wall plate and mark center

of studs with pencil. The wall plate can be mounted on

16" centers. When mounted to 16" studs, the wall plate

can be shifted 4" left or right of center if desired.

Note: Hardware provided is for attachment of plasma mount

through standard thickness drywall or plaster into wood studs.

Installers are responsible to provide hardware for other types of

mounting situations.

For Wood Stud Walls drill four 5/32" (4 mm) dia. holes 2 1/2" (65

mm) deep. Attach wall plate (L) using four #14 x 2.5" (6 mm x 65

mm) wood screws and washers (O & N).

CONCRETE/CINDER BLOCKINSTALLATION

Place wall plate (L) on wall as template, level

wall plate and mark center of slots with pencil. L

• Tighten wood screws so that wall plate is firmly

attached,but do notovertighten.Overtighteningcan

damagescrews,greatly reducingtheirholding power.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Make sure that mounting screws are anchored into the

center of the studs. The use of an "edge to edge" stud

finderis highly recommended.

WARNING

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1 5/8" of actual concrete

surface in the 1/4" diameter hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to

mount in a solid part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM

C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of

ahammerdrill to avoid breakingoutthe back of theholewhenentering a void orcavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the wall will safely support 4 times the combined load of the equipment and all attached hardware

andcomponents.

WARNING

4 of 6 ISSUED: 07-03-02 SHEET #: 200-9386-6 01-25-11

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

For Concrete Walls drill four 1/4" (6 mm) dia. holes to a

minimum depth of 2.5" (64 mm) on marks made in step

1. Insert anchor (M) in holes flush with wall as shown

(right). Place wall plate (L) over anchor and secure with

four #14 x 2.5" (6 mm x 65 mm) wood screws and

washers (O & N) as shown at bottom of page. Make sure

wall plate is level before placing fasteners. Tighten all

fasteners.

CUTAWAYVIEW

Drill holes and insert anchors (M) in four places

Level wall plate and tighten four screws (O).

Place wall plate (L) over anchors (M) and fasten

with screws (O) and washers (N). Do not tighten.

concrete

NOTE:Fivemountingpositions,centerpositionshown

totheright.

Attach wall arm assembly (J) to wall plate (L) using four

M10 penta-pin screws (F).

• Always attach concrete expansion anchors directly to

load-bearingconcrete.

• Neverattachconcrete expansionanchorsto concrete

coveredwithplaster, drywall,or other finishingmaterial.

WARNING

• Tighten wood screws so that wall plate is firmly

attached,but do notovertighten. Overtighteningcan

damagescrews,greatly reducingtheirholding power.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

5 of 6 ISSUED: 07-03-02 SHEET #: 200-9386-6 01-25-11

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

Insert two M10 penta-pin screws (F) into rotation box

(A) as shown. Leave approx. 1/4” of exposed thread.

Hook pitch roll assembly (D) onto M10 penta-pin screws (F). Insert carraige bolt (E) into slot

of tilt pivot retainer assembly (B) as shown. Install tilt adjustment knob (G).

Install remaining two M10 penta-pin screws (F). HAND TIGHTEN all four M10 penta-pin

screws (F) to allow for tilt adjustment. Remove tape from carriage bolt (E). For tilt adjustment,

gently push back on the top of plasma to relieve pressure on knob. Adjust tilt to desired

position and tighten tilt adjustment knob (G), then securely tighten all four M10 screws (F)

using penta-pin driver (K).

ASAFINALPRECAUTION,CHECKALLFASTENERSANDTIGHTENSECURELY.

DBE

.25" F

• Always use an assistant or mechanical lifting equip-

ment to safely lift and position the plasma television.

WARNING

6 of 6 ISSUED: 07-03-02 SHEET #: 200-9386-6 01-25-11

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

Depending on the specific size & weight of the plasma, plasma may appear to lean sideways. Pitch roll assembly (D)

allows plasma to be manually adjusted, so plasma can be horizontal. To adjust, gently rotate plasma by hand to desired

position.

IMPORTANT! Center bolt is factory torqued for optimal performance to adjust for range of plasma sizes.

If it is too difficult to adjust roll of plasma, torque may be adjusted by following the procedures below.

Adjust tilt adjustment knob (G) to allow maximum tilt.

Insert 3/4" open-end wrench (not provided) into side of pitch roll assembly (D) and rotate center bolt counter-

clockwise to loosen torque.

IMPORTANT! Do not loosen or tighten more than 1/8 turn.

CENTER

BOLT

PLASMA

ADAPTER

PLATE

PLASMA

CENTER

BOLT

WRENCH

NOTE: Refer to page four of accompanying instruction sheet for attachment of PS 1 with plasma to wall

plate before proceeding with step 4.

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
