PEERLESS SmartMount ST 635 Mode d’emploi

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Installation and Assembly:

This product is UL Listed. It must be

installed by a qualified professional

installer.

SmartMount®Universal Tilt Wall Mount for 13" to 37" Flat

Panel Screens

Features:

• For virtually all 13" to 37" flat panel screens

• Universal mount fits screens with mounting hole patterns up to 9.6" W x 9.5" H

• Screen held only 2.6" from wall for a discreet installation

• Openwallplatedesignallowsforgreaterwallandanarrayofcablemanagementoptions

• Universal tilt brackets easily hook onto the wall plate for fast installation

• Adjustable up to 15° of forward tilt and up to -5° backward tilt for optimal viewing angle

• One-touchtiltforeffortlessadjustment

• Easy locking handle locks the screen position into place without the use of tools

• Optional IncreLok feature offers fixed tilts at -5°, 0°, 5°, 10° and 15° increments

• Includes Sorted-For-You™ fastener packs for installation to wood studs, concrete and cinder block

• Optionalhorizontaladjustmentofupto8"(dependingonscreenmodel)forperfectscreenplacement

• AvailableinBlackorSilver

Models: ST635, ST635-S, ST635P, ST635P-S

Maximum UL Load Capacity: 125 lb (57 kg)

2 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

•studfinder("edgetoedge"studfinderisrecommended)

•phillipsscrewdriver

•drill

•1/4" bit for concrete and cinder block wall

•1/2" bit for metal stud wall

•5/32" bit for metal or wood stud wall

•level

Table of Contents

Parts List..............................................................................................................................................................................3

Installation to Wood Stud Wall .............................................................................................................................................4

Installation to Solid Concrete or Cinder Block .......................................................................................................................5

InstallingAdapterBrackets...................................................................................................................................................6

Installing Flat Panel Screen to Wall Plate.............................................................................................................................7

Forcustomer care call (800) 865-2112or (708) 865-8870.

Accessories

• ACC215 - Metal Stud Fastener Kit (Metal stud installation is

notevaluated by UL)

• SCS211-SmartMount®ComponentShelf

• Donot begin to install your Peerless product until you have read and understood the instructionsandwarnings

containedin this Installation Sheet. If you have any questions regarding any of theinstructionsor warnings, please

callPeerless customer careat1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Makesurethatthesupportingsurfacewillsafely support the combined load of the equipment and all attached hard-

wareand components.

• Neverexceed the Maximum ULLoadCapacity.See page one.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an

"edgeto edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrews firmly,but do not overtighten.Overtighteningcan damage the items,greatly reducing their holding

power.

• Thisproduct was designed and intended tobe mounted to the following supportingsurfaceschecked below with the

hardware included in this product as specified in the installation sheet.To mount this product to an alternative support-

ingsurface, contactPeerless customer careat1-800-865-2112.

• This product was designed to be installed on the following wall construction only;

WALLCONSTRUCTION ADDITIONALHARDWARE REQUIRED

WoodStud None

WoodBeam None

SolidConcrete None

CinderBlock None

MetalStud Do not attach except with Peerless accessory kit for metal studs;

Contact Customer Service for Peerless accessory kit for metal studs.

Brick ContactCustomer Service

Otheror unsure? ContactCustomer Service

WARNING

3 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870

CCAA BB DD

M4 x 25 mm (4)

510-1082

M6 x 12 mm (4)

520-1050 M6 x 20 mm (4)

520-9554

M6 x 30 mm (4)

520-1067

SecurityAdapter Bracket Fasteners

M4 x 25 mm (4)

504-1015

M6 x 12 mm (4)

520-1128 M6 x 20 mm (4)

520-9402 M6 x 30 mm (4)

510-9109

Non-Security Adapter Bracket Fasteners

M4 x 10 mm (4)

510-1060 I.D. .31" (7.9 mm ) (4)

590-2021 #8 SAE (8)

540-1001

M4 x 10 mm (4)

504-9012 #8 SAE (8)

540-1001

Parts may appear slightly different than illustrated.

I.D. .31" (7.9 mm ) (4)

590-2021

Description Qty. ST635P

Black ST635P-S

Silver ST635

Black ST635-S

Silver

AA wall plate 1 201-1506 201-4506 201-1506 201-4506

BB 1201-1463 201-4463 201-1464 201-4464

CC 1201-1461 201-4461 201-1462 201-4462

DD 25S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03

EE 2590-0097 590-0097 590-0097 590-0097

FF 1not included not included 560-1133 560-1133

Non-Security Security

Before you begin,make sure all partsshown are included with your product.

Parts List

4 mm securitydriver

left adapter bracket

rightadapter bracket

#14 x2.5"wood screw

alligator®anchor

4 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870

Installation to Wood Stud Wall

1Use a stud finder to locate the edges of the studs. Use of an edge-to-edge stud finder is highly recommended. Based

on their edges, draw a vertical line down each stud’s center. Place wall plate on wall as a template. The top

mounting slots should be 2.5" (65 mm) above the desired screen center as shown in figure 1.1. Level plate, and mark

the center of the two mounting holes. Make sure that the mounting holes are on the stud centerlines. Drill two 5/32"

(4 mm) dia. holes 2-1/2" (65 mm) deep. Make sure that the wall plate is level, secure it using two #14 x 2.5" wood

screws (DD) as shown in figure 1.2.

Skip to step 2.

• Installermust verify that the supporting surface will safelysupportthe combined load of the equipment and allattached

hardwareandcomponents.

• Tightenwood screws so that wall plateisfirmly attached, but do not overtighten. Overtighteningcan damage the

screws,greatly reducing theirholding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is

highlyrecommended.

• Hardwareprovided is for attachment ofmount through standard thickness drywallorplaster into wood studs. Installers

areresponsible to providehardware for othertypesof mounting situations.

WARNING

fig. 1.1

fig. 1.2

CS = center of screen

STUD

2.5"

(65 mm)

• Ifwallmountisnotlevel,itwillbecrookedwhenmounted.

CAUTION

5 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870

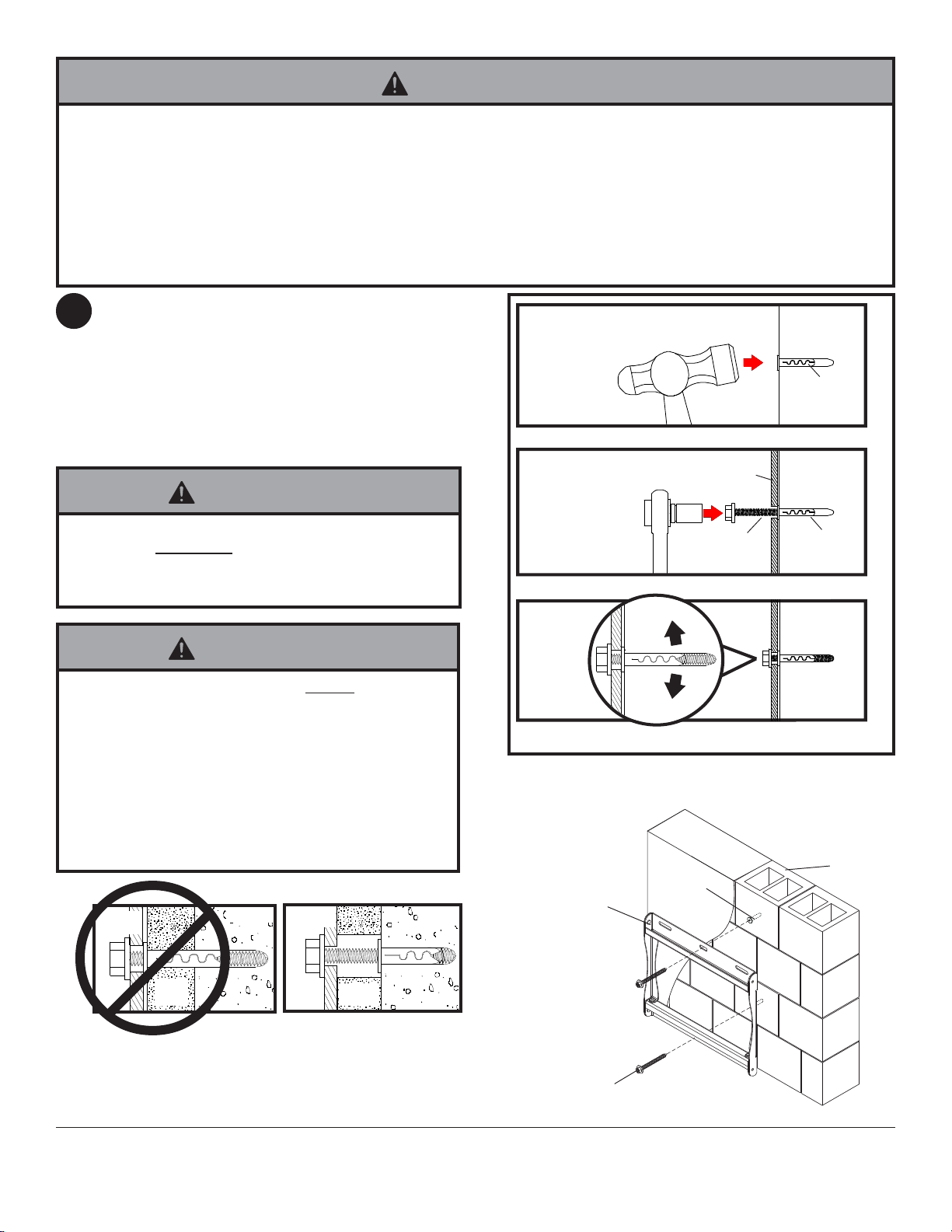

Installation to Solid Concrete or Cinder Block

1Make sure that wall plate (AA) is level, use it as a

template to mark two mounting holes. The top

mounting hole shouldbe 2.5"(65 mm) above the

desired screen center as shown in fig. 1.1 on page 4.

Drill two 1/4" (6 mm) dia. holes to a minimum depth of

2.5" (65 mm). Insert anchors (EE) in holes flush with

wallasshown(right).Placewallplateoveranchors

and secure with two #14 x 2.5" screws (DD). Level,

then tighten all fasteners.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to

avoid breaking out the back of the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Makesurethatthesupportingsurfacewill safely support the combined load of the equipment and all attached hard-

wareand components.

WARNING

CUTAWAY VIEW

INCORRECT

concrete

surface

Drill holes and insert anchors (EE).

CORRECT

Place plate (AA)over anchors (EE) and secure with screws (DD).

Tighten all fasteners.

wall

plate

plaster/

drywall

concrete wall plate concrete

plaster/

drywall

solid concrete

cinder block

• Tighten screws so that wall plate is firmly attached,

but do not overtighten. Overtightening can damage

screws, greatly reducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING

• Always attach concrete anchors directly to load-

bearingconcrete.

• Neverattach concreteanchorsto concretecovered

withplaster,drywall, or other finishing material.If

mountingto concrete surfacescoveredwith a finishing

surfaceis unavoidable, the finishingsurface must be

counterboredas shown below. Be sureconcrete

anchorsdo not pull away fromconcretewhen tighten-

ing screws. If plaster/drywall is thicker than 5/8",

custom fasteners must be supplied by installer.

WARNING

6 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870

FORVESA75MOUNTINGPATTERN:

Attach adapter brackets (BB & CC) to back of screen using four M4 x 10 mm

screws and four #8 SAEupper washers as shown in figure 2.3.

*Note: If hole pattern is in a pocket, attach adapter brackets (BB & CC) to back of

screen using four M4 x 25 mm screws, eight #8 SAE upper and lower washers,

andfourretainingspacersasindicatedbelow.

FORVESA100MOUNTINGPATTERN:

Attach adapter brackets (BB & CC) to back of screen using four M4 x 10 mm

screws and four #8 SAE upper washers as shown in figure 2.3.

*Note: If hole pattern is in a pocket, attach adapter brackets (BB & CC) to back of

screen using four M4 x 25 mm screws, eight #8 SAE upper and lower washers,

andfourretainingspacersasindicatedbelow.

FORVESA200MOUNTINGPATTERN:

Attach adapter brackets (BB & CC) to back of screen using four M4 x 10 mm

screws and four #8 SAE upper washers as shown in figure 2.3.

*Note: If M4 x 10 mm screws gets less than three threads of engagement, attach

adapter brackets (BB & CC) to back of screen using four M4 x 25 mm screws,

eightupper and lower #8SAE washers, and fourretaining spacers as indicated

below.

FORVESA200x200MOUNTINGPATTERN:

Attach adapter brackets (BB & CC) to back of screen using four M6 x 12 mm

screws as shown in figure 2.3.

*Note: If M6 x 12 mm screw gets less than three threads of engagement, attach

adapter brackets (BB & CC) to back of screen using four M6 x 20 mm screws as

indicatedbelow.

If M6 x 20 mm screws get less than three threads of engagement, attach adapter

brackets (BB & CC) to back of screen using four M6 x 30 mm screws as indicated

below.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen

face side down. Place and align adapter brackets (BB & CC) on back of screen to VESA hole pattern as shown in fig. 2.1.

Foradditional screencompatibility please referto theLCDinterface liston our website:www.peerlessmounts.com.

Note: If mounting holes are not centered on back of screen, center brackets on back of screen as shown in fig. 2.2.

Find the VESA®hole pattern below, and attach brackets to screen accordingly. Verify that all holes are properly

aligned, and then tighten screws using security driver (FF).

Installing Adapter Brackets

SCREWS

fig 2.1

fig 2.3

UPPERWASHER(L)

LOWERWASHER(L)

• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter brackets are still not

tightly secured, damage may occur to screen or product may fail. Contact customer care for correct hardware to use.

WARNING

200 100 75

BB CC

RETAININGSPACER

NOTE:“X”DIMENSIONSSHOULD BEEQUAL.

fig 2.2

7 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

• Always use an assistant or mechanical lifting equipment

to safely lift and position the flat panel screen.

• Donot tighten screwswithexcessive force. Overtightening

can cause damage to mount. Tighten screws to 40 in. • lb

(4.5N.M.) maximum torque.

• Becareful not to pinch fingerswhenpushing screen from

the bottom.

For preset tilt angles use Increlok™ and for custom tilt

angleuseratchet handle.

INCRELOK™:The screen can be locked into a

pre-set tilt position of -5°, 0°, 5°, 10°or 15°. Use

locator hole to find tilt position hole and tilt screen to

align holes. Tighten IncreLok™ tilt locking screws on

both adapter brackets to lock tilt as shown in detail 2.

Ratchet Handle: Loosen ratchet handle (refer to step

3 for tension adjustment of handle). Push or pull from

top or bottom of screen to adjust tilt as shown in figure

4.1. The tilt can be adjusted to a maximum of 15°

forwardor 5°backward.

TensionAdjustment of Ratchet Handle:Adjust

tension in adapter brackets (BB & CC) by rotating

ratchethandle. NOTE: If obstruction prevents ratchet

handlefromrotating,pullhandleoutwhileturning will

allowhandle to reposition without tightening. Release

and turn handle to tighten or loosen.

Mounting Screen: Ratchet handle must be in the up or

downposition or interference will occur while hooking

adapter brackets to wall plate (AA). Slowly hook

adapterbrackets (BB & CC)onto wall plate (AA) and

swing screen down as shown in fig. 3.1.Adapter

bracket hooks must fully engage wall plate as shown in

detail 1. Using phillips screw driver or security

driver (FF), turn safety/security screws on adapter

brackets (BB & CC) clockwise till screw tip securely

contacts wall plate as shown in cross section.

Screen Adjustment: Screen can be adjusted

horizontally by loosening safety/security screws on

adapter brackets (BB & CC) three full turns.Adjust

screen as shown in figure3.2. Tighten safety/security

screws on adapter brackets till screw tip securely

contacts wall plate as shown in cross section.

Removing Screen: To remove screen from mount,

loosen safety screws, swing screen away from mount,

and lift screen off of mount.

Mounting and Removing Flat Panel Screen

DETAIL 2

fig 4.1

IncreLok™

TILTLOCKING

SCREW LOCATOR

HOLE

RATCHET

HANDLE

TILT

POSITION

HOLES

fig 3.2

Adjusting the Tilt Angle of the Flat

Panel Screen

WARNING

SAFETY/

SECURITY

SCREWCROSS SECTION

DETAIL 1

AA BB

fig 3.1

RATCHET

HANDLE

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Características:

• Para prácticamente todas las pantallas planas de 13" a 37"

• El soporte universal sostiene pantallas con configuraciones de montaje de hasta 9.6" W x 9.5" H

• Sostiene el televisor a sólo 2.6" de la pared para proporcionar una instalación discreta

• El diseño abierto de la placa de pared permite más acceso a la pared y proporciona una variedad de opciones para el de

los manejo de cables

• Lossoportesinclinables universales se enganchan con facilidad a la placa de pared para proporcionar una instalación

rápida

• Inclinación ajustable hacia delante de hasta 15° y hacia atrás de hasta -5° para ver el televisor desde un ángulo óptimo

• Inclinación de un solo toque para permitir el ajuste sin esfuerzo

• La palanca de fijación fácil fija la posición de la pantalla con seguridad sin la necesidad de usar herramientas

• LafunciónopcionalIncreLok™ofreceángulos de inclinación predeterminados en incrementos de -5°, 0°, 5°, 10° y 15°

• Incluyepaquetes de sujetadoresSorted-For-You™ parainstalaciones en montantesde madera, concreto y bloques de

hormigónde escorias

• Ajuste horizontal opcional de hasta 8" (dependiendo del modelo de la pantalla) para la colocación perfecta de la pantalla

• Alaventaen color negro y plateado

Modelos: ST635, ST635-S, ST635P, ST635P-S

Ce produit est homologué UL. Il doit être

installé par u installateur

professionnel qualifié.

Instalación y ensamblaje:

Soporte universal de pared inclinación SmartMount®

para pantallas planas de 13" a 37"

Máxima capacidad de carga UL: 125 lb (57 kg)

9 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Español

Visite el sitio Web de Peerless en www.peerlessmounts.com Para el Servicio al cliente llame al 1-800-729-0307 ó 708-865-8870

Herramientas necesarias para el ensamblaje

•localizadorde montantes (se recomienda uno de “borde aborde”)

•destornilladorphillips

•taladro

•broca de 1/4" para paredes de concreto y de bloque de hormigón de

escorias

•broca de 1/2" para paredes con montantes de metal

•brocade5/32" para paredes con montantes de madera

•nivel

Tabla de contenido

Lista de piezas ...................................................................................................................................................................10

Instalaciónenunaparedconmontantes demadera ...........................................................................................................11

Instalación en una pared de concreto macizo o de bloques de hormigón de escorias ........................................................12

Instalacióndelossoportesadaptadores .............................................................................................................................13

Instalaciónde la pantalla plana en la placa de pared ..........................................................................................................14

Accesorios

• ACC215- Juego de accesorios de

piezas para la fijación en montantes de

metal (La instalación en montantes de

metalno ha sido evaluada por UL)

• SCS222- Repisa para componentes

-SmartMount®

Nota: Lea la hoja de instrucciones completa antes de comenzar la instalación y el ensamblaje.

• No comience a instalar su producto de Peerless hasta haber leído y entendido las instrucciones y las advertencias

contenidas en la Hoja de Instalación. Si tiene alguna pregunta acerca de cualquiera de las instrucciones o las

advertencias,por favor, llamea Servicio alCliente dePeerless al 1-800-865-2112.

• Esteproducto sólo debe ser instalado por unapersonaque tenga una aptitud mecánica, que tengaexperiencia en

construcción básica de edificios y que entienda estas instrucciones en su totalidad.

• Asegúrese de que la superficie de apoyo sostendrá, con seguridad, la carga combinada del equipo y todos los

fijadoresy componentes.

• Nuncasobrepase lacapacidad máxima desoportarcarga aceptadaporUnderwriters Laboratories. (Vea la página 8).

• Si va a instalar el producto en una pared con montantes de madera, asegúrese de que los tornillos de montaje estén

anclados en el centro de los montantes. Se recomienda utilizar un localizador de montantes de “borde a borde”.

• Siempre cuente con la ayuda de un asistente o utilice un equipo mecánico de izar para levantar y colocar el equipo

conmás seguridad.

• Apriete los tornillos con firmeza, pero no en exceso.Apretarlos en exceso puede dañar los artículos y puede

disminuirsignificativamente su fuerzade fijación.

• Este producto fue diseñado con la intención de que se instale en las superficies de apoyo marcadas abajo con los

accesorios de instalación incluidos en este producto como se especifica en la hoja de instalación. Para instalar este

productoen otra superficie deapoyo, llame a Servicio alCliente de Peerless al1-800-865-2112.

• Esteproducto fue diseñado para ser instalado en paredesconla siguiente construcción solamente:

CONSTRUCCIÓNDELAPARED ACCESORIOSADICIONALES NECESARIOS

xMontantede madera Ninguno

xVigade madera Ninguno

xConcretomacizo Ninguno

xBloquede hormigón deescorias Ninguno

Montantede metal No lo instale excepto con el juego de accesorios de Peerless para

montantes de metal.

Llame a Servicio al Cliente para pedir el juego de accesorios de

Peerless para montantes de metal.

Ladrillo Comuníquesecon Servicioal Cliente.

¿Otrasuperficie o no está seguro? Comuníquesecon ServicioalCliente.

ADVERTENCIA

10 of 21 ISSUED: 02-18-08 SHEET #: 202-9249-4 09-02-08

Español

Visite el sitio Web de Peerless en www.peerlessmounts.com Para el Servicio al cliente llame al 1-800-729-0307 ó 708-865-8870

CCAA BB DD

M4 x 25 mm (4)

510-1082

M6 x 12 mm (4)

520-1050 M6 x 20 mm (4)

520-9554

M6 x 30 mm (4)

520-1067

M4 x 25 mm (4)

504-1015

M6 x 12 mm (4)

520-1128 M6 x 20 mm (4)

520-9402 M6 x 30 mm (4)

510-9109

M4 x 10 mm (4)

510-1060 I.D. .31" (7.9 mm ) (4)

590-2021 #8 SAE (8)

540-1001

M4 x 10 mm (4)

504-9012 #8 SAE (8)

540-1001

I.D. .31" (7.9 mm ) (4)

590-2021

Las piezas pueden verse un poco distintas a la ilustración.

Sujetadores no aseguradores para los soportes adaptadores

Sujetadores aseguradores para los soportes adaptadores

Aseguradora

ST635P-S ST635 ST635-S

Cantidad Negro(a) Plateado(a) Negro(a) Plateado(a)

AA placa de pared 1 201-4506 201-1506 201-4506

CC 1201-4463 201-1464 201-4464

BB 1201-4461 201-1462 201-4462

DD 25S1-015-C03 5S1-015-C03 5S1-015-C03

EE 2590-0097 590-0097 590-0097

FF 1no incluida 560-1133 560-1133

anclaje alligator®590-0097

desarmador de seguridad de 4 mm no incluida

soporte adaptador derecho 201-1461

tornillo para madera de 14 x2.5” 5S1-015-C03

Antes de comenzar, asegúrese de que su producto contiene todas las piezas que se muestran.

201-1506

soporte adaptador izquierdo 201-1463

Descripción

ST635P

No Aseguradora

Lista de piezas

Autres manuels pour SmartMount ST 635

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels PEERLESS Support et étagère

PEERLESS

PEERLESS Vision-Point LCV 100 Mode d’emploi

PEERLESS

PEERLESS PWMT300 Manuel utilisateur

PEERLESS

PEERLESS SR1G Mode d’emploi

PEERLESS

PEERLESS Perfect Mount PMF2X2 Manuel utilisateur

PEERLESS

PEERLESS PARAMOUNT PA730 Mode d’emploi

PEERLESS

PEERLESS SmartMount SA750P Mode d’emploi

PEERLESS

PEERLESS SUF640P and assembly Mode d’emploi

PEERLESS

PEERLESS IMC 18 Mode d’emploi

PEERLESS

PEERLESS SMARTMOUNT SCS221 Mode d’emploi

PEERLESS

PEERLESS WWSP 420 Manuel utilisateur

PEERLESS

PEERLESS MOD-FPSKIT150 Mode d’emploi

PEERLESS

PEERLESS Smartmount SA752PU Mode d’emploi

PEERLESS

PEERLESS PLT BLK Mode d’emploi

PEERLESS

PEERLESS SA761P Mode d’emploi

PEERLESS

PEERLESS PWS211 Mode d’emploi

PEERLESS

PEERLESS FPZ-655 Mode d’emploi

PEERLESS

PEERLESS ACC951 Mode d’emploi

PEERLESS

PEERLESS DS-VW650 Mode d’emploi

PEERLESS

PEERLESS SlimLine MOWV241/BK Manuel utilisateur

PEERLESS

PEERLESS COL 510P Mode d’emploi

PEERLESS

PEERLESS HCACC503 Manuel utilisateur

PEERLESS

PEERLESS PARAMOUNT PT640 and assembly Mode d’emploi

PEERLESS

PEERLESS Mobile Videowall Trolley PDVWM 2x2 46 55 L Mode d’emploi

PEERLESS

PEERLESS Solid-Point PLCM UN1 Mode d’emploi

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
