PEERLESS MIS 213 Mode d’emploi

ISSUED: 02-02-05 SHEET #: 120-9016-1

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com 1 of 5

Maximum Load Capacity:

75 lb (34 kg)

Model: MIS 213

Read instruction sheet before you start installation and assembly.

Installation and Assembly - Custom Cathedral Ceiling

Adapter for CMJ 455

• Installer must verify that the ceiling will safely support

fourtimesthecombinedweightofallattachedequip-

mentandhardware.

WARNING

ISSUED: 02-04-05 SHEET #: 120-9016-1

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com 2 of 5

CEF

Description Qty. Part #

Aceiling bracket 2 055-2486

Bflush mount tube 2 580-0004

C1/4-20 x 5/8" carriage bolt 4 520-1175

D1/4-20 nylock nut 4 530-2002

E1/4" ID x 3/4" OD washer 4 540-9444

FM5 x .8 x 10 mm phillips self-tapping screw 2 520-2005

Parts List

ISSUED: 02-02-05 SHEET #: 120-9016-1

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com 3 of 5

Note:RefertoCMJ455instructionsforattachmentofCMJ455toceiling.

Screw ceiling bracket (A) and flush mount tube (B) into threaded fitting of CMJ 455 and align slot of flush mount tube

withoneoftheholesinthreadedfitting.ThreadM5x10mmself-tappingscrew(F)throughthreadedfittingintoflush

mount tube as shown in detail 1.

Insertflush mount tube (B) from the bottom, and thread flush mount tube into threaded fitting of ceiling bracket (A).

THREADED

FITTING

CMJ455

THREADED

FITTING

DETAIL 1

SLOT

ISSUED: 02-04-05 SHEET #: 120-9016-1

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com 4 of 5

Attachupper ceiling bracket (A) to lower ceiling bracket(A)byinsertingfour carriage bolts (C) through holes of

ceiling brackets. Fasten bolts with four washers (E) and nylock nuts (D) as shown.

Note: Adjust lower ceiling bracket until it is level before tightening nuts (D).

Note:Skip this step if you are installing an extension column.

For flush mount installation Insertflushmounttube (B) from the top, and thread flush mount tube into threaded

fitting of second ceiling bracket (A).

THREADED

FITTING

ISSUED: 02-02-05 SHEET #: 120-9016-1

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com 5 of 5

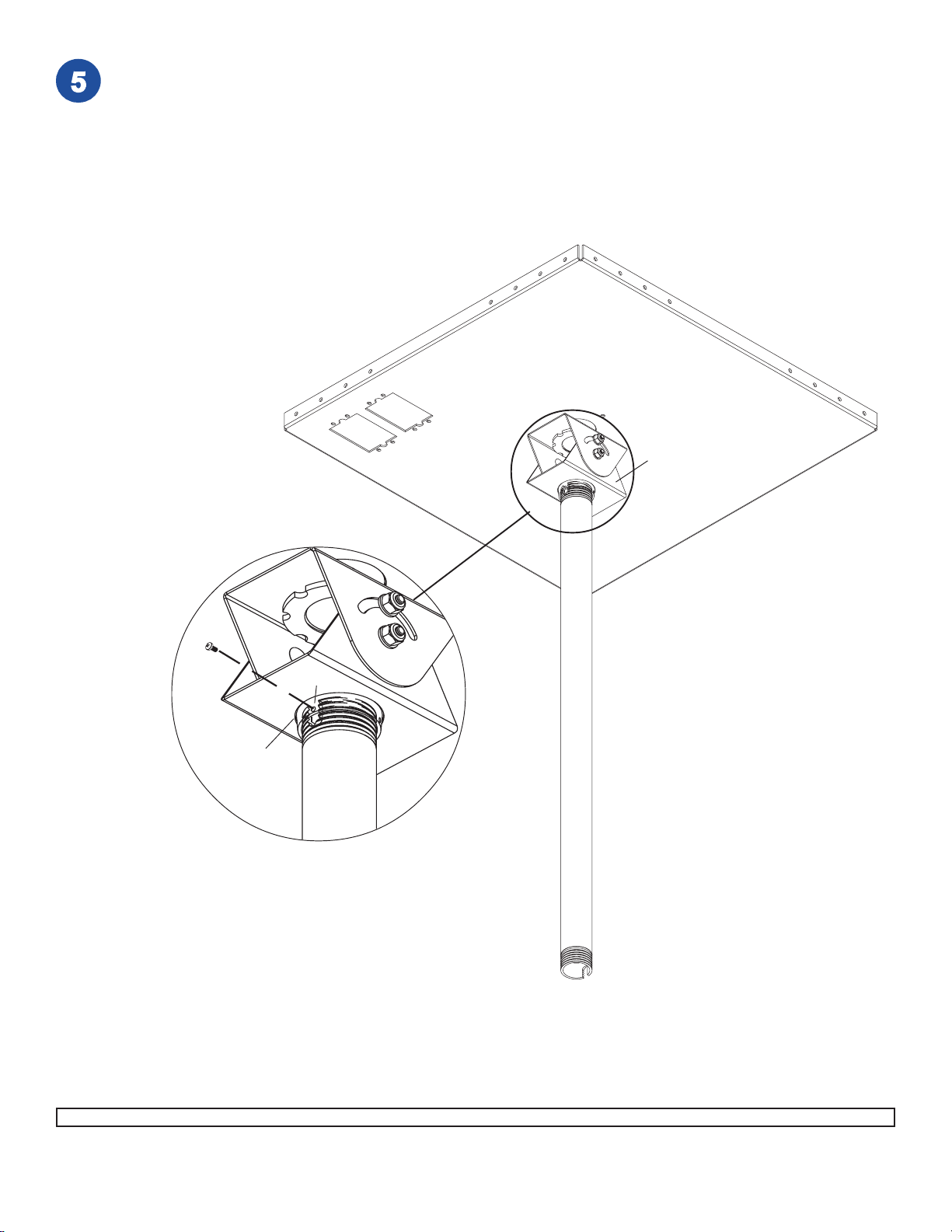

For 1-1/2" Extension Column Application (EXT or ADJ series) Screw

extension column into threaded fitting of lower ceiling bracket (A) and align slot

of extension column with one of the holes in threaded fitting. Thread M5 x 10

mmself-tappingscrew(F)throughlowerceilingbracket into extension column

as shown in detail 2.

Note: 3/4" extension column (FLP series) can be used in place of the EXT or

ADJseries.Two pipereducers(ACC913)are requiredforinstallingthe3/4"

column.

EXTENSION

COLUMN

DETAIL 2

SLOT

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

THREADED

FITTING
