PEERLESS PRS-KIT0811 Mode d’emploi

This product is UL Listed. It must be

installed by a qualified professional

installer.

Max ULLoad Capacity: 25 lb (11.3 kg)

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Installation and Assembly:

Model: PRS-KIT0811, PRS-KIT1420, PRS-KIT2026

2 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Note: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

•stud finder ("edge to edge" stud finder is recommended)

•phillips screwdriver

•drill with 1/4", 3/8", and 5/32" drill bits

Table of Contents

Parts List..............................................................................................................................................................................3

Installation to Wood Joist Ceiling ..........................................................................................................................................4

InstallationtoConcreteCeiling .............................................................................................................................................5

InstallationofExtensionColumn...........................................................................................................................................6

Installing Projector Mount assembly to the Extension Column .............................................................................................7

InstallingProjectorAdapterPlate..........................................................................................................................................7

ProjectorAlignment ..............................................................................................................................................................8

Forcustomer care call(800)729-0307 or (708)865-8870.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer service at 1-800-729-0307.

• Thisproduct should onlybeinstalled by aqualifiedprofessional.

• Makesure thatthesupporting surfacewillsafely supportthecombined loadofthe equipmentand all attachedhard-

wareandcomponents.

• Never exceed the Maximum UL Load Capacity of 25 lb (11.3 kg).

• If mounting to wood studs, make sure that mounting screws are anchored into the center of the studs. Use of an

"edgeto edge" studfinderis highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrews firmly, but donotovertighten. Overtightening candamagetheitems, greatly reducingtheirholding

power.

WARNING

3 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

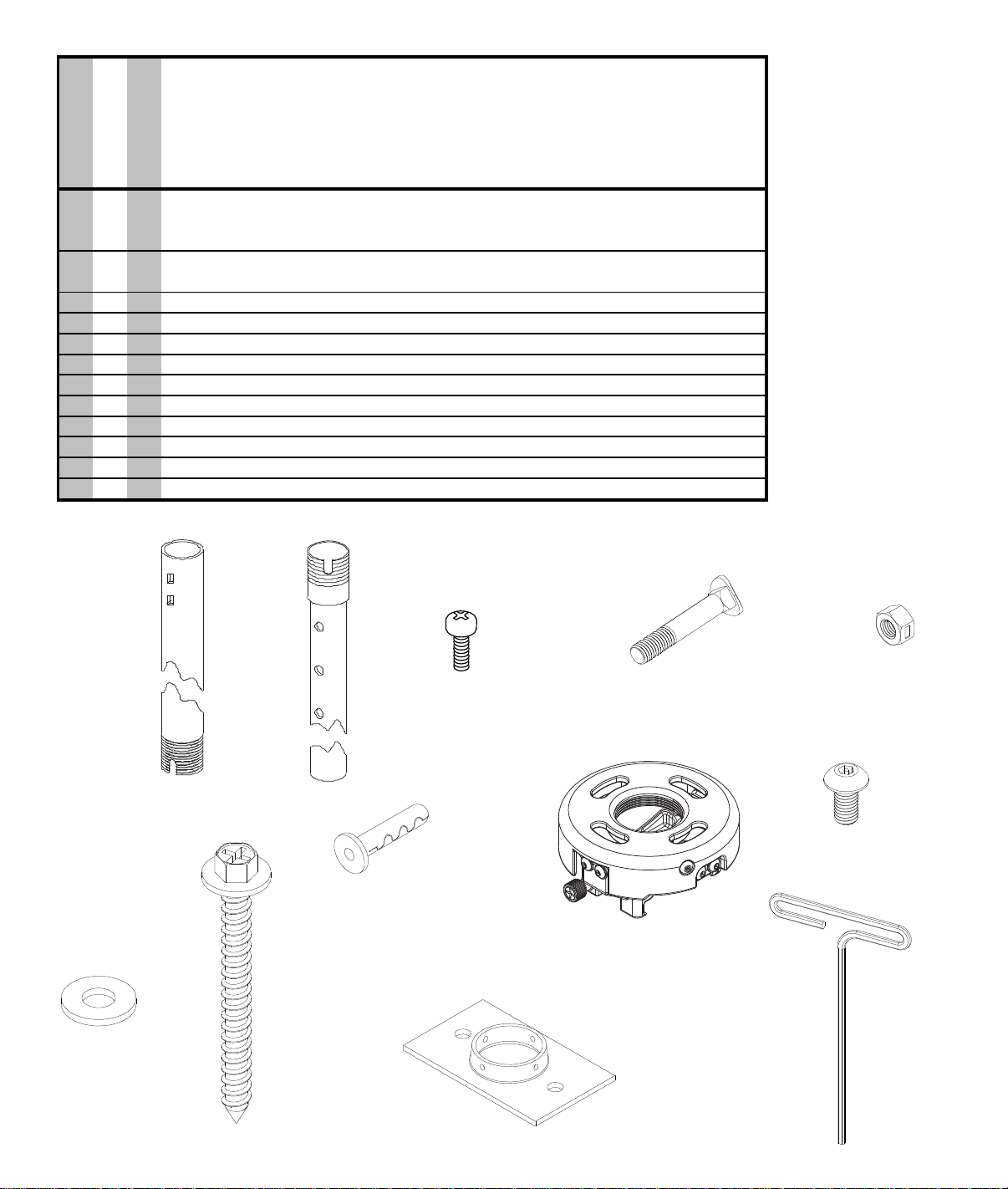

Note: Actual parts may appear slightly different than illustrated.

Description Qty. Part #

extension pipe 1 154-1025

X154-1032

X154-1034

XBadjuster tube 1 154-1028

XX 154-1030

XXX CM5 x .8 x 10 mm phillips screw 1 520-9250

XXX DM10 x 60 mm carriage bolt 1 580-1022

XXX EM10 center lock nut 1 530-9402

XXX Fprojector mount assembly 1 055-0604

XXX Hflat washer 2 540-1078

XXX I#14 x 2.5 phillips hex head wood screw 2 5S1-015-C03

XXX Jconcrete anchor 2 590-0097

XXX Kceiling plate 1 580-1042

XXX L#10-32 x 1/4"socket pin screw 1 520-1196

XXX M4 mm security t-wrench 1 560-1718

Parts List

PRS-KIT 0811

PRS-KIT 1420

PRS-KIT 2026

4 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Drill two 5/32" (4 mm) dia. holes to a minimum

depth of 2.5" (64 mm). Attach ceiling plate (K)

with two #14 x 2.5" (6 mm x 65 mm) wood

screws (I) as shown using 3/8" (10 mm) socket

wrench.Tighten woodscrews(I) so ceilingplate

(K) is firmly attached.

Skip to step 2 on page 6.

Installation to Wood Joist Finished Ceilings,

Exposed Wood Joists, or Wood Beam Ceilings

• Tighten wood screws so that ceiling plate is firmly

attached,butdonot overtighten. Overtightening can

damagethe screws, greatlyreducingtheirholding

power.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Make sure that mounting screws are anchored into the

center of the joist. The use of an "edge to edge" stud

finderishighly recommended.

WARNING

WOOD

JOIST

CEILING

5 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Installation to Concrete Ceilings

Drill two 1/4" (6 mm) dia. holes to a minimum depth of

2.5" (64 mm). Attach ceiling plate (K) using two

concrete anchors (J) and #14 x 2.5" wood screws (I)

as shown in Illustration A and 1, 2, and 3 (below).

Tightenallfasteners.

Illustration A

CONCRETECEILING

Drill hole and insert anchor

Place ceiling plate over anchor and secure with screw

After repeating step one tighten all fasteners

concrete

ceiling

CUTAWAYVIEW

INCORRECT

concrete

metal

bracket

plaster/

drywall

CORRECT

concrete

metal

bracket

plaster/

drywall

• Tightenwoodscrews firmly, butdonot overtighten.

Overtighteningcandamage the bolt, greatlyreducing

itsholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

• Concrete anchors are notintendedforattachmentto

concretewall covered withalayer of plaster,drywall,

orother finishing material.Ifmounting to concretewall

coveredwithplaster/drywallisunavoidable, plaster/

drywall (up to 5/8" thick) must be counterbored as

shown below. If plaster/drywall is thicker than 5/8",

custom fasteners must be supplied by installer.

WARNING

6 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Attachthreadedendofadjustertube (B) tothreaded

fittinginceiling plate (K).Tightensecurelyaligning

slot in end of adjuster tube (B) with one of the holes

inthe sideof threaded fitting.Insert and tightenone

M5 x .8 x 10 mm phillips screw (C) to lock adjuster

tube(B)tothreadedfitting.

• Installer must verify that the ceiling will safely support

thecombined weight ofallattachedequipment and

hardware.

WARNING

• Adjuster tube (B) must befully threaded (sixor seven

fullturns) ontothreadedfitting inceilingplate and then

locked with screw (C).

WARNING

Slideextensionpipe(A)over adjuster tube (B)tothe

desired height. Attach with one M10 x 60 mm

carriagebolt (D)andlock nut (E).

Installation of Extension Column

7 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Installation to Extension Column

Screwprojector mountassembly(F) ontoextension column (A).Tightenswivel stop screwagainst extension column

using a phillips head screw driver. Note: Swivel stop screw is used to jam against threads of extension column (A) to

preventanyexcessmovementofprojectormountassembly(F).Donotovertightenscrew;overtighteningscrewwill

damagethreads making itdifficultto separate products.

SWIVELSTOPSCREW

BACKOF

MOUNT

Installation of Adapter Plate

Note:UseaccompanyingSpider™ UniversalAdapterPlate instruction to installtheadapterplate,before proceeding

with step 5.

Slide connection block of adapter plate with projector into projector mount assembly (F) as shown. Tighten captive

screw to secure projector to projector mount assembly (F).

CONNECTIONBLOCK

• Always use an assistant or mechanical lifting equip-

ment to safely lift and position the projector.

WARNING

Installation of Projector

ADAPTERPLATE

CAPTIVESCREW

FRONTOFMOUNT

8 of 8 ISSUED: 06-02-05 SHEET #: 054-9124-6 07-10-09

Projector AlignmentProjector Alignment

Projector Alignment

To adjust yaw (swivel): Loosen screw on projector mount assembly (F) indicated below until projector mount can

be rotated. Rotate mount to desired position and retighten screw.

To adjust pitch (forward and backward tilt): Loosen two screws on projector mount assembly (F) indicated

below. Tilt mount to desired position and retighten screws.

To adjust roll (side to side tilt): Loosen two screws on projector mount assembly (F) indicated below. Tilt mount

todesired position andretighten screws.

PeerlessisaregisteredtrademarkandSmartmountisatrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (L) through projector mount

assembly (F) and into connection block as shown.

FCONNECTIONBLOCK

SCREWFORSWIVELSTOP

FSCREWSFORROLLADJUSTMENT

SCREWSFORPITCHADJUSTMENT
