PEERLESS LWB375 Mode d’emploi
ISSUED: 08-12-91 SHEET #: 029-9004-8 12-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 4
Before you start make sure all
parts shown below are included.
WALLCONSTRUCTION ADDITIONAL HARDWARE REQUIRED
Wood Stud, Wood Beam none
SolidConcrete,Cinder ConcreteAnchor Kit - order accessory kit ACC 204.
Block, Brick
Otherorunsure? ContactCustomerService.
IMPORTANT! Certain types of walls require additional mounting hardware...
Installation and Assembly - Wall Mount Non-Tilt and Fixed Tilt Models: LWB375, LWB375T
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Note: Steps 1 and 2, page 2, apply to model LWB375 only. If installing LWB375T begin with step 3.
Part # Qty. Description
A041-1011 1 18” wall arm
B120-0013-1 1 lower tray (LWB375 only)
120-0053-1 1 lower tray (LWB375T only)
C2245-371 1 upper tray
D510-9107 4 1/4-20 x 3/8" phillips screw
E500-9006 4 #10 phillips screw
F540-9400 4 flat washer
PARTS LIST
Part # Qty. Description
G3022-502 1 lock plug
0000-322 1 key (not shown)
H520-9250 4 M5 x .8 x 10 mm phillips screw
I2245-081 4 uni-clip
J5S1-015-CO3 3 #14 x 2.5 (6 mm x 65 mm) wood screw
K520-9504 2 M5 x .8 x 6 mm phillips screw (LWB375 only)
Some parts may not appear exactly as illustrated.
*
*
R
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
Product is UL rated up to 27" TV, 125 lb
• Installer must verify that the wall will safely support
fourtimes the combined weightof all attached equip-
mentand hardware.
WARNING
D
E
GA
C
BI
H
F
K
J
ISSUED: 08-12-91 SHEET #: 029-9004-8 12-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 4
A
J
∅ 5/32" (4 mm)

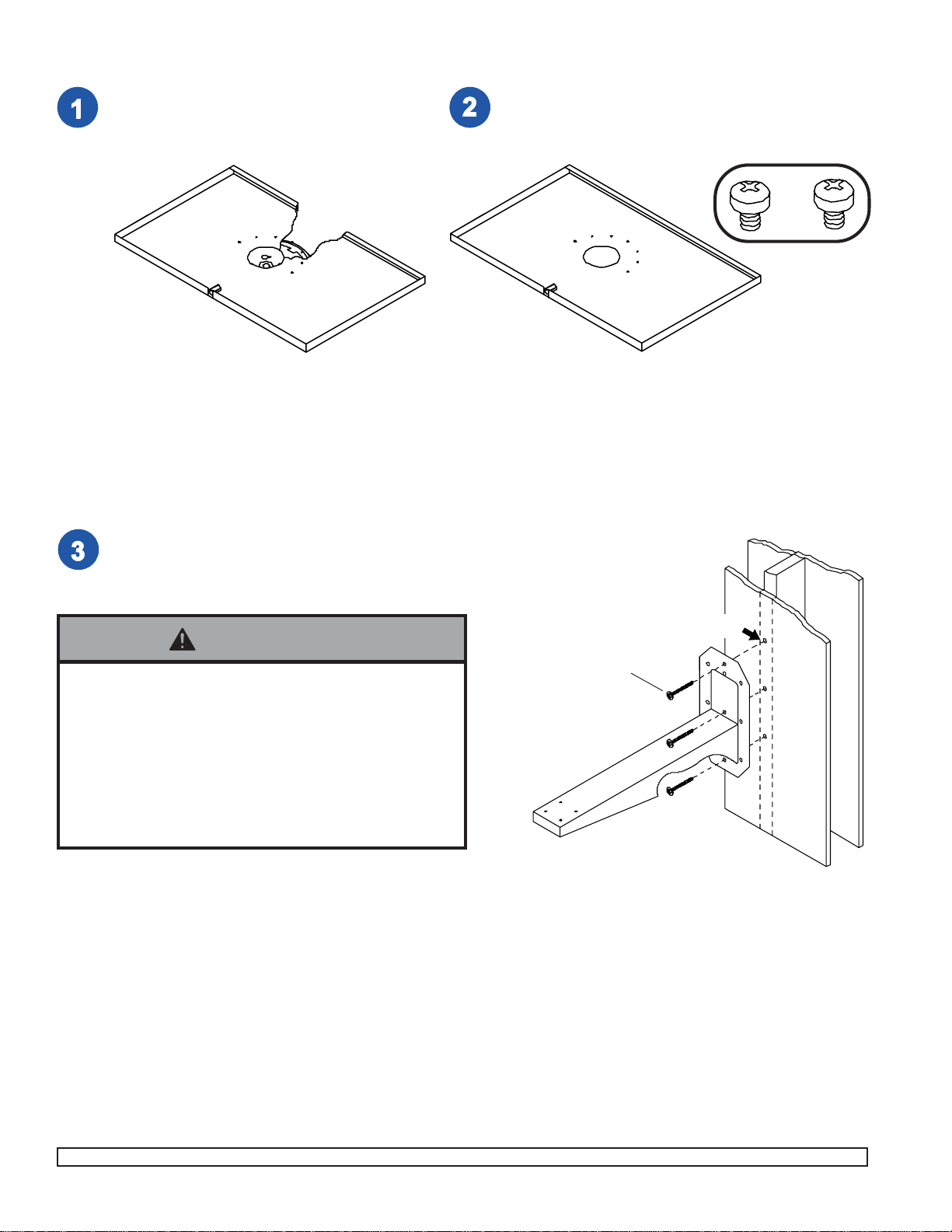

For attachment to a wood stud wall drill three
5/32" (4 mm) dia. holes 2 1/2" (65 mm) deep into
stud centers.Attach wall arm (A) with #14 x 2.5"
(6 mm x 65 mm) wood screws (J).
Make sure that swivel race tab on lower tray (B)
is positioned as shown.
90Ο
60Ο30Ο
30Ο
60Ο
90Ο
BK
OPTIONAL: Install two M5 x .8 x 6 mm phillips
screws(K) intoswivelrestrictionholes. Swivel
stop positions are noted next to each hole.
• Tighten wood screws so that wall plate is firmly
attached,butdonotovertighten.Overtightening can
damagethescrews, greatly reducing theirholding
power.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the studs. The use of an "edge to edge" stud
finderishighlyrecommended.
WARNING
ISSUED: 08-12-91 SHEET #: 029-9004-8 12-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
3 of 4
For Concrete Walls use wall arm (A), making sure that
it is level, as a template to mark holes. Drill 1/4" (6 mm)
dia. holes to a minimum depth of 2.5" (64 mm). Concrete
must be 2000 psi density minimum. Insert anchors in
holes flush with wall as shown (right). Place wall arm
over anchors and secure with #14 x 2.5" (6 mm x 65
mm)wood screws.Tightenallfasteners.
concrete
wall
1
3
2
Drill holes and insert anchors.
Place wall arm (A) over anchors and secure with screws.
Tighten all fasteners
ACC 204
A
WARNING
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill
toavoid breaking out theback of the holewhen entering a voidor cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hard-
wareandcomponents.
• Tighten concrete anchor bolts firmly, but do not
overtighten.Overtighteningcandamagethebolts,
greatlyreducingtheirholdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
• Concreteanchorsare not intended forattachmentto
concretewall covered with alayerof plaster, drywall,
orother finishing material. Ifmounting to concrete wall
coveredwithplaster/drywallisunavoidable,plaster/
drywall (up to 5/8" thick) must be counterbored as
shown below. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
WARNING
CUTAWAYVIEW
INCORRECT
concrete
plaster/
drywall
mounting
plate
CORRECT
concrete
plaster/
drywall
mounting
plate
∅ 5/16" (8 mm)
A
J
ACC 204
(not included)
ISSUED: 08-12-91 SHEET #: 029-9004-8 12-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
4 of 4
CB
G
Insert key into lock plug (G). Attach TV/upper
tray (C) to lower tray (B) as shown. Slide upper tray (C) back until fully engaged. Firmly
hold in position while you insert and tighten lock plug
(G),severalturns,untilfullyengaged.
Note: To remove key, slot must be in the horizontal
position. This may require that you back off 1/4 turn.
©2004PeerlessIndustries,Inc. Allrightsreserved.
PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
C
G
TurnTV upside downonflatstable surface. Using
uni-clips (I) and M5 screws (H) (see instruction
cardin fastener pack), or 3/4 particle board
screws (E)and washers (F) (forattachment to
mountingbosses if present), oracombination of
both attach upper tray (C) to TV bottom. Attach at
four places as close to the four corners of the TV
bottom as possible.
C
E
I
H
F
Attach lower tray (B) to wall arm (A) using four
1/4-20 x 3/8 phillips screws (D). Tighten securely.
B
D
A
• Always use an assistant or mechanical lifting equip-
ment to safely lift and position the plasma television.
WARNING
