Kramer TP-121EDID Manuel utilisateur

Kramer Electronics, Ltd.

Preliminary

USER MANUAL

Models:

TP-121EDID, XGA / Audio Line Transmitter

TP-123EDID, XGA / Audio / Data Line Transmitter

TP-125EDID,XGA / Audio / Data Line Transmitter

PT-110EDID, XGA Line Transmitter

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 1

3Overview 3

3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 3

3.2 About the Power Connect Feature 3

3.3 Defining EDID 4

3.4 Recommendations for Achieving the Best Performance 4

4Your TP-121EDID XGA / Audio Line Transmitter 4

4.1 Connecting the TP-121EDID XGA / Audio Line Transmitter 6

4.2 Technical Specifications 8

5Your TP-123EDID XGA / Audio / Data Line Transmitter 8

5.1 Connecting the TP-123EDID XGA / Audio / Data Line Transmitter 9

5.2 Controlling via RS-232 (for example, using a PC) 12

5.3 Technical Specifications 12

6Your TP-125EDID XGA / Audio / Data Line Transmitter 13

6.1 Connecting the TP-125EDID XGA / Audio / Data Line Transmitter 14

6.2 Transmitting via RS-232 (for example, using a PC) 16

6.3 Technical Specifications 17

7Your PT-110EDID XGA / Line Transmitter 17

7.1 Connecting the PT-110EDID XGA / Line Transmitter 18

7.2 Technical Specifications 20

8Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 21

9Acquiring the EDID 21

Figures

Figure 1: TP-121EDID XGA / Audio Line Transmitter 5

Figure 2: Connecting the TP-121EDID XGA / Audio Line Transmitter 7

Figure 3: TP-123EDID XGA / Audio / Data Line Transmitter 9

Figure 4: Connecting the TP-123EDID XGA / Audio / Data Line Transmitter 11

Figure 5: RS-232 PINOUT Connection 12

Figure 6: TP-125EDID XGA / Audio / Data Line Transmitter 13

Figure 7: Connecting the TP-125EDID XGA / Audio / Data Line Transmitter 16

Figure 8: RS-232 PINOUT Connection 16

Figure 9: PT-110EDID XGA Line Transmitter 18

Figure 10: Connecting the PT-110EDID XGA / Line Transmitter 20

Figure 11: CAT 5 PINOUT 21

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Tables

Table 1: TP-121EDID XGA / Audio Line Transmitter Features 5

Table 2: Technical Specifications of the TP-121EDID 8

Table 3: TP-123EDID XGA / Audio / Data Line Transmitter Features 9

Table 4: RS-232 PINOUT Connection 12

Table 5: Technical Specifications of the TP-123EDID 12

Table 6: TP-125EDID XGA / Audio / Data Line Transmitter Features 14

Table 7: RS-232 PINOUT Connection 16

Table 8: Technical Specifications of the TP-125EDID 17

Table 9: PT-110EDID XGA Line Transmitter Features 18

Table 10: Technical Specifications of the PT-110EDID 20

Table 11: CAT 5 PINOUT 21

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models

now appear in 11 groups1

Thank you for purchasing your Kramer TOOLS: TP-121EDID XGA / Audio

Line Transmitter, and/or TP-123EDID, XGA / Audio / Data Line

Transmitter, and/or TP-125EDID,XGA / Audio / Data Line Transmitter,

and/or Kramer Pico TOOLS™ PT-110EDID, XGA Line Transmitter, which

are ideal for:

that are clearly defined by function.

•Presentation and multimedia applications

•Long range graphics distribution for schools, hospitals, security, and

stores

The package includes:

•One or more of the following: TP-121EDID,TP-123EDID,

TP-125EDID or PT-110EDID

•Power adapter (12V DC)

•This user manual2

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables3

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

This user manual describes the following:

•TP-121EDID XGA / Audio Line Transmitter (see section 4)

•TP-123EDID XGA / Audio / Data Line Transmitter (see section 5)

•TP-125EDID XGA / Audio / Data Line Transmitter (see section 6)

•PT-110EDID XGA Line Transmitter (see section 7)

This section describes:

•Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see

section 3.1

•The power connect feature, see section 3.2

•Defining EDID, see section 3.3

•Recommendations for achieving the best performance, see section 3.4

3.1 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)

We recommend that you use shielded twisted pair (STP) cable. There are

different levels of STP cable available, and we advise you to use the best

quality STP cable that you can afford. Our non-skew-free cable, Kramer

BC-STP is intended for analog signals where skewing is not an issue. For

cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP,

may be used. Bear in mind, though, that we advise using STP cables where

possible, since the compliance to electromagnetic interference was tested

using those cables.

Although unshielded twisted pair (UTP) cable might be preferred for long

range applications, the UTP cable should be installed far away from electric

cables, motors and so on, which are prone to create electrical interference.

However, since the use of UTP cable might cause inconformity to electromagnetic

standards, Kramer does not commit to meeting the standard with UTP cable.

3.2 About the Power Connect Feature

The Power Connect feature applies as long as the cable can carry power. The

distance does not exceed 50m on standard CAT 5 cable, for longer distances,

heavy gauge cable should be used1

For a CAT 5 cable exceeding a distance of 50m, separate power supplies

should be connected to the transmitter and to the receiver simultaneously.

1 CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your TP-121EDID XGA / Audio Line Transmitter

3.3 Defining EDID

The TP-121EDID,TP-123EDID,TP-125EDID, and PT-110EDID include:

•EDID Capture - Copies and stores the EDID from a display device

The Extended Display Identification Data (EDID

) is a data-structure,

provided by a display, to describe its capabilities to a graphics card (that is

connected to the display’s source). The EDID enables the graphic source to

“know” what kind of monitor is connected to the output. The EDID includes

the manufacturer’s name, the product type, the timing data supported by the

display, the display size, luminance data and (for digital displays only) the

pixel mapping data.

3.4 Recommendations for Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables

to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables).

•Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer transmitters

away from moisture, excessive sunlight and dust

4 Your TP-121EDID XGA / Audio Line Transmitter

The TP-121EDID is an XGA / audio stereo line transmitter. It receives an

XGA signal and an unbalanced stereo analog audio signal and transmits them

over CAT 5 cable to a receiver

, converting the unbalanced stereo analog

audio signal to digital audio (S/PDIF) stream before transmitting, thus

preserving the quality of the audio signal.

When the TP-121EDID is connected to a display device and the EDID

CAPTURE button is pressed, the TP-121EDID reads and stores the EDID

(Extended Display Identification Data) from the display device. The display can

be disconnected and later reconnected without rebooting the operating system.

1 Defined by a standard published by the Video Electronics Standards Association (VESA)

2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

3 For example, the Kramer TP-122 XGA / Audio Line Receiver

Your TP-121EDID XGA / Audio Line Transmitter

In particular, the TP-121EDID:

•Has a transmission range of more than 300ft (more than 100m), and a

20kHz audio bandwidth with an S/N ratio that exceeds 80dB on the same

transmission range

•Can power or be powered by the receiver over the same CAT 5 cable

•Is 12V DC fed

Figure 1and Table 1define the TP-121EDID:

Figure 1: TP-121EDID XGA / Audio Line Transmitter

Table 1: TP-121EDID XGA / Audio Line Transmitter Features

Feature

Function

1 12V DC +12V DC connector for powering the unit

2 AUDIO IN 3.5mm mini jack Connects to the audio source

3 LINE OUT RJ-45 connector Connects to

4 the LINE IN RJ-45 connector on a receiver

XGA IN 15-pin HD (F) connector Connect to the XGA source

5 EDID2CAPTURE Button Press to acquire the EDID information from the display

6 STATUS LED Illuminates during normal operation; blinks when

acquiring the EDID

7 ON LED Illuminates when receiving power

1 Using a CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 11 and Figure 11)

2 See section 9

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your TP-121EDID XGA / Audio Line Transmitter

4.1 Connecting the TP-121EDID XGA / Audio Line Transmitter

You can use the TP-121EDID together with the TP-122 XGA / Audio Line

Receiver1

Before connecting the transmitter and receiver system you can acquire the

EDID from the display or set the system to the default EDID, see section

to configure an XGA/Audio Line-to-Twisted Pair Transmitter and

Receiver system.

To connect the TP-121EDID XGA / Audio Line Transmitter with the TP-122

XGA / Audio Line Receiver, as the example in Figure 2illustrates, do the

following:

1. On the TP-121EDID, connect the XGA source (for example, a laptop’s

graphics card) to the XGA INPUT 15-pin HD (F) connector and an audio

source to the AUDIO IN 3.5mm mini jack, for example, using a Kramer

C-GMA/GMA cable (VGA 15-pin HD (M) +Audio jack to VGA 15-pin HD

(M) +Audio jack)2

2. On the TP-122, connect the XGA OUT 15-pin HD (F) connector to the

XGA acceptor (for example, a display), and connect the AUDIO OUT

S/PDIF RCA connector to the digital audio acceptor (for example, an AV

Receiver), and the ANALOG 3.5mm mini jack to the analog audio acceptor

(for example, a stereo audio recorder).

. Alternatively, you can connect an XGA source to the

XGA INPUT 15-pin HD (F) connector, and a separate audio source to the

AUDIO IN 3.5mm mini jack.

3. Connect the LINE OUTPUT RJ-45 connector on the TP-121EDIDto the

LINE IN RJ-45 connector on the TP-122, via CAT 5 cabling (with a range

of more than 300ft (>100m)), see section 8.

4. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity on both3

5. On the TP-122:

the TP-121EDID and the TP-122.

The signal from the XGA source is transmitted via CAT 5 cable, decoded and

converted at the XGA OUT 15-pin HD (F) connector to the XGA acceptor.

Adjust4

If necessary, set the H SYNC and V SYNC switches

the video output signal level and/or cable compensation

equalization level, if required 5

1 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

, on the underside

2 Not supplied. The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

3 If you cannot connect the power to both the TP-121EDID and TP-122, you can just connect the power to the TP-122

4 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level

5 By default, both switches are set down (for negative V SYNC and H SYNC polarity)

Your TP-121EDID XGA / Audio Line Transmitter

Figure 2: Connecting the TP-121EDID XGA / Audio Line Transmitter

Autres manuels pour TP-121EDID

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer WP-789T Manuel utilisateur

Kramer

Kramer SWT3-41-U-T Manuel utilisateur

Kramer

Kramer F-110 Manuel utilisateur

Kramer

Kramer TP-145 Manuel utilisateur

Kramer

Kramer SID-X1 Manuel utilisateur

Kramer

Kramer PT-571 Manuel utilisateur

Kramer

Kramer Cobra TS2 Manuel utilisateur

Kramer

Kramer DigiTOOLS KW-11T Manuel utilisateur

Kramer

Kramer 675T Manuel utilisateur

Kramer

Kramer 691 Manuel utilisateur

Kramer

Kramer VA-1USB-T Manuel utilisateur

Kramer

Kramer PT-571HDCP Manuel utilisateur

Kramer

Kramer WP-580Txr Manuel utilisateur

Kramer

Kramer WP-871xr Manuel utilisateur

Kramer

Kramer WP-110xl Manuel utilisateur

Kramer

Kramer WP-110xl Manuel utilisateur

Kramer

Kramer TA-110HD Manuel utilisateur

Kramer

Kramer 611T Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer VP-200XLTHD Manuel utilisateur

Kramer

Kramer TOOLS TP-104 Manuel utilisateur

Kramer

Kramer TP-410 Manuel utilisateur

Kramer

Kramer Cobra TS2 Manuel utilisateur

Kramer

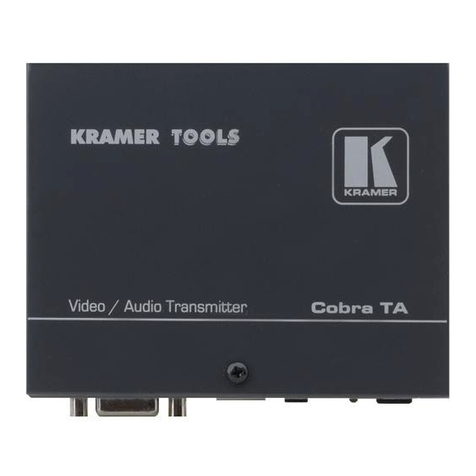

Kramer TA Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
