Kramer SID-X1N Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

SID

-X1N

Step

-in Commander

P/N: 2900-300302 Rev 5

SID-X1N – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 About the Power Connect Plus™ Feature 3

2.4 Shielded Twisted Pair/Unshielded Twisted Pair 3

2.5 Recycling Kramer Products 3

3Overview 4

4Defining the SID-X1N Step-in Commander 6

5Connecting the SID-X1N 8

5.1 Connecting the Remote Step-In Switch and LED 9

5.2 Connecting the Remote Select Switch and LED 10

5.3 Connecting the Remote Input Selection LEDs 11

6Principles of Operation 12

6.1 Video Input Selection 12

6.2 Audio Signal Control 13

6.3 Automatic Output Shutdown 13

7Operating the SID-X1N 14

7.1 Manually Selecting an Input 14

7.2 Taking Control of the Switcher Input 15

7.3 Locking the EDID 15

7.4 Adjusting the UXGA Input Phase 15

8Configuring and Maintaining the SID-X1N 16

8.1 Setting the Configuration DIP-switch 16

9Wiring the Twisted Pair RJ-45 Connectors 18

10 Technical Specifications 19

10.1 Supported Resolutions 20

11 Default EDID 22

11.1 HDMI, DisplayPort and DVI 22

11.2 PC-UXGA 24

12 Remote Commands 26

12.1 Kramer Protocol 2000 Syntax 26

12.2 Kramer Protocol 2000 Instruction Codes 27

12.3 RS-232 Hardware Interface 28

Figures

Figure 1: SID-X1N Step-in Commander Front Panel 6

Figure 2: SID-X1N Step-in Commander Rear Panel 7

Figure 3: Connecting the SID-X1N Step-in Commander 8

Figure 4: Remote Step-In Switch and LED Wiring 9

Figure 5: Remote Select Switch and LED Wiring 10

Figure 6: Remote Input Indicator LED Connections 11

Figure 7: Remote Input Indicator LED Wiring 11

Figure 8: The Configuration DIP-switch 16

Figure 9: TP Pinout Wiring 18

SID-X1N - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio, and

GROUP 14: Collaboration.

Thank you for purchasing the Kramer MegaTOOLS®SID-X1N Step-in

Commander which is ideal for:

•Display systems requiring simple input selection

•Remote monitoring of computer activity in schools and businesses

•Rental/staging applications

•Multimedia and presentation source selection

2 SID-X1N - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-

resolution, high-quality cables) to avoid interference, deterioration in signal

quality due to poor matching, and elevated noise levels (often associated

with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer SID-X1N away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

SID-X1N - Getting Started 3

2.3 About the Power Connect Plus™ Feature

The Power Connect Plus™ feature means that only the SID-X1N needs to be

connected to a power source when the SID-X1N and receiver are within 60m

(197ft) of each other. The Power Connect Plus™ feature applies as long as the

cable can carry power and the distance does not exceed 60m on standard TP

cable. (Heavier gauge cable may be used to extend the Power Connect Plus™

range).

2.4 Shielded Twisted Pair/Unshielded Twisted Pair

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; the Kramer BC-DGKat623 (CAT 6 23 AWG cable),

and the Kramer BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built

cables significantly outperform regular CAT 6 and CAT 7a cables.

2.5 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility.

4 SID-X1N - Overview

3 Overview

The SID-X1N accepts an HDMI, DisplayPort, DVI and PC graphics video input, as

well as an unbalanced stereo audio input (which is embedded into the output

signal), and transmits the signal via TP (Twisted Pair) cable to a compatible

switcher or DGKat receiver, (for example, the VP-81SIDNor PT-572+).

The SID-X1N also provides an unbalanced, stereo audio output. When the

SID-X1N is connected to a switcher, it also controls the input and output selection

of the switcher.

In particular the SID-X1N: features:

•HDTV support

•HDMI with x.v.Color™ and 3D

•HDCP compliancy—works with sources that support HDCP repeater mode

Note: When using a MacBook as a source and the content is protected

using HDCP, if the display does not support HDCP, no video is transmitted

•Input signal detection based on video clock presence

•Automatic input selection based on manual selection or last connected input

•Automatic analog audio detection and embedding

•Automatic output shutdown when the input signal is lost (with a configurable

delay)

•Installation up to 50m (164ft) from the switcher, (30m with the TP-574)

•I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID

handling & processing algorithm ensures Plug and Play operation for HDMI

systems

•A lockable EDID

•VGA phase adjustment

SID-X1N - Overview 5

•PowerConnectPlus – A single connection to the receiver powers both units.

The higher voltage PowerConnectPlus also powers regular PowerConnect

devices via auto-negotiation

•Equalization and reclocking of the data

•A maximum data rate of 4.95Gbps (1.65Gb per graphics channel)

•Support for digital audio formats

•A MegaTOOLS®sized enclosure. Two devices can be mounted in a rack

using the optional RK-T2B adapter

You can control the SID-X1N using the front panel buttons or remotely via contact

closure switches.

6 SID-X1N - Defining the SID-X1N Step-in Commander

4 Defining the SID-X1N Step-in Commander

Figure 1 defines the front panel of the SID-X1N.

Figure 1: SID-X1N Step-in Commander Front Panel

Feature

Function

1 AUDIO IN 3.5mm Mini Jack Connect to an unbalanced stereo audio source

HDMI

LED

Lights green when the HDMI input is selected

HDMI Connector

Connect to an HDMI source

DisplayPort

LED

Lights green when the DisplayPort input is selected

DP Connector

Connect to a DisplayPort source

6 DVI LED Lights green when the DVI input is selected

DVI Connector

Connect to a DVI source

PC-UXGA

LED

Lights green when the PC-UXGA input is selected

PC-UXGA

15-pin HD

Connector (F)

Connect to a PC graphics source

INPUT SELECT Button

Press repeatedly to cycle through the inputs manually to

select an input, (overrides automatic selection, see

Section 7.1).

Note: When the button is lit it is inactive and pressing the

button will not activate the input

STEP-IN Button

Press to activate the input on the switcher that the

SID-X1N is connected to, (see Section 7.2)

ON LED

Lights green when the device is powered on

Autres manuels pour SID-X1N

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer 650T Manuel utilisateur

Kramer

Kramer F-121 Manuel utilisateur

Kramer

Kramer TA-110HD Manuel utilisateur

Kramer

Kramer TP-185 Manuel utilisateur

Kramer

Kramer DIP-20 Manuel utilisateur

Kramer

Kramer TP-583T Manuel utilisateur

Kramer

Kramer WP-110xl Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer SID-X1 Manuel utilisateur

Kramer

Kramer VP-428H2 Manuel utilisateur

Kramer

Kramer SID-X3N Manuel utilisateur

Kramer

Kramer TP-580CT Manuel utilisateur

Kramer

Kramer TOOLS TP-104 Manuel utilisateur

Kramer

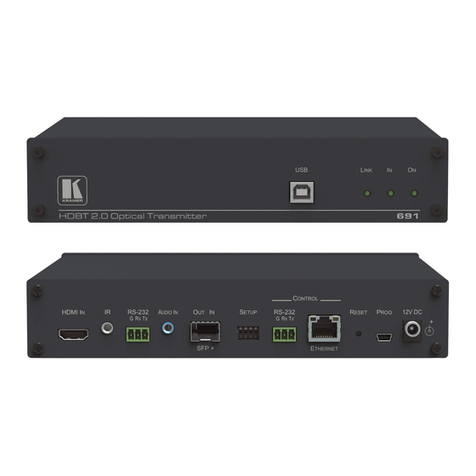

Kramer 691 Manuel utilisateur
