TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID

Quick Start

P/N:

2900- 301272QS

Rev:

Scan for full manual

TP-121EDID, TP-123EDID, TP-125EDID,

PT-110EDID Quick Start Guide

This guide helps you install and use your TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID for the first

time.

Go to www.kramerav.com/downloads/TP-121EDID to download the latest usermanual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID XGA/TP Transmitter

4 Rubber feet

1 Power supply (12V DC)

1 Quick start guide

Step 2: Get to know your TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID

Figure 1: TP-121EDID XGA/Audio Line Transmitter

Feature

Function

EDID

CAPTURE Button

Press to capture the EDID information from the display

STATUS LED

Illuminates during normal operation; flashes when acquiring the EDID

ON LED

Illuminates when receiving power

XGA IN 15-pin HD (F) connector

Connects to the XGA source

LINE OUT RJ-45 connector

Connects to the LINE IN RJ-45 connector on a receiver

Using a CAT 5 cable with RJ-45 connectors at both ends

AUDIO IN 3.5mm mini jack

Connects to the audio source

12V DC

+12V DC connector for powering the unit

Figure 2: TP-123EDID XGA/Audio/Data Line Transmitter

Feature

Function

EDID

CAPTURE Button

Press to acquire the EDID information from the display

STATUS LED

Illuminates during normal operation; flashes when acquiring the EDID

ON LED

Illuminates when receiving power

XGA IN 15-pin HD (F) connector

Connect to the XGA source

LINE OUT RJ-45 connector

Connects to the LINE IN RJ-45 connector on the TP-124 XGA/Audio Line Receiver

Use a CAT 5 cable with RJ-45 connectors at both ends

RS-232 terminal block connector

Connects to the PC or the Remote Controller

AUDIO IN 3.5mm mini jack

Connects to the audio source

12V DC

+12V DC connector for powering the unit

Figure 3: TP-125EDID XGA/Audio/Data Line Transmitter

Feature

Function

EDID

CAPTURE Button

Press to acquire the EDID information from the display

STATUS LED

Illuminates during normal operation; flashes when acquiring the EDID

ON LED

Illuminates when receiving power

XGA IN 15-pin HD (F) connector

Connect to the XGA source

LINE OUT RJ-45 connector

Connects to the LINE IN RJ-45 connector on the TP-126 XGA/Audio Line Receiver

Use a CAT 5 cable with RJ-45 connectors at both ends

RS-232 terminal block connector

Connects to the PC or the Remote Controller

AUDIO IN 3.5mm mini jack

Connects to the audio source

12V DC

+12V DC connector for powering the unit

Figure 4: PT-110EDID XGA Line Transmitter

Feature

Function

XGA IN 15-pin HD (F) Connector

Connect to the UXGA source

12V DC

+12V DC connector for powering the unit

EDID

CAPTURE Button

Press to acquire the EDID information from the display

STATUS LED

Illuminates during normal operation; flashes when acquiring the EDID

LINE OUT RJ-45 Connector

Connects to the LINE IN RJ-45 connector on the TP-120 UXGA/Audio Line Receiver

VS Switch

Slide up to set the V SYNC to NEGATIVE polarity;

slide down to set the V SYNC to NORMAL polarity

By default, both switches are set down (for normal V SYNC and H SYNC polarity)

HS Switch

Slide up to set the H SYNC to NEGATIVE polarity (NEG);

slide down to set the H SYNC to NORMAL polarity

By default, both switches are set down (for normal V SYNC and H SYNC polarity)

ON LED

Illuminates when receiving power

Step 3: Mount TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID

Install TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket on each side of the unit and attach it to a flat surface

(see www.kramerav.com/downloads/TP-121EDID).

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/TP-121EDID).

•Ensure that the environment (e.g., maximum ambient temperature &

air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your TP-121EDID, TP-123EDID, TP-125EDID,

PT-110EDID.

Wiring the RJ 45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ 45 connectors.

EIA /TIA 568B

Wire Color

Orange / White

Orange

Green / White

Blue

Blue / White

Green

Brown / White

Brown

The shielding must be connected/soldered to the connector shield.

To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/TP-121EDID.

Using third-party cables may cause damage!

Step 5: Connect power

Connect the power cord to TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

Step 6: Operate TP-121EDID, TP-123EDID, TP-125EDID, PT-110EDID

The transmitter can acquire the EDID information from the connected display or it can acquire the default EDID.

To acquire the display EDID, do the following:

1. Using a short cable, connect the XGA INPUT 15-pin HD connector of the transmitter to the XGA input connector of the

display.

Pins 12 and 15 of the VGA connector carry the EDID signal.

The cable used for capturing the EDID must pass all 15 pins.

2. Connect the display power.

3. On the transmitter, connect the 12V DC power adapter to the power socket and connect the adapter to the mains

electricity.

4. Press the EDID CAPTURE button.

5. Once the EDID STATUS flashes slowly several times, the EDID is captured.

6. Disconnect the display.

To acquire the default EDID:

Do not connect the transmitter to the display when acquiring the default EDID.

1. On the transmitter, connect the 12V DC power adapter to the power socket and connect the adapter to the mains

electricity.

2. Press the EDID CAPTURE button.

3. Once the EDID STATUS flashes rapidly several times, the default EDID is captured.

Alternatively, you can press the EDID CAPTURE button after connecting the transmitter-receiver system. When the EDID

STATUS LED flashes rapidly several times, the default EDID information is acquired.

Autres manuels pour TP-121EDID

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Émetteur

Kramer

Kramer 671T Manuel utilisateur

Kramer

Kramer VP-300THD Manuel utilisateur

Kramer

Kramer TP-45EDID Manuel utilisateur

Kramer

Kramer VP-200XLTHD Manuel utilisateur

Kramer

Kramer 691 Manuel utilisateur

Kramer

Kramer TA-110HD Manuel utilisateur

Kramer

Kramer 610T Manuel utilisateur

Kramer

Kramer TP-210A Manuel utilisateur

Kramer

Kramer PT-572HDCP+ Manuel utilisateur

Kramer

Kramer TP-121EDID Manuel utilisateur

Kramer

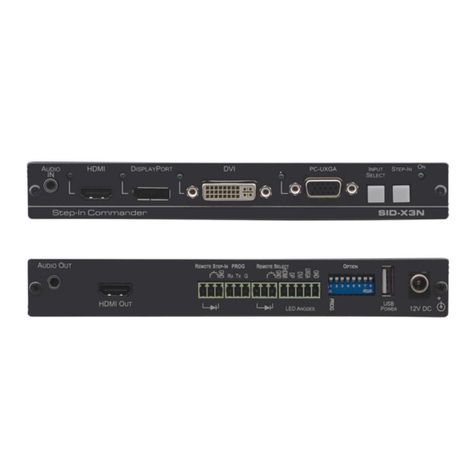

Kramer SID-X3N Manuel utilisateur
