Kohler K-10675 Manuel d'utilisation
Maintenance Guide
Electronic Valve
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-10675, K-10676, K-10678, K-10679
1108712-5-C
Table of Contents
EC Declaration of Conformity ............................. 3
Important Information ................................... 4
Your Kohler Electronic Valve .............................. 4
Control Stop Valve Operation ............................. 6
Remove The DC Sensor ................................ 7
Replace The Battery ................................... 8
Install The DC Sensor .................................. 9
Remove the Solenoid .................................. 10
Install The Solenoid ................................... 11
Clean the Screen/Replace the Piston ...................... 12
Clean/Replace the Diaphragm ........................... 14
Replace the Vacuum Breaker ............................ 16
Replace the Button Assembly ............................ 17
Five Year Limited Warranty .............................. 17
Troubleshooting ...................................... 19
Service Parts ........................................ 24
1108712-5-C 2 Kohler Co.
EC Declaration of Conformity
declare under our sole responsibility that our products, ELECTRONIC FLUSH VALVES, models:
We,
Kohler Company
444 Highland Drive, Kohler, WI 53044
Phone 920-457-4441
EC DECLARATION OF CONFORMITY
K-10673
to which this declaration relates, are in conformity with the following standards:
Electromagnetic Compatibility Directive 89/336/EEC of 3 May 1989 as Amended by
92/31/EEC of 28 April 1992 and 93/68/EEC, Article 5 of 22 July 1993, based on:
• IEC 61000/ IEC 61000-3-:
"Electromagnetic Compatibility (EMC)";
Part 3: "Limits".
Section 2. "Limits for harmonic current emissions (equipment input current up to and including
16A per phase" (2000).
Section 3. "Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage
supply systems, for equipment with rated current <16 A per phase and not subjected to
conditional connection" (1995 + A1:2001).
• EN 61000-6-2/ EN 61000-6-2:
"Electromagnetic Compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial
environments" (2001).
• EN 55022 Class B:
"Information technology equipment – Radio disturbance characteristics – Limits and methods of
measurements" (1998 A1:2000 + A2:2003).
Low Voltage Directive 73/23/EEC of 19 February 1973 as Amended by 93/68/EEC, Article 13 of
22 July 1993, based on:
• EN 60730/1:
"Specification for Automatic Electrical Controls for Household and Similar Use. General
Requirements".
• EN 60730/2/8:
"Specification for Automatic Electrical Controls for Household and Similar Use. Particular
Requirements for Electrically Operated Water Valves, Including Mechanical Requirements".
Timothy J. Stessman
Codes & Standards Dept.
Kohler Company
November 18, 2008
DateSignature
November 18, 2008 08
K-10677
K-10674
K-10678
K-10675
K-10679
K-10676
Kohler Co. 3 1108712-5-C
Important Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/television technician
for help.
Modifications: Any modifications made to this device that are not
approved by Kohler Co. may void the authority granted to the user by
the FCC to operate this equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Your Kohler Electronic Valve
Your new Kohler exposed electronic valve is precision engineered and
constructed of premium quality materials to provide trouble-free
operation even under the hardest water conditions.
Design Features
The valve is designed specifically for use with 1-1/2″(1.9 cm) top spud
1108712-5-C 4 Kohler Co.
Your Kohler Electronic Valve (cont.)
toilets as offered by Kohler Company and others.
The valve is supplied with factory preset timing values. No
programming or adjustment is required.
Depending upon use,a9Vlithium battery can be expected to last for
two to three years before replacement is required.
Flush Operations
The exposed electronic valve provides the following flushing
operations:
A wave activated main flush operation: Shortly after the
individual departs the fixture, the valve provides a main flush
that lasts for several seconds.
An automatic 24-hour flush operation: After 24-hours of non-use,
the valve produces a full flush.
Low Battery Indication
The 9 V lithium battery can be expected to last for two to three years
before replacement is required. When the battery reaches a certain
point in its lifetime, the valve announces the low battery condition by
continuously flashing an LED whenever a user is in range. The
batteries are easily replaced as described in the section ″Replace the
Batteries″in this guide.
Replacement batteries can be purchased from drugstores or other stores
stocking batteries. The required battery is a standard 9 V lithium.
Seasonal Use
The exposed electronic valve is not designed for operation in freezing
conditions. If freezing conditions are expected, isolate and drain the
valve along with whatever other winterization steps are taken for the
facility.
Mobile Use
The exposed electronic valve is not designed for use in moving
environments such as boats.
Kohler Co. 5 1108712-5-C
Control Stop Valve Operation
NOTICE: Refer to this section throughout the Maintenance Guide
when instructed to close and open the control stop valve.
NOTE: A flat-blade screwdriver must be used to remove the stop
cap and adjust the valve position.
Using a flat-blade screwdriver, pry the vandal-resistant stop cap
from the control stop.
To close the stop valve: Turn the valve screw clockwise until the
end of travel is reached.
To open the stop valve: Turn the valve screw counterclockwise
until the end of travel is reached.
When done, place the cap on the control stop, then gently tap the
control stop into place with the screwdriver handle.
Wall Flange
Wall Tube
Control Stop
Stop Cap
1108712-5-C 6 Kohler Co.
Remove The DC Sensor
NOTE: When purchasing replacement battery, selecta9Vlithium
battery.
Close the control stop valve.
Using the supplied hex wrench, remove the screw from the cap.
Remove the cap by lifting from the valve body.
Disconnect the plug to the solenoid by pulling the connectors
apart.
Position the cap on its side.
Using a needle nose pliers or equivalent tool, grasp the plastic
clip that holds the DC sensor in place in the cap.
Pull the clip from the cap.
Turn the cap over and slide the sensor into your hand.
NOTE: The lithium battery inside the sensor may be considered
hazardous waste. Discard the old sensor in accordance with any
applicable codes.
If replacing the DC sensor, discard the old DC sensor and battery.
Cap Assy
Screw
DC Sensor
Clip
Kohler Co. 7 1108712-5-C

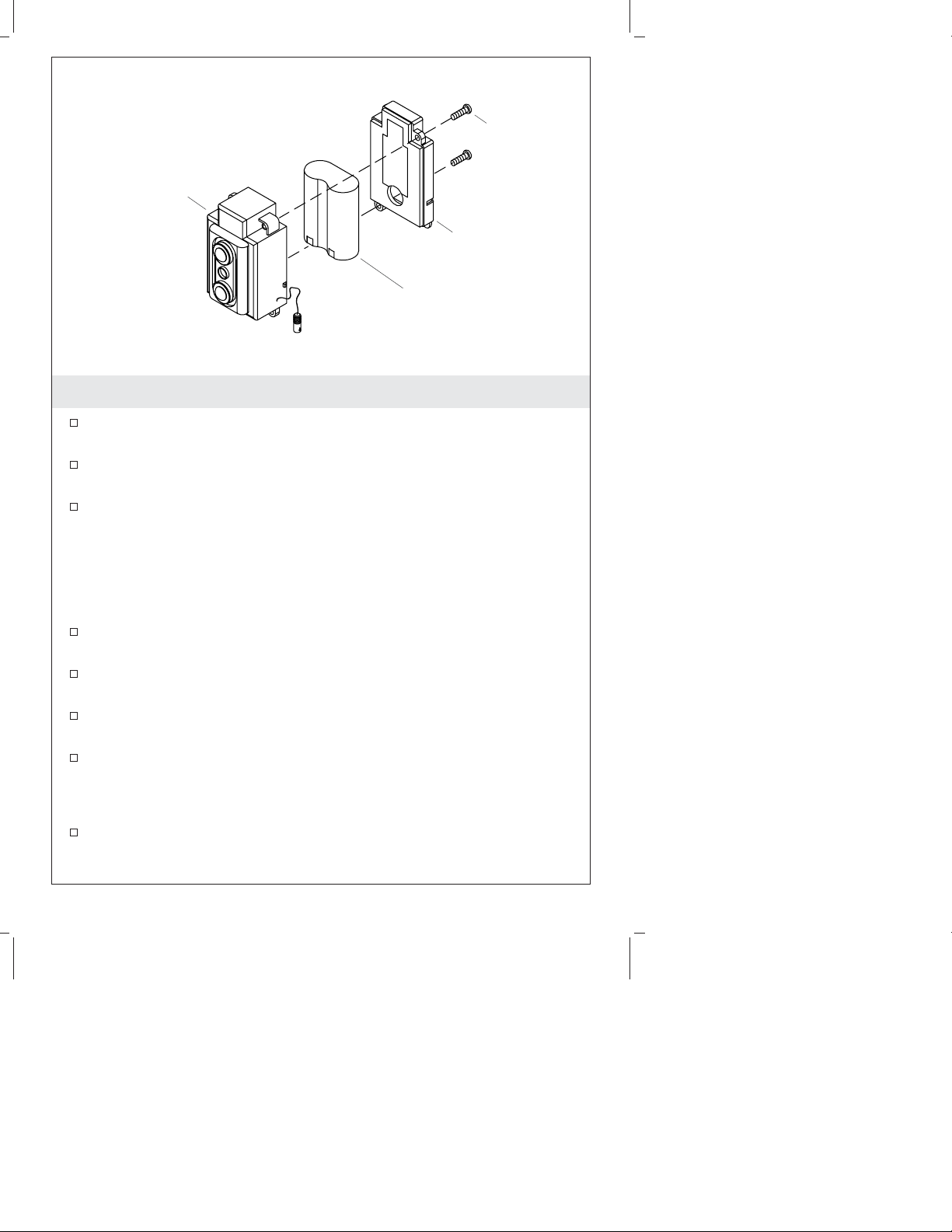

Replace The Battery
If required, remove the sensor from the cap as described in the
″Remove the DC Sensor″section.
Using a small Phillips screwdriver, remove the two screws from
the back of the DC sensor.
Using a sharp-edged screwdriver or knife, insert the tip between
the side of the DC sensor and the small white tab of the back
cover. Pry the back cover out, the lift the cover off of the DC
sensor.
NOTE: The lithium battery may be considered hazardous waste.
Discard the old battery in accordance with any applicable codes.
Remove and discard the old battery. If necessary, use a small
flat-blade screwdriver to pry the battery from the DC sensor.
Align the metal poles on the new 9 V lithium battery to contact
the metal electrodes in the DC sensor.
Insert and push the battery into place in the DC sensor until it
snaps over the side tab.
Press the cover into place until it snaps into place on both sides.
NOTICE: Do not overtighten the screws. The plastic threads can be
easily damaged.
Retighten the two screws into the DC sensor cover.
DC Sensor
Battery
DC Cover
Screw
1108712-5-C 8 Kohler Co.
Install The DC Sensor
NOTE: The DC sensor must be installed as shown in the
illustration.
Hold the cap horizontally with the sensing holes down and align
the DC sensor assembly with the cap.
Slide the DC sensor assembly into the cap small-side first until
the sensor eyes align with the holes in the cap.
Insert the clip between the back of the DC sensor and the case, as
shown. Push it in until the bottom of the tab stops on the sensor.
Connect the DC sensor connector to the solenoid connector on the
valve. Ensure the arrows on both connectors are aligned.
NOTICE: Ensure that the wires are not caught between the cap and
the valve body.
Place the cap on the valve body and install the hex screw.
Open the control stop valve.
Replace the vandal-resistant cap on the control stop.
Verify the valve functions.
Cap Assy
Screw
DC Sensor
Clip
Kohler Co. 9 1108712-5-C
Remove the Solenoid
Close the control stop valve.
Using the supplied hex wrench, remove the screw from the cap.
Remove the cap by lifting from the valve body.
Pull the connectors apart to disconnect the plug from the
solenoid.
Temporarily store the cap and DC sensor assembly in a safe
place.
Using a Phillips screwdriver, remove both solenoid screws.
Grasp the solenoid, then pull it off the valve body. Ensure that the
O-rings have been removed with the solenoid.
Body
Solenoid Assy.
Screw
1108712-5-C 10 Kohler Co.
Autres manuels pour K-10675
2
Ce manuel convient aux modèles suivants
3
Table des matières
Langues :
Autres manuels Kohler Unité de contrôle
Kohler
Kohler K-2975 Manuel utilisateur
Kohler
Kohler K-306 Manuel utilisateur
Kohler
Kohler K-10668 Instructions de montage
Kohler
Kohler K-10666 Manuel d'utilisation
Kohler
Kohler K-76746GL-NA Manuel utilisateur
Kohler
Kohler K-T10185 Manuel utilisateur
Kohler
Kohler K-308 Manuel utilisateur
Kohler
Kohler 28209W-NA Manuel utilisateur
Kohler
Kohler 28138T Manuel utilisateur
Kohler
Kohler K-14677 Instructions de montage
Kohler
Kohler 5-10EKD Manuel utilisateur
Kohler
Kohler K-528 Manuel utilisateur
Kohler
Kohler K-T10669 Instructions de montage
Kohler
Kohler K-408 Instructions de montage
Kohler
Kohler K-304 Instructions de montage
Kohler
Kohler K-305 Instructions de montage
Kohler
Kohler rada VZ1 10 Manuel utilisateur
Kohler
Kohler GM77177-KP1-QS Manuel utilisateur
Kohler
Kohler K-304 Instructions de montage
Kohler
Kohler ENGLEFIELD K-98095X Instructions de montage
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
