Kohler Rite-Temp K-8304-K Manuel utilisateur

Features

•Includes valve body, pressure balance cartridge, rough-in guide

and mud guard

•1/2" Universal NPT & direct sweat inlets & outlets

•5.0 gpm (18.9 l/min) maximum flow rate at 45 psi

•Single lever design cycles from off through cold to hot

•Provides temperature regulation and automatic anti-scald

protection

•One piece cartridge design simplifies installation and

maintenance

•Adjustable high temperature limit stop to control maximum water

temperature

•Requires valve trim to complete installation (sold separately).

Material Codes/Standards

ASME A112.18.1/CSA B125.1

•Forged De-zincification Resistant Brass body provides long

term reliability and resistance to aggressive water conditions ASSE 1016/ASME A112.1016/CSA B125.16

Technology KOHLER®Faucet Lifetime Limited

Warranty

•Pressure-balancing diaphragm technology maintains outlet

temperature within +/- 3 degrees Fahrenheit during water

pressure fluctuations See website for detailed warranty information.

Installation

•Designed for use in standard, back to back and thin wall

installations

•Valve body features integral mounting locations and symmetrical

valve inlets to simplify installation

•Cartridge is reversible for installations where hot and cold

supplies are reversed.

•Rough-in guide designed for both standard and thin wall

installations

•Installed valve rough-in can be flushed and pressure tested to

150psi max (air or water) without cartridge, using K-10351 Test

Cap

Optional Accessories

K-10350 Deep Rough-In Kit For K-8305 Cartridges

K-10351 Test Cap For K-8300 Series Valve Bodies

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

6-13-2018 17:00

Rite-Temp®

Valve Body & Cartridge Kit Complete

K-8304-K

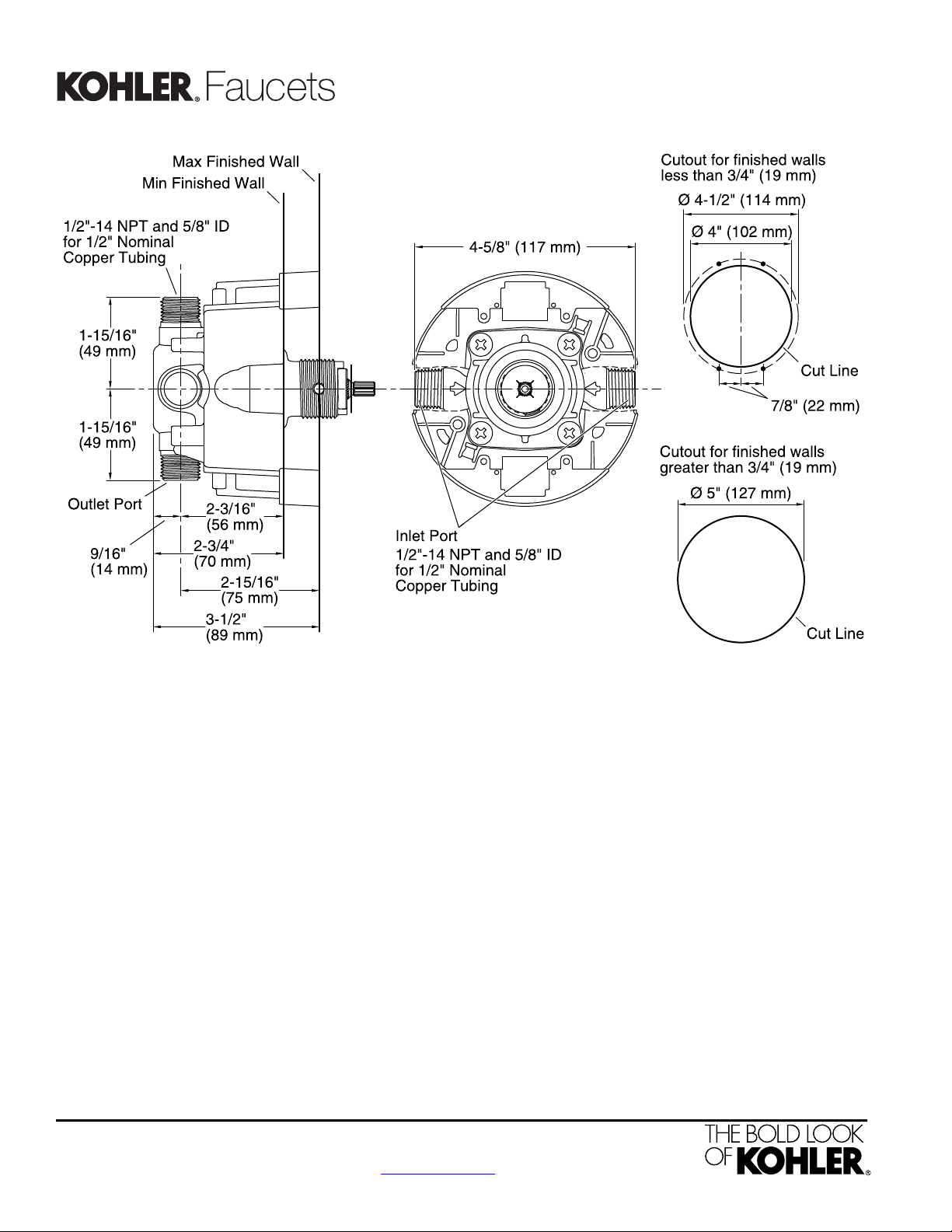

Outlet Port

Notes

Technical Information Install this product according to the installation

guide.

All product dimensions are nominal.

Shower Valve: Avoid cross-flow conditions. Do not install shut-off

device on either valve outlet.

20 psi (1.4 bar)Min. pressure IN:

Machined-brassValve body: Cap the shower outlet if deck-mount spout,

diverter, or handshower is connected to the spout

outlet.

Install straight pipe or tube drop of 7" (178 mm)

to 18" (457 mm) with single elbow between the

valve and wall-mount spout.

For finished walls greater than 3/4" (19 mm) and

less than 1-1/2" (38 mm), install support(s) 2" (51

mm) from the stud face.

For finished walls greater than 1-1/2" (38 mm),

install support(s) 3" (76 mm) from the face of the

finished wall.

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

6-13-2018 17:00

Rite-Temp®

Valve Body & Cartridge Kit Complete

K-8304-K
