CYP PUV-3000TX Manuel utilisateur
PUV-3000TX
UHD+ HDMI over HDBaseT 3.0 Transmitter
(18Gbps, 4K@60Hz 4:4:4, 8-bit)
OPERATION MANUAL
®
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2021 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
v1.00 2021/11/04 Preliminary release
CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents .........................................1
4. System Requirements ..................................1
5. Features.........................................................2
6. Operation Controls and Functions..............3
6.1 Front Panel ............................................................3
6.2 Rear Panel...............................................................4
6.3 IR Cable Pinouts ...................................................5
6.4 Serial Pinout ..........................................................5
7. Connection Diagram ....................................6
8. Specications................................................7
8.1 Technical Specications ....................................7
8.2 Video Specications............................................8
8.3 Audio Specications........................................ 10
8.3.1 Digital Audio ........................................... 10
8.4 Cable Specications ........................................ 10
8.5 HDBaseT Features............................................. 11
9. Acronyms.....................................................12
1
1. INTRODUCTION
This 4K UHD+HDMI over HDBaseT transmitter uses HDBaseT 3.0, the
newest generation of HDBaseT technology, and when combined with a
compatible receiver is the perfect solution for extending full bandwidth
(18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single
run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control
and data signals may also be transmitted along with the audio and video,
including bi-directional IR and RS-232.
This transmitter is ideal for use in any video extension scenario, but it
excels when latency-free, uncompressed, high resolution video is critical,
such as medical installations, live conferences, and education.
2. APPLICATIONS
Household entertainment sharing and control
Lecture hall/classroom display and control
Meeting room presentation and control
3. PACKAGE CONTENTS
1× UHD+HDMI over HDBaseT Transmitter
1× 24V/2.7A DC Power Adapter
1× 8-pin Terminal Block
1× Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such a media player, video game console, or
set-top box.
HDMI receiving equipment such as an HDTV, monitor, or audio
amplier.
A compatible HDBaseT receiver with PoH (PD) support is
recommended.
The use of Premium High Speed HDMI cables, and industry standard
Cat.6A or Cat.7 Ethernet cable is highly recommended.
2
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
1 HDMI input, 1 HDMI output, and 1 HDBaseT output
Supports up to 4K UHD+(18Gbps, 4K@60Hz 4:4:4, 8-bit) video input
and output over both HDMI and HDBaseT
Supports Deep input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports CEC bypass
HDBaseT extends video, audio and data over a single Cat.6A/7 cable
and can reach distances up to 40m/131ft
HDBaseT feature support: HD Video and Audio, PoH (PSE), and Control
(bi-directional IR/RS-232 pass-through)
HDMI output functions as a local monitor
Supplies PoH to the connected receiver
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
IR
R PWRT
LINK
PUV-3000TX
UHD+HDMI over HDBaseT
Transmitter
2 4
1 3
1RS-232 4-pin Terminal Block: Connect to a PC, laptop, or serial
controllable device with a 4-pin adapter cable for the extension of
RS-232 signals between both ends of the HDBaseT connection.
2IR 4-pin Terminal Block (In/Out): Connect to both an IR Blaster and
Extender using a 4-pin Y-adapter cable to transmit and receive IR
control signals and extend them to devices connected to the other
end of the HDBaseT connection.
3Power LED: This LED will illuminate to indicate the unit is on and
receiving power.
4LINK LED: This LED will illuminate solidly when a live connection with
a compatible receiver is active.
4

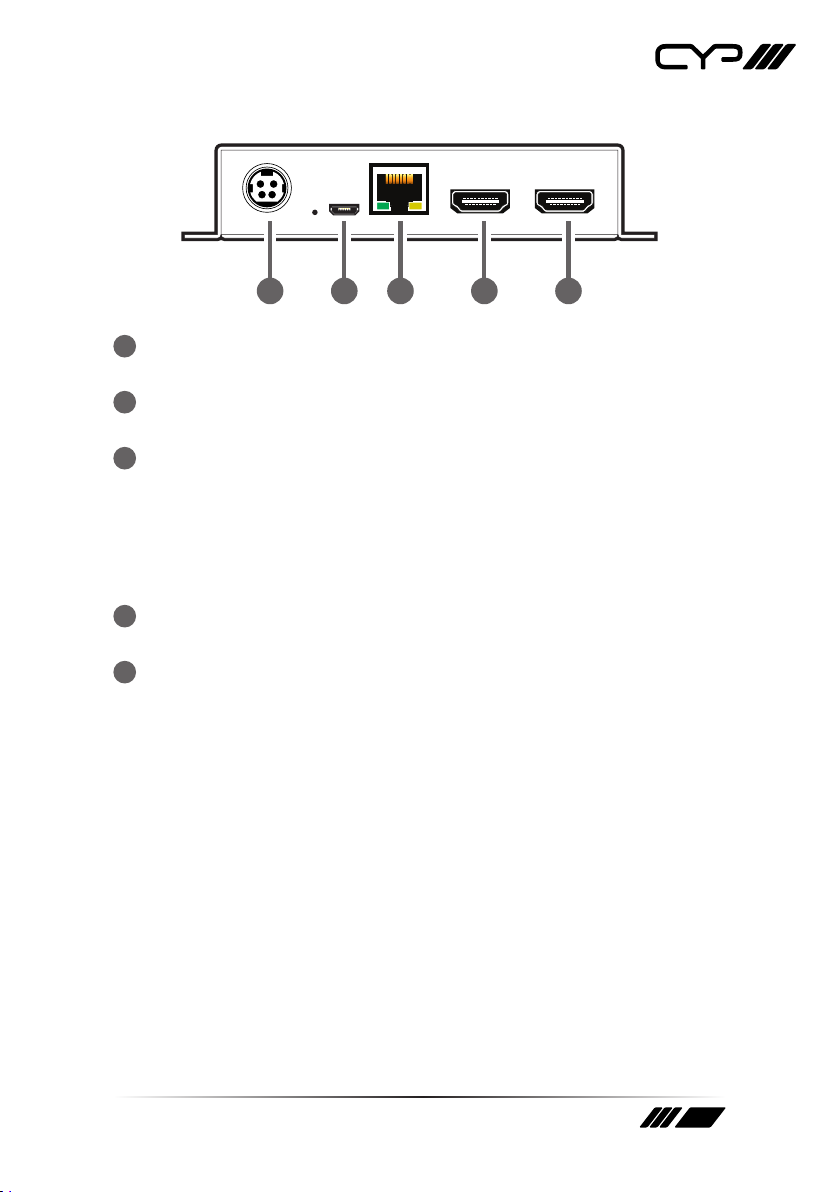

6.2 Rear Panel
HDMI OUTHDMI INCAT6A/7 OUT
USB
DC 24V
1 2 3 4 5
1DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
2USB Port (Micro-B): This port is reserved for rmware update use
only.
3CAT6A/7 OUT Port: Connect to a compatible HDBaseT receiver with a
single Cat.6A/7 cable for extension of all data signals. PoH will also be
supplied to a connected compatible PD receiver.
Note: The PoH function is designed for powering compatible receiver units
only. Non-PoH receivers will need their own power supply. Receivers from
other brands may not be compatible.
4HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
5HDMI OUT port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
5

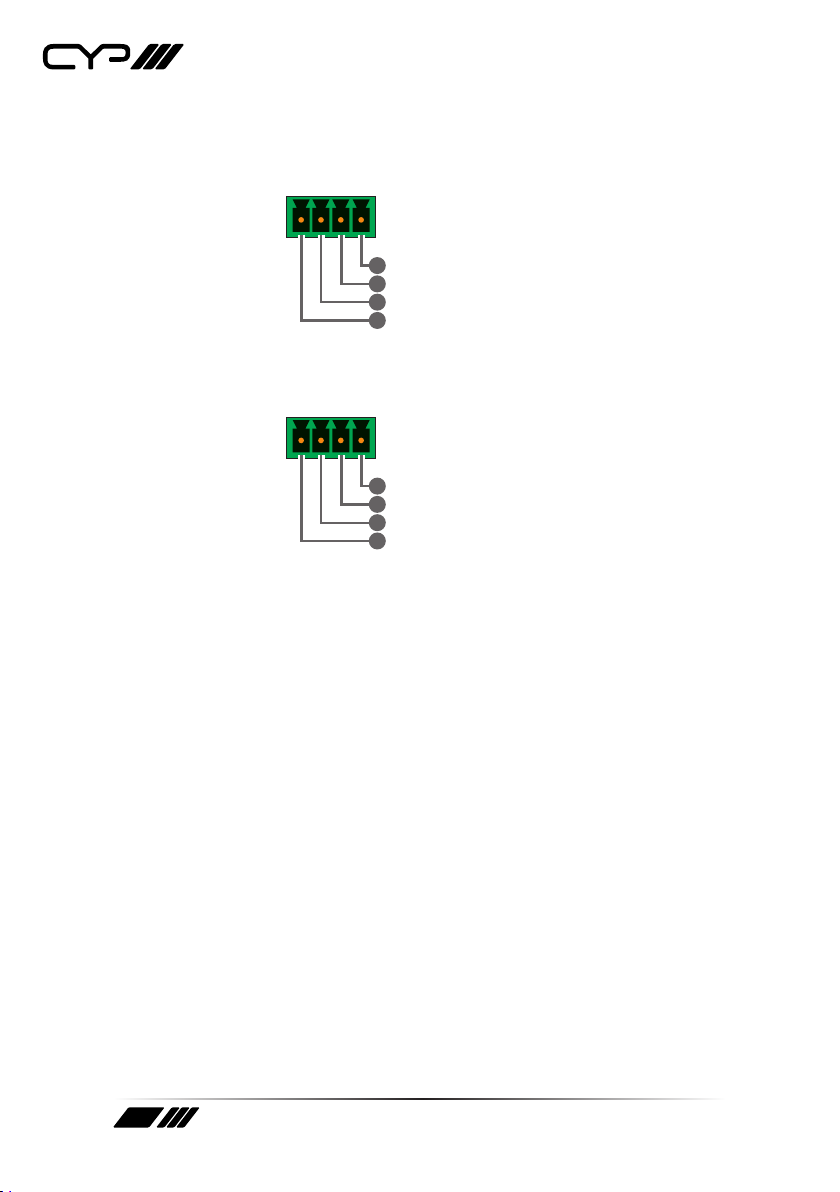

6.3 IR Cable Pinouts
IR Blaster + IR Extender
1
2
3
4
RxD
3.3V
TxD
GND
4-pin
Terminal Block
6.4 Serial Pinout
1
2
3
4
GND
NC
TxD
RxD
4-pin
Terminal Block
