CYP PRO-SDIOF-KIT Manuel utilisateur
PRO-SDIOF-KIT
SDI over Optical Fiber Transmitter
and Receiver Set (10,000m)
OPERATION MANUAL
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
electrical shock and injury to persons.
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 29/09/11 Preliminary release
VS1 17/07/12 Updated format/diagrams/SDI
standards
VS2 20/07/12 First release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package contents................................. 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Transmitter Front and Rear Panels..3
6.2 Receiver Front and Rear Panels .....4
7. Connection Diagram ............................ 5
........................................ 6
9. Acronyms ............................................... 7
1
1. INTRODUCTION
signals over Optical Fiber for long distance transmission up to 10km.
Signals from 50 Mb/s to 3 Gb/s bandwidth can be sent without loss or
compression with thinner, lighter cables for easy installations.
2. APPLICATIONS
Surveillance - Monitor a remote camera
Television Studio - Transmit a signal from one building to another
3. PACKAGE CONTENTS
SDI over Optical Fiber Transmitter
SDI over Optical Fiber Receiver
2×5 V/2.6 A DC Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input SDI source equipment such as a broadcast video recorder or
camera and output to SDI monitor/display with SDI connection cables
2
5. FEATURES
SMPTE 287-2006 compliant
Robust error-free transmission of signals from 50Mb/s to 3Gb/s up to
module used).
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Supports SDI input modes:
1. SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s
2. HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and
1.485/1.001 Gbit/s
3. 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and
2.970/1.001 Gbit/s
audio
Automatic video mode detection (3G/HD/SD)
Faster data transmission
Lower power consumption
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
OPTICAL OUT
3G SDI to Optical Fiber Transmitter
DC 5V 3G
HD
SD
SDI IN
1 2 3 4
1DC 5V
Plug the 5 V DC power supply into the Transmitter unit and connect
the adaptor to an AC outlet.
2SDI Signal Status LEDs
These LEDs will light according to the SDI input signal format (3G,
HD or SD). The device will automatically detect the signal:
Red: 3G-SDI
Yellow: HD-SDI
Green: SD-SDI
3SDI IN
Connect the SDI source input equipment such as a SNG video
recorder or a SDI video camera.
4OPTICAL OUT
(up to 10 km) for transmission of the SDI signal.
Note: Single-Mode Fiber Optical with LC connector.
4
6.2 Receiver Front and Rear Panels
OPTICAL IN
Optical Fiber to 3G SDI Receiver
DC 5V
3G
HD
SD
SDI OUT
1 2 3 4
1SDI OUT
Connect to a SDI monitor or display for SDI video and audio
output.
2SDI Signal Status LEDs
These LEDs will light according to the SDI output signal format (3G,
HD or SD). The device will automatically detect the signal:
Red: 3G-SDI
Yellow: HD-SDI
Green: SD-SDI
3DC 5V
Plug the 5 V DC power supply into the Receiver unit and connect
the adaptor to an AC outlet.
4OPTICAL IN
(up to 10 km) for transmission of the SDI signal.
Note: Single-Mode Fiber Optical with LC connector.
5

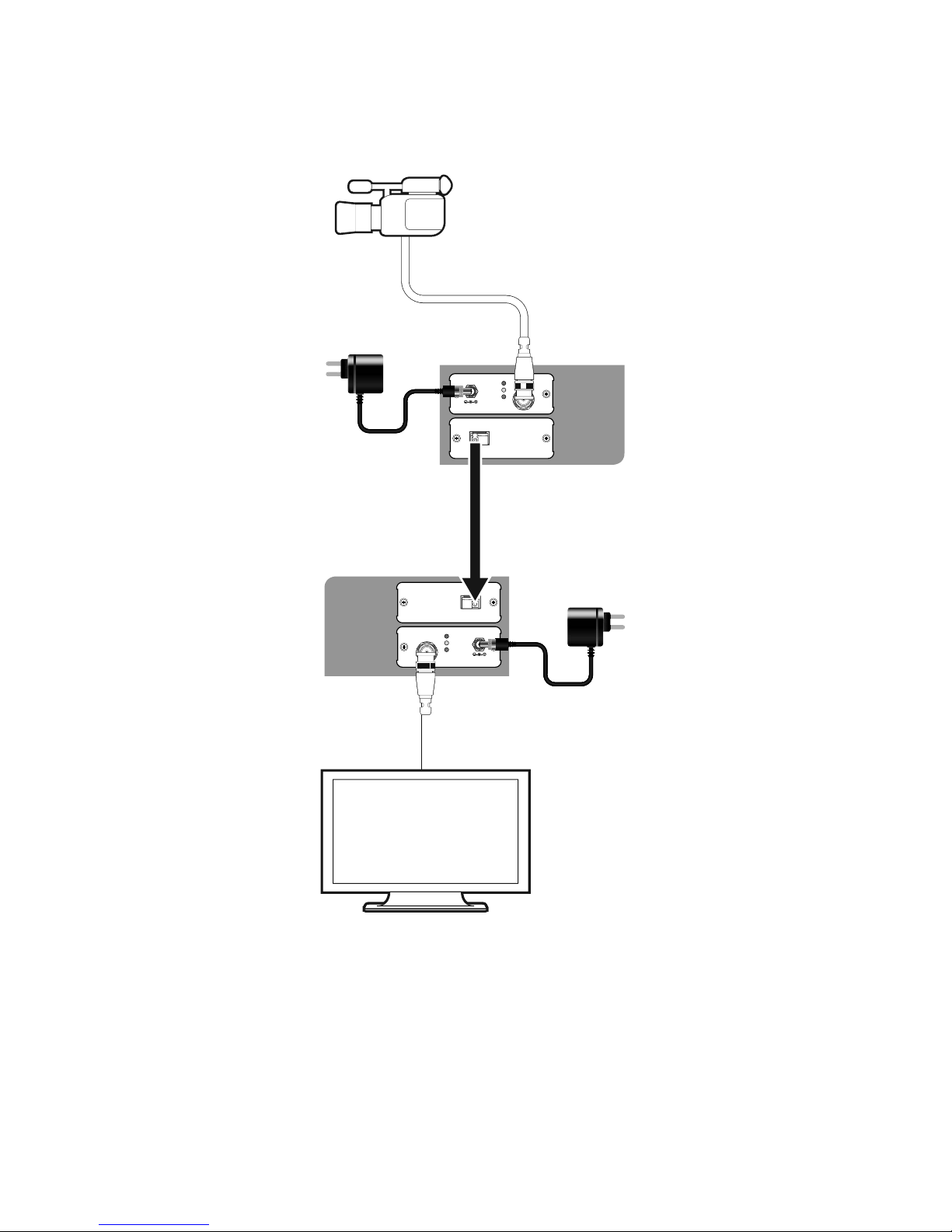

7. CONNECTION DIAGRAM
TX
RX
Power
Supply
Display
Power
Supply
OPTICAL OUT
3G SDI to Optical Fiber Transmitter
DC 5V 3G
HD
SD
SDI IN
OPTICAL IN
Optical Fiber to 3G SDI Receiver
DC 5V
3G
HD
SD
SDI OUT
SDI Camcorder
Fibre
Optical
Cable
(Up to 10 km)
6
8. SPECIFICATIONS
Transmitter
Input Ports 1×BNC (SD/HD/3G-SDI)
Output Ports 1×Single-Mode Fiber Optical (LC
connector)
Receiver
Input Ports 1×Single-Mode Fiber Optical (LC
connector)
Output Ports 1×BNC (SD/HD/3G-SDI)
SDI Timging Support SD-SDI:
SMPTE 259M-C, at bitrates of 270 Mbit/s
HD-SDI:
SMPTE 292M, at bitrates of 1.485 Gbit/s
and 1.485/1.001 Gbit/s
3G-SDI:
SMPTE 424M/425M-AB, at bitrates of
2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI Cable Distance 3G up to 100 m (BELDEN 1694A cable)
HD up to 200 m (BELDEN 1694A cable)
SD up to 300 m (BELDEN 1694A cable)
Optical Fiber Cable
Distance
Up to 10 km
Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/
Dimensions 78.5 mm (W)×143 mm (D)×30 mm (H)
Weigh 200 g
Chassis Material Aluminum
Silkscreen Color Silver
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 3 W (each)
