CH-2538TXM-TB
Operation Manual
Operation Manual
UHD+HDMI/VGA over HDBaseT Table Box Scaler
Transmitter (PD)
®
registered trademarks of HDMI licensing Administrator, Inc.
DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for sucient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2019/12/17 Preliminary release
CONTENTS
1. Introduction...................................................... 1
2. Applications ..................................................... 2
3. Package Contents ........................................... 2
4. System Requirements..................................... 2
5. Features............................................................ 3
6. Operation Controls and Functions ................ 4
6.1 Front Panel.................................................. 4
6.2 Rear Panel................................................... 5
6.3 RS-232 Defaults .......................................... 5
6.4 Serial Commands........................................ 6
7. Connection Diagram ..................................... 19
8. Specications ................................................ 20
8.1 Technical Specications ............................ 20
8.2 Video Specications .................................. 21
8.3 Audio Specications .................................. 23
8.3.1 Digital Audio ..................................... 23
8.3.2 Analog Audio .................................... 23
8.4 Cable Specications.................................. 24
8.5 HDBaseT Features.................................... 25
9. Acronyms ....................................................... 26
1
1. INTRODUCTION
This UHD+ HDMI/VGA Table Box scaler is an HDMI/VGA switch with audio
embedding and HDBaseT output. The table box is designed to be placed on
a table, or mounted to any typical table edge using a clamp. This unit can
send high denition uncompressed audio/video along with Ethernet over a
single cable up to a distance of 100 meters at 1080p@60Hz.
The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit) and the
VGA input supports resolutions up to WUXGA (RB). With the use of the
3.5mm audio input, stereo audio may be embedded with VGA or DVI/HDMI
sources as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, even 4K
UHD+ HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can
be supported thanks to the built in scaling engine. A specic output resolution
can be manually set, or to provide maximum compatibility with a wide range
of display types, sources can be automatically scaled to match the preferred
resolution and timing of the connected display (as reported by the display's
EDID).
Signal management features, such as automatic source switching based on
input signal detection, enable convenient hands-free operation. Additional
functionality such as basic EDID management, HDCP management, and
basic signal event automation (which can automatically send customized
RS-232 commands to an external device) is also available for conguration
via serial commands.
The unit is powered via PoH (Power over HDBaseT) from a compatible
HDBaseT receiver, which allows for greater exibility in installations.
Controllable via front panel buttons a s well as by RS-232 (with compatible
receiver).
2
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1× UHD+ HDMI/VGA over HDBaseT Table Box Scaler Transmitter
• 1× Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game console or
set-top box.
• VGA source equipment such as a PC, laptop or set-top box.
• The use of Premium High Speed HDMI cables, and industry standard
Cat.6, Cat.6A or Cat.7, is highly recommended.
3
5. FEATURES
• HDMI 2.0 and DVI 1.0 compliant
• HDCP 1.x and 2.2 compliant
• 1 HDMI input & 1 VGA input with 3.5mm mini-jack audio input
• HDMI input supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit)
video
• VGA input supports up to 1080p60/WUXGA video
• Integrated scaler supports output resolutions from 640×480@60Hz up to
4096×2160@30Hz
• Automatic scaling of sources to match the native resolution of the HDMI
display based on EDID
• HDBaseT output transmits video, audio and data over a single Cat.5e/6/7
cable and can reach distances up to 100m at 4K when using Cat.6A/7
• Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet,
and PoH (PD)
• Supports 2 channel LPCM audio with volume control
• Supports CEC bypass
• Automatic input selection with hot plug detection enabling hands- free
operation
• Basic signal event automation (via RS-232 with a compatible receiver)
• Unit is powered via PoH from a compatible HDBaseT receiver
• Convenient table box design
• Front panel LEDs indicate input selection, power and link status
• Controllable via front panel buttons and RS-232 (with compatible receiver
only)
4
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PWR
AUTO
ADJUST
HDMI IN
LAN
LINK VGA IN
VGA IN
L/R IN
IN
SEL
6 7
1 2 3 54
98
1PWR LED: This LED will illuminate to indicate the unit is on and receiving
power.
2LINK LED: This LED will illuminate solidly when a live connection with a
compatible receiver is active.
3VGA IN LED: This LED will illuminate when the VGA input has been
selected.
4AUTO ADJUST Button: Press this button to activate the Auto Adjust
function for VGA sources.
Note: The Auto Adjust function requires a VGA source with a bright,
edge-to-edge, image to accurately judge the dimensions of the signal.
5HDMI IN Port & LED: Connect to HDMI source equipment such as a
media player, game console, or set-top box. The LED will illuminate when
the HDMI input has been selected.
6VGA IN Port: Connect to VGA source equipment such as a PC or laptop.
7L/R IN Port: Connect to the analog stereo output of the device connected
to the VGA input port.
Note: By default, this audio will be embedded with the VGA source.
8IN SEL Button: Press this button to toggle between the two inputs.
9LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection.
5

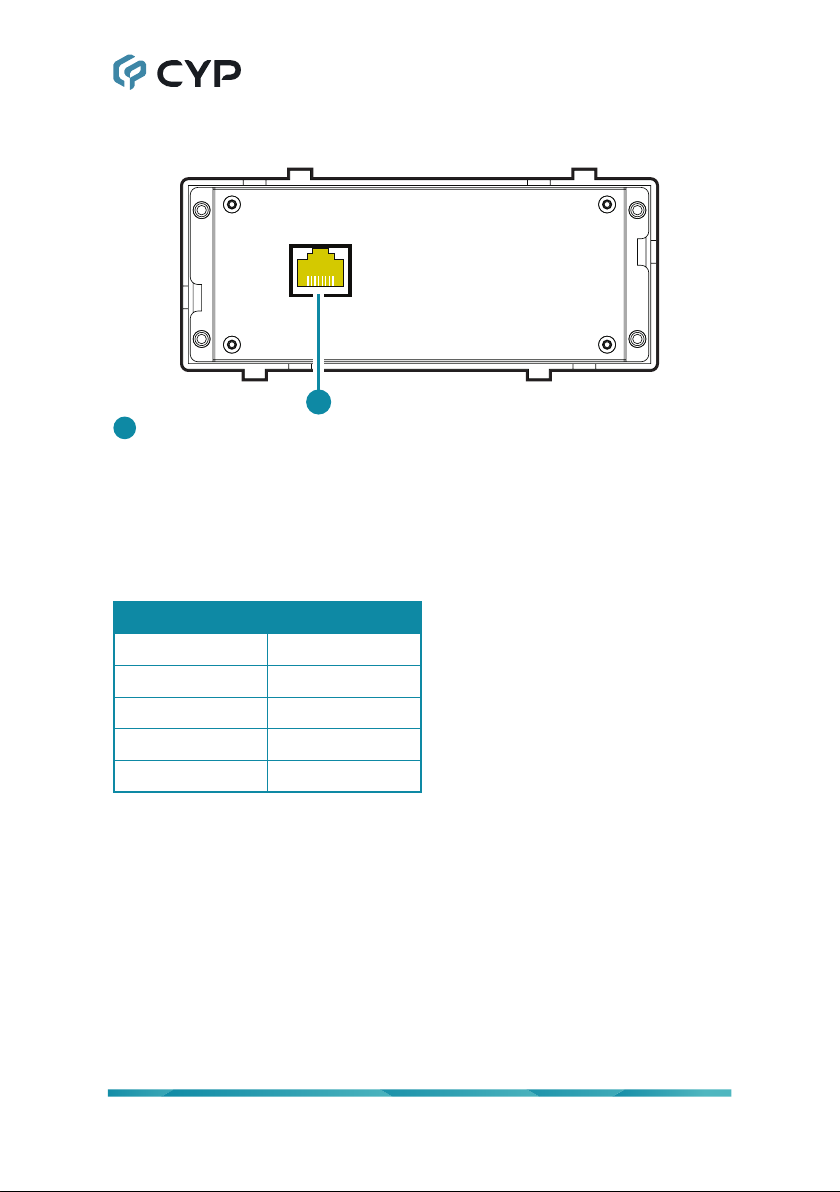

6.2 Rear Panel
CAT5e/6/7 OUT
1
1CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT receiver with
a single Cat.5e/6/7 cable for transmission of all data signals. Power via
PoH will also be supplied to this unit when connected to a compatible
PSE receiver.
6.3 RS-232 Defaults
Serial Port Default Settings
Baud Rate 19200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
Note: Access to control the table box transmitter’s settings is provided via the
RS-232 port located on the connected receiver.
