OPERATION MANUAL
PU-1109
HDMI & IP Network over Single CAT6
Transmitter & Receiver Set (100m)
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
RDV2 20110105 Preliminary Release
Table of Contents
1
1
1
1
2
3
4
4
5
5
6
7
7
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. D-Sub 9 Pin Denitions .......................…......……..........…..…....…...
9. Connection and Installation ….………………….........…..…..…......
10. Acronyms …......................................................................................
1. Introduction
The device that can make your home or office more efficient, this unit
of HDMI with & IP over Single CAT5e/CAT6 can transmit and receive
uncompressed audio/video, sending 3 different internet protocol, control
through the built-in RS-232 and IR ports over 100M even more, it is adaptor
free from the transmitter side. Further, with a HDMI bypass design it allows an
instant display at the control point. Hence, if you want to make your home or
office more efficient, get the HDMI & IP over Single CAT5e/CAT6 and prepare
to be amazed.
2. Applications
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. Package Contents
HDMI & IP over Single CAT5e/CAT6 Transmitter x 1
HDMI & IP over Single CAT5e/CAT6 Receiver x 1
IR Blaster x 1
IR Receiver x 1
48V 0.75A DC Power Adaptor x 1
Operation Manual
4. System Requirements
Input HDMI source equipment such as DVD/Blue-Ray player and output
display with HDMI input jack.
IP router system or internet hub system and PC/NB devices.
1
5. Features
HDMI 1.4 (with Audio Return Channel), HDCP & DVI Compliant
Supports HDCP repeater and CEC function
Simultaneously uncompressed data sending over a single 100M/328ft
with CAT6 cable or 80M/262ft with CAT5e cable
Uncompressed video 1080p, 60Hz, 48bits, 3D and 4K x 2K
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Ethernet speed up to 100Mbps
Various controls over HDMI CEC, RS232 & IR
5Play™ convergence: HDMI & Control (IR & RS232)/LAN/PoE
Installation Friendly
2
6. Specications
Transmitter
Input 1 x HDMI , 1 x HDMI Bypass, 3 x Ethernet,
1 x RS-232, 1 x IR Extender, 1 x IR Blaster
Output 1 x CAT5e/6
Receiver
Input 1 x CAT5e/6
Output 1 x HDMI, 1 x RS-232, 3 x Ethernet, 1 x IR Extender,
1 x IR Blaster
ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm)
Weight(g)
Chassis Material Aluminum
Silkscreen Color Silver
Power Consumption 15W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (non-condensing)
3
7. Operation Controls and Functions

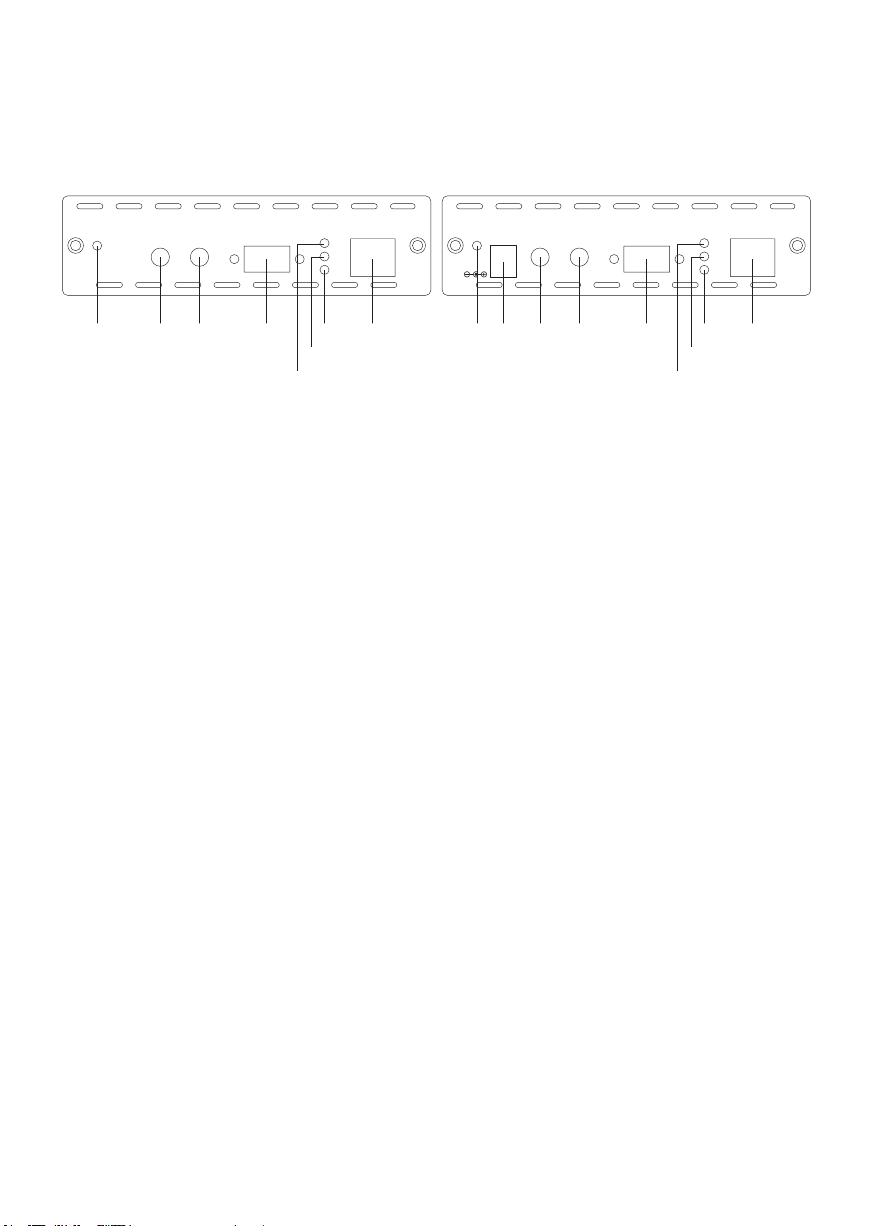

7.1 Front Panel
Transmitter Receiver
①② ④ ③ ⑨ ⑩⑧
IR 2
Blaster
IR 1
Extender
DC 48V
RS-232
Out
Power
HDCP
Link
Mode
CAT5e/6
In
CAT5e/6 to HDMI with LAN/PoE/IR CH-1109RX Receiver
⑦
⑥
① ③ ④ ⑤ ⑩⑧
IR 2
Extender
IR 1
Blaster
RS-232
In
Power
HDCP
Link
Mode
CAT5e/6
Out
HDMI to CAT5e/6 with LAN/PoE/IR CH-1109TX Transmitter
⑦
⑥
① Power LED: This red LED will illuminate when the power is connected with
AC wall outlet.
② DC 48V: These slots are where you plug the 48V DC power supply into the
unit and connect the adaptor to an AC outlet.
③ IR 1/2 Blaster: These slots are to connect with the IR blaster cables
included in the package for IR signal transmitting.
④ IR 1/2 Extender: These slots are to connect with the IR receiver cables
included in the package for IR signal receiving.
⑤ RS-232 In: This slot is to connect with PC/laptop with D-Sub 9 pin cable for
RS-232 control system.
⑥ HDCP LED: This red LED will illuminate in when the input source signal
contains HDCP data.
⑦ Link LED: This yellow LED will illuminate when the both input and output
signal is connected.
⑧ Mode LED: This green LED will blinking when the device is processing data.
⑨ RS-232 Out: This slot is to connect to the device that wishes to be
controlled with D-Sub 9 pin cable for RS-232 signal to be execute.
⑩ CAT5e/6 Out/IN: These slots are to be connected with a single CAT5e/6
cable for data transmitting.
4
7.2 Rear Panel
HDMI
Out
LAN 2 LAN 3LAN 1
③ ④ ④ ④① ② ④ ④ ④
HDMI
Bypass
HDMI
In
LAN 2 LAN 3LAN 1
① HDMI Bypass: This slot is to connect with HDMI TV/monitor for instant
display HDMI input source signal. When the HDMI bypass is connected,
all signals will not transmit to the receiver side. Therefore, unplug this slot
after confirm image display.
② HDMI In: This slot is to connect with HDMI source equipment such as DVD/
Blue-Ray player.
③ HDMI Out: This slot is to connect with HDMI TV/monitor for display HDMI
input source signal.
④ LAN 1/2/3: These slots are to connect with internet server hub or IP system
allowing internet protocol to be transmit and received from 100M away.
Either side can be a transmit or receive side and all three LAN are
shareable within the two device’s connection.
8. D-Sub 9 Pin Denitions
Pin Dene
1 N/C
2 RxD
3 TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
5
9. Connection and Installation
DVD Blu-ray
TV/Monitor CH-1109RXCH-1109TX
Hub/Server
NBPC TV
NBPC
MAC
CAT5e(80M)/
CAT6(100M)
HDMI
Cable
HDMI
HDMI
HDMI
Cable
HDMI
HDMI
HDMI
Cable
HDMI
HDMI
HDMI
HDMI
DC
IR Extender
30°
30°
3M 3M
7M
DVD
Remote
6
