CYP CH-U331TX Manuel utilisateur
CH-U331TX
HDMI/VGA over IP Transmitter
with USB/KVM Extension
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2017 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 23/02/17 Preliminary release
RDV2 20/04/17 Changed text/silkscreen
RDV3 29/08/17 Added video wall functions
VS1 12/09/17 Updated text/diagrams
VS2 01/11/17 Final technical review
VS3 11/01/18 Minor changes to the commands
VS4 05/06/18 Updated section 8.3
VS5 10/07/18 Added ISP SEL switch description
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................2
4. System Requirements......................................2
5. Features............................................................3
6. Operation Controls and Functions.................4
6.1 Transmitter's Front Panel ........................... 4
6.2 Transmitter's Rear Panel............................ 6
6.3 IR Cable Pin Assignments ......................... 7
6.4 RS-232 Protocol.......................................... 7
6.5 Telnet Commands..................................... 8
6.6 WebGUI Control ...................................... 20
6.6.1 System Tab...................................... 21
6.6.2 Video Wall Tab ............................... 24
6.6.3 Network Tab ................................... 28
6.6.4 Functions Tab ................................. 30
7. Connection Diagram ....................................34
8. Specications ................................................35
8.1 Technical Specications ........................ 35
8.2 Video Specications............................... 36
8.3 Audio Specications............................... 37
9. Acronyms .......................................................39
1
1. INTRODUCTION
This unit is part of a 4K UHD Multi-Function Extension system that allows
you to extend HDMI or VGA signals along with KVM using the TCP/
IP protocol over regular Cat.5e/6/7 network cable. This extender
supports the transmission of Ultra High-Denition signals (up to 4K@30Hz
YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a
single cable. The transmission distance can be further extended (up
to 100m per segment) by using gigabit network switches, allowing the
user to cascade the system without signal loss or introducing delay.
It is also possible to have the extension system's Transmitter operate
in multicast mode, allowing you to send a single AV signal to a large
number of Receivers within the same local network. Additionally, that
same multicast signal can be used to create large multi-display video
walls with amazing simplicity. This system is perfect for both residential
and commercial installation environments.
This system also features bi-directional IR and RS-232 pass-through,
analog line level in/out, and a microphone input (on the Receiver),
providing the user with a variety of audio options. The USB functionality
allows the system to act like a remote USB hub which, when combined
with the VGA input/output feature, provides a exible remote KVM
platform. Conguration information is provided via On Screen Display
(OSD) and control is by WebGUI, Telnet, and front panel controls.
2. APPLICATIONS
• HDMI, VGA, USB, Audio, IR, and RS-232 extension
• Broadcasting a system over a single Cat.5e/6 cable
• Multimedia display on a large number of displays via multicast
• Hotel or convention center display multi-monitor broadcast
• Long distance data and video transmission via cascading
• Distributed video matrix system
• Distributed video wall system
• Remote KVM control of a system
2
3. PACKAGE CONTENTS
• 1×HDMI/VGA over IP Transmitter with USB/KVM Extension
• 1×IR Extender Cable
• 1×IR Blaster Cable
• 1×5V/2.6A DC Power Adaptor
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI or VGA source equipment such as media players, video
game consoles, PCs or set-top boxes.
• HDMI or VGA receiving equipment such as HDTVs, monitors or audio
ampliers.
• Analog audio receiving equipment such as headphones, audio
ampliers or powered speakers.
• A Gigabit Ethernet network switch with jumbo frame support is
required. (8K jumbo frames are strongly recommended.)
• A Gigabit Ethernet switch with “IGMP snooping” enabled is required
for multicast support.
3
5. FEATURES
• HDMI 2.0 and DVI 1.0 compliant
• HDCP 1.4 & 2.2 compliant
• 1×HDMI input, 1×VGA input & 1×VGA bypass output
• Video, audio and control transmission over TCP/IP in Unicast (point-
to-point) or Multicast (single-to-many) modes
• Multi-monitor video wall support with 90° rotation
• HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz
(YUV 4:4:4, 8-bit)
Note: 4K@50/60Hz (YUV 4:2:0) sources are automatically converted to
4K@25/30Hz (RGB) for output
• VGA input and output resolutions up to WUXGA (RB)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
and Bitstream over HDMI
Note: The optical output on Receivers can only support LPCM 2.0 &
Bitstream sources.
• The analog Line In on the Transmitter sends audio directly to the
analog Line Out and is inserted into the HDMI output on connected
Receivers
• The Mic In on the Receiver sends audio directly to the analog Line
Out on the Transmitter
• Both Tx and Rx may powered directly by PoE when connected to a
Gigabit Ethernet switch that provides PoE (802.3af)
• Supports USB keyboard, mouse and storage extension
• Supports IR and RS-232 bypass
• Unit can be controlled via WebGUI, Telnet, and front panel controls
4
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter's Front Panel
POWER
RS-232
ISP
SEL
IR
OUT
RESET
IR LINK
LOOPBACK
Anti-DITHER
MODE ISP
VGA
LOOPBACK
LINK
IR
IN
21 3 4 5 6 7 8 9 1011 12
1POWER LED: This LED will ash while the unit is powering on and will
illuminate solidly once it is ready to be used.
2LINK LED: If the Transmitter has no network connection the LINK LED
will not illuminate. While the Transmitter is attempting to establish
a connection with a Receiver the LINK LED will ash. When the
Transmitter has established a stable connection with a Receiver
the LINK LED will illuminate solidly.
3RS-232 IN: Connect directly to your PC/laptop to send commands
to RS-232 devices connected to the Receiver. The baud rate is
congurable, but the default baud rate is 115200.
Note: When the Transmitter is in multicast mode every connected
Receiver unit can send RS-232 commands to the Transmitter
and commands sent from the Transmitter side will be sent to all
associated Receivers.
4ISP SEL: For Factory use only. By default this is set to the right (away
from the RS-232 port) and allows normal RS-232 functionality.
Setting this switch to the left enables ISP engineering mode.
5IR OUT: Connect to the provided IR Blaster to transmit IR signals sent
from the associated Receiver to devices within direct line-of-sight
of the IR Blaster.
6IR IN: Connect to the provided IR Extender to extend the IR control
range of remotely located devices. Ensure that the remote being
used is within direct line-of-sight of the IR Extender.
Note: When the Transmitter is in multicast mode the IR signal is sent
to all associated Receivers.
7IR WINDOW: Accepts IR signals from any standard remote control
and sends the signal to the IR Out on the associated Receiver.
5
Note: When the Transmitter is in multicast mode the IR signal is sent
to all associated Receivers.
8LOOPBACK/LINK: This button controls multiple functions:
aLoopback: Press this button momentarily to toggle the VGA
Loopback function on and off, allowing you to locally monitor non-
HDCP HDMI sources (1080p or below) for troubleshooting purposes.
bVideo Link: Press and hold the button for 3 seconds to enable or
disable the Video Link. When the link is disabled and the Receiver
is connected to a display it will show the system’s current IP and
rmware information.
cReset to Factory Defaults: Press and hold this button when
powering the unit on until both the POWER and LINK lights are
blinking. Once both lights are blinking you can reboot the unit
and all settings will be returned to the factory defaults (Including
resetting the IP mode to auto, broadcast channel to 0, and the
streaming mode to multicast). A new IP address will be assigned
automatically within the 169.254.xxx.xxx address range.
9MODE/Anti-DITHER: This button controls multiple functions:
aVideo Mode: Press this button momentarily to toggle the video
data streaming method between “Graphic” and “Video” modes.
“Graphic” mode is optimized for high-detail static displays and
“Video” mode is optimized for full motion video.
bAnti-Dither: Press and hold this button for 3 seconds to enable
and switch between the three “Anti-Dither” modes (1-bit, 2-bit
and off). Certain graphics cards use dithering to emulate a larger
color palette, but dithering causes difculty for maintaining low-
bandwidth during real-time video compression, so these Anti-
Dithering modes are designed to remove the dithering prior to
compression and transmission of the signal. If the source is not
using dithering, please leave this feature disabled as it may cause
a blocking effect with non-dithered content.
Note: This feature is set to “off” by default.
10 ISP: For factory use only.
11 RESET: Press this recessed button to reboot the unit (Settings will not
be reset).
12 VGA LOOPBACK OUT: Connect to an analog VGA monitor to
locally view the connected VGA or HDMI (non-HDCP, 1080p or
6
lower) source.

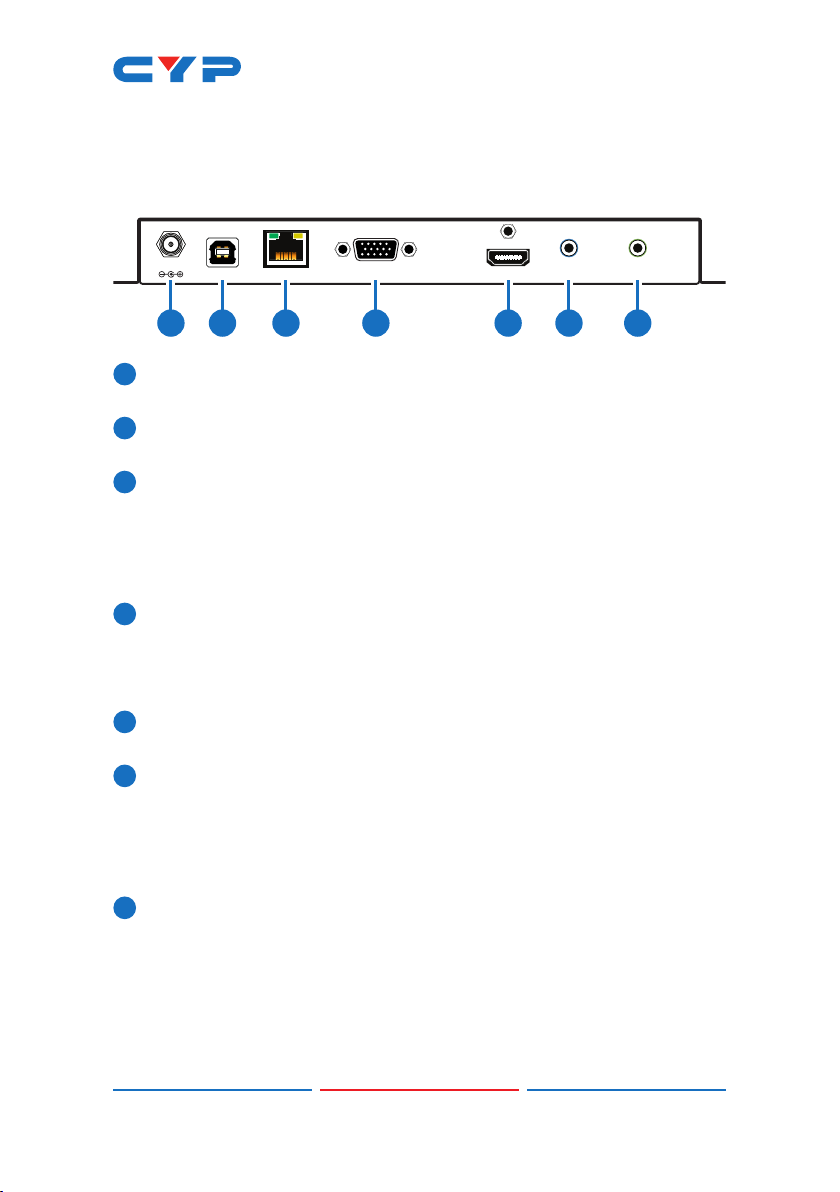

6.2 Transmitter's Rear Panel
DC 5V
USB VGA IN HDMI IN LINE IN LINE OUT
LAN (PoE)
2 3 4 5 6 7
1
1DC 5V: Plug the 5V DC power adapter into the unit and connect it
to an AC wall outlet for power. (Optional if powered by PoE)
2USB: Connect directly to a PC to extend its USB functionality to the
ports on the connected Receiver.
3LAN (PoE): Connect via a Gigabit Ethernet switch to compatible
Receiver(s) to transmit data, and to a PC/laptop to control the unit
via WebGUI.
Note: This unit can be powered directly by the connected Gigabit
Ethernet switch if it provides PoE (802.3af).
4VGA IN: Connect to VGA source equipment such as a PC or
laptop.
Note:PCtextandcontentwithnedetailsmaydisplaywithsome
visual artifacts when transmitted at 4K@60Hz (YUV 4:2:0).
5HDMI IN: Connect to HDMI source equipment such as a media
player, game console or set-top box.
6LINE IN: Connect to the stereo analog output of a device such as
a CD player or PC.
Note: When a live audio source is connected to the Line In, it will
be automatically embedded into the transmitted signal, and will
completely replace any existing HDMI audio.
7LINE OUT: Connect to powered speakers or an amplier for stereo
analog audio output. This will output the audio from the Mic In on
the connected Receiver.
Note: This function is only available in Unicast mode. The Mic In
audio channel from the Receiver is only active when an analog
source is also connected to the Line In port on the Transmitter.
Table des matières
Autres manuels CYP Émetteur
CYP
CYP PU-305BD-TX Manuel utilisateur
CYP
CYP CHDBT-1H3CE Manuel utilisateur
CYP
CYP CA-HDMIAT Manuel utilisateur
CYP
CYP PU-107 Manuel utilisateur
CYP
CYP CH-2527TXPL Manuel utilisateur
CYP
CYP PUV-1510RXWP Manuel utilisateur
CYP
CYP PU-607BD-TX Manuel utilisateur
CYP
CYP PU-1H7HBTL Manuel utilisateur
CYP
CYP PUV-1710LTX-AVLC Manuel utilisateur
CYP
CYP CPLUS-12FTX Manuel utilisateur
CYP
CYP CSI-8H8CVTX Manuel utilisateur
CYP
CYP CA-HDMIAT Manuel utilisateur
CYP
CYP IP-7000TX Manuel d'installation
CYP
CYP CH-A320TX Manuel utilisateur
CYP
CYP CH-516TXAS Manuel utilisateur
CYP
CYP CH-306TXA & RXA Manuel utilisateur
CYP
CYP PUV-1605S-TXWP Manuel utilisateur
CYP
CYP CH-507TX Manuel utilisateur
CYP
CYP PUV-1730PLTX-AVLC Manuel utilisateur
CYP
CYP DCT-30TX Manuel utilisateur
Manuels Émetteur populaires d'autres marques
Dejero
Dejero EnGo 3x Manuel utilisateur
Rosemount
Rosemount 4600 Manuel utilisateur
Speaka Professional
Speaka Professional 2342740 Manuel utilisateur
trubomat
trubomat GAB 1000 Manuel utilisateur
Teledyne Analytical Instruments
Teledyne Analytical Instruments LXT-380 Manuel utilisateur
Rondish
Rondish UT-11 Manuel utilisateur
