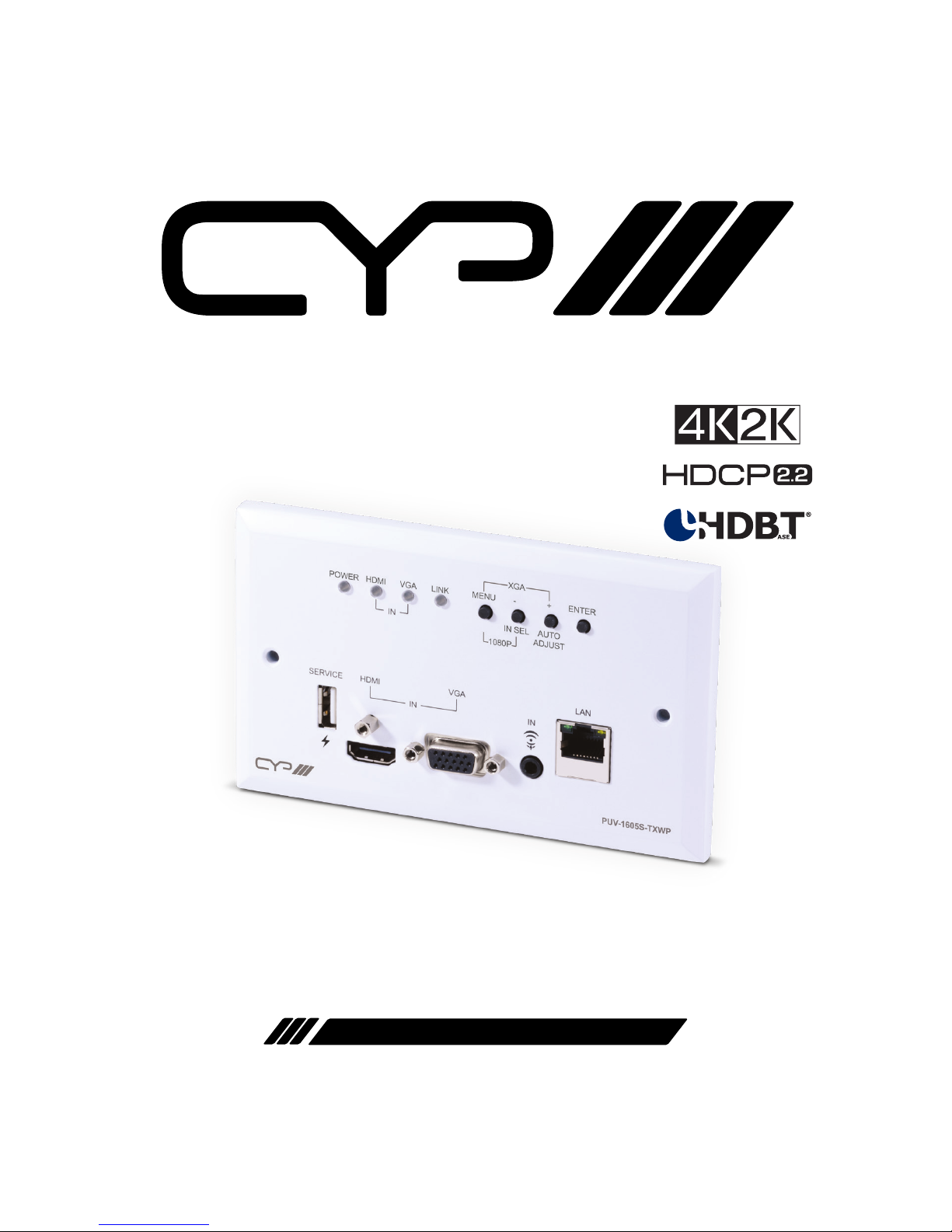

CYP PUV-1605S-TXWP Manuel utilisateur
PUV-1605S-TXWP
HDMI/VGA with Scaling over Single CAT5e/6/7 HDBaseT™
Wallplate Transmitter (Full 5Play™ & Single LAN up to
100m, PoH
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 20/06/2018 First release
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 OSD Menu ..................................................10
6.4 RS-232 Commands..................................15
7. Connection Diagram .......................... 27
8. Specifications...................................... 28
8.1 Technical Specifications ........................28
8.2 Video Specifications................................29
8.3 Cable Specifications ...............................30
9. Acronyms............................................. 31
6
1. INTRODUCTION
This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio
embedding and scaled HDBaseT output. The wall plate is designed for
use with UK two-gang sized enclosures. This Transmitter can send high
definition uncompressed audio/video along with Ethernet over a single
cable up to a distance of 100 metres at 1080p@60Hz.
The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The
VGA input supports resolutions up to WUXGA (RB) and with the use of the
associated 3.5mm audio input, stereo audio may be embedded as well.
To provide maximum compatibility with a wide range of display types,
all sources are scaled to a user-selected resolution and timing (up to
4K@30Hz) for transmission over HDBaseT.
This unit also supports automatic input selection between the HDMI
and VGA inputs, with hot plug detection, enabling hands-free operation.
Additionally, the unit may be powered locally or via 48V PoH (Power over
HDBaseT) from a compatible HDBaseT Receiver, which allows for greater
flexibility in installations. The unit is controllable via front panel controls
with an OSD or RS-232 (via the RS-232 port on a compatible Receiver).
2. APPLICATIONS
Household entertainment sharing and control
Lecture halls, auditoriums and classroom
Houses of worship
Conference rooms and boardrooms
Hotel event spaces
3. PACKAGE CONTENTS
1×HDMI/VGA over HDBaseT Wallplate Scaler
1×Operation Manual
7
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a media player, video game console
or set-top box.
HDMI receiving equipment such as an HDTV, monitor or audio
amplifier.
The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly
recommended.
The use of “Premium High Speed HDMI”cable is highly recommended.
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
1 HDMI input
1 VGA input with 3.5mm mini-jack audio input
Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports VGA input resolutions up to WUXGA (RB)
Simultaneous transmission of uncompressed video, audio and data
over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K
Scaled HDBaseT output supports resolutions up to 4K@30Hz (4:4:4,
8-bit)
Automatic input selection with hot plug detection enabling hands-
free operation
Unit may be powered locally or via 48V PoH (PD) from a compatible
HDBaseT Receiver (PSE)
Wall plate is designed for UK two-gang sized enclosures
Front panel LEDs indicate input selection, power and link status
Controllable via front panel controls with an OSD or RS-232 (via the
RS-232 port on a compatible Receiver)
Note: The 48V PoH function is designed to receive power from compatible
Receiver units only. PoH from other Receiver brands may not be compatible.
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
HDMI VGA
+
AUTO
ADJUST
IN SEL
ENTER
XGA
1080P
MENULINKVGAHDMIPOWER
SERVICE LAN
AUDIO
IN
−
IN
IN
PUV-1605S-TXWP
9
1 2 3 4 65 7 8
10 11 12 13
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2HDMI IN LED: This LED will illuminate when HDMI is the selected
source.
3VGA IN LED: This LED will illuminate when VGA is the selected source.
4LINK LED: This LED will illuminate when both Transmitter and
Receiver are connected and communicating with each other properly.
5MENU: Press to enter the OSD menu, or to back out from menu items.
6−/IN SEL: Press to move down or adjust selections within OSD menus.
When not in a menu press this button to switch between the available
inputs. The LED will illuminate to indicate which source is currently
selected.
7+/AUTO ADJUST: Press to move up or adjust selections within
OSD menus. When not in a menu press this button to optimise the
positioning of the picture (VGA sources only).
8ENTER: Press to confirm a selection within the OSD or to go deeper
into a menu item.
9SERVICE: This slot is reserved for firmware update use only.
9
10 HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box.
11 VGA IN: Connect to VGA source equipment such as a PC or laptop.
12 AUDIO IN: Connect to the stereo analogueue output of a device such
as a CD player or PC for embedding into the HDBaseT output.
13 LAN: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection.
6.2 Rear Panel
DC 12V
+
−
CAT5e/6/7 OUT
2
1
1DC 12V: Connect a 12V DC power adapter to the twin terminal block
and connect it to an AC wall outlet for power. (Optional, not required
when powered by PoH from the Receiver.)
2CAT5e/6/7 OUT: Connect to the Receiver unit with a single Cat.5e/6/7
cable for transmission of all data signals.
10
6.3 OSD Menu
LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4
Video Video HDMI
PC
Output NATIVE
640×480@60
800×600@60
1024×768@60
1280×720@60
1280×768@60
1280×800@60
1280×1024@60
1360×768@60
1440×900@60
1400×1050@60
1600×1200@60
1680×1050@60
1920×1080@60
1920×1200@60RB
2048×1080@50
2048×1080@60
2560×1440@60RB
2560×1600@60RB
720×480p@60
720×576p@60
1280×720p@50
1280×720p@60
1920×1080p@24
1920×1080p@25
1920×1080p@30
