OPERATION MANUAL

AU-11CA

HDMI Audio Embedder with

built in Repeater

AU-11CA_Manual-EN.indd 1 20/04/2011 14:12:53

Table of Contents

1. Introduction 1

2. Features 1

3. Package Contents 1

4. Operation Controls and Functions 2

4.1 Top Panel Diagram 2

4.2 Right Panel Diagram 2-3

4.3 Left Panel Diagram 3

4.4 Upper Panel Diagram 3-4

4.5 Rear Panel Diagram 4

5. Connection Diagram 4

6. Specications 5

AU-11CA_Manual-EN.indd 2 20/04/2011 14:13:07

Page 1

1. Introduction

The AU-11CA Audio Embedder lets you insert an external audio signal into any HDMI

source. The device allows you to insert analogue or digital stereo and multi-channel

digital surround sound signals (via Optical) to give users the capability to overcome

audio issues within complex HDMI installation. The AU-11CA also repeats the HDMI

signal to allow an extended total HDMI cable range.

2. Features

• Compliant with HDMI v1.3 , HDCP 1.2 and DVI 1.0

• Supports Optical Sample Rate up to 48 kHz.

• Supports LPCM Stereo, DTS and Dolby Digital via Optical input.

• Supports up to 24bit resolution digital audio.

• HDMI cable distance testing showed that with 1080p 8bit/12bit resolution, the

input/output distance is up to 10 meters.

• Low power consumption.

• Supports HDMI Sample Rates up to 192 kHz

• Simple switched operation

3. Package Contents

• HDMI to CAT6 Transmitter.

• 5V / 1A Power Adaptor

• Operation Manual.

AU-11CA_Manual-EN.indd 1 20/04/2011 14:13:21

Page 2

4. Operation Controls and Functions

4.1 Top Panel

1. Power LED: The red LED will illuminate when the power is connected with AC wall

outlet.

2. LINK: The LED will illuminate in blue when both the source and the display are

sync together. This LED will also blink once while the power is turned on.

4.2 Right Panel

1. Audio In Select: This switch allows user to select the audio input from HDMI,

Optical or L/R. By switching the dip switch according to the printing from left to

right HDMI, Optical and L/R.

1 2

Link

Power 1

2

AU-11CA_Manual-EN.indd 2 20/04/2011 14:13:22

Page 3

4.3 Left Panel

4.4 Upper Panel

1. Audio In Select: This switch allows user to select the audio input from HDMI,

Optical or L/R. By switching the dip switch according to the printing from left to

right HDMI, Optical and L/R.

1. Power Button: Press this button switch ON or set the device to standby

mode.

1. DC 5V: This slot is where you plug the 5V DC power supply into the unit

and connect the adaptor to an AC wall outlet.

1. Input R/L: These slots are to connect with audio source equipment such as

CD player or Hi-Fi equipment with RCA jack for input audio signal.

2. Input Optical: This slot is to connect with audio source equipment such as

stereo system or Hi-Fi equipment with optical cable for input audio signal.

3. This slot is to connect with input source equipments such as DVD/Blu-Ray

player with HDMI cable for video and audio input signal.

1

1 2 3

AU-11CA_Manual-EN.indd 3 20/04/2011 14:13:23

Page 4

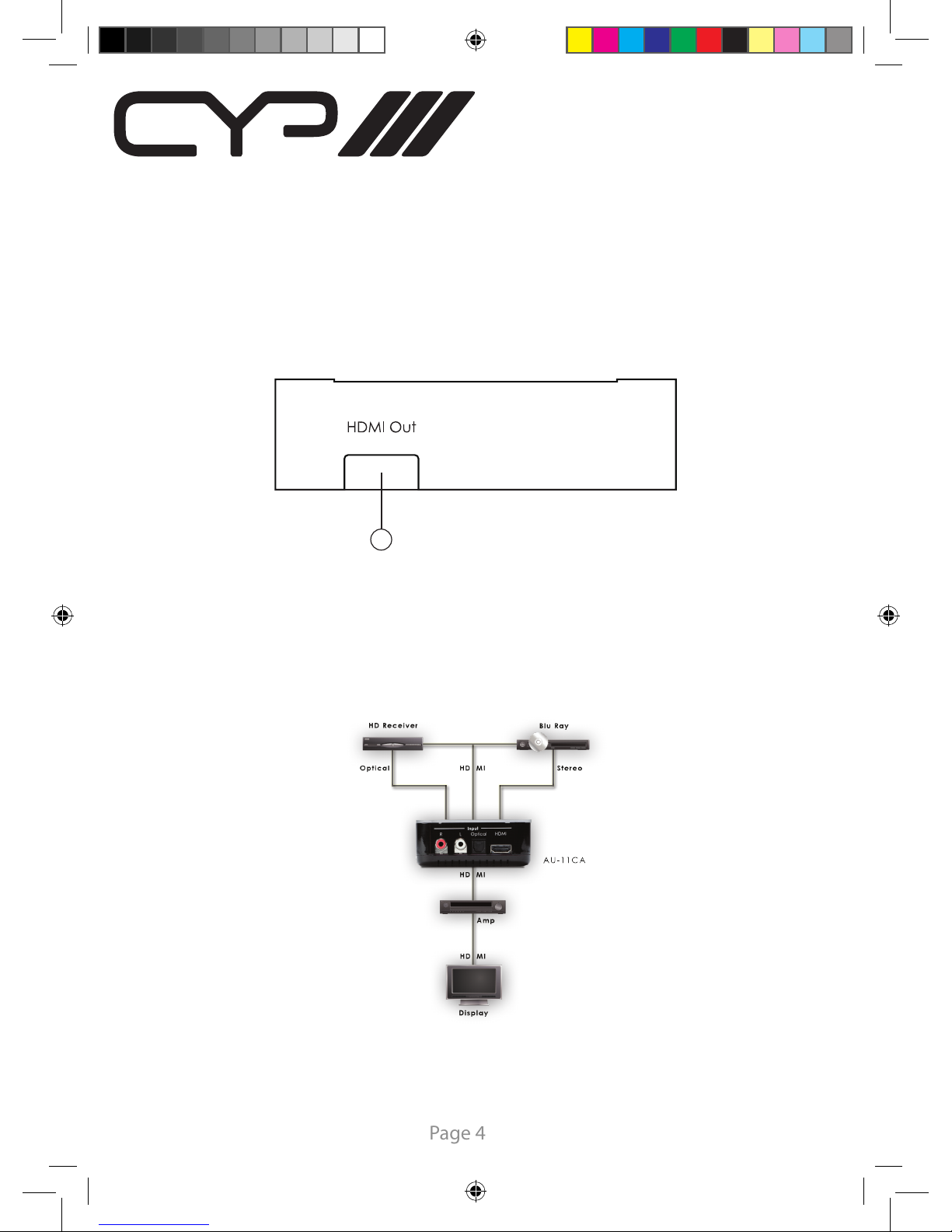

5. Connection Diagram

1. This slot is to connect with input source equipments such as DVD/Blu-Ray

player with HDMI cable for video and audio input signal.

1. HDMI Out: This slot is to connect with LCD TV or HD monitor for both video

and audio display with HDMI cable.

1

4.5 Rear Panel

AU-11CA_Manual-EN.indd 4 20/04/2011 14:13:27

Page 5

6. Specications

Input Port 1 x HDMI, 1 x Optical, 1 x Analogue Stereo (2 x

RCA)

Output Port 1 x HDMI.

HDMI Sample Frequency Up to 192 kHz

Optical Sample Frequency Up to 48 kHz

Output Port 1 x HDMI

HDMI Audio Format PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+,

D-TrueHD, DTS-HD

Optical Audio Format PCM2

ESD Protection Human body model: ± 8kV (air-gap discharge)

± 6kV (contact discharge)

Chassis Material Plastic

Silkscreen Color Black

Operating Temperature 0ºC~40ºC

Power Supply 2 x 5V/2.6A DC (US/EU standards, CE/FCC/UL

certied)

Dimensions (mm) 85(W) x 85(D) x 35(H)

Weight (g) 260

AU-11CA_Manual-EN.indd 5 20/04/2011 14:13:27
