CYP CP-290 Manuel utilisateur
CP-290
HD/PC/DVI/HDMI
to HDMI Scaler Box
Operation Manual
CP-290
Revision History
Version No Date Summary of Change
V1 20090106 Preliminary Release
Precautions
Failure to follow the precautions described below may cause damage to
PC/DVI to HDMI Scaler Box and void the warranty.
DO NOT open the case. Doing so will void the warranty. If you find
problem with it, please return back to your retailer or seller who will
assist you or provide you with solution.
DO NOT use third-Party AC adapter or power cord. Doing so may
damage PC/DVI to HDMI Scaler Box.
DO NOT bump, jar or drop contents of the products as it may
damage it and result in warranty void.
DO NOT set any liquids or beverages on the drive as they may
damage PC/DVI to HDMI Scaler Box.
Table of Contents
1
1
1
1
2
2
2
3
3
4
4
1. Introduction…………………………………………………........……….
2. Applications..………………………………………………................….
3. Package Contents…………....…………………..............................…
4. System Requirements........……………………….…………........…….
5. Features…………………………………………….......……........………
6. Operation Controls and Functions…………………………………….
6.1 Front Panel ...............................................................................
6.2 Rear Panel ………………………………………….........….….…
7. Specications……………………………………………...........………..
8. Connection and Installation…………………………….........……..…
9. Supports Resolution………………………..……………...........…….…
1. Introduction
This Scaler Box is design to display your PC/HD images on the LCDTV
with better viewing image. It can upscale PC/DVI input sources to HDMI
output for wide-range PC/HD resolutions; PC/DVI/HD/HDMI Supports
XGA/UXGA/720p/1080p. This unit allows user to select a variety of output
resolutions/format, color space and adjust for the best picture quality.
Further, it also transfer sounds through HDMI for users to enjoy both HD images
and sounds consistently.
2. Applications
Individual home use
Classroom presentation
Meeting demonstration
Gaming entertainment playing
3. Package Contents
HD/PC/DVI/HDMI to HDMI/DVI Scaler Box
Power adaptor
Operation Manual
4. System Requirements
PC/DVD/Blue Ray and LCD TV/Monitor.
D-SUB/ 3RCA to D-SUB, DVI/HDMI to DVI-D cable for linking source input &
image output to TV.
Coaxial or audio phone jack cable for linking the digital or analog
audio sounds.
1
5. Features
HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
Supports PC/HD resolution input: HDMI: 480p~1080p50/60
DVI : VGA~WUXGA
PC : VGA~WUXGA
HD : 480i~1080p50/60Hz
Scale PC/HD/DVI/HDMI resolutions to XGA/UXGA/720p/1080p
resolutions.
Supports PC/HD&DVI/HDMI to HDMI output.
Transfer L/R and coaxial sounds to HDMI.
Input and output selection bottons for quick and easy function
choose.
①DVI-D/HDMI: Connect the PC input DVI (29 pin) port to the DVI-D/HDMI
output port of your HDMI source equipment such like PC.
Resolution: VGA~ WUXGA ; 480p~1080p50/60
Note: DVI-D input can only take Digital signal.
HDMI input 12bit, output 8 bit only.
②PC/HD: Connect the PC input D-Sub (15-pin) port to the D-Sub output
port of your source equipment such like PC or a D-Sub to 3RCA to your
source equipment like DVD player.
PC Resolution: VGA~ WUXGA
Component Resolution: 480i~1080i, 1080P 50/60
③Power: Plug the 5VDC power supply into the unit and connect the
adaptor to AC wall outlet.
Note: Output timing 1080p 50Hz may not be supported by some TV with
input 576i/p@50, 720p50 and 1080i50.
6. Operation Controls and Functions
6.1 Front Panel
1 2 3
PC/HD
DC 5V
VIDEO IN
2
6.1 Rear Panel
①Coaxial: Connect the coaxial audio cable from source device.
②L/R: Connect the L/R phone jack from the source device.
③HDMI out: Connect the HDMI cable to LCD TV or Monitor.
④Audio: input audio switching button for selecting coaxial or L/R audio
signal. Simply push the button and the selection menu will display on the TV.
⑤Video: input video switching button for selecting DVI or PC/HD video
signal. Simply push the button and the selection menu will display on the TV.
⑥Output Timing: output resolution selectable on 720p / 1080p / XGA /
UXGA. Simply push the button and the selection menu will display on the
TV.
Note: A. Only when HDMI signal is send the selection of audio under HDMI
will appear on the display and the audio will Supports PCM2ch.
B. By pushing both Audio & Video buttons the output will switch to XGA.
C. By pushing both Audio & Timing buttons the output will switch to
720p.
1
COAXIAL
AUDIO VIDEO TIMING
L/R
AUDIO IN INPUT OUTPUTHDMI
OUT
2 3 4 5 6
Input ports 1 x PC
1 x DVI-D
1 x Coaxial/Audio
1 x L/R Audio
Output port 1 x HDMI
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 160(D) x 102(W) x 25(H)
Weight(g) 332
Chassis Material Aluminum
Silkscreen Color Silver
Operating Temperature 0°C ~ 40°C
Power Consumption 3.5w
7. Specications
3

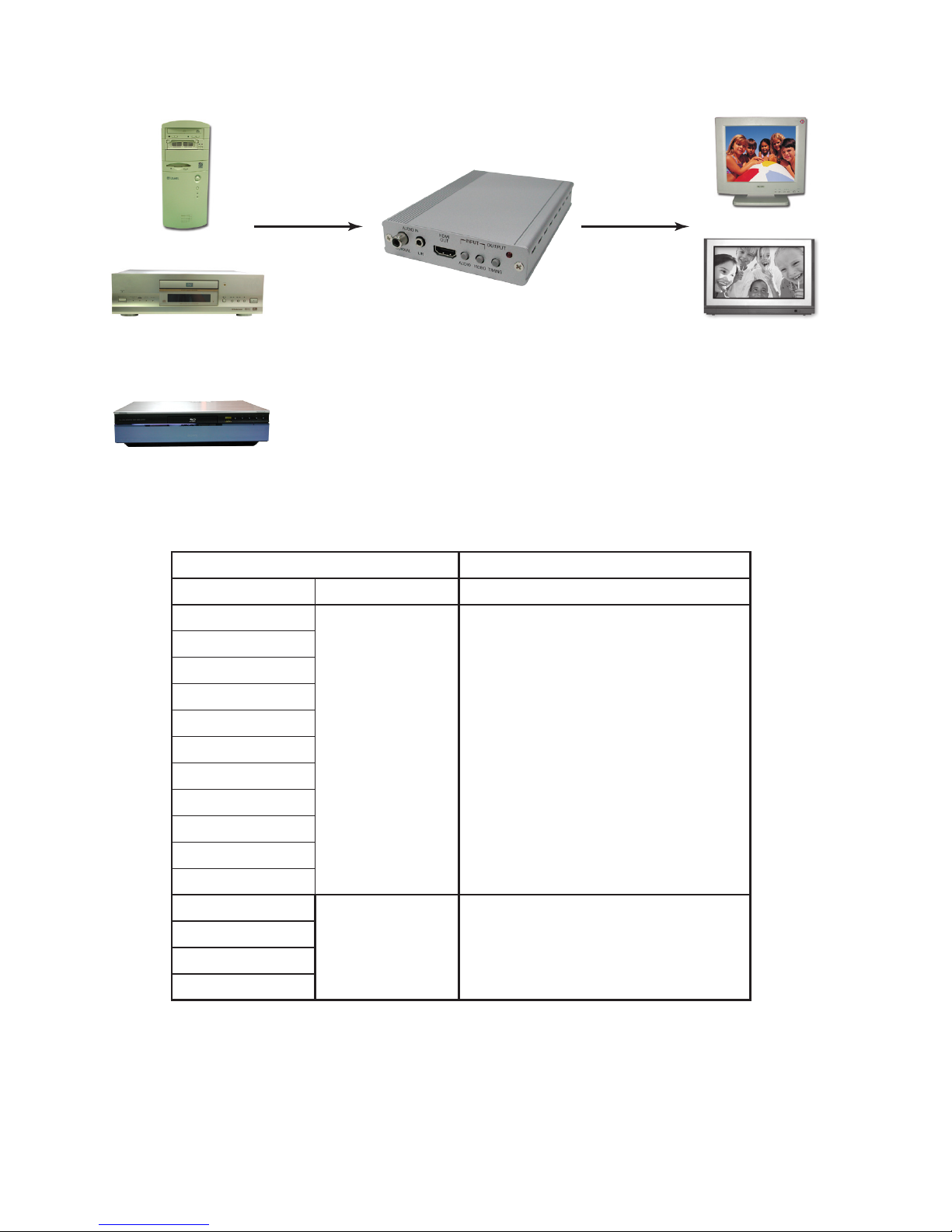

8. Connection and Installation
PC MONITOR
DVD LCD TV
or
or
9. Supports Resolution
PC/HD
or
DVI/HDMI
Blu-Ray
or
DVI
or
HDMI
Note 1 : This scaler doesn't Supports 50/60Hz frame rate conversion; therefore
50Hz PC resolutions may not be compatible with all displays.
Note 2 : The timing of 1080p 50Hz output signal is very critical; therefore it may
not be compatible with all displays.
Input Output
Resolution Vertical Rate Resolution/Vertical Rate
VGA
60Hz
UXGA/60Hz
XGA/60Hz
720P/60Hz
1080P/60Hz
SVGA
XGA
SXGA
WXGA
UXGA
WSXGA
WUXGA
480i/480p
1080i
1080p
576i/576p
50Hz
UXGA/50Hz (note 1)
720p XGA/50Hz (note 1)
1080i 720P/50Hz
1080p 1080p/50Hz (note 2)
4
20090110 MPM-CP290
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
