CYP EL-41X Manuel utilisateur

EL-41X

v1.4 Xpressview™ HDMI

4-Way Switcher

OPERATION MANUAL

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

V1 20100407 Preliminary Release

Table of Contents

1. Introduction ……………………..……………………...…........….…….

2. Applications …………………..………………….……...................…..

3. Package Contents ………………………...........……….................…

4. System Requirements ……………..……….........………............…….

5. Features …………………………………………......……........…...……

6. Specications ………………………………...……..........………....….

7. Operation Controls and Functions ……………...……..............……

7.1 Front Panel ..............................................................................

7.2 Rear Panel .……………...…………………..…….......…....….…

7.3 Right Panel ..............................................................................

7.4 Left Panel .…………………………………..…….......….....….…

7.5 Top Panel .…………………………………..…….........…...….…

8. Remote Control ….…………………..............................…..…..…......

9. OSD Menu ….………………….......................................…..…..…......

9.1 System Info ..............................................................................

9.2 Sink Edid .……………...…………………..……..........…....….…

9.3 Source Infoframe ....................................................................

9.4 Input Select .…………………………………..….......….....….…

9.5 Audio Return .…………………………………….........…...….…

9.6 Exit .……………………………...........……..…….........…...….…

10. Connection and Installation ….………………….........…..…..…......

11. Acronyms …......................................................................................

1. Introduction

This is a high performance four-input & one-output High-Deﬁnition Multimedia

Interface (HDMI) v1.4 switcher with digital audio inputs and outputs. It

supports HDCP repeater functions and fast switching between any of the four

of HDMI input ports. The system supports all 3D TV formats in addition to all

HDTV formats up to 1080p 12-bit Deep Color. Furthermore, the remote control

gives uses complete control over the selection of sources and makes the

device incredibly user friendly.

2. Applications

 Display 3D content

 Multi-source selection and display

 Display HDMI v1.4 content

 Electronic retail display

3. Package Contents

 HDMI v1.4 3D 4 in 1 out switcher

 Remote Control

 5V 1A power adaptor

 Operation manual

4. System Requirements

Input source equipment with or without 3D content and HDMI connection

cables. HDTV output displays that support or don’t support 3D and HDMI

connection cables.

5. Features

 Support multiplexed HDMI 4-input and 1-output

 HDMI 1.4, HDCP 1.4 and CEC1.4 compliant

 HDMI 1.4 support:

 Audio Return Channel (ARC)

 3D TV support

 CEC1.4

 Fast switching on all HDMI input ports

 Character and icon based On-Screen Display (OSD)

 System information for Software version

 Sink EDID

 Source info frame

 HDMI input Audio & Audio Return selection

 HDCP repeater support

 Deep Color support 36/30/24-bit, 1080p@60Hz

 HDMI cable distance tested with 1080p 8/12 bits resolution, the input

& output distance can be up to 10 &15 meters.

 Audio support:

 HDMI 1.4 compatible audio interface

 Dedicated, ﬂexible audio input/output port

 Dolby TrueHD

 DTS-HD Master Audio 7.1CH

 Full audio input and output support

6. Specications

Frequency Bandwidth 2.25Gbps

Input Ports 4 x HDMI Female ports

Output port 1 x HDMI Female port

HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, DD+,

D-TrueHD, DTS-HD

HDMI Cable In 1080p 8-bit (10M), 12-bit (10M)

HDMI Cable Out 1080p 8-bit (15M), 12-bit (15M)

Coaxial Audio Output PCM2CH

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certiﬁed)

ESD Protection Human Body Model: ± 8kV (air-gap discharge)

± 4kV (contact discharge)

Dimensions (mm) 100 (W) x 70 (D) x 20 (H)

Weight (g) 90

Chassis Material Plastic

Silkscreen Color White

Power Consumption 4W

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20~60% RH (non-condensing)

7. Operation Controls and Functions

7.1 Front Panel

②

INPUT

①

① IR sensor: This is a IR receiver window that receives IR signals from the remote

control included in the package.

② INPUT: Press this button to select the desires input source, the LED will switch

on according to the selection.

7.2 Rear Panel

① ② ③

DC 5V

OUTPUTCOAX OUT

① COAX OUT: This slot is where you connect an amplifier for transmitting an

audio signal with coaxial cables. When the audio return function is on

the audio signal will be received from the output and when the audio return

function is off the audio signal will be received from the input source.

This device only supports PCM 2CH.

Note:

1. The display TV or monitor must support an audio return function and

the function be must turned ON in order to perform the audio return.

2. The display TV or monitor's HDMI input jack must be connected to the

device with an audio return function.

② OUTPUT: This slot is where you connect with an HDTV or HD display that does

support or does not support 3D signals for sending an input signal to the

display with an HDMI cable.

③ DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor

to an AC outlet. The LED will switch on when the power cable is plugged in.

7.3 Right Panel

① ②

4 OSD3

HDMI IN

①HDMI IN 3 & 4: These slots are where you connect the input source

devices for sending a signal to the input source with HDMI cables.

②OSD: Press this button to bring up the OSD on the display and press

it again to turn it off.

7.4 Left Panel

②①

1USB 5V 2

HDMI IN

①USB 5V: This slot is where you can connect the mini USB cable from your

PC to the device in order to supply power.

②HDMI IN 1 & 2: These slots are where you connect the input source

devices for sending an input signal with HDMI cables.

7.5 Top Panel

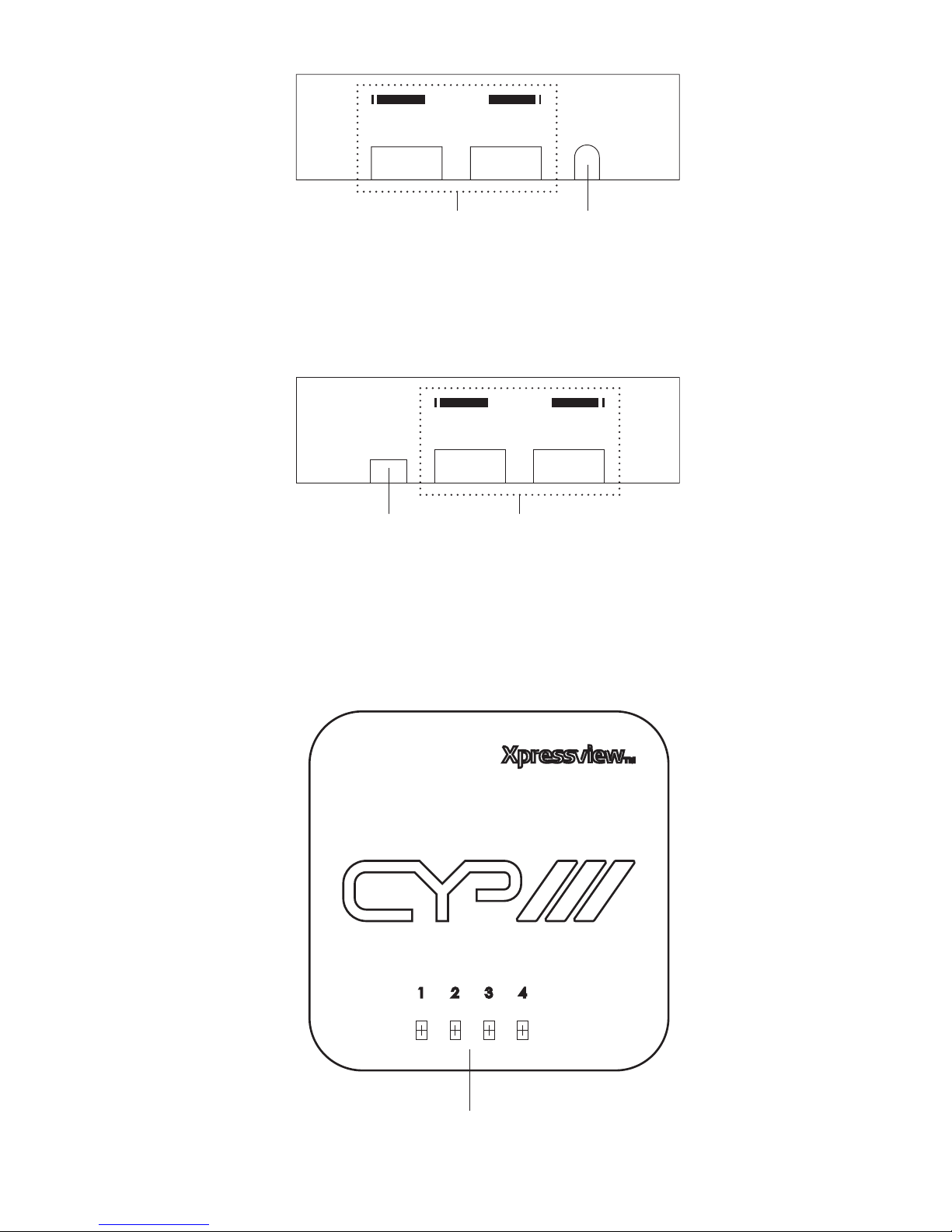

①Input LED 1~4: These LED will switch on according to user’s input selection.

2 3 41

①

8. Remote Control

① MENU: Press to enter into menu selection, an OSD

will appear from the display.

② Enter: Press to confirm the selection.

③ 1, 2, 3, 4: Press to select input port.

④ pqtu: Use these buttons to select/adjust OSD

menu’s object.

9. OSD Menu

Press the OSD button from the device or MENU button from the remote

control to bring up the OSD on the display.

Press [p/q] to highlight an option

Press [t/ u] to select the option

Press [Enter] to conﬁrm/exit the selection

CR-88*A

ENTERMENU

②

④

①

③

9.1 System Info

Press [p/q] to highlight an option

Press [Enter] to check the input/output device information and software

version.

Press [MENU] to exit menu

Press [Enter] to confirm/exit the selection

9.2 Sink Edid

Press [p/q] to highlight an option

Press [t/ u] to select the option

Press [Enter] to confirm/exit the selection

Press [MENU] to exit menu

Option Description

Block Data To check the sink Block0 and Block1's table of EDID

Description To check the sink description of EDID

9.3 Source Infoframe

Press [p/q] to highlight an option

Press [t/ u] to select the option

Press [Enter] to confirm/exit the selection

Press [MENU] to exit menu

Option Description

AVI (AVI infoframe data) To check the source video infoFrame Packet

AUD (Audio infoframe data) To check the source audio infoFrame Packet

9.4 Input Select

Press [p/q] to highlight an option

Press [t/ u] to select the option

Press [Enter] to confirm the selection

Press [MENU] to exit menu

9.5 Audio Return

Press [p/q] to highlight an option

Press [t/ u] to select the option

Press [Enter] to confirm the selection

Press [MENU] to exit menu

Option Description

Audio Return On/Off
