Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
4
General Introduction
BOYA BY-XM6 systems are incredibly lightweight, ultracompact and easy-to-use wireless
microphone systems for up to 2 people.
The microphone delivers exceptional, broadcast-quality sound to DSLR, mirrorless and
video cameras, smartphones, tablets, computers, etc.
It is ideal for content creation, vlogging, mobile journalism, and more.
Available Kits
Model
In the box
BY-XMS1
1×BY-XM6 RX
1×BY-XM6 TX
BY_XM6-S2
1×BY-XM6 RX
2×BY-XM6 TX
Product Structure

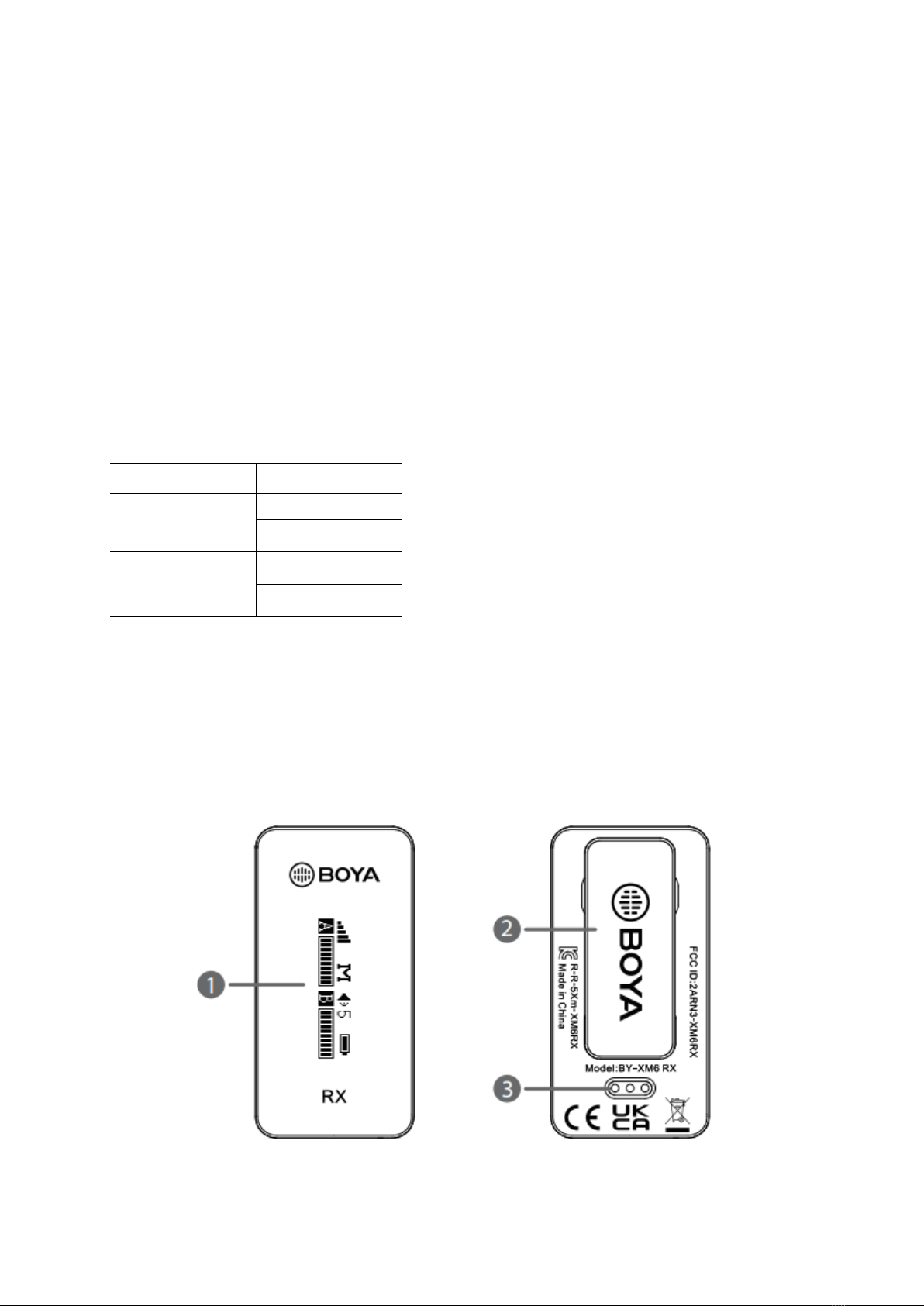

Wireless Receiver BY-XM6 RX
5
1. OLED display
-For more details, please refer to “OLED Display Operation Guide”.
2. Belt Clip
3. Charging contacts
4. Power/Mute Button
Function
Operation
Power ON
Long press
Power OFF
Mute ON
Short press
Mute OFF
5. +/SET button
Function
Operation
+
On home screen, short press to increase volume.
On menu screen, short press to select different functions
or values shown on the display.
SET
On home screen, long press to enter the menu screen.
On menu screen, long press to enter the displayed menu.
Then, long press again to con-rm your option.
6. –button
- On home screen, short press to decrease volume.
- On menu screen, short press to select different functions or values shown on the
display;
- long press to return to home screen.
7. USB-C charging port (DC 5V)
6

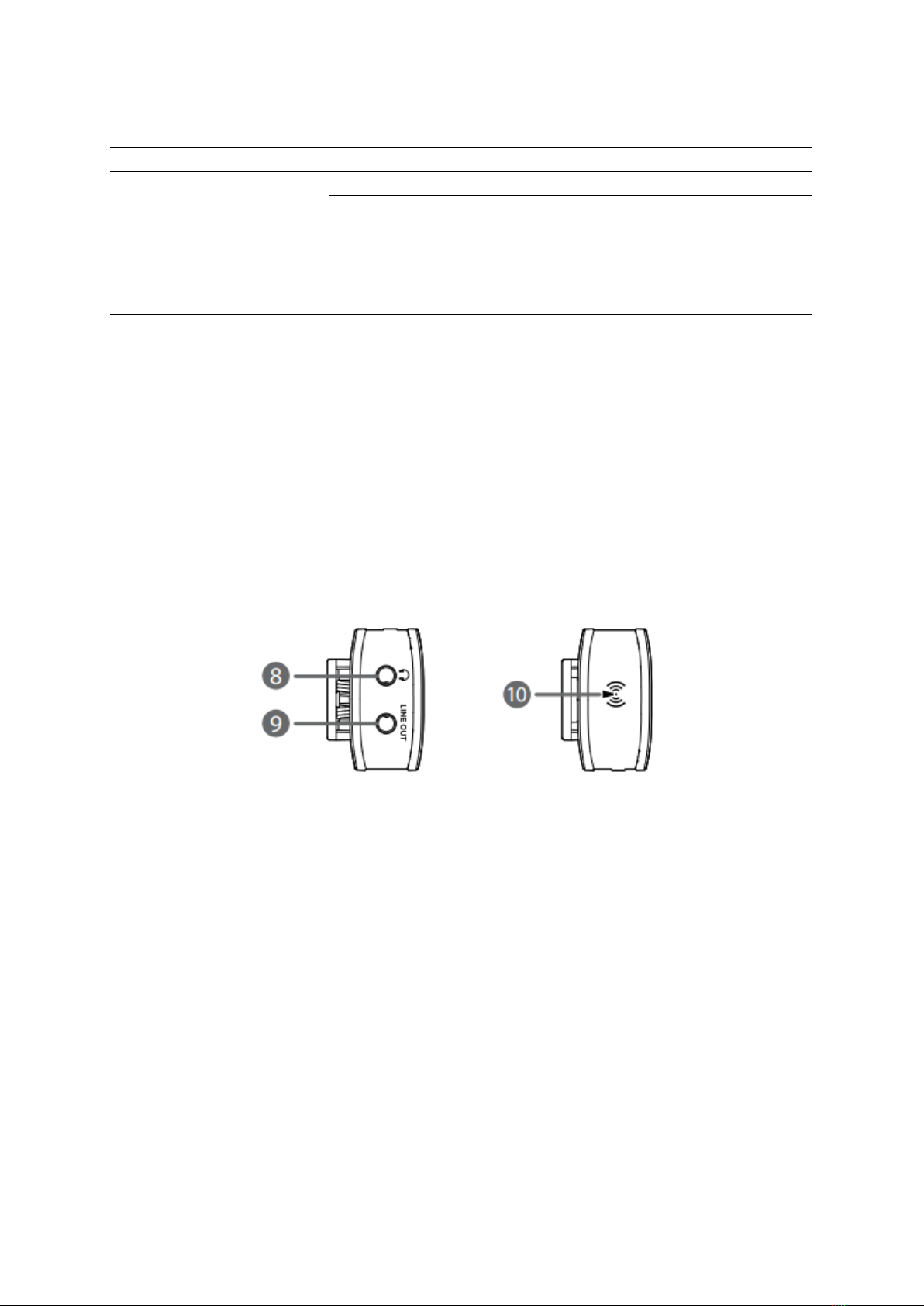

8. 3.5mm headphone output
-Connect headphones for audio monitoring.
9. LINE OUT jack
- Connect the BY-XM6 RX to a smartphone, tablet, camera, recorder, or mixer with
the supplied output cables.
10. Antenna

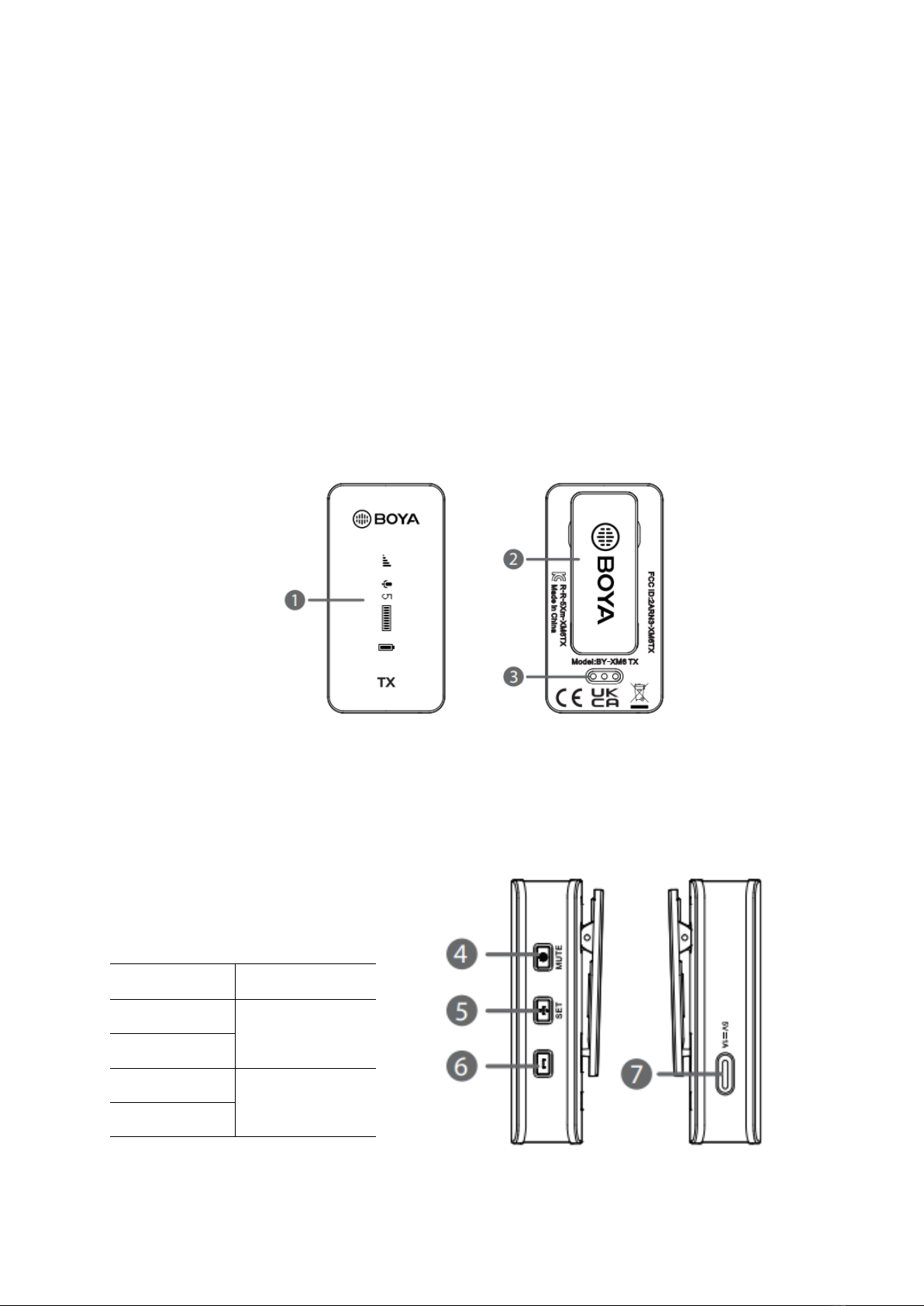

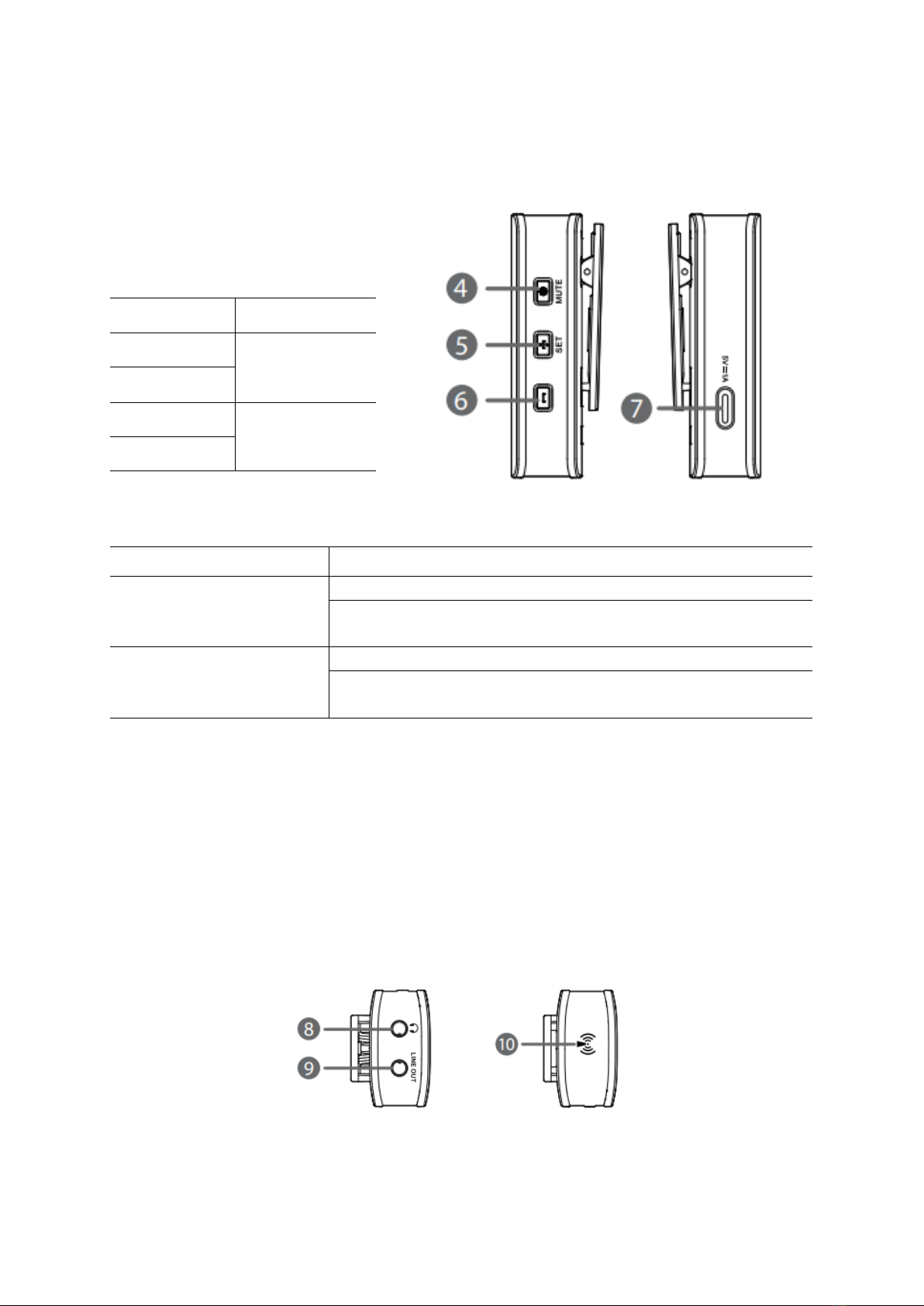

Wireless Transmitter BY-XM6 TX
1. OLED display
-For more details, please refer to “OLED Display Operation Guide”.
2. Belt Clip
3. Charging contacts
4. Power/Mute Button
Function
Operation
Power ON
Long press
Power OFF
Mute ON
Short press
Mute OFF
7
5. +/SET button
Function
Operation
+
On home screen, short press to adjust mic gain.
On menu screen, short press to select different functions
or values shown on the display.
SET
On home screen, long press to enter the menu screen.
On menu screen, long press to enter the displayed menu.
Then, long press again to confirm your option.
6. –button
- On home screen, short press to adjust mic gain
- On menu screen, short press to select different functions or values shown on the
display;
- long press to return to home screen
7. USB-C charging port (DC 5V)
8. Built- in
microphone
9. MIC/LINE IN jack
- It can be connected to the supplied 3.5 mm lavalier microphone, or other 3.5mm
TRS microphones or line-in devices.
10. Antenna
8
OLED Display Operation Guide
Wireless Receiver BY-XM6 RX
Home Screen
If no operation is performed within 20 seconds on other screens, the display will
automatically return to home screen.

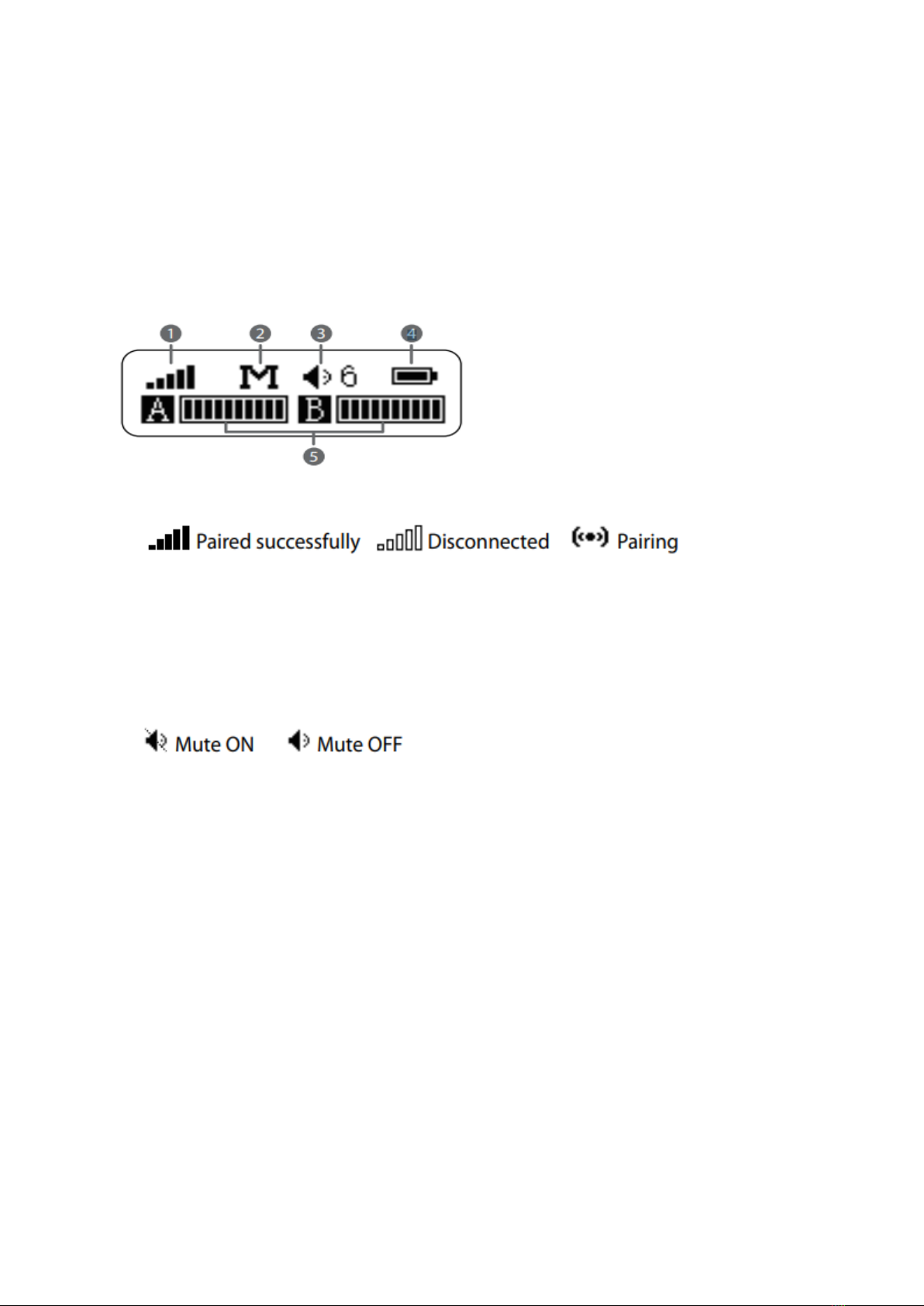

1. Pairing indicator
2. RX’s output mode
M: Mono S: Stereo
3. Output volume & Mute indicator
on home screen, press +/- button to adjust the volume.
4. RX’s battery level indicator
Displays the RX battery level. Please recharge the device immediately when the indicator
starts flashing.
5. Audio input level meter
Displays the audio input level
Menu screen
On home screen, long press SET button to enter menu screen.
On menu screen, long press - button to return to home screen.
9

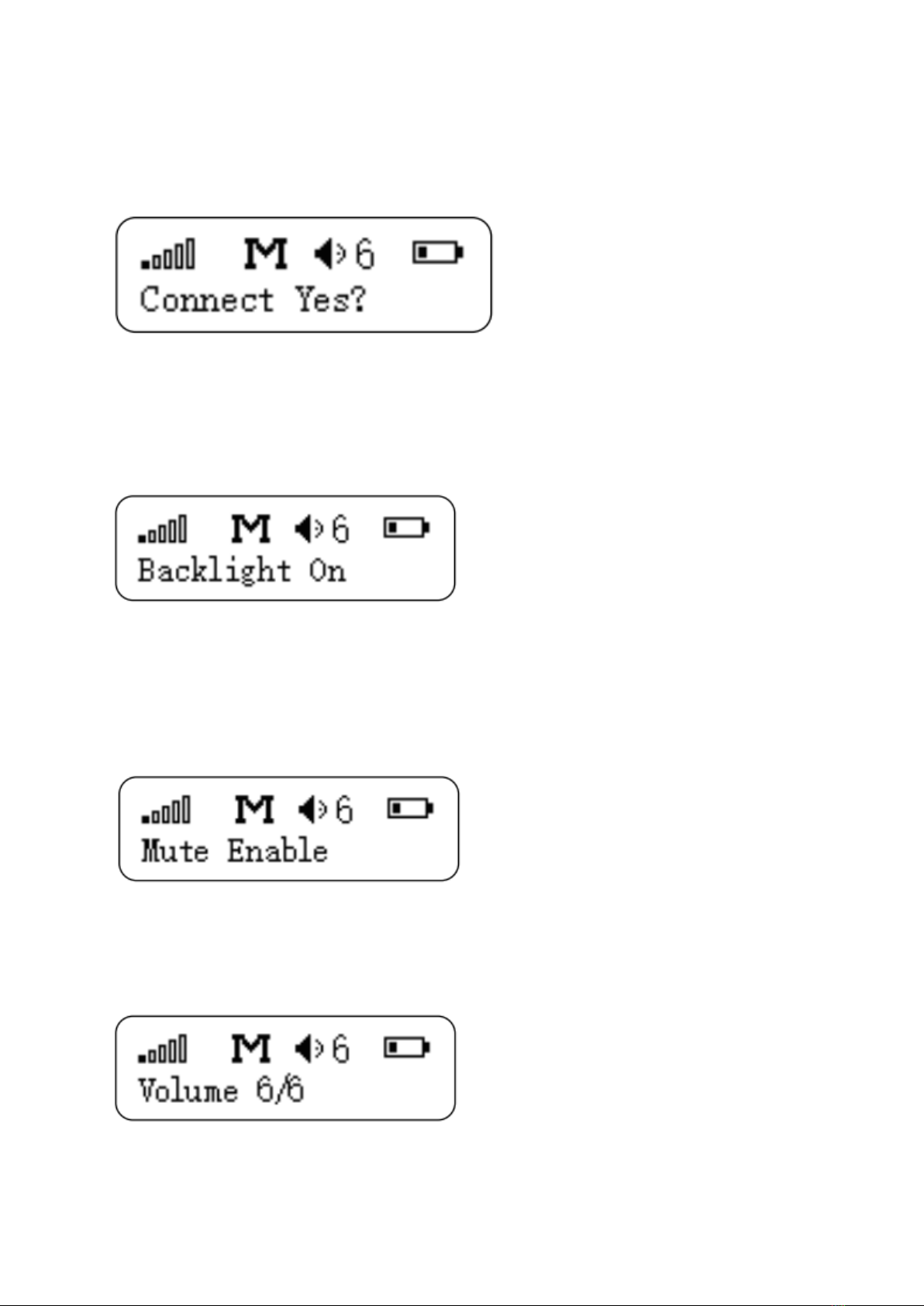

Connect Setting
Pair with the transmitter. For details of operation, please refer to
“Operation Guide”.
Backlight Setting
Set backlight to always on or on for 10/30/60 seconds.
Default is “On”.
Mute Key Setting
Enable or disable mute key button function.
Default is “Enabled”.
Output Volume Setting
Output volume can be set from 0 to 6.
Default is “5”.
10
Output Mode Setting
The output mode can be set to either mono or stereo. When in mono mode, the audio
from the transmitter, or transmitters will be mixed to both the left and right sides. When
in stereo mode, the two transmitters' audio output will be separated to the left and right
sides.
Default is mono.
Language Setting
English or Chinese are available.
Default is English.
Restore Default Setting
Version of the BY-XM6 RX
