Boya BY-WM3D Manuel utilisateur
BY-WM3D
BY-WM3U
INSTRUCTION MANUAL
2.4 GHz
Wireless
Microphone
2.4GHz无线麦克风套装
使用说明
1
Packling Lists
Thank you for purchasing BOYA!
BY-WM3 is a 2.4GHz wireless microphone system, all-inclusive
solution for making it ideal for capturing audio clear, intelligible
audio delity to your smartphones, tablets, DSLR cameras,
consumer camcorders, PCs etc.
What's special about it is that instead of charging the device via
a cable, like devices normally do, miniature itself can neatly be
placed into the inside of the charging case with a quick recharging
for a longer working time. The case provides 1000mAh of charging
power, and it's rechargeable via a USB-C port when it's out of power.
Easy-to-carry feature is designed for videographers, content
creator, video hobbyists, avid vlogger. When you are plugged
in and powered on, it's set and ready so your focus can stay on
your content.
- Charging Case
- Clip-on Minature Transmitter
- Professional Compact Receiver
- MFi Certied Lightning Adapter
- 3.5mm TRS Adapter
- 3.5mm TRRS Adapter
- Foam Windshield
- Fur windscreen
- 30cm (11.8') Type-C to USB-A Charging Cable
BY-WM3D：
- Charging Case
- Clip-on Minature Transmitter
- Professional Compact Receiver
- Type-C Adapter
- 3.5mm TRS Adapter
- 3.5mm TRRS Adapter
- Foam Windshield
- Fur windscreen
- 30cm (11.8'') Type-C to USB-A Charging Cable
BY-WM3U：
2

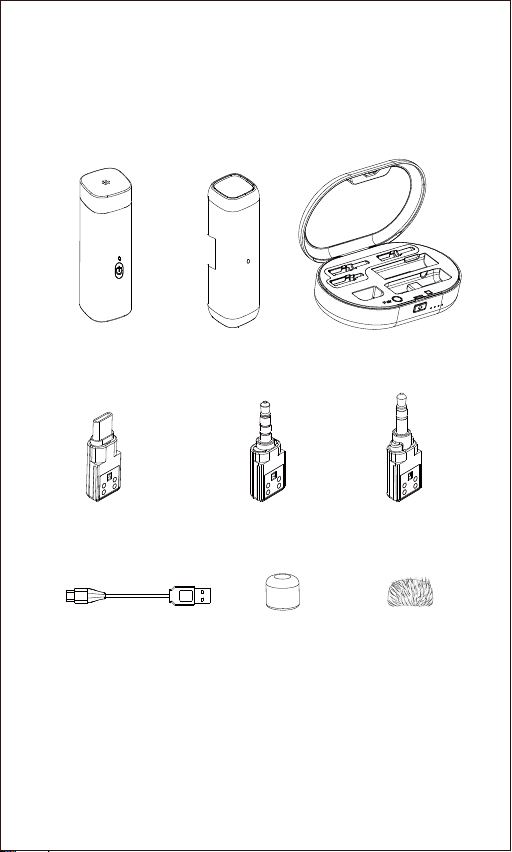

BY-WM3D consists of one clip-on transmitter,
a portable receiver, charging case and their
accessories as following:
Transmitter
MFi Certicated
Lightning Adapters
Foam Windshield Fur windscreenType-C to USB-A
Charging Cable
TRS Audio
Adapters
TRRS Audio
Adapters
Receiver Charging Case
3
BY-WM3U consists of one clip-on transmitter,
a portable receiver, charging case and their
accessories as following:
TRS Audio
Adapters
TRRS Audio
Adapters
Type-C
Adapters
Transmitter Receiver Charging Case
Foam Windshield Fur windscreenType-C to USB-A
Charging Cable
4

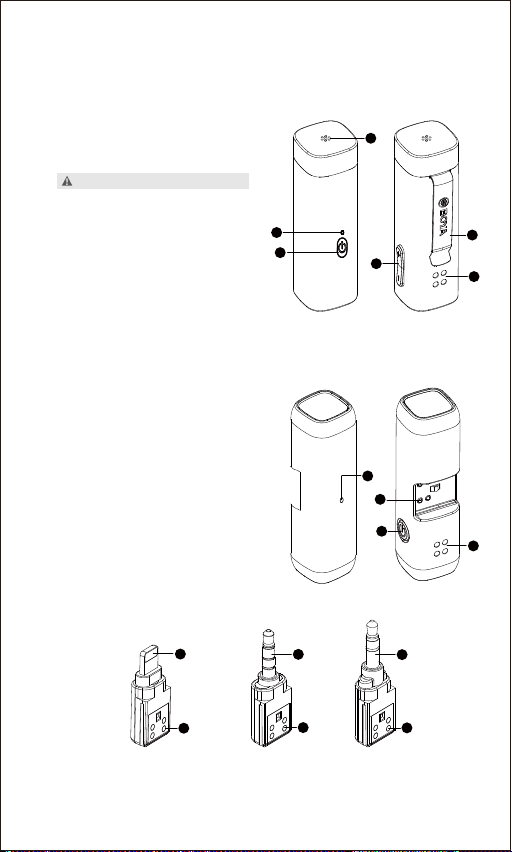

Product Structure:
1. Built-in Microphone
2. Power&Pairing Indicator
3. Power Button
4. +/- Button
5. Mic Clip
6. Charging Contacts
NOTE:
For optimal sound detection,
do not hold your hand against
the microphone head.
7. Power&Pairing Indicator
8. Contacts
9. Power Button
10. Charging Contacts
11. M Certicated
Lightning Adapters
- For iPhone, iPad, iPod
12. TRRS Audio Adapters
- For smartphone, laptop,
tablet and others
13. TRS Audio Adapters
- For DSLR, camcorder, recorder
14. Contacts
BY-WM3D：
Transmitter
Receiver
1
2
3
4
5
6
7
8
9
10
11
14
12
14
13
14
5
1. Built-in Microphone
2. Power&Pairing Indicator
3. Power Button
4. +/- Button
5. Mic Clip
6. Charging Contacts
NOTE:
For optimal sound detection,
do not hold your hand against
the microphone head.
15. Groove for TRS Audio Adapters
16. Groove for M Certicated Lightning Adapters
17. Groove for TRRS Audio Adapters
18. Groove for Foam Windfoam
19. Groove for Transmmitter
20. Groove for Receiver
21. Pair Button
22. Open Button
23. Battery Capacity Indicator
24. Catch
25. Charging Port (DC 5V)
26. Foam Windshield
27. Fur windscreen
28. (11.8'') 30cm Type-C to
USB-A Charging Cable
BY-WM3U：
Transmitter
Charging Case
1
2
3
4
5
6
26
28
27
15
16
18
17
19
20
21
22
23 24
25
6
7. Power&Pairing Indicator
8. Contacts
9. Power Button
10. Charging Contacts
11. Type-C Adapters
12. Contacts
13. TRRS Audio Adapters
- For smartphone, laptop,
tablet and others
14. TRS Audio Adapters
- For DSLR, camcorder, recorder
Receiver
15. Groove for TRS Audio Adapters
16. Groove for Type-C Adapters
17. Groove for TRRS Audio Adapters
18. Groove for Foam Windfoam
19. Groove for Transmmitter
20. Groove for Receiver
21. Pair Button
22. Open Button
23. Battery Capacity Indicator
24. Catch
25. Charging Port (DC 5V)
26. Foam Windshield
27. Fur windscreen
28. (11.8'') 30cm Type-C to
USB-A Charging Cable
Charging Case
7
8
9
10
11
12
13
12
14
12
15
16
18
17
19
20
21
22
23 24
25
26
28
27
7
Status
Power On
Power O
Entering
Pairing Mode
Paired
Successfully
Disconnected/
Outof
Connection
Mode
Low-battery
Warning
Mute On
(TX Only)
Charging
Open/Closed
* Please neatly placed the device in the charging case, to ensure that
they can be charged.
Low-battery Warning
Charging
Fully Charged
Current Battery’s Capacity
Flashes White Light
Flashes White Light in Cycle
Lights O
Fully Charged
/
/
/
/
Lights On
Lights O
Quick Flashing in
Blue Light
Solid Blue Light
Slow Flashing in
Blue Light
Flashes Red Light
Slow Flashing
Red Light
Solid Red Light
Red Lights O
1) Open the cover of case.
2) Long press the power
button of transmitter and
receiver until they turn on.
1) Replace the device to the
case, and close the cover.
2) Long press the power
button of transmitter and
receiver until they turn o.
Quick short press the power
button of transmitter and
receiver twice.
Short press the power button
of transmitter
Operation Indicator
Status Indicator
Transmitter & Receivers’ LED Status
Charging Case’s LED Status Lights
NOTE:
Make sure that transmitter and receiver place
on the right position and direction for charging
successfully as shown above
8

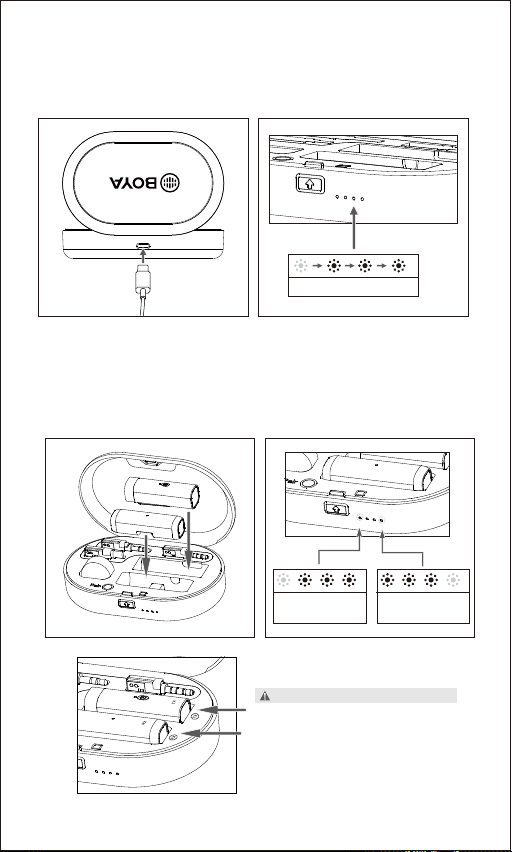

Charging Indicator (Charging Case)
Flashes White Light in Cycle
Transmitter
Flashes White Light
Receiver
Flashes White Light
Charging Indicator
(Transmitter & Receiver Charging)
9
Transmitter
Receiver
How to use?
